2A9MRSI-B560Mini PC

User Manual SI-B560 Made in China FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Ervice Assurance Thank you for purchasing this product. You can enjoy one-year free space parts and manual service assurance provided by our company. Service support Email:[email protected] The following conditions lead to the need for our company to provide services, and the maintenance fees will be charged as appropriate: .Failure to perform proper operations according to the user manual or instructions. .Man-made damage, computer viruses, dampness, improper software installation or self-disassembly, etc. .Fire, flood, wind, earthquake and other irresistible forces. .Abrasive wear caused by accessories, consumables and natural use. .If we need to re-install software or adjust computer setting on our behalf, we will charge fees as appropriate. .Our company provides warranty for the damaged or dirty logo which may result in un-recognizability. Please backup your personal data before sending the product to repair. Product Interface Description 1, HD Port 2,USB3.0 3,LAN 4, Power Input 5, Type-C (DP/DATA) 6,Fan outlet 7,Earphone 8,Power Button 9，USB2.0 Instructions 1. Connect the device with the display device (such as TV, screen, projector, etc.) via HD line, and select the “video input source” of the display device to the connected HD input channel. 2. DC power supply: Connect the DC interface of the power cord of the accessories to the device and insert the other end directly into the socket. 3. Use the device by connecting it with a wired or wireless keyboard and mouse via USB port. 4. Press the power button to start the system. Packing List: 1. Computer Box *1 2. User Manual *1 3. Power Adapter *1 4. HDMI Wire * 1 5. Rack Accessories *1 Note 1. This Low-power RF motor is a certified and qualified product. Companies, businesses or individuals may not change the frequency, enhance the power or change the characteristics and functions of the original design without permission. 2. Low-frequency RF motors should not affect flight safety and interface with legitimate communication when they are used. When interference is found, they should be stopped using immediately and be improved to no interference before they can continue to be used. Legitimate communication refers to wireless communication in the work prescribed by law. Low-frequency RF motor must be able to tolerate the interference of legitimate communication or electromagnetic radiation motor equipment for industrial, scientific and medical purposes. 3. This product contains miniature batteries for mainboard CMOS, which can’t be replaced by consumers themselves. It may be dangerous if consumer replace incorrect types of batteries by themselves. Please properly handle the battery replacement. Attention 1. This product is suitable for places below 3000 meters above sea level, this product is only suitable for non-tropical areas. 2. After abnormal withdrawal or accidental power failure of the mini pc system, the hard disk scanning should be carried out as soon as possible to repair the errors in time. 3. If you do not use the device for a long time, Please unplug the power adapter. 4. The ideal working temperature of the device is 10-35 degrees, and the relative humidity is 30-80%. 5. The device should not be turn on or off frequently. 6. Don’t get water, food and other fluids onto the device, and don’t pull the data and power lines with force. 7. Avoid direct exposure of strong light to the device, and do not put it near the strong magnetic field SI-B560 MINIPC ▼ English

FCC Software Configuration Control Declaration Rev1.1 Shenzhen Simo Innovation Technology Co., Ltd. FCC Software Configuration Control Declaration Date: December 16, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Mini PC / SI-B560 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: xiaona Yue Date: 2022/12/16 Title: Manager Signature of applicant

Shenzhen Simo Innovation Technology Co., Ltd. Agent Authorization Company: Shenzhen Simo Innovation Technology Co., Ltd. Address: 2/F, Building H, Xusheng wanda Industrial Park, Zhoushi Road, Shiyan Street, Baoan District Shenzhen, China Product Name: Mini PC Trade Mark: N/A Model Number(s): SI-B560 FCC ID: 2A9MRSI-B560 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-12-16 Name: xiaona Yue Title: Manager Company: Shenzhen Simo Innovation Technology Co., Ltd.

Shenzhen Simo Innovation Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-12-16 Subject; Request for Confidentiality FCC ID: 2A9MRSI-B560 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: xiaona Yue / Manager Company: Shenzhen Simo Innovation Technology Co., Ltd. Address: 2/F, Building H, Xusheng wanda Industrial Park, Zhoushi Road, Shiyan Street, Baoan District Shenzhen, China Phone: 15986749272 Fax: / E-Mail: [email protected]

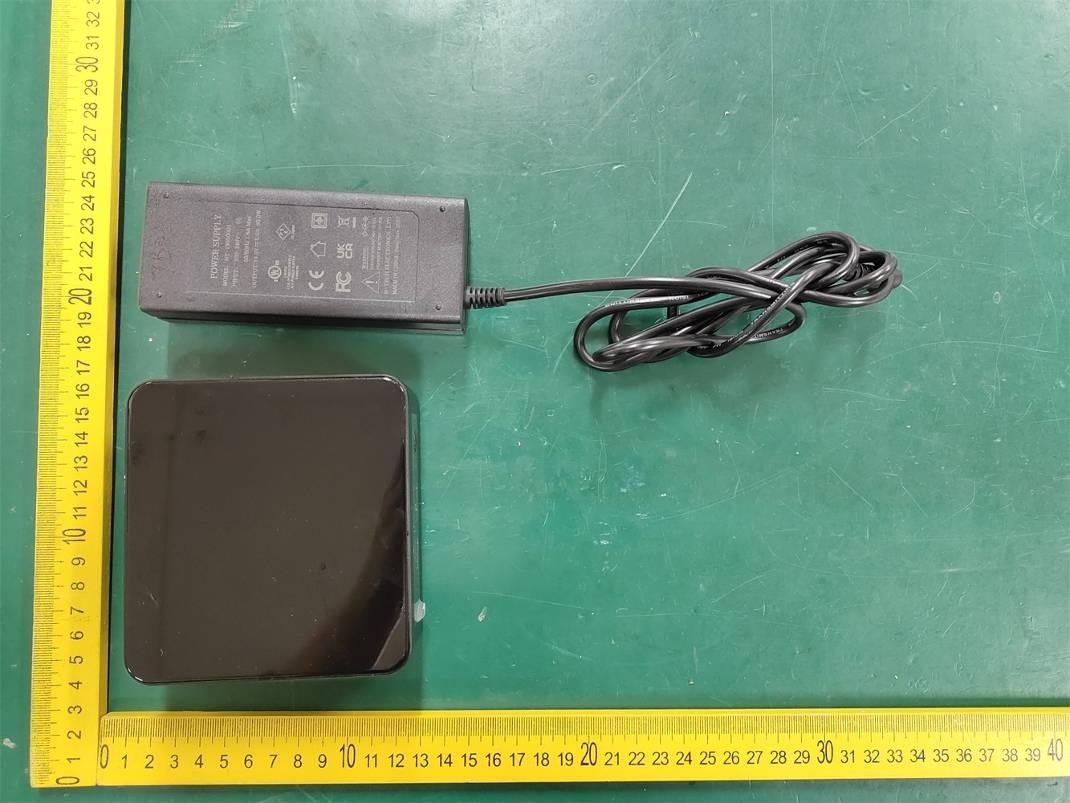

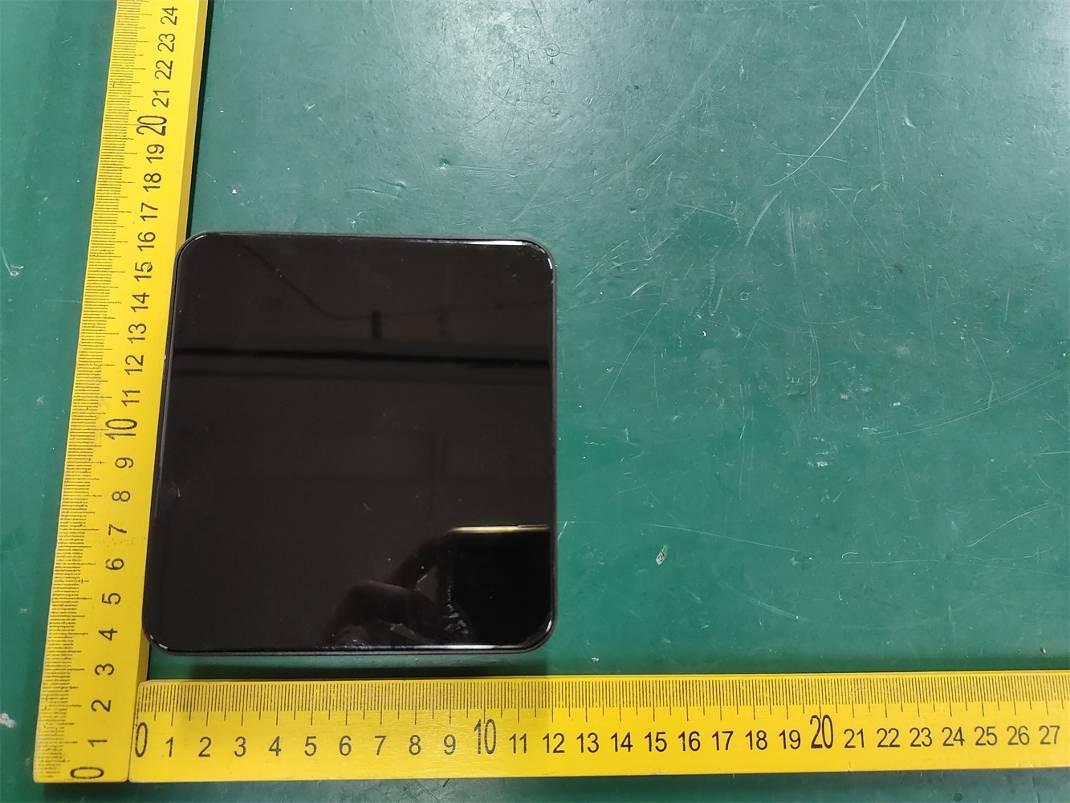

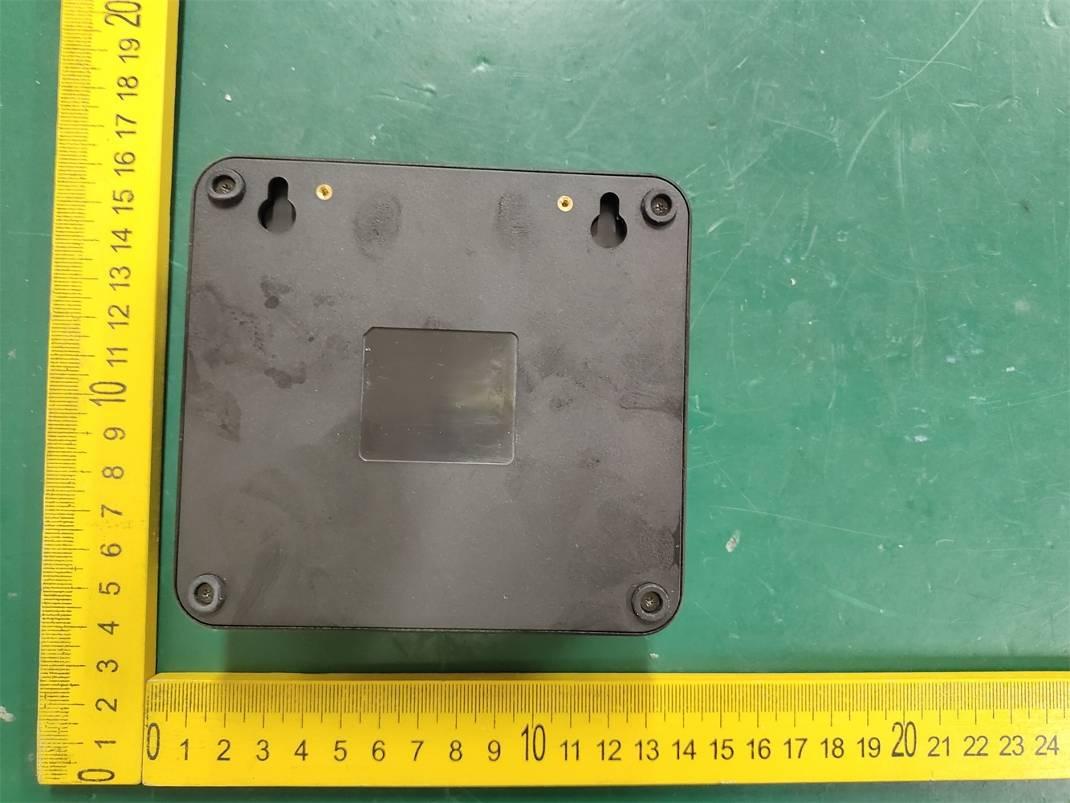

FCC ID: 2A9MRSI-B560 Fig. 1 Fig. 2 FCC ID: 2A9MRSI-B560 Fig. 3 Fig. 4 FCC ID: 2A9MRSI-B560 Fig. 5 Fig. 6 FCC ID: 2A9MRSI-B560 Fig. 7 Fig. 8

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.5cm x 2.9cm) Label Location

FCC ID: 2A9MRSI-B560 Fig. 1 Fig. 2 FCC ID: 2A9MRSI-B560 Fig. 3 Fig. 4 FCC ID: 2A9MRSI-B560 Fig. 5 Fig. 6 FCC ID: 2A9MRSI-B560 Fig. 7 Fig. 8 FCC ID: 2A9MRSI-B560 Fig. 9 Fig. 10 BT&WLAN ANT 1 WLAN ANT 2 FCC ID: 2A9MRSI-B560 Fig. 11 Fig. 12 FCC ID: 2A9MRSI-B560 Fig. 13 Fig. 14 FCC ID: 2A9MRSI-B560 Fig. 15 Fig. 16 FCC ID: 2A9MRSI-B560 Fig. 17 Fig. 18 FCC ID: 2A9MRSI-B560 Fig. 19 Fig. 20 FCC ID: 2A9MRSI-B560 Fig. 21

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20221124022-1-5 2A9MRSI-B560 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Dec. 10, 2022 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Simo Innovation Technology Co., Ltd. Address ............................................ : 2/F, Building H, Xusheng wanda Industrial Park, Zhoushi Road, Shiyan Street, Baoan District Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mini PC Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Simo Innovation Technology Co., Ltd. Model/Type reference ...................... : SI-B560 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac GFSK, π/4-DQPSK, 8DPSK Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz, 2402MHz to 2480MHz Hardware Version ............................ : MX-TB03_MB_V200 Software Version .............................. : TB03_SMW_01_AUTO Rating ............................................... : DC 19.0V/5.0A by Adapter Result ............................................... : PASS Report No.: GTS20221124022-1-5 Page 2 of 25 T E S T R E P O R T Test Report No. : GTS20221124022-1-5 Dec. 10, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mini PC Model /Type : SI-B560 Listed model : N/A Applicant : Shenzhen Simo Innovation Technology Co., Ltd. Address : 2/F, Building H, Xusheng wanda Industrial Park, Zhoushi Road, Shiyan Street, Baoan District Shenzhen, China Manufacturer : Shenzhen Simo Innovation Technology Co., Ltd. Address : 2/F, Building H, Xusheng wanda Industrial Park, Zhoushi Road, Shiyan Street, Baoan District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221124022-1-5 Page 3 of 25 Contents 1. SUMMARY .................................................................................................................................................... 4 1.1 EUT CONFIGURATION .................................................................................................................................... 4 1.2 PRODUCT DESCRIPTION ................................................................................................................................ 4 2. TEST ENVIRONMENT .................................................................................................................................. 4 2.1 ADDRESS OF THE TEST LABORATORY .............................................................................................................. 5 2.2 TEST FACILITY ............................................................................................................................................... 5 2.3 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. METHOD OF MEASUREMENT ................................................................................................................... 6 3.1 APPLICABLE STANDARD ................................................................................................................................. 6 3.2 REQUIREMENT .............................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ......................................................................................................................... 7 3.5 ANTENNA INFORMATION ...............................................................................................................................…

Text truncated - open the document above for the full version.

Case No. : GTS20221124022-1-4 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.12.08 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 22.160 5168.920 5191.080 --- --- 5200 23.000 5188.600 5211.600 --- --- 5240 23.040 5228.680 5251.720 --- --- 11N20SISO Ant1 5180 23.560 5167.840 5191.400 --- --- 5200 23.040 5188.560 5211.600 --- --- 5240 23.440 5228.640 5252.080 --- --- 11N40SISO Ant1 5190 41.760 5169.280 5211.040 --- --- 5230 42.960 5208.800 5251.760 --- --- 11AC20SISO Ant1 5180 23.960 5167.800 5191.760 --- --- 5200 22.880 5188.520 5211.400 --- --- 5240 23.240 5228.360 5251.600 --- --- 11AC40SISO Ant1 5190 43.280 5168.640 5211.920 --- --- 5230 42.400 5209.120 5251.520 --- --- 11AC80SISO Ant1 5210 83.200 5168.880 5252.080 --- --- 11AX20SISO Ant1 5180 22.360 5168.840 5191.200 --- --- 5200 22.680 5188.120 5210.800 --- --- 5240 22.720 5228.560 5251.280 --- --- 11AX40SISO Ant1 5190 43.040 5168.800 5211.840 --- --- 5230 41.440 5209.360 5250.800 --- --- 11AX80SISO Ant1 5210 82.720 5168.400 5251.120 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.991 5171.498 5188.489 --- --- 5200 16.993 5191.508 5208.501 --- --- 5240 16.984 5231.480 5248.464 --- --- 11N20SISO Ant1 5180 18.004 5171.003 5189.007 --- --- 5200 18.027 5191.021 5209.048 --- --- 5240 18.016 5230.979 5248.995 --- --- 11N40SISO Ant1 5190 36.242 5171.907 5208.149 --- --- 5230 36.267 5211.859 5248.126 --- --- 11AC20SISO Ant1 5180 17.990 5171.017 5189.007 --- --- 5200 18.044 5190.986 5209.030 --- --- 5240 18.030 5230.960 5248.990 --- --- 11AC40SISO Ant1 5190 36.212 5171.932 5208.144 --- --- 5230 36.242 5211.888 5248.130 --- --- 11AC80SISO Ant1 5210 75.177 5172.420 5247.597 --- --- 11AX20SISO Ant1 5180 18.966 5170.536 5189.502 --- --- 5200 18.991 5190.499 5209.490 --- --- 5240 19.013 5230.529 5249.542 --- --- 11AX40SISO Ant1 5190 37.698 5171.142 5208.840 --- --- 5230 37.576 5211.241 5248.817 --- --- 11AX80SISO Ant1 5210 76.858 5171.617 5248.475 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.4: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 2.09 2.17 96.31 5200 2.09 2.17 96.31 5240 2.09 2.17 96.31 11N20SISO Ant1 5180 7.93 8.02 98.88 5200 7.93 8.02 98.88 5240 7.94 8.02 99.00 11N40SISO Ant1 5190 7.94 8.02 99.00 5230 7.93 8.02 98.88 11AC20SISO Ant1 5180 7.92 8.01 98.88 5200 7.93 8.02 98.88 5240 7.92 8.01 98.88 11AC40SISO Ant1 5190 7.91 8.00 98.88 5230 7.91 8.00 98.88 11AC80SISO Ant1 5210 7.93 8.02 98.88 11AX20SISO Ant1 5180 0.30 0.34 88.24 5200 0.30 0.33 90.91 5240 0.29 0.33 87.88 11AX40SISO Ant1 5190 0.30 0.34 88.24 5230 0.30 0.34 88.24 11AX80SISO Ant1 5210 0.30 0.34 88.24 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[ MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 11.89 96.31 0.16 12.05 ≤23.98 PASS 5200 12.32 96.31 0.16 12.48 ≤23.98 PASS 5240 12.16 96.31 0.16 12.32 ≤23.98 PASS 11N20SISO Ant1 5180 12.06 98.88 0.05 12.11 ≤23.98 PASS 5200 12.29 98.88 0.05 12.34 ≤23.98 PASS 5240 12.10 99.00 0.04 12.14 ≤23.98 PASS 11N40SISO Ant1 5190 12.34 99.00 0.04 12.38 ≤23.98 PASS 5230 12.36 98.88 0.05 12.41 ≤23.98 PASS 11AC20SIS O Ant1 5180 11.99 98.88 0.05 12.04 ≤23.98 PASS 5200 12.25 98.88 0.05 12.30 ≤23.98 PASS 5240 12.07 98.88 0.05 12.12 ≤23.98 PASS 11AC40SIS O Ant1 5190 12.30 98.88 0.05 12.35 ≤23.98 PASS 5230 12.34 98.88 0.05 12.39 ≤23.98 PASS 11AC80SIS O Ant1 5210 12.35 98.88 0.05 12.40 ≤23.98 PASS 11AX20SIS O Ant1 5180 8.51 88.24 0.54 9.05 ≤23.98 PASS 5200 8.64 90.91 0.41 9.05 ≤23.98 PASS 5240 8.74 87.88 0.56 9.30 ≤23.98 PASS 11AX40SIS O Ant1 5190 8.47 88.24 0.54 9.01 ≤23.98 PASS 5230 8.59 88.24 0.54 9.13 ≤23.98 PASS 11AX80SIS O Ant1 5210 8.44 88.24 0.54 8.98 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix D.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 3.34 ≤11.00 PASS 5200 3.42 ≤11.00 PASS 5240 2.87 ≤11.00 PASS 11N20SISO Ant1 5180 2.85 ≤11.00 PASS 5200 3.00 ≤11.00 PASS 5240 3.17 ≤11.00 PASS 11N40SISO Ant1 5190 0.15 ≤11.00 PASS 5230 -0.18 ≤11.00 PASS 11AC20SISO Ant1 5180 2.47 ≤11.00 PASS 5200 3.83 ≤11.00 PASS 5240 2.48 ≤11.00 PASS 11AC40SISO Ant1 5190 0.02 ≤11.00 PASS 5230 -0.44 ≤11.00 PASS 11AC80SISO Ant1 5210 -2.59 ≤11.00 PASS 11AX20SISO Ant1 5180 6.40 ≤11.00 PASS 5200 6.47 ≤11.00 PASS 5240 6.33 ≤11.00 PASS 11AX40SISO Ant1 5190 3.95 ≤11.00 PASS 5230 3.41 ≤11.00 PASS 11AX80SISO Ant1 5210 0.94 ≤11.00 PASS Note：1.The Result and Limit Unit is…

Text truncated - open the document above for the full version.

Appendix D.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -36.44 ≤-27 PASS High 5240 -37.74 ≤-27 PASS 11N20SISO Ant1 Low 5180 -37.92 ≤-27 PASS High 5240 -37.72 ≤-27 PASS 11N40SISO Ant1 Low 5190 -37.07 ≤-27 PASS High 5230 -38.48 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -37.36 ≤-27 PASS High 5240 -37.65 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -37.63 ≤-27 PASS High 5230 -37.78 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -35.67 ≤-27 PASS High 5210 -37.81 ≤-27 PASS 11AX20SISO Ant1 Low 5180 -37.77 ≤-27 PASS High 5240 -37.74 ≤-27 PASS 11AX40SISO Ant1 Low 5190 -37.61 ≤-27 PASS High 5230 -37.18 ≤-27 PASS 11AX80SISO Ant1 Low 5210 -37.6 ≤-27 PASS High 5210 -38.18 ≤-27 PASS Test Graphs B1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 11AX20SISO_Ant1_Low_5180 11AX20SISO_Ant1_High_5240 11AX40SISO_Ant1_Low_5190 11AX40SISO_Ant1_High_5230 11AX80SISO_Ant1_Low_5210 11AX80SISO_Ant1_High_5210 Appendix D.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 5127.05 -46.36 ≤-27 PASS 5360~40000 26686.94 -37.28 ≤-27 PASS 5200 30~5140 5109.17 -46.53 ≤-27 PASS 5360~40000 24284.18 -37.74 ≤-27 PASS 5240 30~5140 1760.59 -44.32 ≤-27 PASS 5360~40000 25240.67 -37.47 ≤-27 PASS 11N20SISO Ant1 5180 30~5140 5139.83 -45.38 ≤-27 PASS 5360~40000 26800.19 -37.78 ≤-27 PASS 5200 30~5140 4806.15 -46.88 ≤-27 PASS 5360~40000 24899.48 -38.05 ≤-27 PASS 5240 30~5140 4954.51 -46.63 ≤-27 PASS 5360~40000 26948.06 -38.28 ≤-27 PASS 11N40SISO Ant1 5190 30~5140 5127.91 -42.38 ≤-27 PASS 5360~40000 25188.01 -38.27 ≤-27 PASS 5230 30~5140 5122.12 -46.45 ≤-27 PASS 5360~40000 26862.95 -37.76 ≤-27 PASS 11AC20SISO Ant1 5180 30~5140 5126.2 -46.36 ≤-27 PASS 5360~40000 26837.7 -38.62 ≤-27 PASS 5200 30~5140 2668.63 -46.38 ≤-27 PASS 5360~40000 24279.13 -38.05 ≤-27 PASS 5240 30~5140 5082.6 -46.73 ≤-27 PASS 5360~40000 25697.27 -37.54 ≤-27 PASS 11AC40SISO Ant1 5190 30~5140 5136.93 -42.8 ≤-27 PASS 5360~40000 24310.15 -37.9 ≤-27 PASS 5230 30~5140 2636.95 -47.15 ≤-27 PASS 5360~40000 24789.11 -38.4 ≤-27 PASS 11AC80SISO Ant1 5210 30~5140 5128.59 -41.07 ≤-27 PASS 5360~40000 24302.93 -37.75 ≤-27 PASS 11AX20SISO Ant1 5180 30~5140 4895.74 -46.85 ≤-27 PASS 5360~40000 26911.28 -38.52 ≤-27 PASS 5200 30~5140 4773.61 -47.09 ≤-27 PASS 5360~40000 25252.93 -37.24 ≤-27 PASS 5240 30~5140 5028.94 -47.39 ≤-27 PASS 5360~40000 24379.4 -37.72 ≤-27 PASS 11AX40SISO Ant1 5190 30~5140 5139.32 -46.49 ≤-27 PASS 5360~40000 24727.08 -38.05 ≤-27 PASS 5230 30~5140 4892.17 -46.89 ≤-27 PASS 5360~40000 24212.05 -37.68 ≤-27 PASS 11AX80SISO Ant1 5210 30~5140 5128.42 -45.48 ≤-27 PASS 5360~40000 26077.41 -37.28 ≤-27 PASS Test Graphs 11A_Ant1_5180_30~5140 11A_Ant1_5180_5360~40000 11A_Ant1_5200_30~5140 11A_Ant1_5200_5360~40000 11A_Ant1_5240_30~5140 11A_Ant1_5240_5360~40000 11N20SISO_Ant1_5180_30~5140 11N20SISO_Ant1_5180_5360~40000 11N20SISO_Ant1_5200_30~5140 11N20SISO_Ant1_5200_5360~40000 11N20SISO_Ant1_5240_30~5140 11N20SISO_Ant1_5240_5360~40000 11N40SISO_Ant1_5190_30~5140 11N40SISO_Ant1_5190_5360~40000 11N40SISO_Ant1_5230_30~5140 11N40SISO_Ant1_5230_5360~40000 11AC20SISO_Ant1_5180_30~5140 11AC20SISO_Ant1_5180_5360~40000 11AC20SISO_Ant1_5200_30~5140 11AC20SISO_Ant1_5200_5360~40000 11AC20SISO_Ant1_5240_30~5140 11AC20SISO_Ant1_5240_5360~40000 11AC40SISO_Ant1_5190_30~5140 11AC40SISO_Ant1_5190_5360~40000 11AC40SISO_Ant1_5230_30~5140 11AC40SISO_Ant1_5230_5360~40000 11AC80SISO_Ant1_5210_30~5140 11AC80SISO_Ant1_5210_5360~40000 11AX20SISO_Ant1_5180_30~5140 11AX20SISO_Ant1_5180_5360~40000 11AX20SISO_Ant1_5200_30~5140 11AX20SISO_Ant1_5200_5360~40000 11AX20SISO_Ant1_5240_30~5140 11AX20SISO_Ant1_5240_5360~40000 11AX40SISO_Ant1_5190_30~5140 11AX40SISO_Ant1_5190_5360~40000 11AX40SISO_Ant1_5230_30~5140 11AX40SISO_Ant1_5230_5360~40000 11AX80SISO_Ant1_5210_30~5140 11AX80SISO_Ant1_5210_5360~40000

Case No. : GTS20221124022-1-4 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.12.08 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 22.960 5168.400 5191.360 --- --- 5200 22.720 5188.800 5211.520 --- --- 5240 22.680 5228.720 5251.400 --- --- 11N20SISO Ant1 5180 23.920 5168.240 5192.160 --- --- 5200 23.240 5188.280 5211.520 --- --- 5240 23.400 5228.520 5251.920 --- --- 11N40SISO Ant1 5190 42.800 5168.480 5211.280 --- --- 5230 43.440 5208.240 5251.680 --- --- 11AC20SISO Ant1 5180 23.840 5168.200 5192.040 --- --- 5200 24.520 5187.640 5212.160 --- --- 5240 22.760 5228.680 5251.440 --- --- 11AC40SISO Ant1 5190 41.680 5169.120 5210.800 --- --- 5230 43.760 5207.680 5251.440 --- --- 11AC80SISO Ant1 5210 84.640 5167.760 5252.400 --- --- 11AX20SISO Ant1 5180 22.920 5168.600 5191.520 --- --- 5200 22.440 5189.080 5211.520 --- --- 5240 22.320 5228.920 5251.240 --- --- 11AX40SISO Ant1 5190 41.520 5168.960 5210.480 --- --- 5230 43.760 5207.680 5251.440 --- --- 11AX80SISO Ant1 5210 81.920 5169.520 5251.440 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 18.031 5171.042 5189.073 --- --- 5200 18.004 5191.054 5209.058 --- --- 5240 17.983 5231.021 5249.004 --- --- 11N20SISO Ant1 5180 18.018 5171.044 5189.062 --- --- 5200 17.982 5191.050 5209.032 --- --- 5240 18.081 5230.967 5249.048 --- --- 11N40SISO Ant1 5190 36.186 5171.973 5208.159 --- --- 5230 36.242 5211.871 5248.113 --- --- 11AC20SISO Ant1 5180 18.052 5171.044 5189.096 --- --- 5200 17.993 5191.046 5209.039 --- --- 5240 17.981 5231.020 5249.001 --- --- 11AC40SISO Ant1 5190 36.176 5171.978 5208.154 --- --- 5230 36.197 5211.905 5248.102 --- --- 11AC80SISO Ant1 5210 74.938 5172.723 5247.661 --- --- 11AX20SISO Ant1 5180 18.976 5170.512 5189.488 --- --- 5200 19.004 5190.489 5209.493 --- --- 5240 19.057 5230.490 5249.547 --- --- 11AX40SISO Ant1 5190 37.657 5171.134 5208.791 --- --- 5230 37.642 5211.242 5248.884 --- --- 11AX80SISO Ant1 5210 76.913 5171.628 5248.541 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 7.92 8.01 98.88 5200 7.92 8.01 98.88 5240 7.93 8.01 99.00 11N20SISO Ant1 5180 7.93 8.02 98.88 5200 7.93 8.01 99.00 5240 7.93 8.02 98.88 11N40SISO Ant1 5190 7.94 8.02 99.00 5230 7.93 8.02 98.88 11AC20SISO Ant1 5180 7.92 8.01 98.88 5200 7.92 8.01 98.88 5240 7.93 8.01 99.00 11AC40SISO Ant1 5190 7.92 8.00 99.00 5230 7.91 8.00 98.88 11AC80SISO Ant1 5210 7.93 8.02 98.88 11AX20SISO Ant1 5180 0.29 0.33 87.88 5200 0.30 0.34 88.24 5240 0.29 0.33 87.88 11AX40SISO Ant1 5190 0.30 0.34 88.24 5230 0.29 0.33 87.88 11AX80SISO Ant1 5210 0.30 0.34 88.24 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_…
