PL www.axtelworld.com NEW GENERATION OF PROFESSIONAL HEADSETS INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL PL EN Axtel Prime X3 Duo Headset Axtel Prime X3 Duo Base www.axtelworld.com2 Welcome to the world of Axtel. The product is co-financed from EU funds, project number: POIR.03.02.01-0016/18-00 Made in the EU EN 3 CONTENTS 1. Contents of the package 4 2. Product description 5 2.1 Description of the headset 5 2.2 Description of the base station 6 3. First start-up 7 3.1. Connecting the device 7 3.2 Activating the headset 7 3.3 Turning off the headset and the base 7 3.4 Pairing – connecting a new headset to the base 7 4. Headset setup 7 4.1 Connecting to a desk phone 7 4.2 Connecting to a computer 9 4.3 Connecting to a mobile phone 9 5. Use 9 5.1 Answering and ending calls 9 5.2 Desk phone 10 5.3 Call managing 10 5.4 Adjusting the volume for each channel separately 10 5.5 Muting the microphone 10 5.6 Loss of signal and connection with the base 11 5.7 Hearing protection adjustment 11 5. 8 Headset and base localizer 11 5.9 Listening-in on the channel: 11 Computer and Mobile Phone (Bluetooth ® ) 5.10 Information about battery status 11 and active channel 5.11 Resetting the headset 12 6. Voice messages 12 7. Recommendations 13 8. Declarations and warnings 13 9. Headset parameters 14 10. Accessories 15 www.axtelworld.com4 1. Contents of the package Binaural headset Wireless DECT headset with advanced noise cancellation DECT Base station Headset base for charging and call control 12 V power supply Region-specific power supply version MicroUSB/USB-A cable USB connection cable, connecting the base station to a computer Picture 1 Figure 3 Figure 5 Picture 2 Base station RJ9/RJ9 cable (PN AXP-XRJ) Specially designed connection cable compatible with most desk phone models available on the market. Figure 4 EN 5 2. Product description 2.1 Description of the headset Binaural (DECT) headset with a microphone: Flexible and adjustable headband – allows for proper adjustment to the shape of your head MFB – multifunction button for switching on and off, answering calls and switching between channels Dock connector – for charging and communication with the base Microphone mute (MUTE) – turn on and off by pressing both +/- volume control buttons simultaneously Figure 6 Volume up button (+) – increases the volume Volume down button (-) – lowers the volume Reset button Adjustable microphone arm www.axtelworld.com6 BA S E STATI ON 2.2 Description of the base station 4 buttons on the base Docking port for the headset – charging – pairing 1234 MicroUSB socket connecting to a computer Power supply socket 12 V connecting to the power supply RJ9 socket connecting the headset to a desk phone Buttons for the adjustment of microphone sensitivity RJ9 socket connecting a desk phone RJ45 socket socket for remote reception (EHS) FIgure 7FIgure 8 The base station enables the connection of 3 communication channels (Desk phone , Computer and Mobile phone) and makes it possible to handle calls (answering, ending, switching, putting on hold ). 1. The Desk Phone button activates the desk phone transmission channel 2. The Computer button activates the computer/laptop transmis - sion channel. 3. The Mobile Phone button activates the mobile phone Blue - tooth ® transmission channel. 4. The Microphone Mute (MUTE) button mutes and unmutes the microphone. EN 7 3. First start-up 3.1. Connecting the device Connect the base station to a power source using the power adapter included in the package. Correct connection is indicated by an acous - tic signal from the base. 3.2 Activating the headset There are two ways to start the headset: a) Press the MFB button for about 1 second. When the device turned on, a sound will play from the headset. b) By placing the headset on the base station socket. Correct start-up and pairing of the headset with the base will be indi - cated by an acoustic signal, and the MFB will stop flashing. 3.3 Turning off the headset and the base To turn off the headset, press the MFB for 5 seconds. A sound signal in the headset indicates that it has been turned off. To turn off the base, disconnect the power cable. 3.4 Pairing – connecting a new headset to the base Put an enabled headset on an enabled base, then press the Desk phone button . This action is going to begin the process of pairing the headset. Headset delivered along with the whole set does not require pairing. 4. Headset setup 4.1 Connecting to a desk phone (see Figure 9 and 10) There are three distinct ways to connect your Prime X3 to a desk phone a) Connecting to a desk phone equipped with a dedicated headset port. b) Connecting to a deskphone that does not have a dedicated headset port. c) Optional connection via EHS cable. Note: Some phones require a different cable with an appropriate plug dedicated to the particular phone model (e.g. Jack 2.5 mm, Jack 3.5 mm, RJ45). In this case you need to buy the right cable (section 10. Accessories). https://axtelworld.com/headsets/compatibility/ * The Prime X3 is not to be connected simultaneously to the headset and handset socket in the desk phone. www.axtelworld.com8 a) Connecting to a desk phone equipped with a dedicated headset port. Connect the Prime X3 with a desk phone by plugging in one end of the supplied AXP-XRJ connection cable to the dedicated headset port in the desk phone , and the other one into the desk phone socket in the base. (see Figure 9a) b) Connecting to a desk phone that does not have a headset port. Plug the Axtel Prime X3 headset into the desk phone handset port. To do it, unplug the desk phone handset from the desk phone, then plug it into the handset socket in the base. Connect the base station to the desk phone with the provided AXP-XRJ cable – one end into the handset socket in the desk phone and the other into the desk phone socket in the base. (see Figure 9b) c) Optional connection to the mechanical hook switch lifter the corre- sponding socket on the base (see figure 10) Receiving calls…

Text truncated - open the document above for the full version.

U.S. AGENT LETTER OF ATTESTATION Date: 2023-04-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2A9UU-PRXHDM Axtel sp. z o.o. sp. k. (“the Applicant”) certifies that, as of the date of the filing of the application, Shop4Tele Inc is our designated U.S. agent for service of process for the above referenced FCC ID. Axtel sp. z o.o. sp. k. (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Shop4Tele Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Shop4Tele Inc Address: 35440 Mound Rd, Sterling Heights, MI 48310 FRN: 0033687617 Tel.: 888-282-8878 Email: [email protected] Signed by (printed name): Garri Sahakian Signature: Applicant: Axtel sp. z o.o. sp. k. Address: FRN: 0033218983 Tel: 482-24909713 Email: [email protected] Signed by (printed name): Signature: Woloska 16 st. Warsaw Poland 02-675 Mikolaj Kubiak

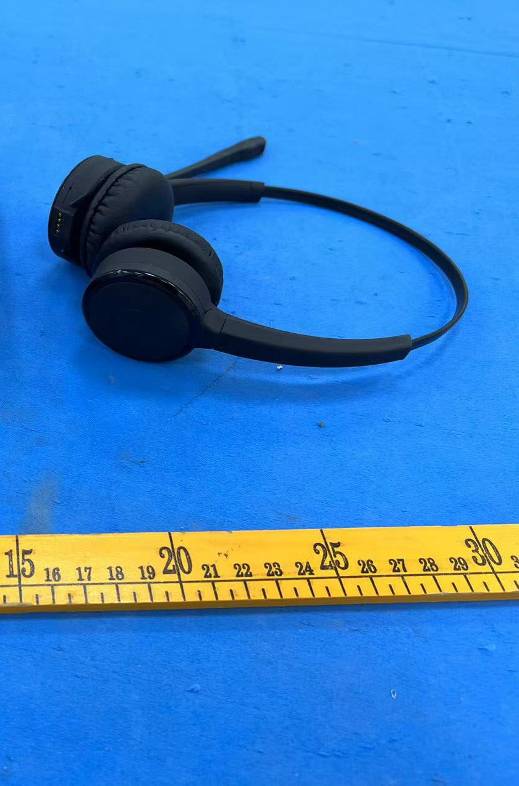

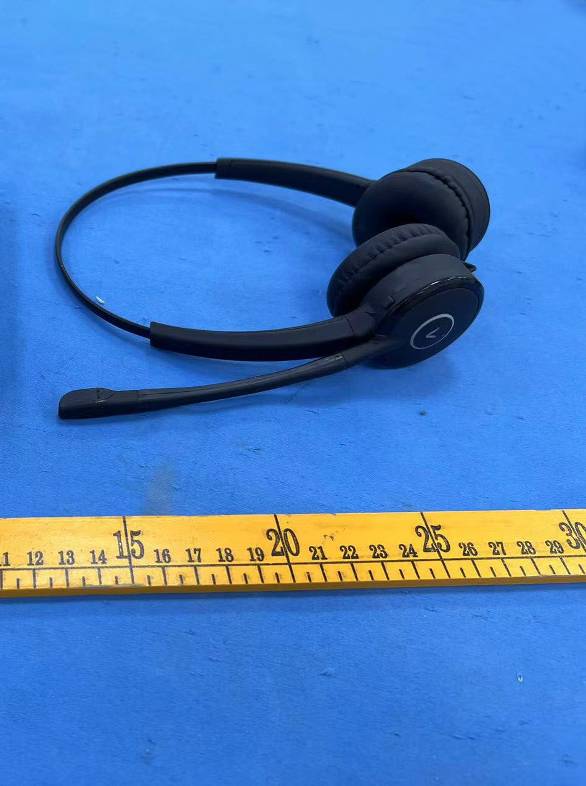

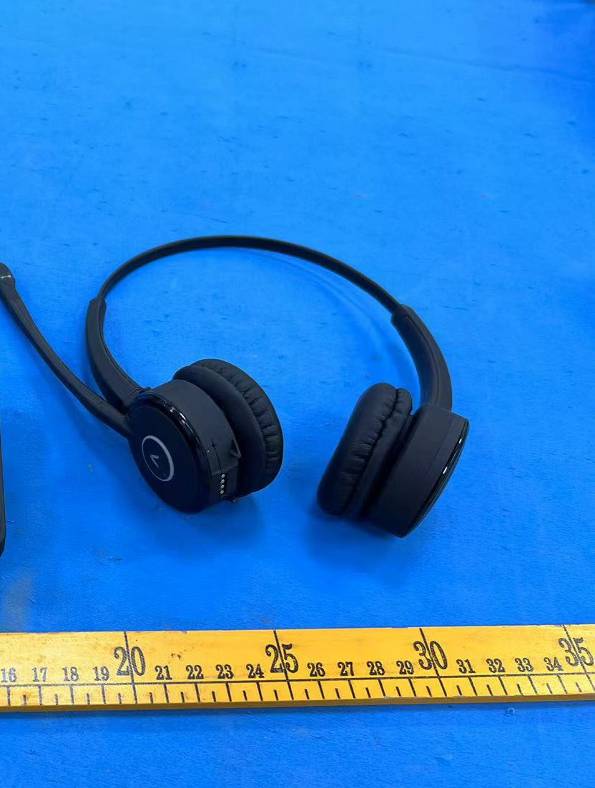

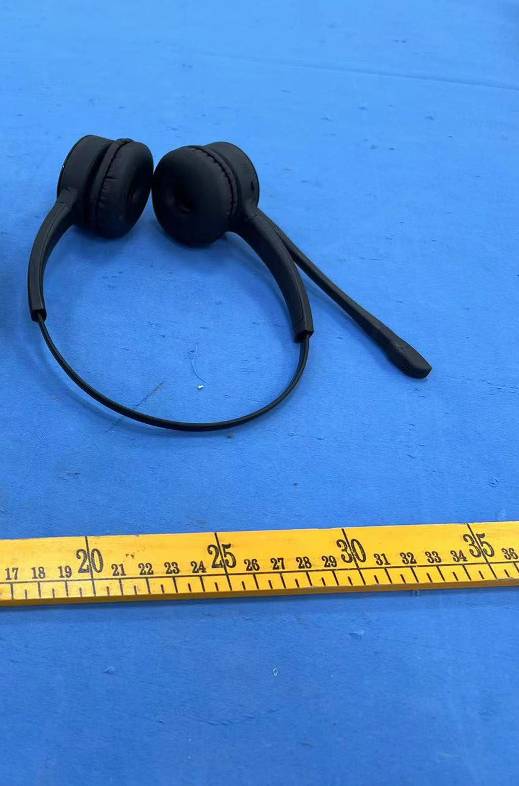

Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A9UU-PRXHDM External Photos Page 1 of 3 External Photos Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A9UU-PRXHDM External Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A9UU-PRXHDM External Photos Page 3 of 3
