2A9WD-RS2ELECTRIC SCOOTER

1 2 3 4 Declaration of conformity Type of device: This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of the declaraton: Electric scooter RS2 RILEY SCOOTER RS2 Model NO: Description: The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: 2011/65/EU amended by 2015/863(EU) 2014/30/EU 2014/35/EU 2006/42/EC 2014/53/EU RoHS directive EMC Directive Low Voltage Directive Machinery Directive RED DIRECTIVE References to the relevant harmonize standards used or references to other technical specification in relation to which conformity is declared: Name of manufacturer: Importer/Distributor contact detail: RILEY SCOOTERS LIMITED Address:Kings Lodge, London Road, Sevenoaks, TN16 5AR, United Kingdom AUTHORISED SIGNATURE: Hayden Riley Founder & CEO Date: 2022-10-28 www.rileyscooters.com Riley Scooters Limited: Kings Lodge, London Road, Sevenoaks, TN15 6AR, United Kingdom BS EN 17128:2020 EN 17128:2020 EN 60335-1:2012 EN 60335-2-29:2004 EN IEC 55014-1:2021 EN IEC 55014-2:2021 EN 61558-1:2005 EN 61558-2-16:2009 EN 55014-1:2021 EN 55014-2:2015 EN 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019 5 6 15-16 17-19 17 18 19 Charging instructions 20 21 22 9. 24 23 8. Riley Scooter APP 10-14 10 11 12 13 14 Folding instructions Assembly instructions 7-8 7 7-9 The manufacturer recommends riders be 14+ years old. WARNING! 7 8 9 10 Accelerator/Throttle Handle Headlight Folding button Folding spanner Anti-slip mat Motor Stand Disc brake Tail lights Number plate Fender clip Fender Charging port Battery clip Detachable battery Hook LED Display Brake lever 11 12 2. Fold clip in firmly, ensuring it clicks and button is tight. Note: If the mechanism becomes loose, tighten the screw accordingly. brake lever to brake. Lightly 2.3 Assembly instructions 3. Attach headset to the stem, then screw in 2 screws each side using the Alle n key provided. 1. Pull up the stem towards the front wheel. Brake lever 13 14 2.4 Folding instructions 1. Push/slide the button up. 2. Pull the clip firmly away from the stem, while pushing the stem down. 3. Fold the stem towards the rear fender. 4. Align the hook with the fender clip on the rear fender and press down till it clicks. 1. Push Battery clip in and hold. 2. Push the battery up, away from the bottom of the stem. 1. Insert the battery horizontally into the pole, while pushing the battery clip in. 2. When in, let go of the battery clip, and push battery down until firmly secure. 15 16 17 18 The inst ructions show you how to charge and maintain the battery and provide some safety notices and the technical specifications. Please use the battery properly according to these instructions to prolong battery life and performance. 4.1 Battery parameters NameParameter TypeLi-ion battery Charging timeApprox. 4-5 hours Voltage36V Working temperature0°C - 35°C Charging Temperature0°C - 35°C Max Charging Volta ge42V Stor age Time (at -10°C – 40°C)3 months (full charge) Initial Volume8.7AH Max Charging Current2A 19 20 Product Unfolded size Folded size Height from baseplate to ground115mm Net weight15.7kg Tyre size10 inch pneumatic air tyre with inner tube Tyre pressure35 P.S.I (2.41 Bar) Waterproof levelIPX4 Basic Information Battery Capacity36V/8.7AH Motor power350W Mileage per charge 28 miles (45km) Max speed 15.5 mph (25km/h) Max loading120kg Climbing angle15° Driving modes3 (beginner, eco, sport) Input voltage100-240Vac Frequency50-60Hz Output voltage42V Output current1.5A/2A Store temperature-10°C-35°C 1131x450x1179mm 1131x450x475mm Charging port Battery connector Charging port 4.3 Charging instructions 21 22 Unable to start upCheck to see if the batt ery is charged. Does not charge1. Check whether the plugboard has electricity. 2. Check the charger to see whether the AC plug is connected (whether the light is on). 3. Check the plug of the charger and the charging port of the e-scooter ha ve been inserted correctly. WARNING! WARNING! 23 24 1x Copy of Manufacturer's Limited Warranty 9. Riley Scooter APP 8. What’s included Stay on the move with our app which connects directly to your scooter through Bluetooth. Get directions, view key riding info, and track your rides effortlessly. Features: • Cockpit showing key riding info • Lock and trace your scooter • Track your rides • Shop our range of accessories Note: When connecting to your scooter ensure your Bluetooth is enabled on your mobile device and the scooter is turned on. Scan to download the App. Alternativelly, go to the Google Play Store (Android) or the Apple App Store (iOS) and search Riley Scooters to download and install the App. Be advised there is a minimum Android/iOS/Bluetooth version required. See user materials for additional details. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not ca…

Text truncated - open the document above for the full version.

Riley Scooters Ltd. Agent Authorization Company: Riley Scooters Ltd. Address: Kings Lodge, London Road, Sevenoaks, TN15 6AR, United Kingdom Product Name: ELECTRIC SCOOTER Model Number(s): RS2,RS1,RS1-D,RS1-E,RS2-D,RS2-E Product Description: ELECTRIC SCOOTER We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan.10,2023 Name: HAYDEN RILEY Title: general manager Company: Riley Scooters Ltd.

Riley Scooters Ltd. Family models declaration letter. Date: January 10, 2023 We Riley Scooters Ltd. Of Kings Lodge, London Road, Sevenoaks, TN15 6AR, United Kingdom Product: ELECTRIC SCOOTER Model Name: RS2 Serial Model: RS1,RS1-D,RS1-E,RS2-D,RS2-E Difference description of series models: All the model are the same circuit and RF module, except the model names. Thanks Sincerely Signature Name: HAYDEN RILEY Date: Jan.10,2023 Title: general manager

Riley Scooters Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 10, 2023 Subject; Request for Confidentiality FCC ID: 2A9WD-RS2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: HAYDEN RILEY Title: general manager

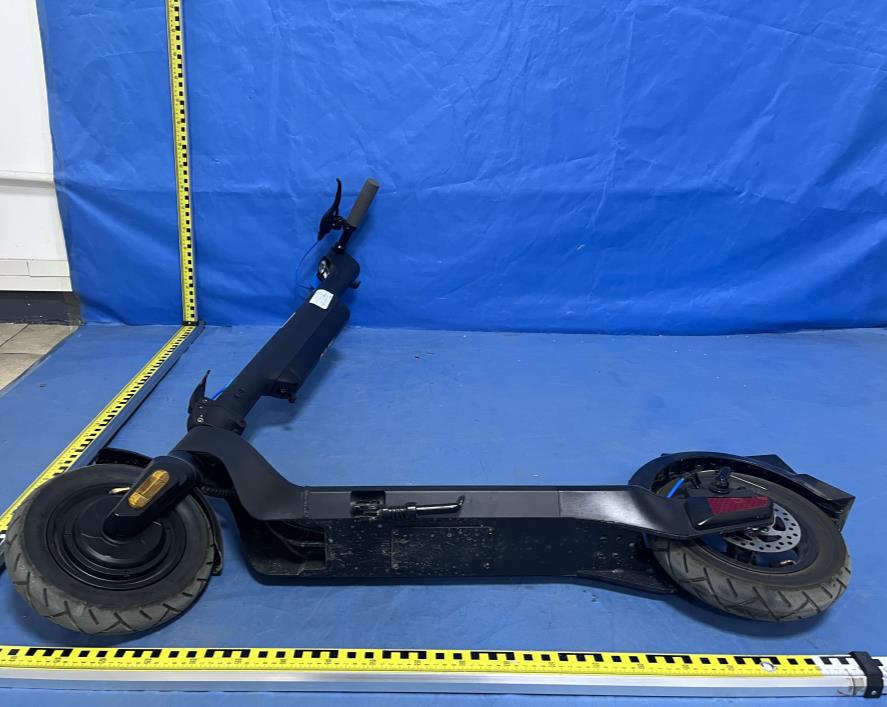

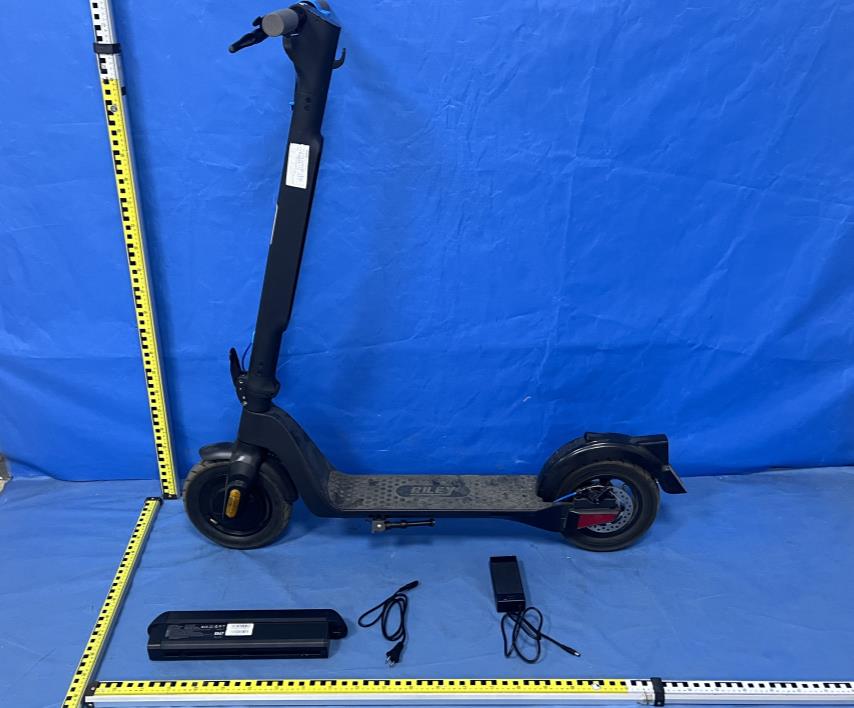

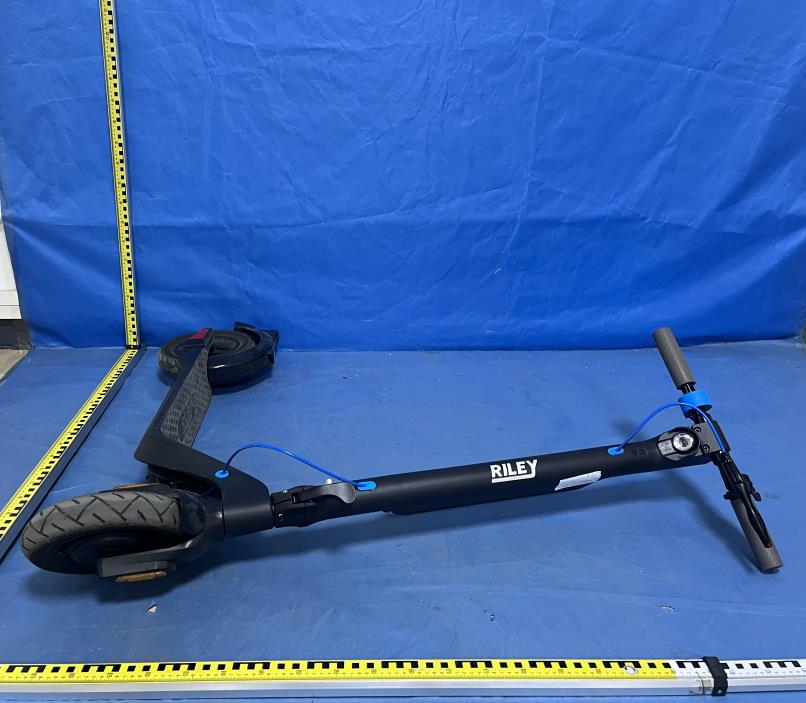

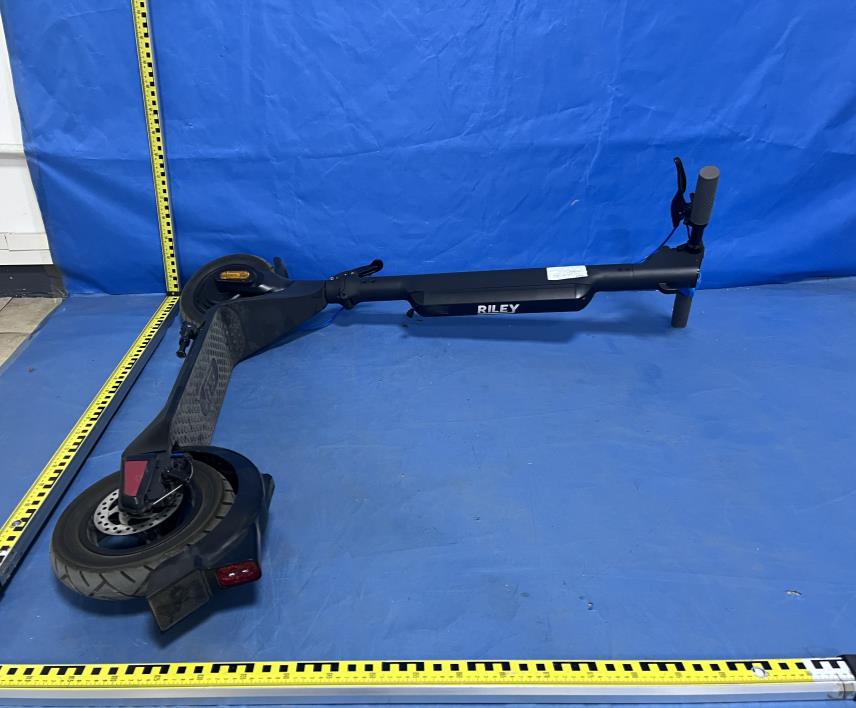

- Page 1 of 4 - ET-22120962 Product Name: ELECTRIC SCOOTER Test Model No.: RS2 Ext Photos - Page 2 of 4 - ET-22120962 - Page 3 of 4 - ET-22120962 - Page 4 of 4 - ET-22120962 -----END-----

Label size:60mm*40mm Label location

- Page 1 of 5 - ET-22120962 Product Name: ELECTRIC SCOOTER Test Model No.: RS2 Internal photos - Page 2 of 5 - ET-22120962 RF ANT - Page 3 of 5 - ET-22120962 - Page 4 of 5 - ET-22120962 - Page 5 of 5 - ET-22120962 ------END-----

FCC ID: 2A9WD-RS2 RF Exposure Evaluation TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). FCC ID: 2A9WD-RS2 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). This exemption may not be used in conjunction with other exemption criteria other than those is paragraph (b)(3)(i)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(i)(A). (B) in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. Where: a = number of fixed, mobile, or portable RF sources claiming exemption using paragraph (b)(3)(i)(B) of Part 1.1307 for Pth, including existing exempt transmitters and those being added. b = number of fixed, mobile, or portable RF sources claiming exemption using paragraph (b)(3)(i)(C) of Part 1.1307 for Threshold ERP, including existing exempt transmitters and those being added. c = number of existing fixed, mobile, or portable RF sources with known evaluation for the specified minimum distance including existing evaluated transmitters. Pi = the available maximum time-averaged power or the ERP, whichever is greater, for fixed, mobile, or portable RF source i at a distance between 0.5 cm and 40 cm (inclusive). Pth,i = the exemption threshold power (Pth) according to paragraph (b)(3)(i)(B) of this section for fixed, mobile, or portable RF source i. FCC ID: 2A9WD-RS2 ERPj = the ERP of fixed, mobile, or portable RF source j. ERPth,j = exemption threshold ERP for fixed, mobile, or portable RF source j, at a distance of at least λ/2π according to the applicable formula of paragraph (b)(3)(i)(C) of Part 1.1307. Evaluatedk = the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limitk = either the general population/uncontrolled maximum permissible exposure (MPE) or specific absorption rate (SAR) limit for each fixed, mobile, or portable RF source k, as applicable from § 1.1310. Test Result of RF Exposure Evaluation Protocol Fre. (GHz) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) ANT Gain ( dBi) Max EIRP (dBm) Max EIRP (mW) Separation distance (cm) Limit (mW) Result BLE 2.480 1.91 2±1 3 -0.58 2.42 1.75 5 2.76 PASS Note: 1. This device is portable device. 2. The source of the evaluation data results is based on the test report ET-22120962E 3. The Maxinum power is less than the limit, complies with the exemption requirements.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.
