2A9XL-REF10000mAh Magsafe wireless power bank

Product Specification QC or PD product product Product instructions Product Description Instruction Manual Magnetic Wireless Charging Power Bank Battery Capacity：10000mAh Input：5V-2A 9V-1.67A 12V-1.5A QC3.0 / PD3.0 Wireless Charging Output：5W / 7.5W / 10W / 15W max Type-C Output：20W(iPhone）max，18W(Android）max Material：ABS+PC Logo：Can be customized Size：109*70*17mm Product weight：186g Working frequency：110-205kHz Transmission distance：3-8mm Conversion efficiency: 78% Power indicator Power Button USB-C Input/Output USB-A Input/Output Bracket 1. Click the power button to turn on, and the power indicator is always on; 2. Put the mobile phone which supporting Qi wireless charging to the charging induction area and enter the charging state; 3. Remove the charging product and stand by for 70 seconds when the power indicator goes out, it will turn off automatically; 4. Double-click the power button to turn off directly; 5. The product and mobile phone can be charged through the PD charging cable; 1007550250 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

JOC Australia Inc * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 2/20/2023 ATTN.: Reviewing Engineer FCC ID: 2A9XL-REF Per section 2.911(d)(7) of the FCC rules, Microwoo Electronic Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: JOC Australia Inc Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights,California,91748 United States of America Agent contact name/Title : Agent Email Address: [email protected]/[email protected] Tel No.: +1(925) 382 3898 FRN No.: 0033379421 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Linda Kang Printed name: Benjamin. Smith Title: Sales Title: Vice President Company Name: Microwoo Electronic Technology Co., Ltd Company Name: JOC Australia Inc Date: 2/20/2023 Date: 2/20/2023 Benjamin. Smith / Vice President

Microwoo Electronic Technology Co., Ltd Agent Authorization Company: Microwoo Electronic Technology Co., Ltd Address: NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Product Name: 10000mAh Magsafe wireless power bank Model Number(s): REF-TRAVEL001, MW-T009, MW-T009S Product Description: 10000mAh Magsafe wireless power bank We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023.02.22 Name: Linda Kang Title: Sales Company: Microwoo Electronic Technology Co., Ltd

Differences Description We Microwoo Electronic Technology Co., Ltd state: Product： 10000mAh Magsafe wireless power bank Model Name： REF-TRAVEL001, MW-T009, MW-T009S Trade Name: N/A FCC ID: 2A9XL-REF The Model Differences show as below table: The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name and colors. Signatory Date 2023-02-22 Signature: Name: Linda Kang Title: Sales Company: Microwoo Electronic Technology Co., Ltd Address: NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China.

Microwoo Electronic Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.02.22 Subject; Request for Confidentiality FCC ID: 2A9XL-REF To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Date: 2023.02.22 Name: Linda Kang Title: Sales Company: Microwoo Electronic Technology Co., Ltd

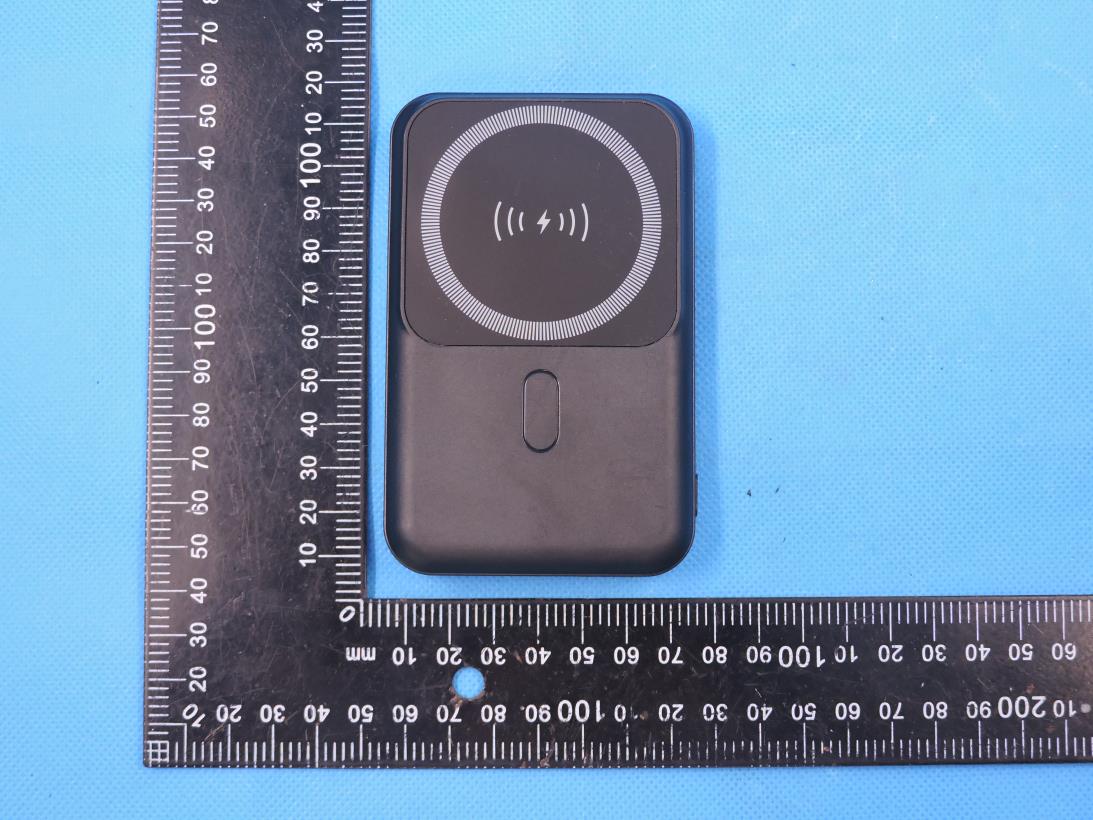

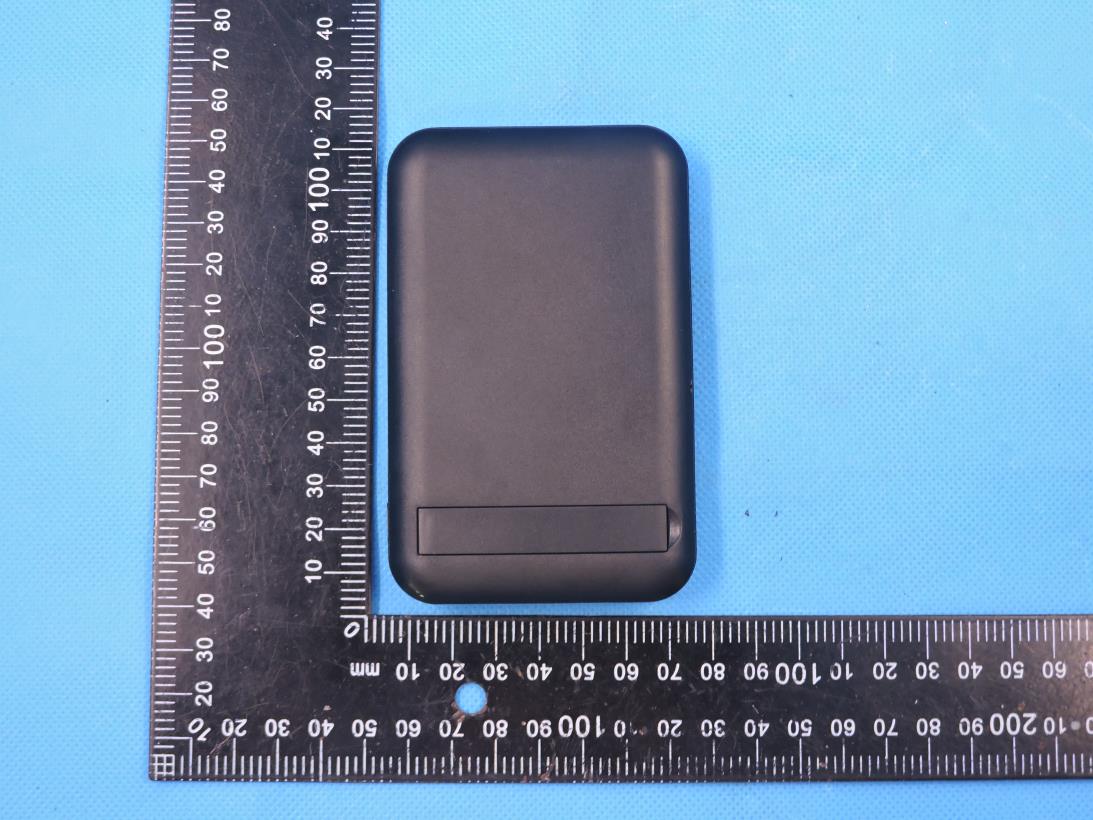

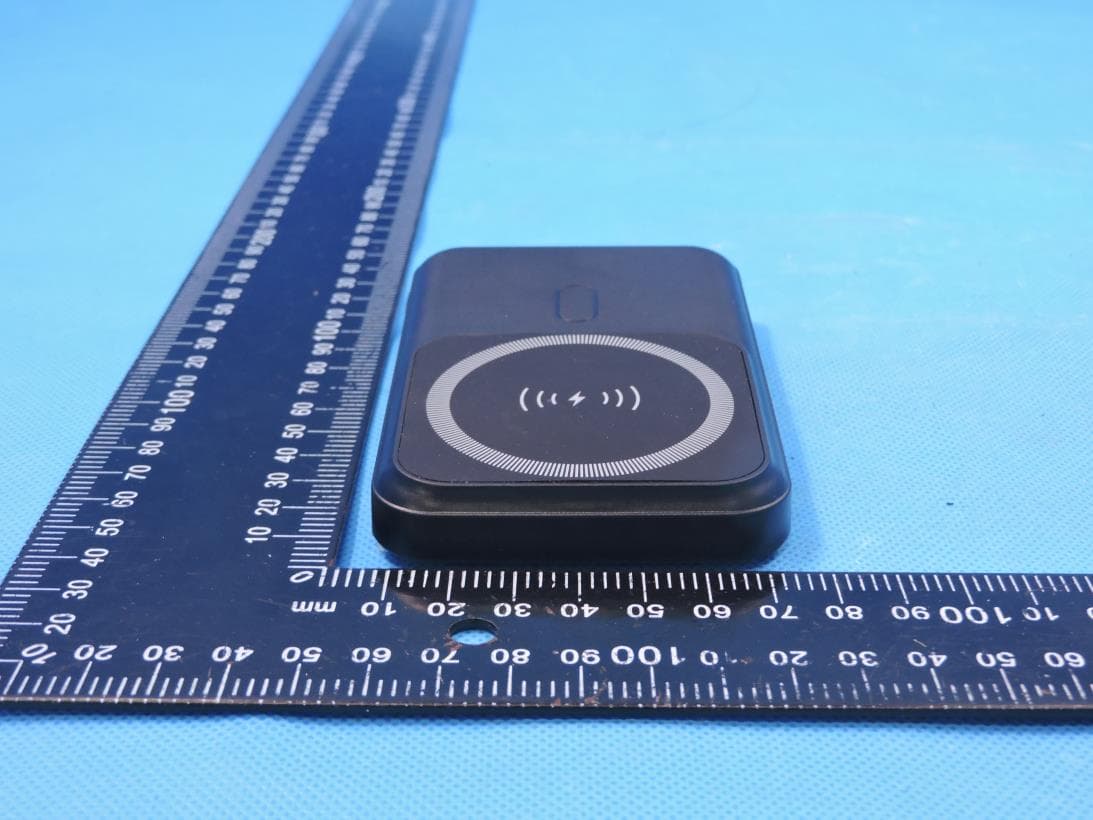

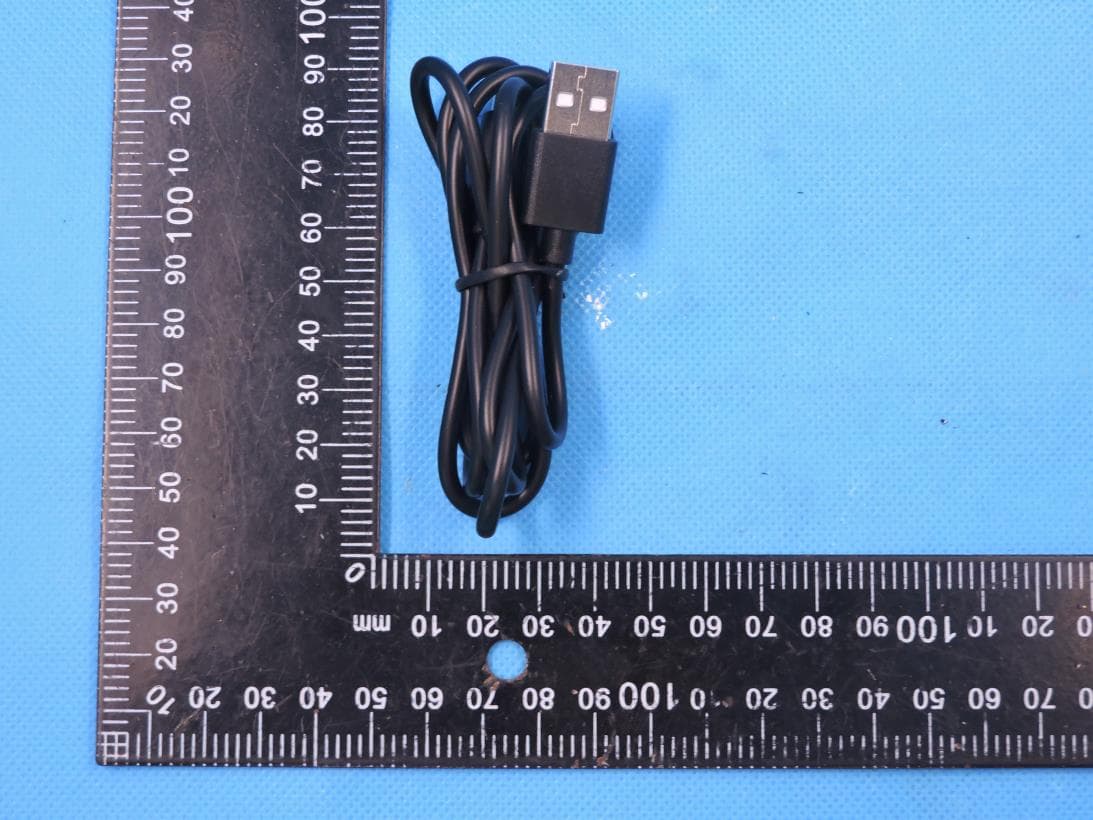

Page 1 of 4 Report No.: STS2212159 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: REF-TRAVEL001 Photo 1 Photo 2 Page 2 of 4 Report No.: STS2212159 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2212159 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2212159 Photo 7 Photo 8

Label Size:10*30mm The label is printed on the shell FCC ID: 2A9XL-REF .

Page 1 of 3 Report No.: STS2212159 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: REF-TRAVEL001 Photo 1 Photo 2 Antenna Page 2 of 3 Report No.: STS2212159 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2212159 Photo 5 Photo 6

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] MPE TEST REPORT Report No:STS2212159H01 Issued for Microwoo Electronic Technology Co., Ltd NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Product Name: 10000mAh Magsafe wireless power bank Brand: N/A Model Number: REF-TRAVEL001 Series Model(s): MW-T009, MW-T009S FCC ID: 2A9XL-REF Test Standard: FCC CFR 47 part 1, 1.1310 S T L A B S Page 2 of 13 Report No.: STS2212159H01 TEST RESULT CERTIFICATION Applicant’s Name ................... : Microwoo Electronic Technology Co., Ltd Address .................................. : NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Manufacturer's Name ............. : Microwoo Electronic Technology Co., Ltd Address .................................. : NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Product Description Product Name ........................ : 10000mAh Magsafe wireless power bank Brand ...................................... : N/A Model Number ........................ : REF-TRAVEL001 Series Model(s) ...................... : MW-T009, MW-T009S Standards ............................... : FCC CFR 47 part 1, 1.1310 Test Procedure ..................... : 680106 D01 RF Exposure Wireless Charging Apps v03 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................ : Date of receipt of test item ..... : 30 Dec. 2022 Date of performance of tests .. : 30 Dec. 2022 ~ 05 Jan. 2023 Date of Issue .......................... : 05 Jan. 2023 Test Result .............................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean She) Authorized Signatory : (Bovey Yang) Page 3 of 13 Report No.: STS2212159H01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 1.3 GENERAL DESCRIPTION OF THE EUT 6 1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS 7 1.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 7 2. MAXIMUM PERMISSIBLE EXPOSURE 8 2.1 MAXIMUM PERMISSIBLE EXPOSURE 8 2.2 TEST PROCEDURE 9 2.3 TEST SETUP 9 2.4 TEST RESULTS 10 2.5 MAXIMUM PERMISSIBLE EXPOSURE 11 Page 4 of 13 Report No.: STS2212159H01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 05 Jan. 2023 STS2212159H01 ALL Initial Issue Page 5 of 13 Report No.: STS2212159H01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03 Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainly 1 H-filed ±0.83dB 2 E-filed ±0.91dB Page 6 of 13 Report No.: STS2212159H01 1.3 GENERAL DESCRIPTION OF THE EUT Product Name 10000mAh Magsafe wireless power bank Brand N/A Model Number REF-TRAVEL001 Series Model(s) MW-T009, MW-T009S Model Difference Only different in model name and colors Equipemnt Category Non-ISM frequency Antenna Type Please refer to the Note 2. Operating frequency 110.5-205KHz Modulation Type ASK Rating Input: 5V-3A ,9V-2.22A,12V-1.67A Output: wireless Output Power/ 5W/7.5W/10W/15Wmax Type C output：5V/3A, 9V/2A USB -A Output: 5V/4.5A Battery Rated Voltage: 3.85V Charge Limit Voltage: 4.4V Capacity: 10000mah Hardware version number V1.0 Software version number V1.0 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 N/A REF-TRAVEL001 Coil NA Antenna The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. Page 7 of 13 Report No.: STS2212159H01 1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS Kind of Equipment Manufacturer Type No. Serial No. Last calibration Calibrated until Electric and Magnetic field Probe - Analyzer Narda EHP 200A 180ZX10220 2022.03.02 2023.03.01 1.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS Necessary accessories Item Equipment Mfr/Brand Model/Type No. Length Note N/A N/A N/A N/A N/A N/A Support units Item Equipment Mfr/Brand Model/Type No. Length Note / Mobile Phone Apple iPhone 8 Plus N/A N/A Note: (1) For detachable type I/O cable should be specified the length in cm in『Length』column. (2) “YES” is means “with core”; “NO” is means “without core”. Page 8 of 13 Report No.: STS2212159H01 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Expo…

Text truncated - open the document above for the full version.

一、 Winding Procese: NO winding Wire gauge number of turns Winding direction Note 1 N1 2UEW-B-0.08*24*2P 10TS CCW 2 二． FEATURES: 1. Test conditions）：25°C,65%RH@100KHz/1V 1.1 （Inductance） 1.11 L0A=3.8uH±20% 1.12 L0A=6.5uH±10% 1.2 Q value=50MIN 1.3 DCR：60mΩ MAX 1.4 Operating Temperature：-25°C~85°C 2. Test instrument：L:1068+1310;DCR:502BC;SIZE:Callipers 三． CIRCUIT DIAGRAM 单位： MM 四．OUTSIDE DIAGRA standard A B C D E F G STD 41.5±0.5 38.5±0.5 20.5±0.5 5.3±0.5 80±2 3±1 1.5±0.5 unit： MM

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No.: STS2212159W02 Issued for Microwoo Electronic Technology Co., Ltd NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Product Name: 10000mAh Magsafe wireless power bank Brand: N/A Model Number: REF-TRAVEL001 Series Model(s): MW-T009, MW-T009S FCC ID: 2A9XL-REF Test Standard: FCC Part 15 Subpart C S T L A B S Page 2 of 22 Report No.: STS2212159W02 TEST RESULT CERTIFICATION Applicant’s Name ................... : Microwoo Electronic Technology Co., Ltd Address .................................. : NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Manufacturer's Name ............. : Microwoo Electronic Technology Co., Ltd Address .................................. : NO.13, Hengrui 2nd Road, Tangxiayong Community, Yan Luo Street, Baoan District, Shenzhen, China. Product Description Product Name ........................ : 10000mAh Magsafe wireless power bank Brand ...................................... : N/A Model Number ........................ : REF-TRAVEL001 Series Model(s) ...................... : MW-T009, MW-T009S Test Standards ...................... : FCC Part 15 Subpart C Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................: Date of receipt of test item ..........: 30 Dec. 2022 Date (s) of performance of tests .: 30 Dec. 2022 ~ 05 Jan. 2023 Date of Issue ............................. : 05 Jan. 2023 Test Result ..................................: Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean She) Authorized Signatory : (Bovey Yang) Page 3 of 22 Report No.: STS2212159W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF THE EUT 6 2.2 DESCRIPTION OF THE TEST MODES 7 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3. CONDUCTED EMISSION TEST RESULT (SECTION 15.207) 11 3.1 POWER LINE CONDUCTED EMISSION LIMITS 11 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 12 3.4 EUT OPERATING CONDITIONS 12 3.5 TEST RESULTS 13 4. RADIATED& FIELD EMISSION TEST RESULT (SECTIOU 15.209) 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 15 4.3 TEST SETUP 16 4.4 TEST RESULTS 17 5. 20 DB BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST SETUP 21 5.3 TEST RESULTS 21 APPENDIX-PHOTOS OF TEST SETUP 22 Page 4 of 22 Report No.: STS2212159W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 05 Jan. 2023 STS2212159W02 ALL Initial Issue Page 5 of 22 Report No.: STS2212159W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.209(a) Radiated emission, Spurious Emission PASS 15.215 20 dB Bandwidth PASS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±1.197dB 2 Unwanted Emissions, conducted ±2.896dB 3 All emissions, radiated 9K-30MHz ±3.84dB 4 All emissions, radiated 30M-1GHz ±3.94dB 5 All emissions, radiated 1G-6GHz ±4.59dB 6 All emissions, radiated>6G ±5.22dB 7 Conducted Emission (9KHz-150KHz) ±2.14dB 8 Conducted Emission (150KHz-30MHz) ±2.54dB Page 6 of 22 Report No.: STS2212159W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name 10000mAh Magsafe wireless power bank Brand N/A Model Number REF-TRAVEL001 Series Model(s) MW-T009, MW-T009S Model Difference Only different in model name and colors Channel List Please refer to the Note 2. Antenna Type Please refer to the Note 3. Equipemnt Category Non-ISM frequency Operating frequency 110.5-205KHz Modulation Type Load modulation Rating Input: 5V-3A ,9V-2.22A,12V-1.67A Output: wireless Output Power/ 5W/7.5W/10W/15Wmax Type C output：5V/3A, 9V/2A USB -A Output: 5V/4.5A Battery Rated Voltage: 3.85V Charge Limit Voltage: 4.4V Capacity: 10000mah Hardware version number V1.0 Software version number V1.0 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (KHz) Channel Frequency (KHz) 00 128.1 3. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 N/A REF-TRAVEL0 01 Coil N/A Antenna Page 7 of 22 Report No.: STS2212159W02 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the tes…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2A9XL-REF DCD Setup photo Model Number: REF-TRAVEL001 DCD radiation L DCD Loop antenna Page 2 of 2 FCC ID: 2A9XL-REF DCD conduction
