2AA3I-ST121WHDLRTXLong range Wireless HDMI extender

Quick-Start Guide To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support. Manual Revision: June 11, 2019 11:05 AM Product Diagram (ST121WHDLR) Note: The above image represents both Transmitter and Receiver. The ports are located in the same position on both the Transmitter and Receiver. Port/Button/LED/PartFunction Transmitter 1 Pairing/Channel Button • Pairing: Used to pair devices to the Wireless Transmitter. Note: Press and hold for 5 seconds. • Channel: For better transmission, use the Channel Button to use another channel. 2Network LED• Solid red indicates that the network is connected. 3Video LED • Solid blue indicates that the Display Device is connected. 4IR OUT Port• Connect an IR Blaster to transmit an IR signal. HDMI over Wireless Extender |1080p | 200 m 4 5USB Port • Used for firmware updates. Note: For future firmware updates refer to the firmware section on the Product Support tab www. startech.com/ST121WHDLR. 6DC 5V Port• Powers the Wireless Extender. 7 HDMI IN Port • Connects the Video Source Device to the Wireless Extender. 8IR Blaster• Used to transmit an infrared signal. Receiver 1 Pairing/Channel Button • Pairing: Used to pair devices to the Wireless Receiver. Note: Press and hold for 5 seconds. • Channel: For better transmission, use the Channel Button to use another channel. 2Network LED• Solid red indicates that the network is connected. 3Video LED • Solid blue indicates that the Display Device is connected. 4IR IN Port• Connect an IR Receiver to receive an IR signal. 5USB Port • Used for firmware updates Note: For future firmware updates refer to the firmware section on the Product Support tab www. startech.com/ST121WHDLR. 6DC 5V Port• Powers the Wireless Extender. 7HDMI OUT Port • Connects the Display Device to the Wireless Extender. 8IR Receiver• Used to receive an infrared signal. Requirements For the latest requirements, please visit www.startech.com/ST121WHDLR. 5 7 6 1 2 3 8 1 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment. Industry Canada Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada. CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC Radiation Exposure Statement This equipment complies with IC RSS-247 radiation exposure limit set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.5cm between the radiator and your body. Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third- party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders. Warranty Information This product is backed by a two-year warranty. For further information on product warranty terms and conditions, please refer to www.startech.com/warranty. Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of…

Text truncated - open the document above for the full version.

StarTech.com Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/9/2024 U.S. Agent Designation StarTech.com Ltd.acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AA3I- ST121WHDLRTX): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of StarTech.com Ltd.. StarTech.com Ltd.with the FRN 0023382773 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Nirav Gandhi StarTech.com Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

CoveredEquipmentIdentificationLetter For CertificationServicein the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD 21048 To whomit may concern Pursuantto Section2.911(d)(5)(ii)of the Commission’s Rules(47 C.F.R.)we attestas follows: We, applicant CompanyName:StarTech.comLtd. Address:45 ArtisansCrescent,London,Ontario N5V 5E9, Canada Phone:+1-5194559675 certifythat,as of the dateof the filingof the application,the applicantis not identifiedon the CoveredList as an entityproducing“covered” equipment. If you haveany questions,pleasefeel free to contactus at the addressshownbelow. Sincerely, 2024-09-05 SignatureDate Name/ Title:NiravGandhi/ Manager Company:StarTech.comLtd. Address:45 ArtisansCrescent,London,OntarioN5V 5E9, Canada Phone:+1-5194559675 Fax Number:+1-5194559425 E-Mail:[email protected]

CoveredEquipmentAttestationLetter For CertificationServicein the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD 21048 To whomit may concern Pursuantto Section2.911(d)(5)(i)-(ii)of the Commission’s Rules(47 C.F.R.)we attestas followsfor the productlistedbelow: FCC IDModelname 2AA3I-ST121WHDLRTXST121WHDLRTransmitter We, applicant CompanyName:StarTech.comLtd. Address:45 ArtisansCrescent,London,Ontario N5V 5E9, Canada Phone:+1-5194559675 certifythatthe equipmentfor whichauthorizationis soughtis not “covered” equipment prohibitedfromreceivingan equipmentauthorizationpursuantto section2.903of the FCC rules. If you haveany questions,pleasefeel free to contactus at the addressshownbelow. Sincerely, 2024-09-05 SignatureDate Name/ Title:NiravGandhi/ Manager Company:StarTech.comLtd. Address:45 ArtisansCrescent,London,OntarioN5V 5E9, Canada Phone:+1-5194559675 Fax Number:+1-5194559425 E-Mail:[email protected]

ConfidentialityRequestLetter For CertificationServicein the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD 21048 To whomit may concern Pursuantto Paragraphs§0.457and 0.459of the Commission’s Rules(47 C.F.R.)and Section §552(b)(4)of theFreedomof InformationAct,we requestconfidentialityfor the documentationof the followingproducts: FCC IDModelname 2AA3I-ST121WHDLRTXST121WHDLRTransmitter For the productslistedabove,we requestpermanentconfidentialityfor all applicable exhibitsas thereare:  the OperationalDescription  the BlockDiagram the Schematics  thePartList theTuneupInformation The abovelistedexhibitscontaintradesecretsand proprietaryinformationthat couldbe of benefitto our competitors. If you haveany questions,pleasefeel free to contactus at the addressshownbelow. Sincerely, 2024-09-05 SignatureDate Name/ Title:NiravGandhi/ Manager Company:StarTech.comLtd. Address:45 ArtisansCrescent,London,OntarioN5V 5E9, Canada Phone:+1-5194559675 Fax Number:+1-5194559425 E-Mail:[email protected]

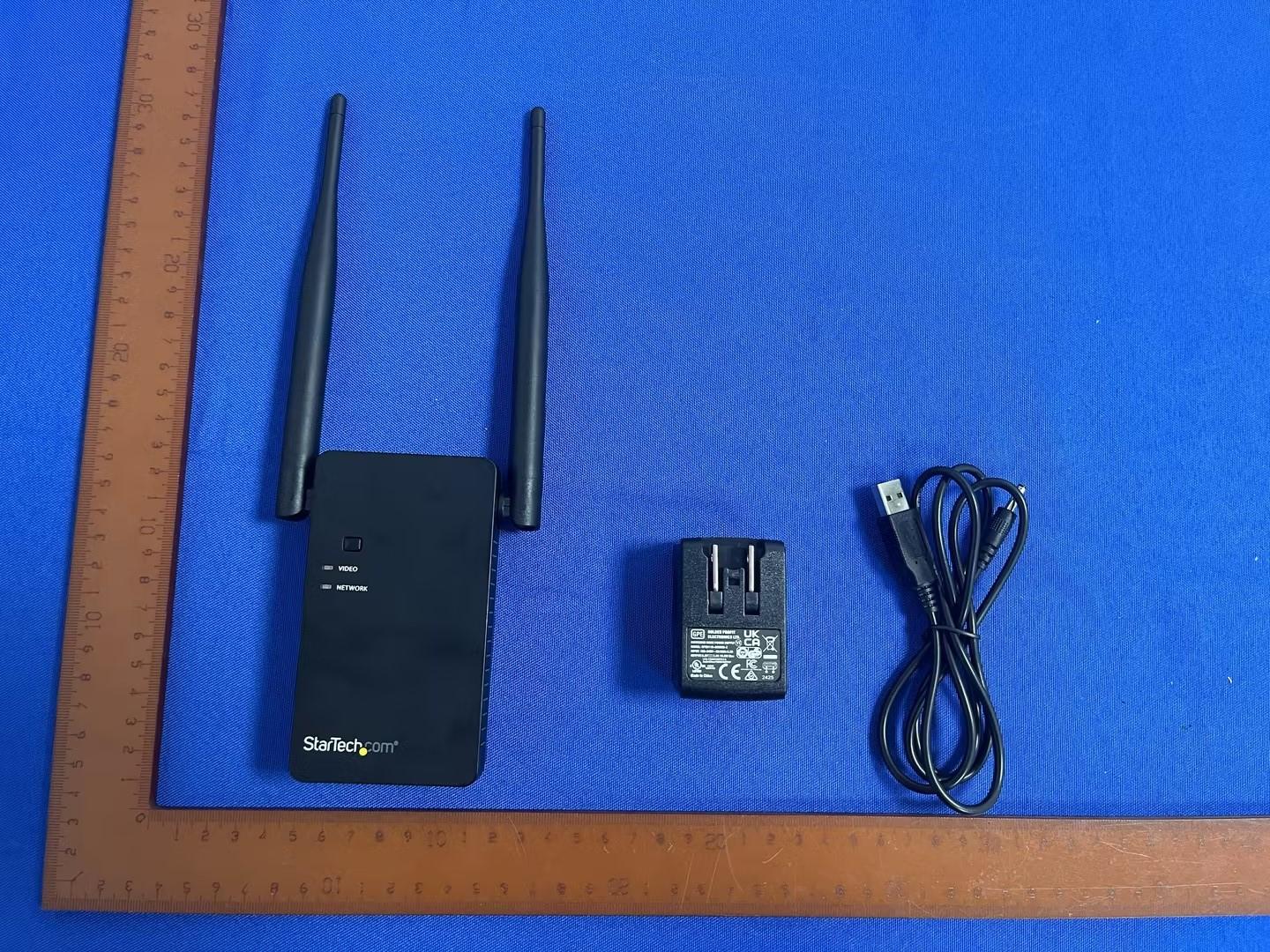

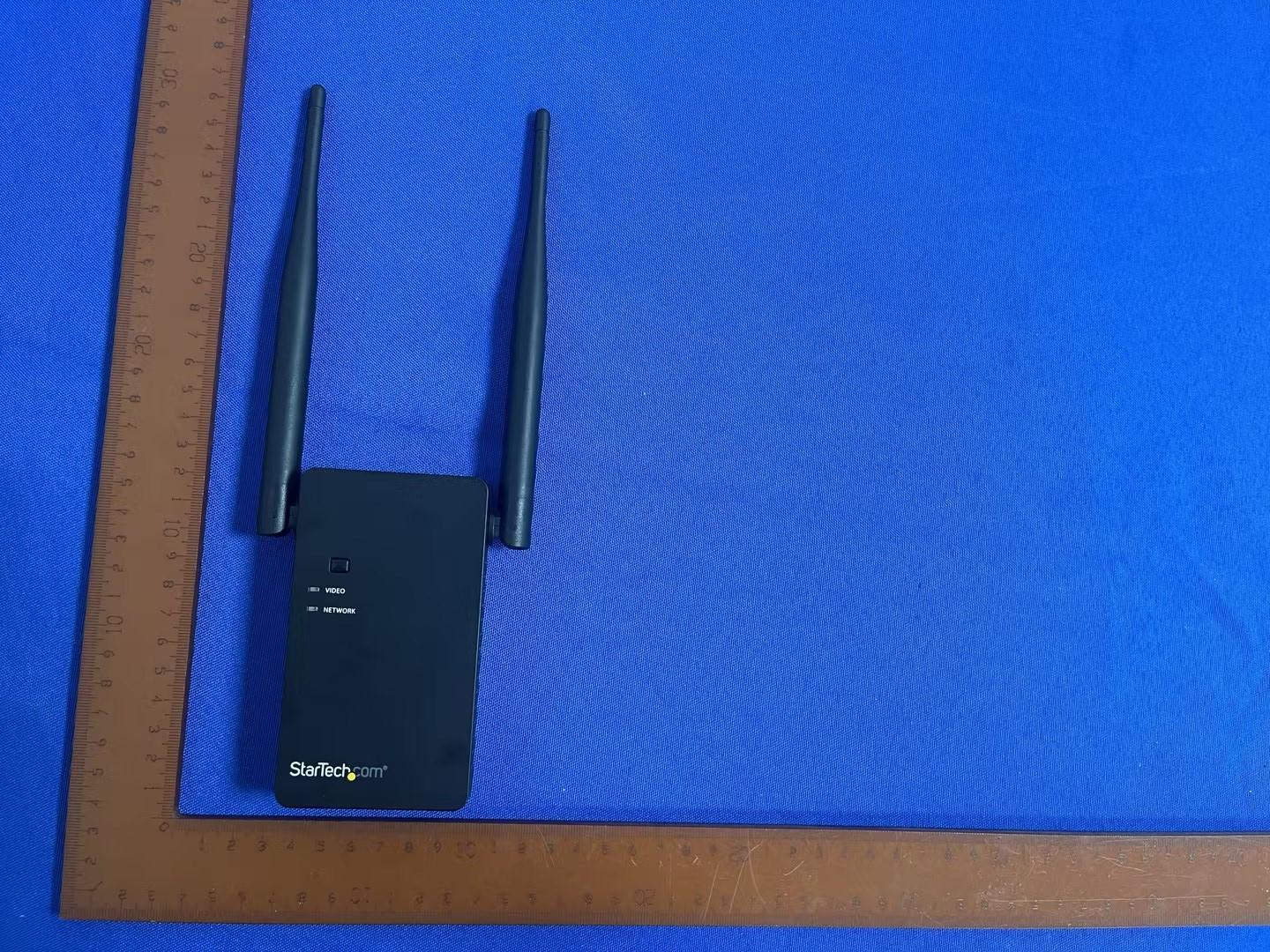

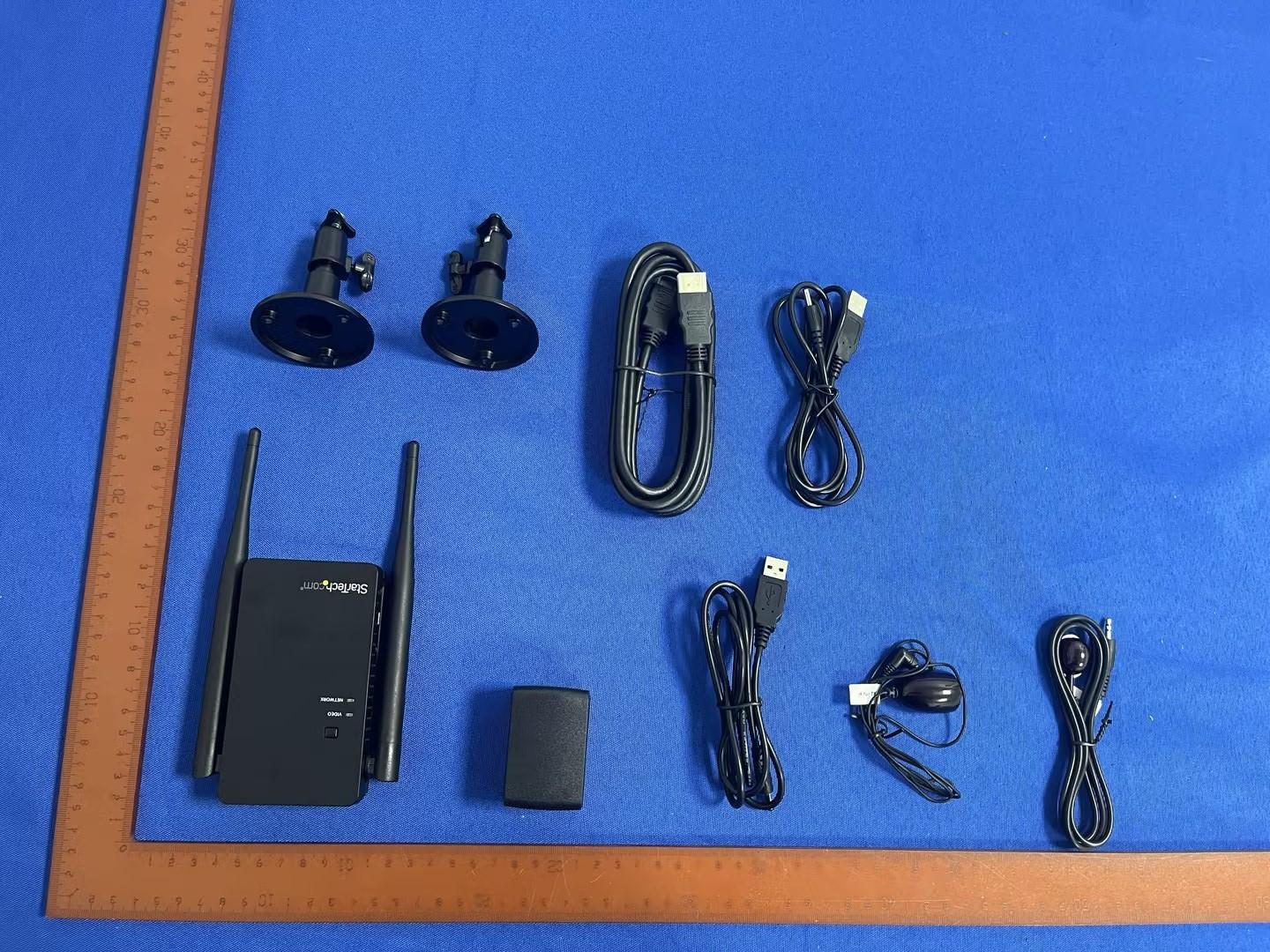

Page1of6FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 WIFIAntenna1 WIFIAntenna0 Page2of6FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of6FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of6FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of6FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of6FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11 Fig.12

Page1of1FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L6.0cmxW4.0cm) LabelLocation LongrangeWirelessHDMIextender Model:ST121WHDLRTransmitter FCCID:2AA3I-ST121WHDLRTX

Page1of4FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2AA3I-ST121WHDLRTX ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

Page 1 of 7 FCC ID: 2AA3I-ST121WHDLRTX Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Maximum Permissible Exposure Report 1. Product Information EUT : Long range Wireless HDMI extender Test Model : ST121WHDLR Transmitter Ratings : Input: 2.0V2.0A For AC Adapter: Input:100-240V~, 50/60Hz, 0.3A Output: 2.0V2.0A, 10.0W Max Hardware Version : REV2.0 Software Version : V3.07 WIFI(5.2G Band) Frequency Range : 5180MHz~5240MHz Channel Number : 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) Modulation Type : IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Ant0: External Antenna, 4.5dBi(Max.) Ant1: External Antenna, 4.5dBi(Max.) WIFI(5.8G Band) Frequency Range : 5745MHz-5825MHz Channel Number : 5 channels for 20MHz bandwidth(5745MHz-5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) Modulation Type : IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Ant0: External Antenna, 4.5dBi(Max.) Ant1: External Antenna, 4.5dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent Page 2 of 7 FCC ID: 2AA3I-ST121WHDLRTX Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Uncontrolled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Page 3 of 7 FCC ID: 2AA3I-ST121WHDLRTX Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Internal/ External Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes External External Antenna 1 5000MHz ~ 6000MHz 5.2GIFI:4.5dBi 5.8GIFI:4.5dBi WIFI Antenna External External Antenna 2 5000MHz ~ 6000MHz 5.2GIFI:4.5dBi 5.8GIFI:4.5dBi WIFI Antenna Page 4 of 7 FCC ID: 2AA3I-ST121WHDLRTX Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 6. Conducted Power [5.2G WIFI]…

Text truncated - open the document above for the full version.

深 圳 市 天 磁 通 科 技 有限 公 司 Page1 CustomerApprovedBy: SpecificationForApproval Date:2018/02/24 FileNo.:18022701 Version:1.0 Customer：视晶无线技术有限公司 CustomerP/N：/ INVAXP/N： TCTQ5800-4V58Z Description: 5.8G4dBi 橡皮天线 深 圳 市 天 磁 通 科 技 有限 公 司 地址：深圳市宝安区西乡九尾愉盛工业区D栋5楼 CheckedBy: Shenzhen Tianci technology Co. LTD Shenzhen Tianci technology Co. LTD Address: Building 8, Factory Building, Fuan No.2 Industrial City, Dayang Development Zone, Fuhai Street, Baoan District, Shenzhen, China 深圳市天磁通科技有限公司 Page2 Index: 1.Specificationcover/Page1 2.catalogue/Page2 3.RevisionHistory/Page3 4.Specification/Page4 5.CharacteristicsandReliabilityTest/Page5~6 6.Antenna-SParameterTestData/Page7 7.Antenna-RadiationPatternTestData/Page8 8.MechanicalandPackingDrawing/Page9~10 深圳市天磁通科技有限公司 Page3 3.RevisionHistory RevisionDateChangeNotificationDescription 1.0 2018/02/24 深圳市天磁通科技有限公司 Page4 4.Specification A.ElectricalProperties FrequencyRang 频段范围 4900~5850MHz Impedance 特性阻抗 50ΩNominal VSWR 电压驻波比 2.0Max. Gain(peak) 增益（峰值） 4.5dBi Outofroundness 不圆度 3.0dBi （ Max. ） Radiation 辐射方式 Omni-Directional 全向 Polarization 极化方式 LinearVertical 垂直 B.PhysicalProperties ConnectorType 连接方式 剥线镀锡 CableType 线材 Ø1.78mmCABLE AntennaPlastic 天线塑胶 Body:TPE Hinge:ABS Holder:ABS C.Environmental OperatingTemp 工作环境 -40 °C ~+65 °C StorageTemp 存储环境 -40 °C ~+80 °C Page5 ProductNumber:TCTQ5800-4V58Z ProductName:Antenna CharacteristicsandReliability TestItems測試 項目 TestConditionandProcedure測試方法Requirements要求 Result 結果 C1V.S.W.R. 電壓駐波比 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest設置網路分析儀參數進行測試 DirectiveDUTspecification 符合待測物規範 PASS C2Insertion Loss插入損 失 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest設置網路分析儀參數進行測試 DirectiveDUTspecification 符合待測物規範 N/A C3Antenna Gain 天線增益 SetDUTonAntennaChamber;makeindividual calibrationtotest設置天線暗室參數進行測試 DirectiveDUTspecification 符合待測物規範 PASS C4Voltage Breakdown 耐電壓 Testvoltageshouldbeappliedbetweeninsulated portions,orbetweengroundasspecified. 在绝缘部分测试电压,或指定接地面之间 MaxVoltage≥500Vor directivematerial specification最大電壓≥500V 或符合材料規範 N/A C5Insulation Resistance 絕緣阻抗 SetVoltage:500±50V;betweentheinsulated portions,orbetweengroundasspecified. 設置電壓500±50V,在绝缘部份測試或指定接地面之 间 Resistance≥500Mohm ordirectivematerial specification阻抗≥500Mohm 或符合材料規範 N/A C6Contact Resistance 接觸阻抗 AirTemp:26°C;measuredwithtestequipment 室溫26 ° C，指定量測設備 Directivematerial specification 符合材料規範 N/A M1Vibration 震動 GB/T2423.48-2008 Amplitude:0.03inch(1.5mm);Freq:20to80to20 Hz 3directions;2hoursforeachdirection 振幅1.5mm；頻率20~80~20Hz；3個方向各2H 1.NoVisualDamage 2.FrequencyTol. ≤ 5% 無明顯外觀不良;頻率偏移 ≤ 5% PASS M2Random Drop 跌落 GB/T2423.8-1995 Single：Height:1.0Meter;3directions;1timefor eachdirection單支天線，高1m；3個方向各1次 1.Nopartsseparated、fracture 2.FrequencyTol. ≤ 5% 產品無脫落、斷裂;頻率偏移 ≤ 5% PASS Packing：Height:0.76Meter;1corner,3edges,6 surface 包裝：高0.76m，一角、三棱、六面各一次 PASS Antenna+Machine:Height:0.76Meter;1corner,3 edges,6surface.整機：高0.76m，一角、三棱、六 面 各一次 N/A M3SolderabilityGB/T2423.28-2005TinevenlyonfullN/A Page6 ProductNumber:TCTQ5800-4V58Z ProductName:Antenna CharacteristicsandReliability 可焊性 Temp:260 ± 5 ° C;Duration:5seconds溫度260 ± 5 ° C;持續5秒 上錫均勻飽滿 M4PullTest 拉力 Holdingwithindividualspecification;force appliedtoaxisofterminal.單獨定義產品端子拉力 1.DirectiveDUTspecification 2.FrequencyTol.≤5% 符合待測物規範;頻率偏移≤5% PASS M5TorqueTest 扭力 Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal單獨定義產品端子之順時針及逆時針扭力 1.DirectiveDUTspecification 2.FrequencyTol. ≤ 5% 符合待測物規範;頻率偏移≤5% N/A M6Dimension 尺寸 Inspectionofdimension,color,material,package, surfaceprocess.检查尺寸,颜色,材料,包装,表面處理 DirectiveDUTspecification 符合待測物規範 PASS E1Waterproof 防水 WithReferencetoIEC60529//IPCodeDefinition 參考IEC60529IP定義 DirectiveDUTspecification 符合待測物規範 N/A E2 SaltSpray鹽 霧 GB/T2423.17-2008 Temp:35°C;RH: ≥ 95%;NaClsolution: ≥ 5%;Time:24H 溫度35°C；濕度≥95%;鹽水濃度≥5%；測試24H 1.NoVisualDamage 2.FrequencyTol.≤5% 無明顯外觀不良;頻率偏移≤5% PASS E3Temperature and Humidity Chamber 恒溫恒濕 GB/T2423.3-2006 Temp:80°C/12H;-40°C/12HRH:≥90%;Time: 24H 溫度80°C測試12H轉-40°C測試12H；濕度≥ 90%；時間24H After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 恢復2H后，無明顯外觀不良;頻 率偏移≤5% PASS E4Thermal Shock 冷熱衝擊 GB/T2423.22-2008 -40 ° C(30minutes)to+80 ° C(30minutes)； Cycles:24 -40°C測試30分轉80°C測試30分為一個週期；共 24 週期 After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 恢復2H后，無明顯外觀不良;頻 率偏移≤5% PASS E5Agingtest 老化 GB/T2423.2-2008 Temp:80°C;Time:24hours 溫度80°C，測試24H After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 恢復2H后，無明顯外觀不良;頻 率偏移≤5% PASS E6HighTemp. 高溫 Temp.270 ± 10 ° C；Times：120seconds 溫度270 ± 10 ° C，測試時間120秒 NoVisualDamage 無明顯外觀不良 N/A R1RoHSWithReferencetoIEC62321:2008withflowchart 參考IEC62321測試流程 DirectiveRoHS2011/65/EU 符合RoHS2011/65/EU標準 PASS R2PFOSWithReferencetoUSAEPA3550C:1996byLC/MS 參考USAEPA3550C測試流程 DirectiveRoHS2006/122/EC 符合RoHS2011/65/EU標準 PASS Page7 6.Antenna-SParameterTestData Page8 7.Antenna-RadiationPatternTestData 4900MHz5400MHz5850MHz 8.MechanicalDrawing Seeattachedfiles 深 圳 市 天 磁 通 科 技 有 限 公 司 5 G A N 5 0 0 0 B - 9 2 - 1 7 8 U 5 0 A N 2 4 0 3 - 0 6 B A N 9 2 0 1 - 0 2 B A N 9 2 0 1 - 0 4 B L Q D J C 50MM 2018/02/24 TCTQ5800-4V58Z

Page 1 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for 5.2GWIFI (Conducted Measurement) Product Name: Long range Wireless HDMI extender Test Model: ST121WHDLR Transmitter Environmental Conditions Temperature: 23.8C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Luo Supervised by: Nick Peng Page 2 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT n20 5180 Ant0 26.695 >=0.5 Pass NVNT n20 5200 Ant0 28.707 >=0.5 Pass NVNT n20 5240 Ant0 26.195 >=0.5 Pass NVNT n40 5190 Ant0 41.663 >=0.5 Pass NVNT n40 5230 Ant0 44.016 >=0.5 Pass Page 3 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -26dB Bandwidth NVNT n20 5180MHz Ant0 -26dB Bandwidth NVNT n20 5200MHz Ant0 Page 4 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -26dB Bandwidth NVNT n20 5240MHz Ant0 -26dB Bandwidth NVNT n40 5190MHz Ant0 Page 5 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -26dB Bandwidth NVNT n40 5230MHz Ant0 Page 6 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT n20 5180 Ant1 27.736 >=0.5 Pass NVNT n20 5200 Ant1 23.65 >=0.5 Pass NVNT n20 5240 Ant1 28.07 >=0.5 Pass NVNT n40 5190 Ant1 48.751 >=0.5 Pass NVNT n40 5230 Ant1 50.308 >=0.5 Pass Page 7 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -26dB Bandwidth NVNT n20 5180MHz Ant1 -26dB Bandwidth NVNT n20 5200MHz Ant1 Page 8 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -26dB Bandwidth NVNT n20 5240MHz Ant1 -26dB Bandwidth NVNT n40 5190MHz Ant1 Page 9 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -26dB Bandwidth NVNT n40 5230MHz Ant1 Page 10 of 43 FCC ID: 2AA3I-ST121WHDLRTX Report No.: LCSA07314015EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, Ch…

Text truncated - open the document above for the full version.
