2AA47-R20Smart Camera

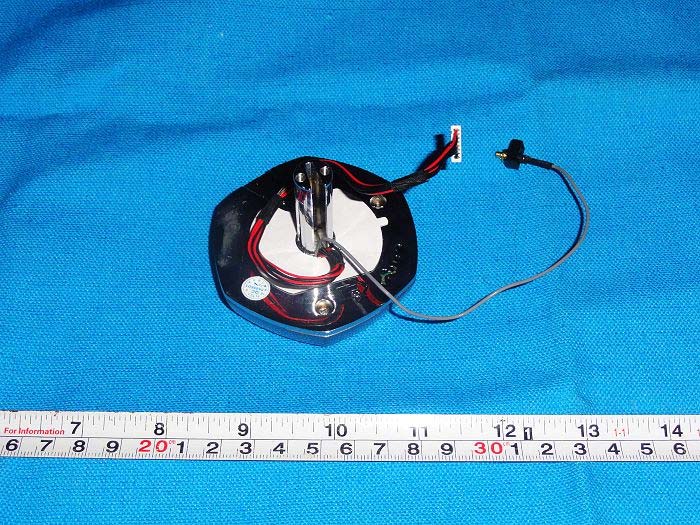

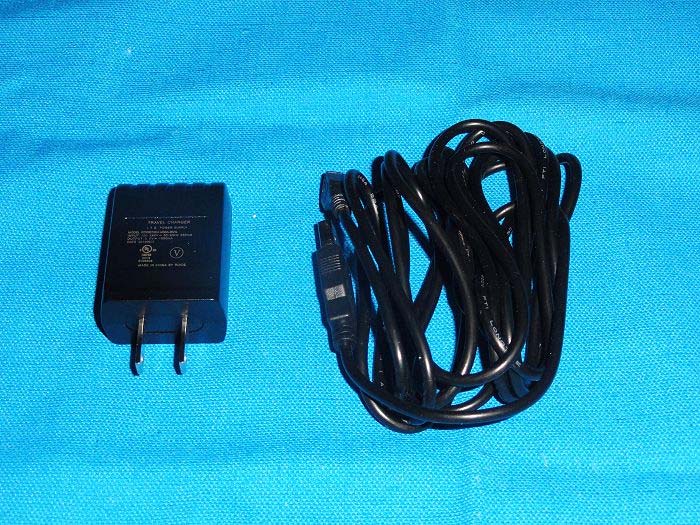

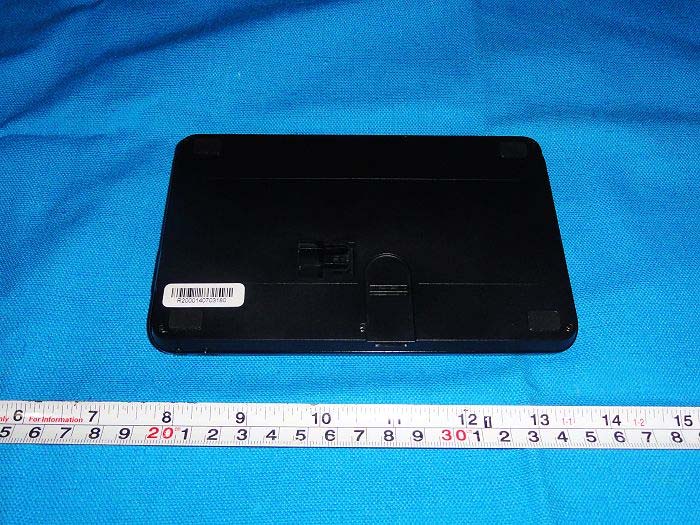

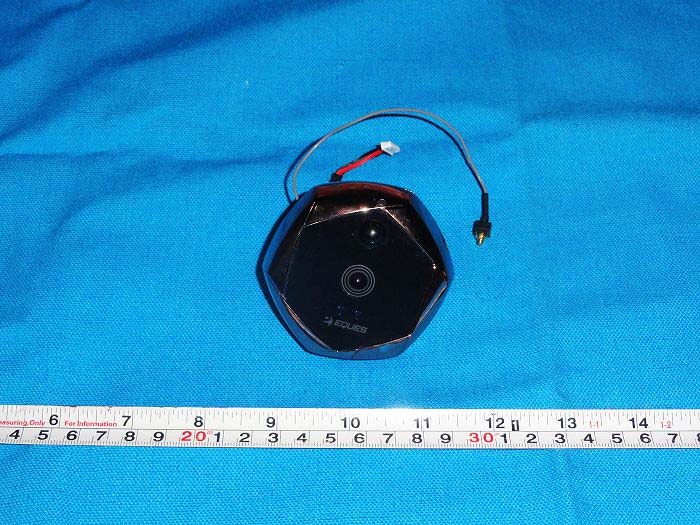

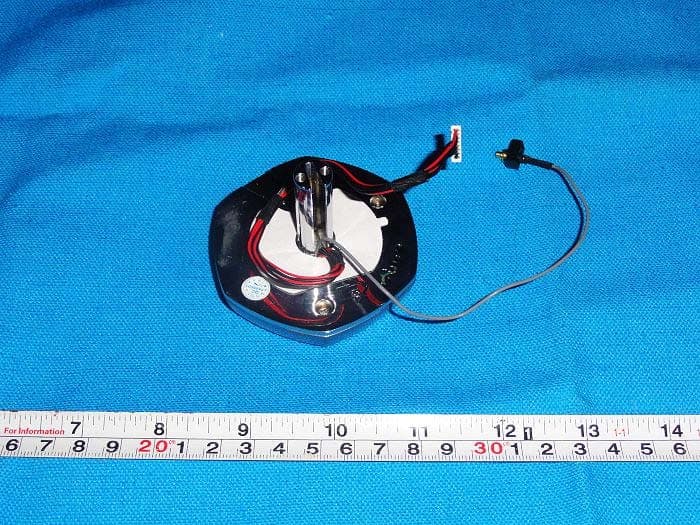

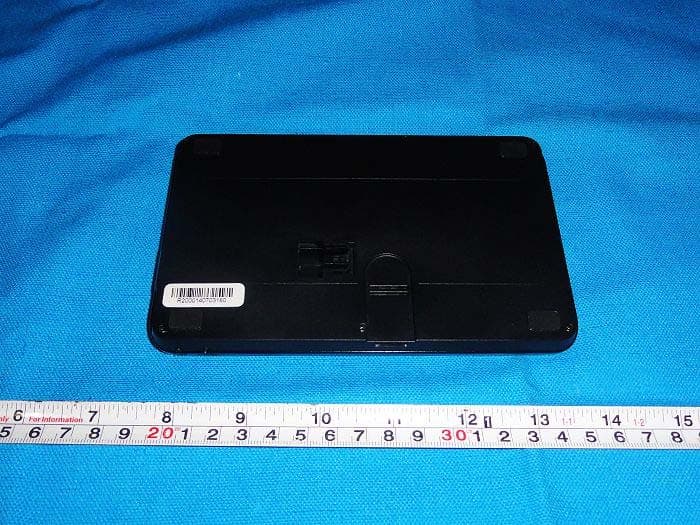

Our Door PartIndoor Part（battery） ChargerUSB CableScrewsReinforced Shim Outdoor Part DoorbellCameraResetSet PIR intelligent motion detection ScrewsDoorPeephole Indoor PartReinforced ShimIndoor Part Cover 1、Parts2、Installation Diagram3、Product List UP RESETSET Indoor Part（battery） White Plug Copper Plug Copper Plug White Plug www.eques.com.cn Please don’t install the camera in harsh environment, such as high tempera- ture, high humidity, lost of dust, smog, rain, or the camera will be damaged. Please don’t squeeze lens and black round ball on the outdoor part, or the hardware will be damaged. During installation, please be careful not to pull the wire too hard, and please also don’t scratch or cut the wire. Please use the standard charger in the package. Other types of charger will fail to recharge power or damage system. Security Notice Available Door Thickness Door Hole Range: 12mm---50mm Door Thickness Range：35mm----110mm Before installation, please check the door thickness to choose the right size screws. Door thickness: 35mm—65mm，use 35mm screws Door thickness: 65mm—95mm，use 65mm screws Door thickness: 95mm—110mm，use 80mm screws (package excluded) Out Door Part 1 Pieces In Door Part 1 Pieces Charger 1 Pieces Reinforced Shim 1 Pieces Screws ２Sets USB Cable 1 Pieces Wi-Fi remote visual doorbell Dingdong User Manual Screw the right screws into the outdoor part, tear out the viscose foam protective papers on the back, straighten out the wire, and pass the wire and outdoor part through door hole to house ( tips: users can use the paper tube to lead the wire to pass door hole) ,fix outdoor part, in the house, tighten the screws and fix the indoor part. Then insert the white plug on the white outlet and copper plug into the copper hole. Installation is finished. Outside the door, straighten out the wire and pass it through door hole Download APP Start APP Register & LoginAdd DeviceTrigger DeviceInput Wi-Fi Account & Code after the installation of APP, click logo to start APP Scan the following QR code, download Android APP Go to Android market, search “Dingdong remote visual doorbell” and download it. Scan the following QR code, download IOS APP Go to APP store, search dingdong and download it Press the to add new device 123456 5、Sign Up And Add Device 12 56 1112 34 4、Installation Steps 78 910 Screw the right screws into the outdoor part Tear out the viscose foam protective papers on the back Pass the wires and screws though indoor part Insert reinforced shim ( as show in figure, thinner side is up) Insert copper plug into copper hole Straighten out the wire Tighten the screws and fix the indoor part Buckle up white plug on white slot Close the cover ( as shown in figure, notice the direction) When open the cover, notice the defective part on the indoor part Fix outdoor part Press “set” key and bind WiFi account Firstly press SET key( under the black indoor part) , click “ next setp” after 3 seconds, then wait for device automatic searching wifi network. If fail to add, please check the wifi signal status at wifi peephole Input the right wireless network password, then wait for notice of successful sending wifi information After success ful connection of network, APP will automatically search and bind device. During the binding, please notice the led light of device. If binding is failed, please check the device working status. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter.

DATE : Nov 01, 201 4 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA47-R20 Product Name: Smart Camera Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description  Part List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Nov 01, 201 4 Agency agreement expiration date: Usually Give 8 - 12 Months By: Jinsong Zhang Signature Printed Title: Manager On behalf of : Eques Technology Co., Limited Telephone: 00086-021-54389062

Statement We Eques Technology Co., Limited Hereby Declare that The product Smart camera, models no. R20, R21 and R22 are all identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Yours sincerely, Dated this Nov 01, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Jinsong Zhang Signature Printed Title: Manager On behalf of : Eques Technology Co., Limited Telephone: 00086-021-54389062

Product Name: Smart camera Model No.: R20 FCC ID:2AA47-R20 Input: DC5V, 1A Eques Technology Co., Limited This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

FCC ID Label Location

Maximum Permissible Exposure Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit Antenna Gain: 1.6dBi Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.995 20.83 121.06 0.048 1 Compiles Note: the worse case was recorded.

Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1410128 Page 1 of 116 FCC TEST REPORT Prepared For : Eques Technology Co.,Limited Product Name: Smart camera Model : R20\R21\R22 Prepared By : Shenzhen United Testing Technology Co., Ltd. 4F, Block B Unit 2, Jianxing Building, Chaguang Industry Area, Nanshan District, Shenzhen, China Tel: 86-755-86180996 Fax: 86-755-86180156 Test Date: October 22, 2014 to October 31, 2014 Date of Report : Novermber 01, 2014 Report No.: UNI-1410128 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen United Testing Technology Co., Ltd. This document may be altered or revised by Shenzhen United Testing Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1410128 Page 2 of 116 TABLE OF CONTENTS 1.0 TEST CERTIFICATION............................................................................... 3 2.0 Test Equipment......................................................................................... 5 3.0 Technical Details........................................................................................ 6 4.0 Test Lab Details......................................................................................... 6 5.0 Power Line Conducted Emission Test............................................................ 7 5.1 Schematics of the Test................................................................................ 7 5.2 Test Method and Test Procedure................................................................... 7 5.3 Configuration of the EUT............................................................................ 7 5.4 EUT Operating Condition............................................................................ 8 5.5 Conducted Emission Limit........................................................................... 8 5.6 Test Result................................................................................................ 8 6.0 Radiated Emission test................................................................................ 11 6.1 Test Method and Test Procedure................................................................... 11 6.2 Configuration of the EUT............................................................................. 11 6.3 EUT Operation Condition............................................................................ 11 6.4 Radiated Emission Limit.............................................................................. 12 7.0 6dB Bandwidth Measurement....................................................................... 35 8.0 Maximum Peak Output Power...................................................................... 53 9.0 Power Spectral Density Measurement........................................................... 56 10.0 Out of Band Measurement.......................................................................... 75 11.0 Antenna Requirement................................................................................ 102 12.0 FCC ID Label............................................................................................ 103 13.0 Photo of Test Setup and EUT View................................................................ 104 Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1410128 Page 3 of 116 1 TEST CERTIFICATION Product: Smart camera Model: R20\R21\R22 Applicant: Eques Technology Co.,Limited Room301,building 1,No.168 Jixin Road,Minhang District,Shanghai,China. Factory: Eques Technology Co.,Limited Room301,building 1,No.168 Jixin Road,Minhang District,Shanghai,China. Trade Mark: Eques Tested:October 22, 2014 to October 31, 2014 Operational Frequency Range: EEE 802.11b/g, 802.11n HT20: 2412-2462MHz IEEE 802.11n HT40 : 2422MHz-2452MHz Modulation Type: IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16AQM, QPSK, BPSK) IEEE 802.11n HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Channel Spacing IEEE 802.11b/g/n: 5MHz Air Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 150, 117 ,104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6 Mbps IEEE 802.11n HT40 : 150, 117 ,104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6 Mbps Frequency Selection By software Channel Number IEEE 802.11b/g ,802.11n HT20 : 11 Channels IEEE 802.11n HT40 : 7 Channels Antenna: Integral antenna with Gain 3.0 dBi Power Supply: Model No.: RD0501000-USBA-BMG Input:100-240V, 50/60Hz, 250mA; Output: 5.0 V, 1000mA FCC ID: 2AA47-R20 Applicable Standards: FCC Part 15.247 The test report was prepared by Shenzhen United Testing Technology Co., Ltd. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1410128 Page 4 of 116 Prepared by : Michael Su /Assistant Engineer Reviewer : Mike Yong/Supervisor Approved & Authorized Signer :  Hoffer Lau/ Manager Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1410128 Page 5 of 116 2.0 Test Eqipment Item Test Equipment Manufacturer Model No. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) 1 3m Semi- Anechoic Chamber ZhongYu Electron 9.2(L)*6.2(W)* 6.4(H)June. 30 2014 June. 29 2015 2 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H)N/A N/A 3 EMI Test Receiver Rohde & Schwarz ESU26 Jul. 03 2014 Jul. 02 2015 4 BiConiLog Antenna SCHWARZBECK MESS-ELEKTRONIK VULB9163 Feb. 25 2014 Feb. 24 2015 5 Double -ridged waveguide horn SCHWARZBECK MESS-ELEKTRONIK 9120D-829 June 29 2014 June 28 2015 6 Horn Antenna ETS-LINDGREN 3160 June. 30 2014 June. 29 2015 7 EMI Test Sof…
