2AA4QC1200Rear View Wireless Camera

Wireless Rear View System Please read this manual thoroughly before operating the unit, and keep it for further reference. user manual 1 Accessories 2 Guarantee The statutory warranty period will be valid of one year after sold In case of defaulted product, please contact: > Your retailer > your fitter For repair and maintenance after sold, please include the following documents when you send back: • A copy of the receipt with purchasing date • A reason for the claim or description of the fault 3. Precautions ● Storage and keeping 1. Do not expose the monitor to excessive heat or cold. The storage temperature of this device is -30 ~+80°C, and the operating temperature is -10 ~+65°C. The Humidity is Rh90%. 2. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar place. 3. Never use this device in environments with excessive moisture, dust or smoke. 4. Avoid dropping or striking this device. 5. Avoid using this device in enclosed spaces, areas with excessive vibration or subject to severe impacts. 6. Never puncture, scratch or use abrasive cleaning materials on this device. 7. Do not place cables where they may be pinched or stepped on. 8. Leave at least a 2”space between the monitor and walls, cabinets or other objects to allow adequate air circulation around the unit. 9. The monitor is not designed to be waterproof. ● Operating Precautions 1. The device may be powered by a 12 volt automotive battery or vehicle electrical system. Make sure all cables are connected properly observe polarity. Improper cable connections may damage the monitor. Remove the power cable connections when you do not intend to use the unit 4.Connection Diagram 5. Camera Technical Specification 1/4" SONY CCD color camera 2.4GHz Digital FHSS Hopping and Pairing Technology Resolution: NTSC: 510*492 pixels , PAL: 510*582 pixels\ Lens: 2.8mm Min illumination: 0 Lux(LED on) IR LED: 12 pcs Night Vision distance: 15M Waterproof rating: IP 69K Viewing angle: 120° Power voltage: 12V Operation temp: -20°C ~ + 70°C Antenna Red Light: Power indicator (Powered always bright) Green Light:Pairing indicator (flashes when paired,successful pairing the light always bright) Port: DC Shell material: aluminum alloy Bracket material: iron Dustproof, waterproof, hydrochloric acid prevention, explosion prevention 6. Maintenance 1. Remove all the cable connections from the monitor before cleaning the unit. 2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth. Never use strong solvents such as thinner or benzene, as they might damage the furnish of the device. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. This symbol is intended to alert the user not to waste electrical and electronic equipment. FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

CONVOY TECHNOLOGIES L.L.C. 3300 Irvine Ave, STE 310, Newport Beach, C.A, USA Confidentiality Request Letter Page 1 of 1 Rev 2.0 06 05, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: 2AA4QC1200 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Edward Cheng / Global Sourcing Manager Contact information / address: 3300 Irvine Ave, STE 310, Newport Beach, C.A, USA TEL: 949-683 0888 FAX: 317-245 2196 E-mail: [email protected]

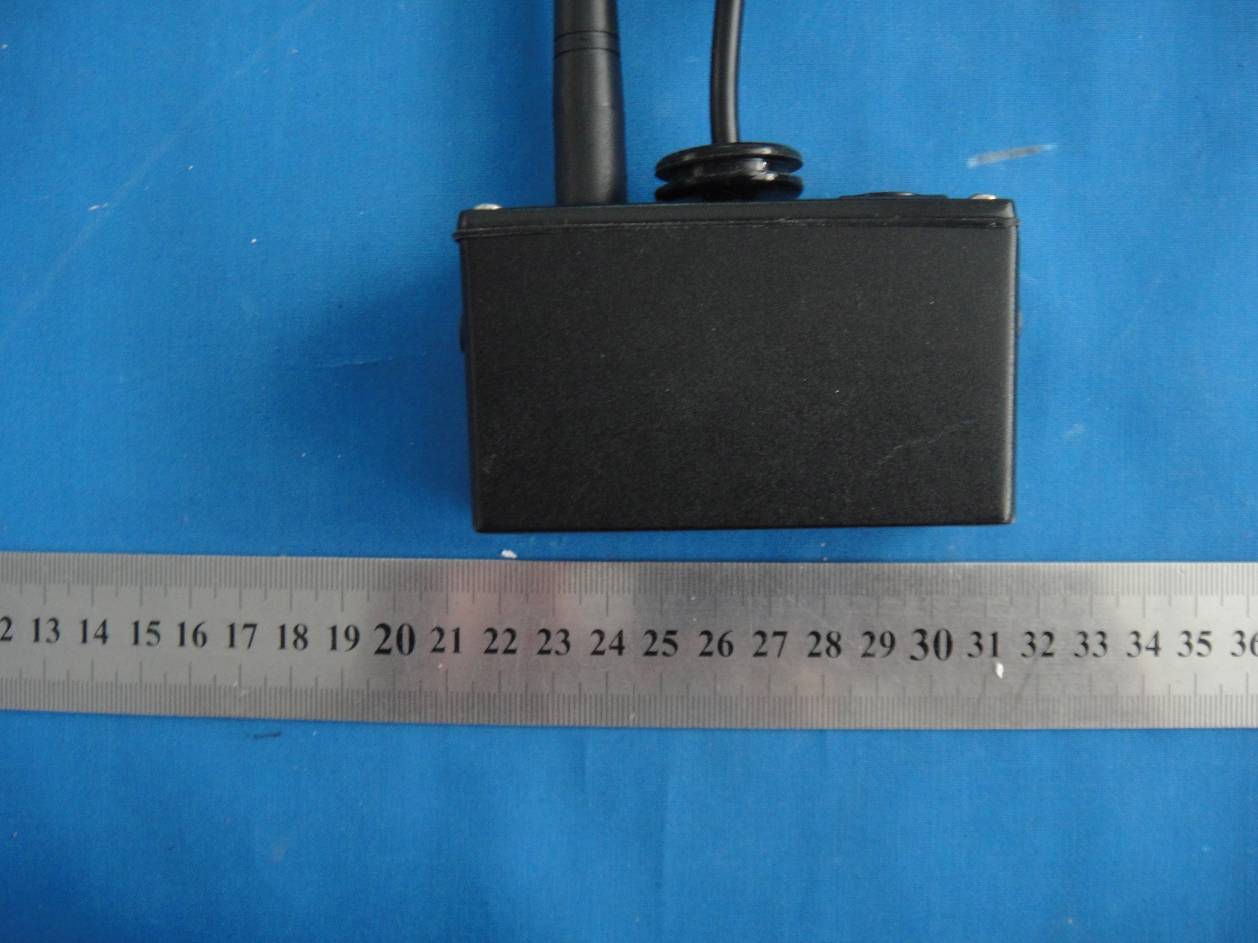

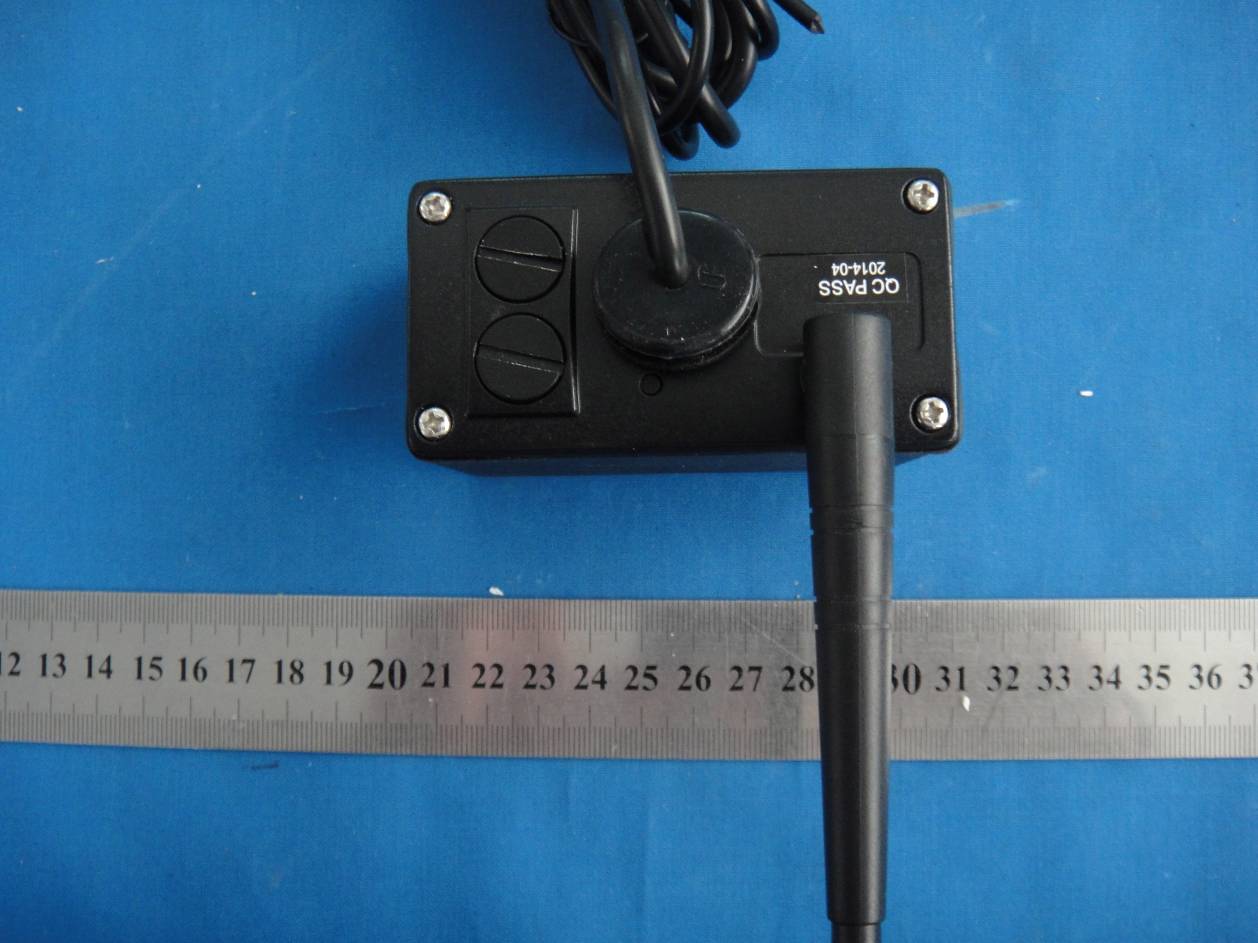

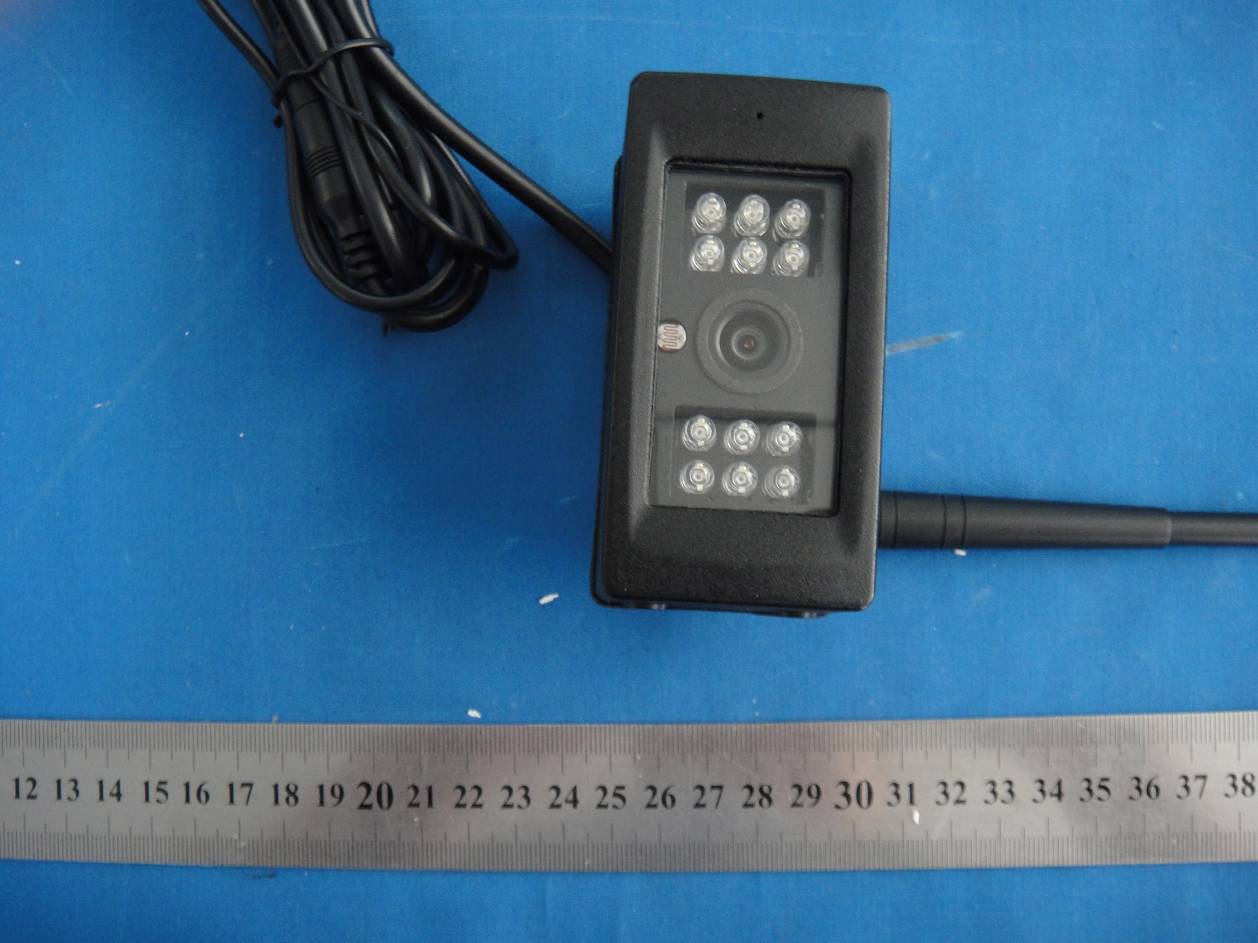

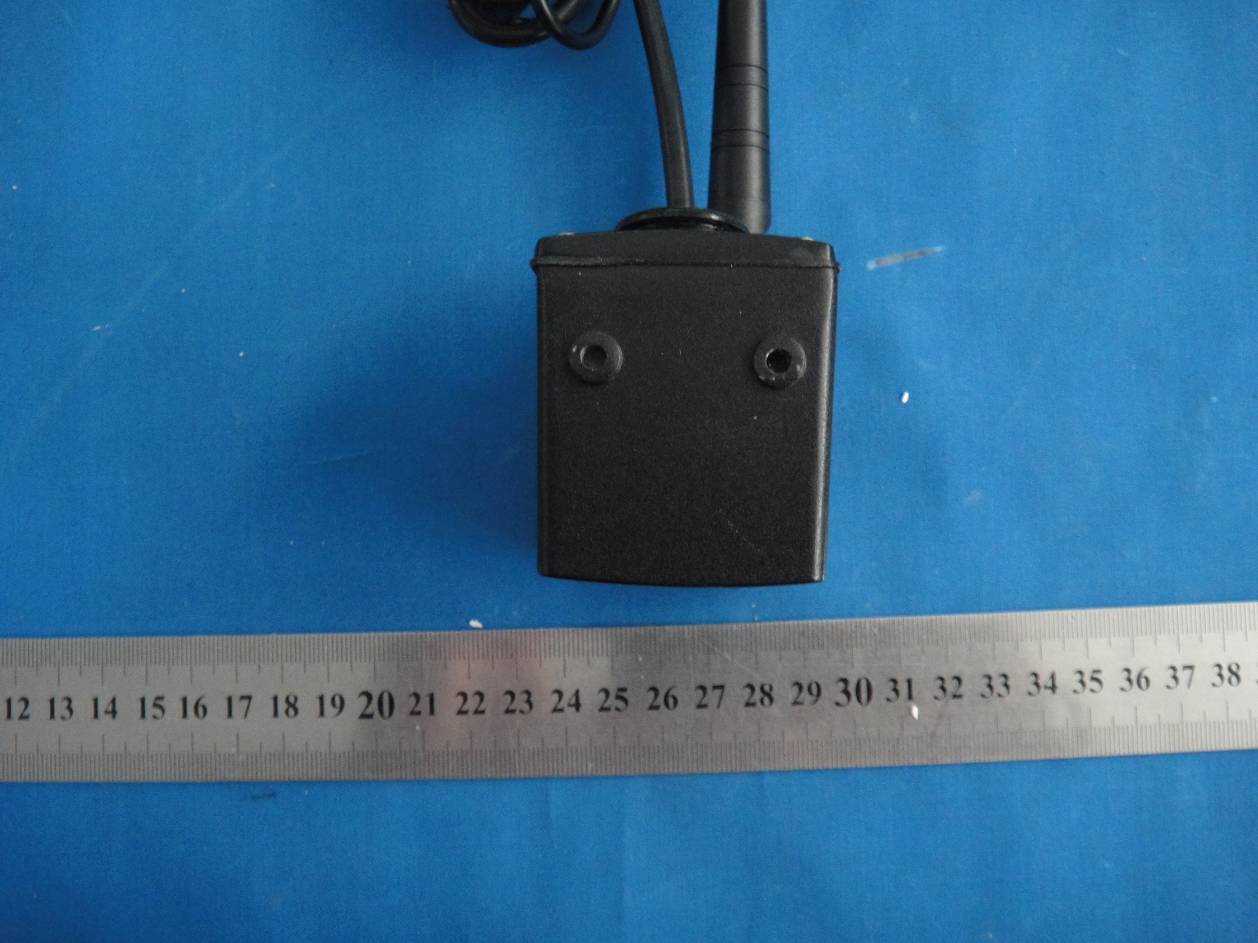

External Photo Antenna

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For CONVOY TECHNOLOGIES L.L.C. 3300 Irvine Ave, STE 310, Newport Beach, C.A, USA FCC ID: 2AA4QC1200 June 04, 2014 This Report Concerns: Original Report Equipment Type: Rear View Wireless Camera Test Engineer: Lisa Chen Report No.: BSL14095735Y-1ER-3 Receive EUT Date/Test Date: June 01, 2014 / June 01-04, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID: 2AA4QC1200 BSL14095735Y-1ER-3 Page 2/24 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID: 2AA4QC1200 BSL14095735Y-1ER-3 Page 3/24 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance of the product/equipment. 1.1.…

Text truncated - open the document above for the full version.

Radiated emissions test
