2AA6F-UV-1GBPWireless Intercom System-Belt Pack

Rev. O 600MHz US July 16 th , 2019 UV-1G WIRELESS INTERCOM SYSTEM USER MANUAL - US UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 2 of 95 This page intentionally left blank. UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 3 of 95 UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 4 of 95 • Per FCC 15.19(a) (3) and (a) (4): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • Per FCC 15.21: Changes or modifications not expressly approved by Radio Active Designs could void the user's authority to operate the equipment. • This system is not approved for use in environments with explosive or combustible atmospheres. UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 5 of 95 TABLE OF CONTENTS Table of Figures ........................................................................................................................... 9 Features ....................................................................................................................... 10 Terminology ................................................................................................................. 10 Downloads / Manuals................................................................................................... 11 Technical Support ......................................................................................................... 11 UV-1G Specifications ................................................................................................................. 12 Transmitter .................................................................................................................. 12 Receiver ....................................................................................................................... 13 System Diagram ........................................................................................................... 14 Base Station ......................................................................................................................... 15 Front Panel Button Descriptions .................................................................................... 15 Front Panel LED Description .......................................................................................... 17 Rear Panel Description .................................................................................................. 19 Belt Pack .............................................................................................................................. 20 Quick Start Guide ................................................................................................................. 23 Base Station ................................................................................................................. 23 Belt Pack ...................................................................................................................... 24 Base Station Operation ........................................................................................................ 25 Power ........................................................................................................................... 25 Home Screen ................................................................................................................ 25 Transmitter Power Level ............................................................................................... 26 Receiver Status ............................................................................................................. 26 Base Station Link Mode ................................................................................................ 26 Local Headset Status ..................................................................................................... 28 RSSI Screen .................................................................................................................. 28 Base Station Menu Structure .................................................................................................... 29 Passcode Protection ...................................................................................................... 29 Receiver Settings .......................................................................................................... 29 Advanced Receiver Settings .......................................................................................... 31 Aux In Settings .............................................................................................................. 33 Transmitter Settings ..................................................................................................... 34 Local Headset Options .................................................................................................. 35 Display Setting ............................................................................................................. 36 Base Station Link Modes ............................................................................................... 38 Info Screen ................................................................................................................... 38 Enabling/Disabling the Passcode .................................................................................. 39 Changing the Passcode ................................................................................................. 39 Base Station Gain Adjustments ................................................................................................. 40 Intercom 1 & 2 .............................................................................................................. 40 Auxiliary ..............................…

Text truncated - open the document above for the full version.

Receiver Antennas Transmitter Antenna (Perimeter of board) DIG1 - DISPLAY DIG2 - MICRO CONTROLLER DIG3 - TxDSP DIG4 - RxDSP DIG5 - INTERFACE Rx Tx BATTERY XLR PCB LAYOUT BELT PACK G1 4 OCTOBER 2013 .188 .361 .360 .188 .188 3.571 1.626

91-0115PCBA WIS 1G Belt Pack Transmitter -- V6.0ABill of Materials -- 2 October 2017 QtyRDGI PNDescriptionManufacturerMfr Part NumberPartPCB FootprintTol Volt Reference 111-0389Shield Base Belt Pack TX 30mm SquareWurth36103305 111-0390Shield Lid Belt Pack TX 30mm SquareWurth36003300 121-0340Conn Receptacle 80 Pos JMDJST80R-JMDSS-G-1-TF(LF)80R-JMDSS-G-1-TFHDR-2X40-JMDSS-PP1 121-0407Receptacle Pin #18 Contact SMTMill-Max6628-0-18-15-18-27-10-06628-0-18-15-18-27-10-0HDR_6628-0P2 12C-0410PCB WIS 1G Belt TX V6 NCAB2C-0410 12J-0521Stencil WIS 1G Belt TX V6 (T) 20X20 Beam On2J-0521 1 2J-0522 Stencil WIS 1G Belt TX V6 (B) 20X20 Beam On2J-0522 5 31-0184 RES ERJ 0402 0 ohm jumper PanasonicERJ-2GE0R00X0 OhmCR0402R3,R20,R45,R54,R72 1 31-0491 RES ERJ 1206 Jumper 0 ohm PanasonicERJ-8GEY0R00V0 ohmCC120616VC26 1 31-0845 RES ERJ 0603 1/10W ±1% 2.49k PanasonicERJ-3EKF2491V2.49kCR06031%R17 4 31-0875 RES ERJ 0402 1/16W ±1% 1k PanasonicERJ-2RKF1001X1KCR04021%R67,R68,R69,R70 1 31-0878 RES ERJ 0402 1/16W ±1% 2.49k PanasonicERJ-2RKF2491X2.49KCR0402 1%R65 1 31-0890 RES ERJ 0402 1/16W ±5% 4.7k PanasonicERJ-2GEJ472X4.7KCR0402 5%R4 331-0892RES ERJ 0402 1/16W ±1% 10kPanasonic ERJ-2RKF1002X 10k CR0402 1%R22,R46,R52 231-0901RES ERJ 0402 1/16W ±5% 30 ohmPanasonic ERJ-2GEJ300X 30 ohm CR0402 R1,R5 231-0933RES ERJ 0402 1/16W ±1% 147 ohmPanasonic ERJ-2RKF1470X 147 ohm CR0402 1%R13,R14 231-0934RES ERJ 0402 1/16W ±1% 115 ohmPanasonic ERJ-2RKF1150X 115 ohm CR0402 1%R15,R16 131-1141RES ERJ 2010 3/4W ±5% 4.7 ohmPanasonicERJ-12ZYJ4R7U4.7 ohmCR20105% 3/4W R66 137-0058CAP TANT 7343X 16V ±10% 100uFKemetT491X107K016AT100uFCAPT734316V C93 138-0023CAP 0402 C0G 50V ±5% 33pFKemetC0402C330J5GACTU33pFCC04025% 50V C72 138-0026CAP 0402 C0G 50V ±5% 47pFKemetC0402C470J5GACTU47pFCC04025% 50V C70 538-0045CAP 0402 X7R 50V ±10% 1nFKemetC0402C102K5RACTU1nFCC040210% 50V C12,C67,C68,C94,C105 138-0085CAP 0603 C0G 50V ±5% 15pFKemetC0603C150J5GACTU15pFCC06035% 50V C106 638-0476CAP 0402 X5R 16V ±10% 220nFTDKC1005X5R1C224K050BB0.22uFCC040210% 16V C1,C2,C3,C6,C7,C8 238-0487CAP 0805 C0G 25V ±5% 27nFKemetC0805C273J3GAC780027nFCC08055% NPO 25V C25,C30 538-0488CAP 0805 C0G 16V ±5% 47nF KemetC0805C473J4GAC780047nFCC08055% NPO 16VC21,C22,C23,C24,C29 338-0489 CAP 0603 C0G 25V ±5% 10nF KemetC0603C103J3GACTU10nFCC06035% NPO25VC27,C28,C110 2 38-0516 CAP 0402 C0G 25V ±5% 560pF TDKC1005C0G1E561J560pFCC04025%25VC4,C10 13 38-0540 CAP 0402 X7R 50V ±10% 100nF TDKC1005X7R1H104K050BB0.1uFCC040210%50VC19,C20,C31,C32,C34,C64,C65,C66,C74,C77,C98,C99,C112 1 38-0545 CAP 0402 X5R 10V ±10% 4.7uF TDkC1005X5R1A475K050BC4.7uFCC040210%10VC109 238-0588CAP 0603 X5R 25V ±10% 3.3uFTDK C1608X5R1E335K080AC 3.3uF CC0603 10%25VC103,C104 13A-0070IND 0603CS ±2% 100nHCoilcraft 0603CS-R10XGLW 100nH IND_0603CS 2%L7 13A-0660IND 0603CS ±5% 10nHCoilcraft 0603CS-10NXJLW 10nH IND_0603CS 5%L10 13A-0662IND 0603CS ±5% 12nHCoilcraft 0603CS-12NXJLW 12nH IND_0603CS 5%L18 13A-0685IND 0603CS ±2% 18nHCoilcraft 0603CS-18NXGLW18nHIND_0603CS2% L19 13A-0695IND 0603CS ±5% 39nHCoilcraft 0603CS-39NXJL39nHIND_0603CS5% L22 13A-0788IND 0805CS ±5% 56nHCoilcraft0805CS-560XJLC56nHIND_0805CS5% L21 13A-0793IND 0402CS ±2% 5.1nHCoilcraft0402CS-5N1XGLW5.1nHIND_0402CS2% L1 13A-0800IND 0603CS ±5% 120nHCoilcraft0603CS-R12XJLW120nHIND_0603CS5% L20 13A-08240402CS-3N6XGLW IND 0402 2% 3.6nHCoilcraft0402CS-3N6XGLW3.6nHIND_0402CS2% L3 142-1001 MOSFET P-Channel 2.5V Specified Power TrenchFairchildFDN338P FDN338PSOT23Q1 142-1024 MOSFET N-CH 30V 1.7A SSOT3FairchildNDS355AN NDS355ANSOT23Q14 14J-0311Diode PIN RF HSMP-3824 Common Cathode SOT-23AvagoHSMP-3824HSMP-3824SOT23D1 154-0528CAT25080YI IC EEPROM SPI 8k Bit 20MHz TSSOP-8ON SemiCAT25080YI-GT3CAT25080YI-GT3CFP8P65_300X640X120L62X24NU35 157-0723 IC DAC 8 Bit Resistor String SC70-6Analog DevicesAD5601BKSZ AD5601BKSZSC70-6U17 158-0285 IC Op Amp Low Power Rail-to-Rail I/O SOT23-6Analog DevicesADA4841-1YRJZ ADA4841-1YRJZSOT23-6 U18 258-0314 IC Op Amp 215MHz 3.4mA SOT23-6 Linear TechLT6230IS6#TRMPBFLT6230IS6SOT23-6 U8,U9 158-0325LTC6362 IC Op Amp Rail-to-Rail ADC Driver DFN-8Linear TechLTC6362IDD#TRPBFLTC6362IDDQFN50P300X300-9U25 168-0525 Filter Low Pass DC to 190 MHzMini-CircuitsLFCN-190+ LFCN-190FIL_LFCNFL1 171-0027IC RF Amplifier High Linearity 50 to 1500 MHz SOT-89TriQuintTQP7M9105TQP7M9105SOT89U15 171-0029RF LNA MMIC GaAs SOT-363AvagoMGA-68563-TR1GMGA-68563SOT363-6U16 172-0218 Attenuator Voltage Controlled 50MHz to 4GHz 30dB QFN-16RFMDRFSA2013TR7 RFSA2013QFN50P300X300-17U14 27A-0114 IC RF Synthesizer Dual Band Integrated VCO QFN-28Silicon LabsSi4112-D-GM Si4112-GMQFN50P500X500-29U1,U3 17A-0126LTC5599 IC Quadrature Modulator 30 MHz to 1300 MHz QFN-24 Linear TechLTC5599IUF#TRPBFLTC5599IUFQFN50P400X400-25U24 1C7-0200DNI (BOM Place Holder for DNI Parts)DNI - AntennaHDR-1J5,TP4,TP5,TP6,MH1,MH2,MH3,MH4 2C7-0201Do Not Install - CC0402DNICC0402C97,C113 7C7-0202Do Not Install - CR0402DNICR0402R7,R8,R21,R23,R47,R55,R71 1C7-0203Do Not Install - CC0603DNICC0603C80 1C7-0205Do Not Install - CC0805DNICC0805 C95

91-0116PCBA WIS 1G Belt Receiver -- V8.2ABill of Materials -- 10 January 2018 QtyRDGI PNDescriptionManufacturerMfr Part NumberPartPCB FootprintTolVoltReference 4 11-0153SMT Standoff Electro Tin plated 2-56 x 3/16"Penn EngineeringSMTSO-256-6ETSMTSO256SMTSO256xETSD1,SD2,SD3,SD4 1 21-0339Conn Plug 80 Pos JMDJST80P-JMDSS-G-1-TF(LF)80P-JMDSS-G-1-TFHDR-2X40-JMDSS-JJ3 1 2C-0394PCB WIS 1G Belt RX V8NCAB2C-0394 1 2J-0498Stencil WIS 1G Belt RX V8 (T) 20X20Beam On2J-0498 1 2J-0499Stencil WIS 1G Belt RX V8 (B) 20X20Beam On2J-0499 1031-0184RES ERJ 0402 0 ohm jumperPanasonicERJ-2GE0R00X0 OhmCR0402R5,R34,R36,R53,R61,R65,R68,R84,R105,R135,R136,R139,R155,R164,R165,R167,R183,R209,R211,R213 1 31-0788RES ERJ 0603 1/10W ±5% 7.5kPanasonicERJ-3GEYJ752V7.5KCR0603R3 2 31-0870RES ERJ 0402 1/16W ±5% 33 ohmPanasonicERJ-2GEJ330X33 ohmCR0402<Tol>R98,R197 4 31-0874RES ERJ 0402 1/16W ±1% 3.32kPanasonicERJ-2RKF3321X3.3kCR04021%R85,R97,R184,R196 2231-0875RES ERJ 0402 1/16W ±1% 1kPanasonicERJ-2RKF1001X1kCR04021%R12,R23,R27,R31,R38,R49,R56,R72,R77,R80,R96,R113,R124,R129,R132,R140,R151,R156,R171,R176,R179,R194 2 31-0878RES ERJ 0402 1/16W ±1% 2.49kPanasonicERJ-2RKF2491X2.49KCR04021%R101,R200 4 31-0887RES ERJ 0402 1/16W ±5% 6.8kPanasonicERJ-2GEJ682X6.8kCR0402R33,R52,R134,R154 5531-0892RES ERJ 0402 1/16W ±1% 10kPanasonicERJ-2RKF1002X10KCR04021%R2,R28,R29,R51,R58,R62,R63,R64,R67,R69,R70,R73,R74,R75,R81,R82,R83,R87,R88,R90,R91,R92,R93,R94,R95,R100,R103,R128,R130,R153,R157,R159,R160,R163,R166,R168,R169,R172,R173,R175,R180,R181,R182,R186,R187,R189,R190,R191,R192,R193,R195,R199,R203,R206,R208 2 31-0902RES ERJ 0402 1/16W ±5% 4.3kPanasonicERJ-2GEJ432X4.3KCR0402R55,R202 4 31-0942RES ERJ 0402 1/16W ±1% 1.5kPanasonicERJ-2RKF1501X1.50KCR04021%R86,R89,R185,R188 2 31-0951RES ERJ 0402 1/16W ±1% 1.96kPanasonicERJ-2RKF1961X1.96KCR0402 1%R32,R133 2 31-0954RES ERJ 0402 1/16W ±1% 2kPanasonicERJ-2RKF2001X2.00kCR04021%R1,R102 2 31-0963RES ERJ 0402 1/16W ±1% 7.5kPanasonicERJ-2RKF7501X7.50KCR04021%R99,R198 1031-1004RES ERJ 0402 1/16W ±1% 499 ohmPanasonicERJ-2RKF4990X499 ohmCR04021%R16,R22,R26,R40,R48,R117,R123,R127,R142,R150 2 31-1014RES ERJ 0402 1/16W ±1% 6.34kPanasonicERJ-2RKF6341X6.34KCR04021%R25,R126 2 31-1027RES ERJ 0402 1/16W ±5% 2.2kPanasonicERJ-2GEJ222X2.2KCR0402R54,R57 4 31-1044RES ERA 0402 1/16W ±0.1% 49.9 ohmPanasonicERA-2AEB49R9X49.9 ohmCR04020.10%R17,R41,R118,R146 8 31-1045RES ERA 0402 1/16W ±0.1% 113 ohmPanasonicERA-2AEB1130X113 ohmCR04020.10%R19,R20,R43,R46,R119,R122,R143,R147 8 31-1046RES ERA 0402 1/16W ±0.1% 127 ohmPanasonicERA-2AEB1270X127 ohmCR04020.10%R14,R21,R44,R47,R115,R120,R144,R148 8 31-1047RES ERA 0402 1/16W ±0.1% 348 ohmPanasonicERA-2AEB3480X348 ohmCR04020.10%R15,R18,R42,R45,R116,R121,R145,R149 2 31-1063RES ERJ 0402 1/16W ±1% 100kPanasonicERJ-2RKF1003X100KCR04021%R76,R174 2 31-1065RES ERJ 0402 1/16W ±5% 510 ohmPanasonicERJ-2GEJ511X510 ohmCR0402R66,R162 2 31-1066RES ERJ 0402 1/16W ±5% 470kPanasonicERJ-2GEJ474X470KCR0402R59,R158 2 31-1088RES ERJ 0402 1/16W ±1% 1.3kPanasonicERJ-2RKF1301X1.30KCR04021%R79,R178 4 31-1089RES ERJ 0402 1/16W ±1% 3.92kPanasonicERJ-2RKF3921X3.92KCR04021%R35,R78,R137,R177 2 31-1102RES ERA 0402 1/16W ±0.1% 432 ohmPanasonicERA-2AEB4320X432 ohmCR04020.10%R114,R141 2 31-1117RES ERJ 0402 1/16W ±1% 887 ohmPanasonicERJ-2RKF8870X887 ohmCR04021%R37,R138 4 31-1134RES ERJ 0402 1/16W ±1% 36.5kPanasonicERJ-2RKF3652X36.5kCR04021%R24,R50,R125,R152 2 31-1142RES ERJ 0402 1/16W ±1% 432 ohmPanasonicERJ-2RKF4320X432 ohmCR04021%R13,R39 2 31-1211RES ERJ 0402 1/16W ±1% 4.75kPanasonicERJ-2RKF4751V4.7kCR04021%R210,R212 1 32-0041Potentiometer Digital Dual 25k TSSOP-16Analog DevicesAD5235BRUZ25AD5235BRUZ25TSOP65P640-16U15 1 33-0002RES Array 4 Res ±5% 33 ohmCTS742C083330JPTR33ohmCRN_742-4R201 7 38-0004CAP 0402 C0G 50V ±5% 100pFKemetC0402C101J5GACTU100pFCC0402C15,C17,C85,C117,C161,C230,C262 1138-0045CAP 0402 X7R 50V ±10% 1nFMurataGRM155R71H102KA01D1nFCC0402C7,C9,C150,C158,C160,C294,C302,C315,C319,C320,C321 2 38-0081CAP 0603 C0G 50V ±5% 150pFKemetC0603C151J5GACTU150pFCC0603C126,C267 4 38-0259CAP 0603 X7R 50V ±10% 47nFMurataGRM188R71H473KA61D47nFCC0603 C121,C134,C265,C278 9538-0391CAP 0402 X5R 10V ±10% 100nFMurataGRM155R61A104KA01D0.1uFCC0402C1,C3,C4,C5,C8,C10,C47,C48,C49,C71,C72,C73,C74,C75,C76,C78,C86,C87,C88,C89,C90,C112,C113,C114,C118,C119,C120,C123,C124,C125,C129,C131,C132,C133,C136,C137,C140,C141,C142,C143,C146,C147,C148,C149,C151,C153,C155,C156,C159,C192,C193,C194,C216,C217,C218,C219,C220,C222,C223,C231,C232,C233,C234,C235,C257,C258,C259,C263,C264,C268,C269,C270,C273,C275,C276,C277,C281,C282,C284,C285,C286,C287,C290,C291,C292,C293,C295,C297,C300,C301,C304,C305,C306,C307,C308 4 38-0392CAP 0603 X5R 16V ±10% 2.2uFKemetC0603C225K4PACTU2.2uFCC0603C6,C135,C157,C279 5 38-0402CAP 0402 X5R 10V ±10% 1uFKemetC0402C105K8PACTU1uFCC0402C84,C229,C298,C299,C303 2 38-0442CAP 0603 X7R 16V ±10% 390nFKemetC0603C394K4RACTU0.39uFCC0603C127,C271 8 38-0453CAP 0603 C0G 50V ±5% 1.8nFMurataGRM1885C1H182JA01D1.8nFCC06035% COGC50,C70,C92,C111,C195,C215,C236,C256 2 38-0456CAP 1206 X5R 16V ±20% 47uFTDKC3216X5R1C476M160AB47uFCC1206C82,C227 2 38-0470CAP 0603 C0G 50V ±5% 2.7nFMurataGRM1885C1H272JA01D2.7nFCC06035% COGC79,C224 2 38-0475CAP 0805 X5R 16V ±10% 22uFTDKC2012X5R1C226K125AC22uFCC0805C139,C283 2 38-0476CAP 0402 X5R 16V ±10% 220nFTDKC1005X5R1C224K050BB220nFCC0402C80,C225 7 38-0477CAP 0402 X7R 25V ±10% 22nFTDKC1005X7R1E223K050BB22nFCC0402C309,C312,C313,C314,C316,C317,C318 1638-0487CAP 0805 C0G 25V ±5% 27nFKemetC0805C273J3GACTU27nFCC08055% COGC51,C65,C67,C68,C91,C106,C108,C109,C196,C210,C212,C213,C237,C250,C252,C255 3638-0488CAP 0805 C0G 16V ±5% 47nFKemetC0805C473J3GACTU47nFCC08055% COGC52,C53,C54,C55,C56,C58,C59,C60,C64,C93,C94,C95,C96,C97,C98,C99,C100,C105,C197,C198,C199,C200,C201,C202,C203,C204,C209,C238,C239,C240,C241,C242,C243,C244,C245,C249 4 38-0501CAP 0402 U-Hi-Q NP0 50V ±2% 22pFJohanson500R07S220GV4T22pFCC0402C77,C115,C221,C260 1 38-0504CAP 0402 U-Hi-Q NP0 50V ±2% 15pFJohanson500R07S150GV4T15pFCC0402C16 8 38-0508CAP 0402 C0G 50V ±2% 150pFAVX0402…

Text truncated - open the document above for the full version.

Antenna Information Belt pack: The antenna in the belt-pack is an electronically tuned loop, with a gain of between -2 and -6dBi, and is soldered directly to the circuit board of the transmitter. As such, it is not user-alterable. No other antennas will be used with the belt pack transmitter.

.031 0 .17 .89 1.61 1.781 0 .17 .78 2.18 2.82 2.981 D SEE NOTE 10 (BOTTOM EDGE ONLY) .165 R.035 .072 R.076 .18 2X R .03 .09 1.426 .130 2X .070 1.426 ETCHED FOR BREAK-AWAY (SEE NOTE 9) D C REVISIONS REV.DESCRIPTIONDATEAPPROVED APRODUCTION RELEASE2/18/2013 B ADDED NOTE 8; REDUCED LENGTH OF TABS 3/7/2013 C CHANGED HEIGHT AND MATERIAL THICKNESS 3/7/2013 D ADDED RING TAB FOR PLATING; REVISED NOTES FOR TABS AND REMOVAL OF RING TAB 8/5/2013 THIRD ANGLE PROJ. D WIS GEN 1 ANTENNA BELT PACK TX 10-0318 SHEET: 1 OF 1 DATE 02/18/13 SHEET SIZE A APPROVALS PROPRIETARY NOTE: 32 MAT UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES1. TOLERANCES: .XXX .010 .XX.015 ANGLES 3°2. REMOVE BURRS AND SHARP EDGES .015 MAX.3. NORMALITY, SQUARENESS AND PARALLELISM OF 4. MACHINED SURFACES .004 MACHINED DIAMETER ON A COMMON CENTERLINE 5. CONCENTRIC WITHIN .002 T.I.R. ALL MACHINED SURFACES6. .031" COPPER STRIP This document and the information it contains are proprietary and may not be used, assigned, or copied without the written consent of Radio Design Group DRAWN BY D. BULLOCK SCALE: FIN SEE NOTE 7 APPROVED 8925 Rogue River Highway, Grants Pass, OR 97527-4377 RADIO DESIGN GROUP, INC. 1:1 DWG NO. CHECKED 7. FINISH: SILVER PLATE PER QQ-S-365D, Type II, Grade A (DO NOT USE NICKEL IN THE PLATING PROCESS) 8. CORNERS MUST NOT BE ETCHED FOR BENDING - ADVERSELY AFFECTS RF PERFORMANCE 9. REMOVE RING TAB AFTER PLATING 10. RECESSED TABS PERMITTED IN LOCATIONS AS MARKED (WILL BE SOLDERED AT THESE LOCATIONS)

.016 .380 .760 .560 A .150 2X .070 2X .090 2X .035 .380 .036 D SCALE 4:1 D USE THIS HOLE TO HANG FOR PLATING .200 DETAIL A SCALE 2 : 1 FLAT PATTERN (SUGGESTION) TABS ON ENDS ONLY TABS ON ENDS ONLY D D REVISIONS REV.DESCRIPTIONDATEAPPROVED APRODUCTION RELEASE2/18/2013 B ENLARGED ISO VIEW; ADDED FLAT PATTERN VIEW; CHANGED TAB LENGTHS; ADDED NOTE 8 3/7/2013 CINCREASED LENGTH OF TABS7/25/2013 D ADDED HOLE TO HANG FOR PLATING; ADDED TAB LOCATION NOTES 8/5/2013 THIRD ANGLE PROJ. D WIS GEN 1 ANTENNA BELT PACK RX 10-0317 SHEET: 1 OF 1 DATE 02/18/13 SHEET SIZE A APPROVALS PROPRIETARY NOTE: 32 MAT UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES1. TOLERANCES: .XXX .010 .XX.015 ANGLES 3°2. REMOVE BURRS AND SHARP EDGES .015 MAX.3. NORMALITY, SQUARENESS AND PARALLELISM OF 4. MACHINED SURFACES .004 MACHINED DIAMETER ON A COMMON CENTERLINE 5. CONCENTRIC WITHIN .002 T.I.R. ALL MACHINED SURFACES6. .016" COPPER STRIP This document and the information it contains are proprietary and may not be used, assigned, or copied without the written consent of Radio Design Group DRAWN BY D. BULLOCK SCALE: FIN SEE NOTE 7 APPROVED 8925 Rogue River Highway, Grants Pass, OR 97527-4377 RADIO DESIGN GROUP, INC. 1:1 DWG NO. CHECKED 7. FINISH: SILVER PLATE PER QQ-S-365D, Type II, Grade A (DO NOT USE NICKEL IN THE PLATING PROCESS) 8. CORNERS MUST NOT BE ETCHED FOR BENDING - ADVERSELY AFFECTS RF PERFORMANCE

P2070003BP_74H_Annex A _ Rev 1.0 Page 1 of 3 Annex A Emission Mask P2070003BP_74H_Annex A _ Rev 1.0 Page 2 of 3 Mask_174.255 MHz_ Ch Spacing = 100 kHz_p2070003 Mask_195.025 MHz_ Ch Spacing = 100 kHz_p2070003 P2070003BP_74H_Annex A _ Rev 1.0 Page 3 of 3 Mask_215.745 MHz_ Ch Spacing = 100 kHz_p2070003

P2070003BP_Part 74H_Annex B_ Rev 1.0 Page 1 of 5 Annex B Radiated Spurious Emission P2070003BP_Part 74H_Annex B_ Rev 1.0 Page 2 of 5 Radiated Spurious_1- 4 GHz_ Beltpack = 174.255 MHz _ Base 470.025 MHz Radiated Spurious_30 – 1000 MHz_ Beltpack = 174.255 MHz_ Base = 470.025 MHz P2070003BP_Part 74H_Annex B_ Rev 1.0 Page 3 of 5 Radiated Spurious_1 – 4 GHz_ Beltpack = 195.025 MHz_ Base = 470.025 MHz Radiated Spurious_30 – 1000 MHz_ Beltpack = 195.025 MHz_ Base = 470.025 MHz P2070003BP_Part 74H_Annex B_ Rev 1.0 Page 4 of 5 Radiated Spuriou_1 – 4 GHz_ Beltpack = 215.745 MHz_ Base = 470.025 MHz Radiated Spurious_30 – 1000 MHz_ Beltpack = 215.745 MHz_ Base = 470.025 MHz P2070003BP_Part 74H_Annex B_ Rev 1.0 Page 5 of 5 Radiated Spurious 1 – 4 GHz_ Beltpack = Standby_ Base = 470.025 MHz Radiated Spurious_30 – 1000 MHz_ Beltpack = Standby_ Base = 470.025 MHz

n/a <0.1 n/a <0.1 8.00 USA Product Name / PMNProduct Model Number / HVIN UV-1GUV-1G Belt Pack ISED Registration Number Ben Hewson, President 2AA6F-UV-1GBP11482A-UV1GBP FCC ID: In Accordance With: FCC 47 CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices IC RSS-102 Issue 5 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Approved By: Applicant: Test Report Serial Number: Test Report Date: SAR Test Report - New Certification 1530 Project Number: Maximum Reported 1g SAR FACE: BODY: FCC 45461649 R2.0 9 February 2021 LMR W/kgISED FACE: BODY: Simultaneous: Occupational Limit: 21 East Union Avenue East Rutherford, NJ 07073 Radio Activ Designs IC Registration 3874A-1FCC Registration: 714830 This report shall not be reproduced in any form without the expressed written consent of Celltech Labs Inc. © 2021 Celltech Labs Inc, Celltech Labs Inc. 21-364 Lougheed Rd. Kelowna, BC, V1X 7R8 Canada Test Lab Certificate: 2470.01 Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 2 of 43 Table of Contents 1.0 DOCUMENT CONTROL ................................................................................................................................................... 4 2.0 CLIENT AND DEVICE INFORMATION ............................................................................................................................ 5 3.0 SCOPE OF EVALUATION/DATA REUSE ........................................................................................................................ 6 4.0 NORMATIVE REFERENCES ........................................................................................................................................... 7 5.0 STATEMENT OF COMPLIANCE ..................................................................................................................................... 8 6.0 RF CONDUCTED POWER MEASUREMENT .................................................................................................................. 9 7.0 NUMBER OF TEST CHANNELS (N C ) .............................................................................................................................. 9 8.0 ACCESSORIES EVALUATED .......................................................................................................................................... 9 TABLE 8.1 MANUFACTURER’S ACCESSORY LIST ..................................................................................................................... 9 9.0 SAR MEASUREMENT SUMMARY ................................................................................................................................ 10 TABLE 9.1: MEASURED RESULTS LMR VHF BAND – BODY ................................................................................................. 10 TABLE 9.2: MEASURED RESULTS LMR VHF BAND – FACE .................................................................................................. 10 10.0 SCALING OF MAXIMUM MEASURE SAR ................................................................................................................... 11 TABLE 10.1 SAR SCALING – LMR ....................................................................................................................................... 11 11.0 SAR EXPOSURE LIMITS ............................................................................................................................................. 13 TABLE 11.1 EXPOSURE LIMITS ............................................................................................................................................. 13 12.0 DETAILS OF SAR EVALUATION ................................................................................................................................. 14 TABLE 12.1 DAY LOG .......................................................................................................................................................... 14 TABLE 12.2 DUT POSITIONING ............................................................................................................................................ 15 TABLE 12.3 GENERAL PROCEDURES AND REPORT ............................................................................................................... 15 TABLE 12.4 FLUID DIELECTRIC AND SYSTEMS PERFORMANCE CHECK ................................................................................... 16 TABLE 12.5 SCAN RESOLUTION 100MHZ TO 2GHZ .............................................................................................................. 16 13.0 MEASUREMENT UNCERTAINTIES ............................................................................................................................ 17 TABLE 13.1 MEASUREMENT UNCERTAINTY ........................................................................................................................... 17 TABLE 13.2 CALCULATION OF DEGREES OF FREEDOM .......................................................................................................... 18 14.0 FLUID DIELECTRIC PARAMETERS ........................................................................................................................... 19 TABLE 14.1 FLUID DIELECTRIC PARAMETERS 150MHZ HEAD TSL, 25 JAN 2021 ................................................................. 19 TABLE 14.2 FLUID DIELECTRIC ANALYSIS 150MHZ HEAD TSL, 25 JAN 2021 ....................................................................... 20 15.0 SYSTEM VERIFICATION TEST RESULTS ................................................................................................................. 21 TABLE 15.1 SYSTEM VERIFICATION RESULTS 835MHZ HEAD TSL, 11 JAN 2021 ................................................................. 21 1…

Text truncated - open the document above for the full version.

Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 34 of 43 APPENDIX C - SETUP PHOTOS Figure C.1 - Body Configuration Belt Pack and Headset Close-Up View DUT UV-1GBP Phantom ELI Normal View Headset CableBP-LBCHeadset00 Setup Photo - BODY Configuration Separation Distance Accessories Shownto Phantom (mm) AntennaBatteryBodyAudioAntenna DUT Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 35 of 43 Figure C.2 - Body Configuration Headset Only Close-Up View DUT Headset Cable Phantom ELI Normal View Headset CableBP-Ln/aHeadset00 Setup Photo - BODY Configuration Separation Distance Accessories Shownto Phantom (mm) AntennaBatteryBodyAudioAntenna DUT

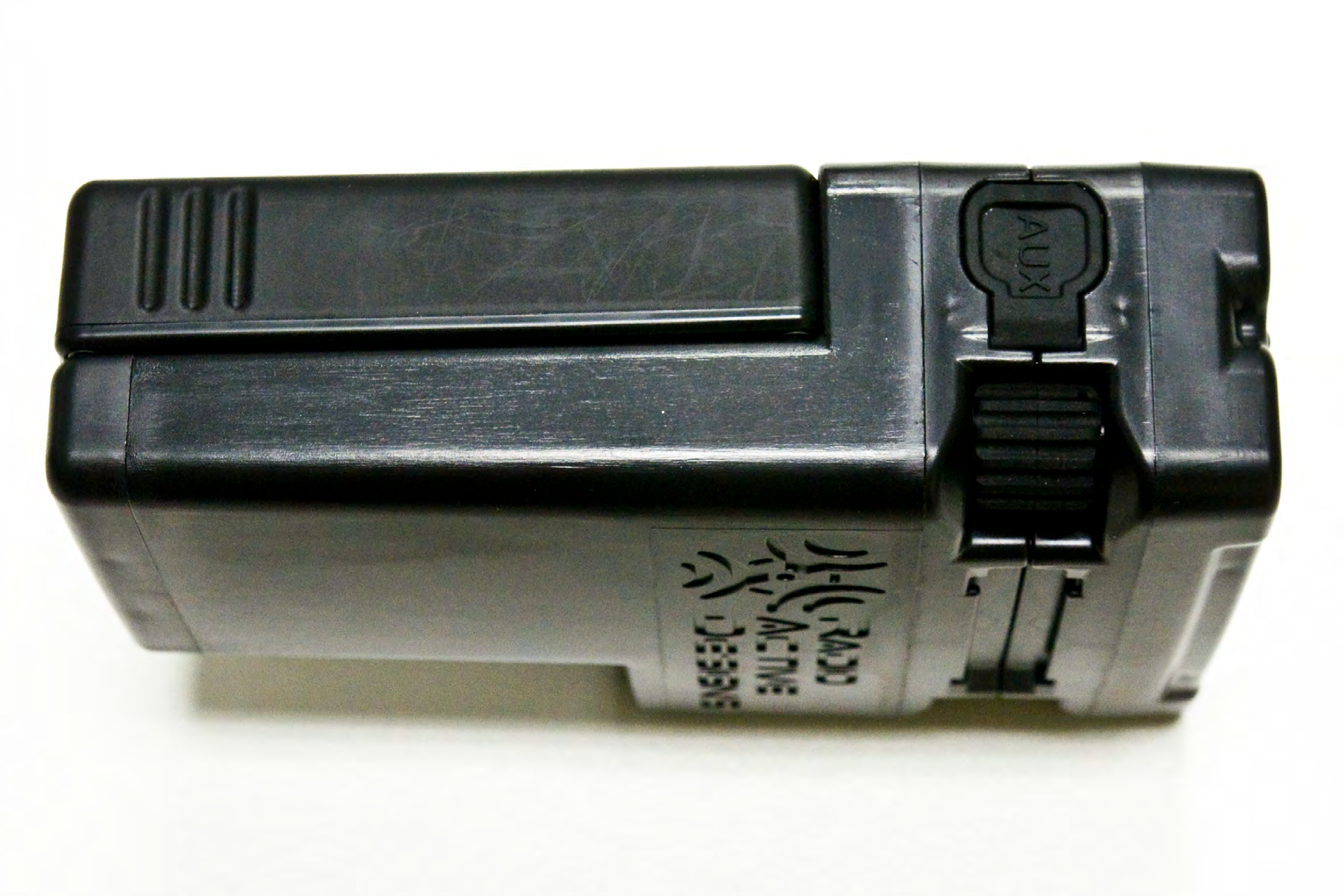

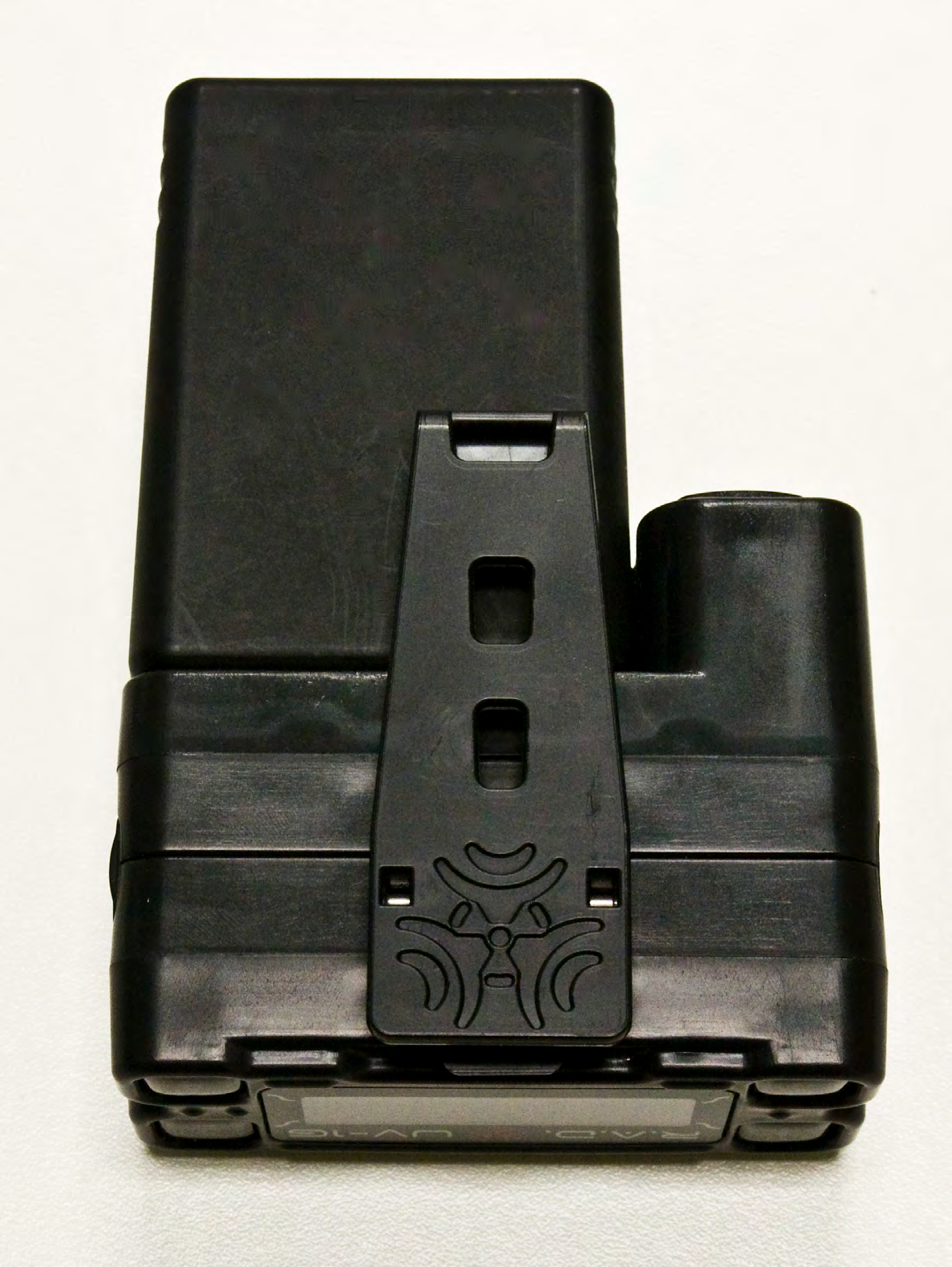

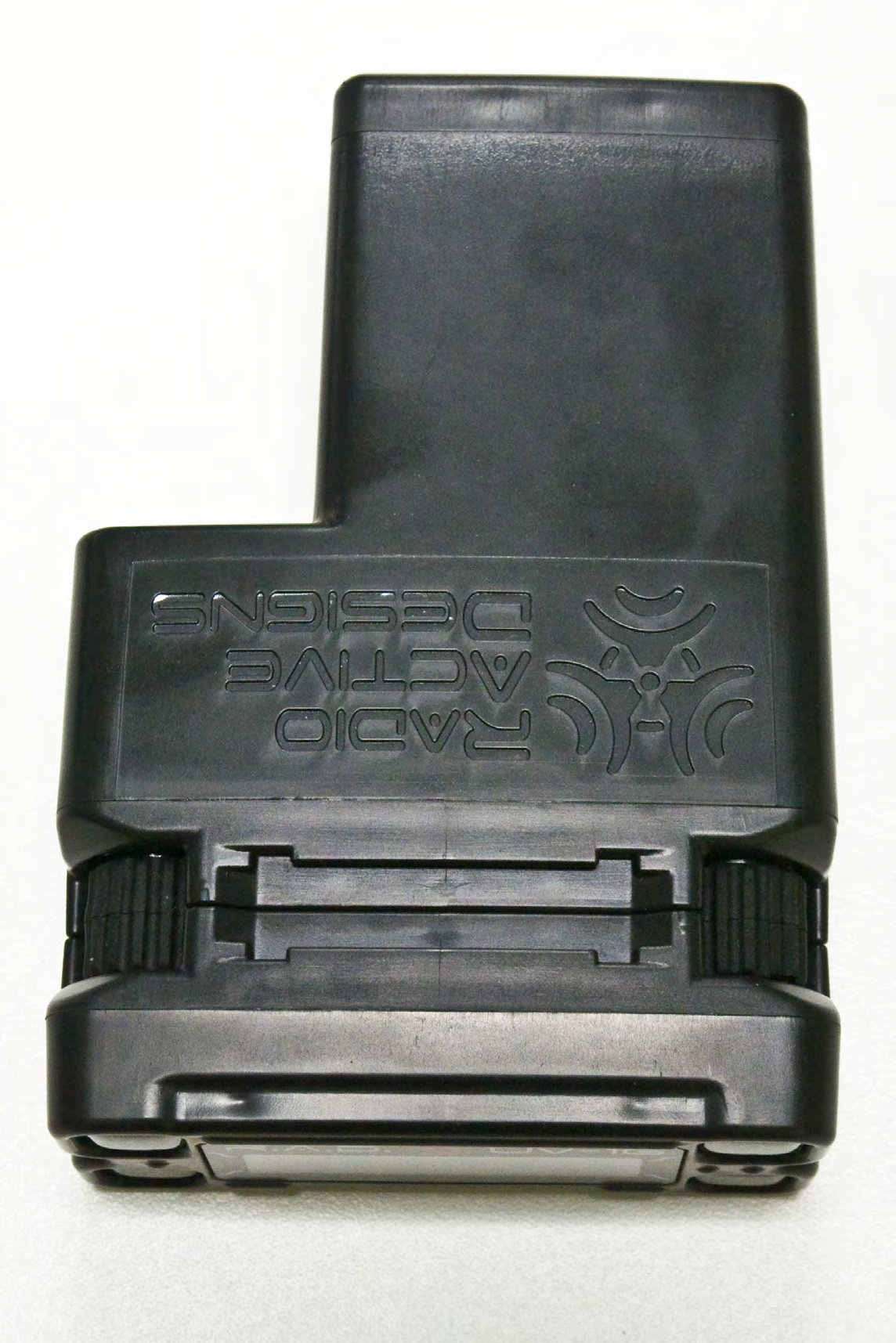

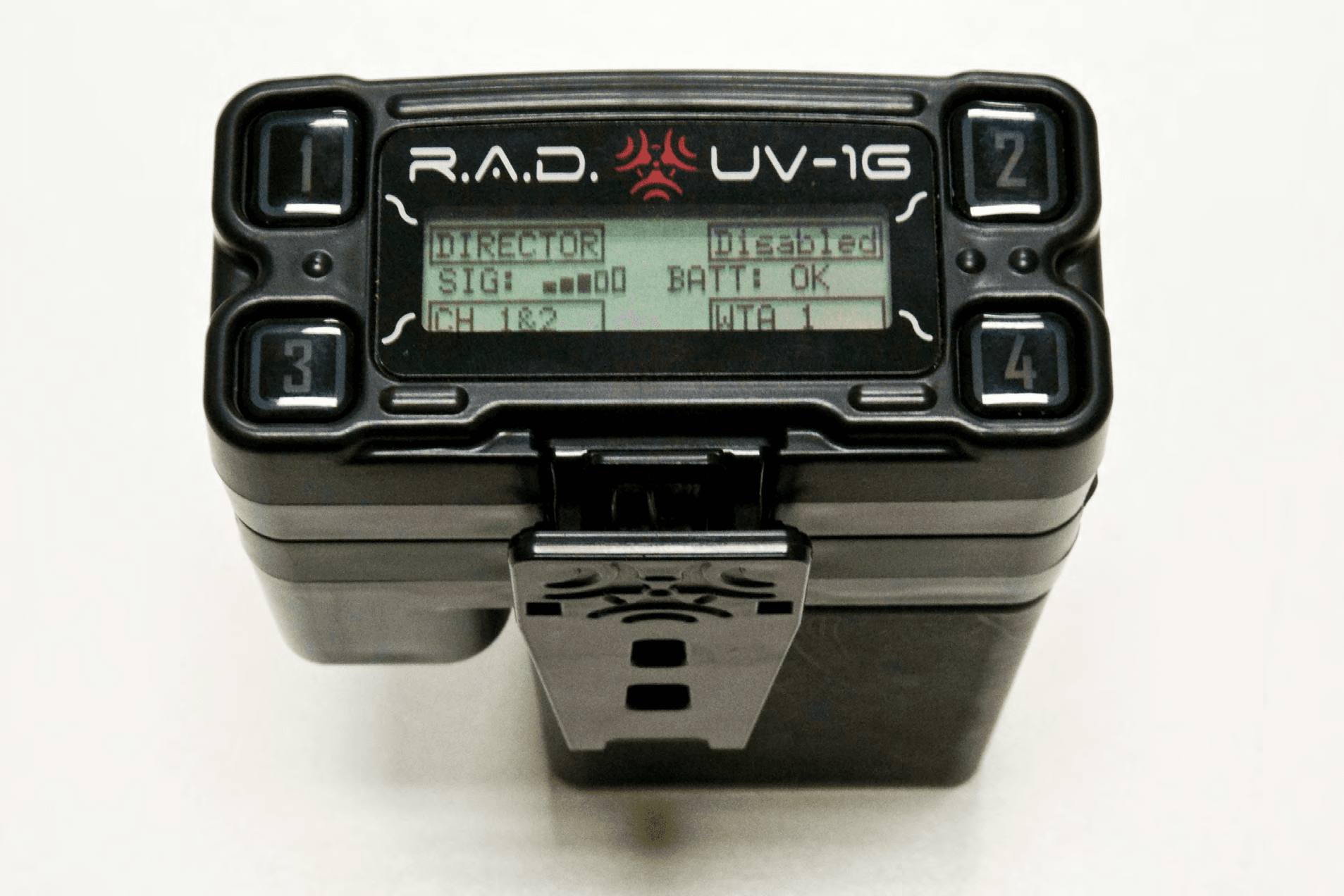

Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 36 of 43 APPENDIX D – DUT PHOTOS Figure D.1 – UV-1GBP – Front Figure D.2 – UV-1GBP – Back Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 37 of 43 Figure D.3 – UV-1GBP Top Figure D.4 – UV-1GBP Bottom Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 38 of 43 Figure D.5 – UV-1GBP Side Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 39 of 43 Figure D.6 – UV-1GBP Headset Figure D.7 – UV-1GBP Battery BP-L Test Report S/N: 46461649 R2.0 Test Report Issue Date: 9 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 40 of 43 Figure D.8 – UV-1GBP and Headset
