Rev. O 600MHz US July 16 th , 2019 UV-1G WIRELESS INTERCOM SYSTEM USER MANUAL - US UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 2 of 95 This page intentionally left blank. UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 3 of 95 UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 4 of 95 • Per FCC 15.19(a) (3) and (a) (4): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • Per FCC 15.21: Changes or modifications not expressly approved by Radio Active Designs could void the user's authority to operate the equipment. • This system is not approved for use in environments with explosive or combustible atmospheres. UV-1G User Manual Rev. O 600MHz US – July 16 th , 2019 5 of 95 TABLE OF CONTENTS Table of Figures ........................................................................................................................... 9 Features ....................................................................................................................... 10 Terminology ................................................................................................................. 10 Downloads / Manuals................................................................................................... 11 Technical Support ......................................................................................................... 11 UV-1G Specifications ................................................................................................................. 12 Transmitter .................................................................................................................. 12 Receiver ....................................................................................................................... 13 System Diagram ........................................................................................................... 14 Base Station ......................................................................................................................... 15 Front Panel Button Descriptions .................................................................................... 15 Front Panel LED Description .......................................................................................... 17 Rear Panel Description .................................................................................................. 19 Belt Pack .............................................................................................................................. 20 Quick Start Guide ................................................................................................................. 23 Base Station ................................................................................................................. 23 Belt Pack ...................................................................................................................... 24 Base Station Operation ........................................................................................................ 25 Power ........................................................................................................................... 25 Home Screen ................................................................................................................ 25 Transmitter Power Level ............................................................................................... 26 Receiver Status ............................................................................................................. 26 Base Station Link Mode ................................................................................................ 26 Local Headset Status ..................................................................................................... 28 RSSI Screen .................................................................................................................. 28 Base Station Menu Structure .................................................................................................... 29 Passcode Protection ...................................................................................................... 29 Receiver Settings .......................................................................................................... 29 Advanced Receiver Settings .......................................................................................... 31 Aux In Settings .............................................................................................................. 33 Transmitter Settings ..................................................................................................... 34 Local Headset Options .................................................................................................. 35 Display Setting ............................................................................................................. 36 Base Station Link Modes ............................................................................................... 38 Info Screen ................................................................................................................... 38 Enabling/Disabling the Passcode .................................................................................. 39 Changing the Passcode ................................................................................................. 39 Base Station Gain Adjustments ................................................................................................. 40 Intercom 1 & 2 .............................................................................................................. 40 Auxiliary ..............................…

Text truncated - open the document above for the full version.

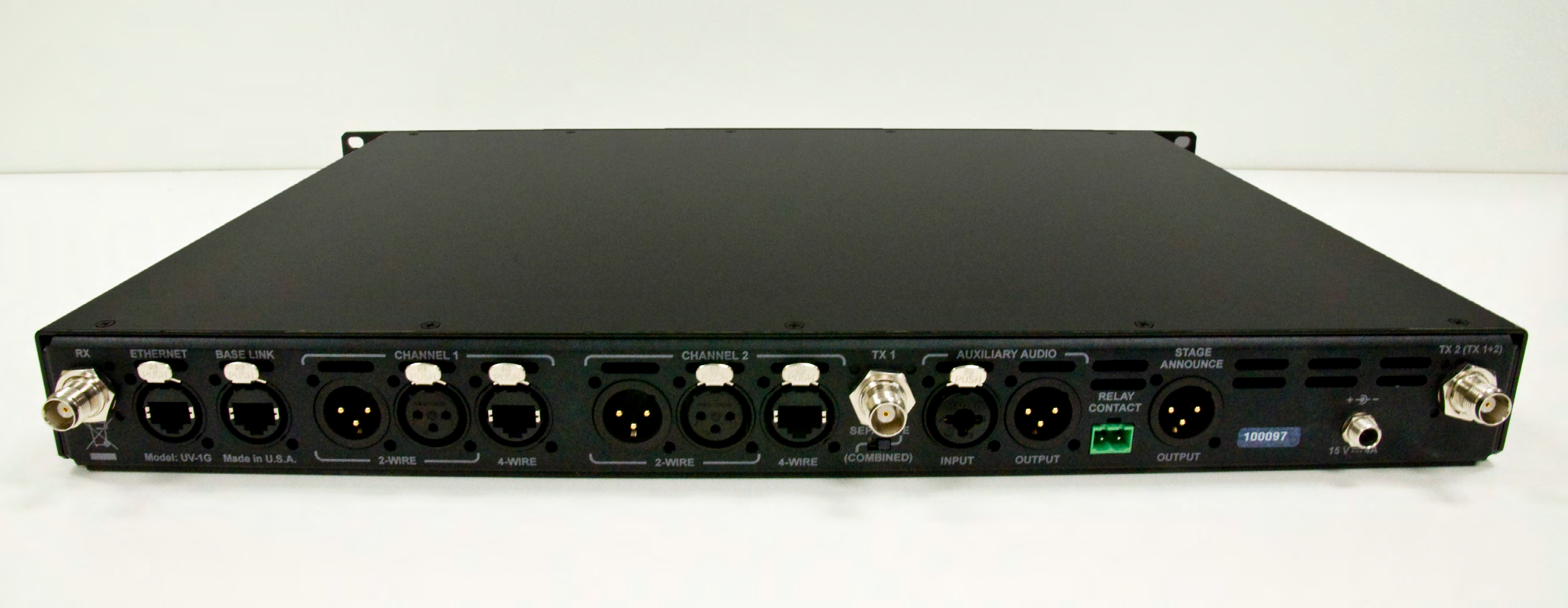

REV E 15 V TX 2 (TX 1+2)STAGE ANNOUNCE OUTPUT RELAY CONTACT INPUTOUTPUT AUXILIARY AUDIO TX 1 RXETHERNET Assembled in the USA BASE LINKCHANNEL 1 2-WIRE4-WIRE SEPARATE (COMBINED) CHANNEL 2 2-WIRE4-WIRE 4A Model: UV-1G Base Station FCC ID: 2AA6F-UV-1GBS IC:11482A-UV1GBS This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference 15 V TX 2 (TX 1+2)STAGE ANNOUNCE OUTPUT RELAY CONTACT INPUTOUTPUT AUXILIARY AUDIO TX 1 RXETHERNET Assembled in the USA BASE LINKCHANNEL 1 2-WIRE4-WIRE SEPARATE (COMBINED) CHANNEL 2 2-WIRE4-WIRE 4A Model: UV-1G Base Station FCC ID: 2AA6F-UV-1GBS IC:11482A-UV1GBS This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference

Receiver Boards Transmitter Boards Receiver Antenna Port Transmitter Antenna Ports

91-0124PCBA WIS 1G Base RX Module -- V4.1ABill of Materials -- 9Jan2018 QtyRD GI PNDescriptionTypeManufacturerMfr Part NumberPartPCB F ootprintTolVoltReference 110-0307Shield Base WIS Base Station RX TX ModulePOrb e lLT12AC1621F 223-0652REC Me zza ni ne Stra i ght 0.8mm 40 PosPHi ro s eFX6-40S-0.8SV(71)FX6-40S-0.8SVHDR-2X20-FX6-40SP1,P2 125-0058Conn RF MMBX Straight SMT PlugPRadiallR223.434.000MMBX-MMMBXJ3 12C-0325PCB WIS 1G Bas e RX Module V4NCAB2C-0325PCB 12J-0504Ste nci l WI S 1G Ba s e RX Modul e V4.1 (T) 20X20Be a m On2J-0504Ste nci l 12J-0420Stencil WIS 1G Base RX Module V4 (B)Be a m On2J-0420Ste nci l 931-0184RES ERJ 0402 0 ohm jumpe rPPanasonicERJ-2GE0R00X0 ohmCR0402R7,R65, R71,R104,R123,R133,R140,R154,R168 131-0191RES ERJ 0402 1/16W ±5% 10 ohmPPanasonicERJ-2GEJ100X10ohmCR0402±5%R5 1831-0240RES ERJ 0402 1/16W ±5% 22kPPanasonicERJ-2GEJ223X22KCR04025%R16,R19,R21,R22,R23,R24,R25,R27,R28,R29,R30,R31,R32,R33,R34,R38,R39,R40 231-0261RES ERJ 0402 1/16W ±5% 3.0kPPanasonicERJ-2GEJ302X3KCR0402<Tol >R36,R37 131-0302RES ERJ 0402 1/16W ±5% 5.1kPPanasonicERJ-2GEJ512X5.1KCR0402R10 231-0788RES ERJ 0603 1/10W ±5% 7.5kPPanasonicERJ-3GEYJ752V7.5KCR0603<Tol >R61,R86 131-0863RES ERJ 0402 1/16W ±1% 150 ohmPPanasonicERJ-2RKF1500X150 ohmCR0402<Tol >R89 431-0866RES ERJ 0402 1/16W ±5% 20 ohmPPanasonicERJ-2GEJ200X20CR0402<Tol >R1,R2,R3,R4 131-0867RES ERJ 0402 1/16W ±5% 1.6k PPanasonicERJ-2GEJ162X1.6KCR0402<Tol >R45 331-0870RES ERJ 0402 1/16W ±5% 33 ohmPPanasonicERJ-2GEJ330X33 ohmCR0402<Tol >R77,R78,R85 231-0874RES ERJ 0402 1/16W ±1% 3.32kPPanasonicERJ-2RKF3321X3.3kCR04021%R158,R167 1131-0875RES ERJ 0402 1/16W ±1% 1kPPanasonicERJ-2RKF1001X1KCR04021%R75,R101,R105,R128,R146,R150,R153,R176,R177,R180,R181 131-0878RES ERJ 0402 1/16W ±1% 2.49kPPanasonicERJ-2RKF2491X2.49KCR04021%R159 231-0887RES ERJ 0402 1/16W ±5% 6.8kPPanasonicERJ-2GEJ682X6.8KCR04025%R107,R122 431-0890RES ERJ 0402 1/16W ±5% 4.7kPPanasonicERJ-2GEJ472X4.7kCR0402<Tol >R41,R42,R43,R44 3231-0892RES ERJ 0402 1/16W ±1% 10kPPanasonicERJ-2RKF1002X10KCR04021% R9,R12,R18,R46,R49,R64,R69,R70,R72,R73,R74,R102,R103,R121,R131,R132,R136,R138,R141,R142,R145,R149,R155,R156,R157,R162,R164,R165,R166,R170,R182,R183 331-0901RES ERJ 0402 1/16W ±5% 30 ohmPPanasonicERJ-2GEJ300X30 ohmCR0402<Tol >R50,R51,R52 331-0902RES ERJ 0402 1/16W ±5% 4.3kPPanasonicERJ-2GEJ432X4.3KCR0402<Tol >R8,R172,R173 331-0921RES ERJ 0402 1/16W ±5% 51 ohmPPanasonicERJ-2GEJ510X51 ohmCR0402<Tol >R81,R83,R88 331-0922RES ERJ 0402 1/16W ±1% 20kPPanasonicERJ-2RKF2002X20KCR0402<Tol >R17,R26,R35 431-0942RES ERJ 0402 1/16W ±1% 1.5kPPanasonicERJ-2RKF1501X1.5KCR0402<Tol >R47,R48,R160,R163 131-0951RES ERJ 0402 1/16W ±1% 1.96kPPanasonicERJ-2RKF1961X1.96KCR04021%R106 131-0954RES ERJ 0402 1/16W ±1% 2kPPanasonicERJ-2RKF2001X2.00KCR04021%R63 131-0960RES ERJ 0402 1/16W ±1% 18.7kPPanasonicERJ-2RKF1872X18.7kCR04021%R13 131-0963RES ERJ 0402 1/16W ±1% 7.5kPPanasonicERJ-2RKF7501X7.50KCR04021%R161 131-0981RES ERJ 0402 1/16W ±1% 42.2kPPanasonicERJ-2RKF4222X42.2KCR04021%R20 531-1004RES ERJ 0402 1/16W ±1% 499 ohmPPanasonicERJ-2RKF4990X499 ohmCR04021%R100,R174,R175,R178,R179 131-1012RES ERJ 0402 1/16W ±1% 576 ohmPPanasonicERJ-2RKF5760X576 ohmCR04021%R111 131-1014RES ERJ 0402 1/16W ±1% 6.34kPPanasonicERJ-2RKF6341X6.34KCR04021%R99 331-1027RES ERJ 0402 1/16W ±5% 2.2kP PanasonicERJ-2GEJ222X2.2KCR0402<Tol >R124,R125,R127 231-1044RES ERA 0402 1/16W ±0.1% 49.9 ohmPPanasonicERA-2AEB49R9X49.9 ohmCR04020.10%R92,R113 431-1045RES ERA 0402 1/16W ±0.1% 113 ohmPPanasonicERA-2AEB1130X113 ohmCR04020.10%R96,R97,R118,R119 431-1046RES ERA 0402 1/16W ±0.1% 127 ohmPPanasonicERA-2AEB1270X127 ohmCR04020.10%R91,R93,R114,R115 431-1047RES ERA 0402 1/16W ±0.1% 348 ohmPPanasonicERA-2AEB3480X348 ohmCR04020.10%R94,R95,R116,R117 131-1061RES ERJ 0402 1/16W ±1% 2.15kPPanasonicERJ-2RKF2151X2.15KCR04021%R110 231-1063RES ERJ 0402 1/16W ±1% 100kPPanasonicERJ-2RKF1003X100KCR04021%R11,R148 431-1065RES ERJ 0402 1/16W ±5% 510 ohmPPanasonicERJ-2GEJ511X510 ohnCR0402<Tol >R79,R80,R87,R137 131-1066RES ERJ 0402 1/16W ±5% 470kPPanasonicERJ-2GEJ474X470KCR0402<Tol >R130 131-1070RES ERJ 0402 1/16W ±1% 3.83kPPanasonicERJ-2RKF3831X3.83KCR04021%R15 131-1075RES ERJ 0402 1/16W ±1% 9.09kPPanasonicERJ-2RKF9091X9.09kCR04021%R185 131-1088RES ERJ 0402 1/16W ±1% 1.3kPPanasonicERJ-2RKF1301X1.30KCR04021%R152 131-1089RES ERJ 0402 1/16W ±1% 3.92kPPanasonicERJ-2RKF3921X3.92KCR04021%R151 131-1115RES ERJ 0402 1/16W ±1% 14.7kPPanasonicERJ-2RKF1472X14.7kCR0402 1%R14 231-1116RES ERJ 0402 1/16W ±1% 15kPPanasonicERJ-2RKF1502X15KCR04021%R76,R184 231-1134RES ERJ 0402 1/16W ±1% 36.5kPPanasonicERJ-2RKF3652X36.5kCR04021%R98,R120 231-1142RES ERJ 0402 1/16W ±1% 432 ohmPPanasonicERJ-2RKF4320X432 ohmCR04021%R90,R112 132-0041Potentiometer Digital Dual 25k TSSOP-16PAnalog DevicesAD5235BRUZ25AD5235BRUZ25TSOP65P640-16U36 133-0002RES Arra y 4 Re s ±5% 33 ohmPCTS742C083330JPTR33ohmCRN_742-4R6 237-0067CAP TANT 7343 25V ±10% 22uFPKemetT491D226K025AT22uFCAPT7343<Tol >16VC259,C260 238-0004CAP 0402 C0G 50V ±5% 100pFPKemetC0402C101J5GACTU100pFCC0402C168,C199 638-0045CAP 0402 X7R 50V ±10% 1nFPKemetC0402C102K5RACTU1nFCC0402±10%50VC27,C33,C113,C243,C245,C267 238-0139CAP 0603 C0G 50V ±5% 470pFPKemetC0603C471J5GACTU470pFCC0603±5%50VC5,C6 138-0238CAP 0603 X7R 25V ±10% 470nFPMu ra taGRM188R71E474KA12D0.47uFCC0603±10%25VC29 238-0259CAP 0603 X7R 50V ±10% 47nFPKemetC0603C473K5RACTU47nFCC0603C257,C258 138-0305CAP 0603 X7R 50V ±5% 2.7nFPKemetC0603C272J5RACTU2.7nFCC0603C161 11738-0391CAP 0402 X5R 10V ±10% 100nFPMu ra taGRM155R61A104KA01D0.1uFCC0402C1,C2,C3,C4,C7,C9,C14,C15,C17,C18,C19,C20,C21,C22,C25,C26,C30,C32,C36,C37,C38,C40,C41,C42,C44,C46,C47,C48,C49,C50,C51,C52,C53,C54,C55,C56,C57,C58,C59,C60,C61,C62,C63,C64,C65,C66,C67,C68,C69,C70,C71,C72,C73,C74,C75,C76,C77,C78,C79,C80,C81,C82,C83,C84,C85,C86,C95,C97,C98,C102,C109,C110,C111,C112,C115,C116,C119,C130,C135,C136,C137,C155,C156,C157,C158,C160,C162,C163,C171,C172,C173,C174,C175,C193,C194,C195,C201,C202,C203,C208,C209,C210,C213,C215,C216,C217,C223,C224,C226,C227,C228,C229,C231,C23…

Text truncated - open the document above for the full version.

91-0125PCBA WIS 1G Base TX Module -- V5.0ABill of Materials -- 19Feb18 QtyRDGI PNDescriptionManufacturerMfr Part NumberPartPCB FootprintTolVoltReference 2 23-0652REC Mezzanine Straight 0.8mm 40 PosHiroseFX6-40S-0.8SV(71)FX6-40S-0.8SV(71)HDR-2X20-FX6-40SP1,P2 1 25-0006Conn RF MMCX Receptacle Thru-Hole L=.115"Molex73415-1471MMCX-TH-FMMMCX-TH-JJ3 1 2C-0416PCB WIS 1G Base Station TX Module V5NCAB2C-0416 1 2J-0524Stencil WIS 1G Base TX Module V5 (T) 20X20Beam On2J-0524 1 2J-0387Stencil WIS 1G Base TX Module V3 (T/B)Beam On2J-0387 5 31-0184RES ERJ 0402 0 ohm jumperPanasonicERJ-2GE0R00X0ohmCR04021%R47,R50,R74,R75,R83 6 31-0188RES ERJ 0402 1/16W ±5% 10kPanasonicERJ-2GEJ103X10KCR04025%R6,R28,R37,R38,R46,R82 1 31-0189RES ERJ 0402 1/16W ±5% 100kPanasonicERJ-2GEJ104X100KCR04025%R5 3 31-0235RES ERJ 0402 1/16W ±5% 20kPanasonicERJ-2GEJ203X20KCR04025%R1,R21,R22 2531-0240RES ERJ 0402 1/16W ±5% 22kPanasonicERJ-2GEJ223X22kCR04025%R8,R9,R11,R12,R13,R14,R15,R16,R17,R18,R19,R20,R23,R24,R25,R26,R27,R29,R30,R31,R32,R33,R34,R35,R36 2 31-0261RES ERJ 0402 1/16W ±5% 3.0kPanasonicERJ-2GEJ302X3KCR04025%R3,R4 1 31-0302RES ERJ 0402 1/16W ±5% 5.1kPanasonicERJ-2GEJ512X5.1KCR04025%R2 1 31-0548RES ERJ 0402 1/16W ±1% 332kPanasonicERJ-2RKF3323X332KCR04021%R81 1 31-0622RES ERJ 0805 Jumper 0 ohmPanasonicERJ-6GEY0R00V0 ohmCC0805C64 4 31-0875RES ERJ 0402 1/16W ±1% 1kPanasonicERJ-2RKF1001X1KCR04021%R77,R79 1 31-0878RES ERJ 0402 1/16W ±1% 2.49kPanasonic ERJ-2RKF2491X2.49KCR04021%R57 4 31-0890RES ERJ 0402 1/16W ±5% 4.7kPanasonicERJ-2GEJ472X4.7kCR04025%R39,R41,R44,R45 3 31-0901RES ERJ 0402 1/16W ±5% 30 ohmPanasonicERJ-2GEJ300X30 ohmCR04025%R40,R42,R43 2 31-0933RES ERJ 0402 1/16W ±1% 147 ohmPanasonicERJ-2RKF1470X147 Ohm 1%CR04021%R52,R53 2 31-0934RES ERJ 0402 1/16W ±1% 115 ohmPanasonicERJ-2RKF1150X115 Ohm 1%CR04021%R51,R54 1 31-0938RES ERJ 0402 1/16W ±1% 49.9 ohmPanasonicERJ-2RKF49R9X50 ohmCR04021%R70 1 31-0960RES ERJ 0402 1/16W ±1% 18.7kPanasonicERJ-2RKF1872X18.7k CR04021%R7 2 31-1004RES ERJ 0402 1/16W ±1% 499 ohmPanasonicERJ-2RKF4990X499 ohmCR04021%R76,R78 1 31-1111RES ERJ 0402 1/16W ±1% 16.9kPanasonicERJ-2RKF1692X16.9k CR04021%R10 1 31-1113RES ERJ 0402 1/16W ±1% 15 ohmPanasonicERJ-2RKF15R0X15 ohmCR04021%R65 1 31-1118RES ERJ 0402 1/16W ±1% 10 ohmPanasonicERJ-2RKF10R0X10 ohmCR04021%R64 1 31-1143RES ERJ 0402 1/16W ±1% 953 ohmPanasonicERJ-2RKF9530X953 ohmCR04021%R71 1 37-0067CAP TANT 7343 25V ±10% 22uFKemetT491D226K025AT22uFCAPT734310%25VC75 3 38-0045CAP 0402 X7R 50V ±10% 1nFKemetC0402C102K5RACTU1nFCC040210%50VC89,C91,C108 1 38-0085CAP 0603 C0G 50V ±5% 15pFKemetC0603C150J5GACTU15pFCC06035%50VC113 1 38-0259CAP 0603 X7R 50V ±10% 47nFKemetC0603C473K5RACTU47nFCC060310%50VC98 1 38-0323CAP 0603 X7R 50V ±10% 4.7nFKemetC0603C472K5RACTU4.7nFCC060310%50VC94 1 38-0392CAP 0603 X5R 16V ±10% 2.2uFKemetC0603C225K4PACTU2.2uFCC060310%16VC92 1 38-0402CAP 0402 X5R 10V ±10% 1uFKemetC0402C105K8PACTU1uFCC040210%10VC16 2 38-0474CAP 0402 C0G 50V ±5% 470pFMurataGRM1555C1H471JA01D470pFCC04025%50VC87,C88 1 38-0475CAP 0805 X5R 16V ±10% 22uFTDKC2012X5R1C226K125AC22 uFCC080510%16VC63 1 38-0476CAP 0402 X5R 16V ±10% 220nFTDKC1005X5R1C224K050BB0.22uFCC040210%16VC7 1 38-0478CAP 0402 X5R 16V ±10% 470nFTDKC1005X5R1C474K050BC0.47 uFCC040210%16VC4 2 38-0487CAP 0805 C0G 25V ±5% 27nFKemetC0805C273J3GAC780027 nFCC08055% COG25VC61,C66 5 38-0488CAP 0805 C0G 16V ±5% 47nFKemetC0805C473J4GAC780047 nFCC08055% COG16VC58,C59,C60,C62,C65 3 38-0489CAP 0603 C0G 25V ±5% 10nFKemetC0603C103J3GACTU10nFCC06035% COG25VC69,C70,C97 2 38-0518CAP 0603 X5R 10V ±10% 10uFTDKC1608X5R1A106K10uFCC060320%10VC12,C14,C114,C116 6038-0540CAP 0402 X7R 50V ±10% 100nFTDKC1005X7R1H104K050BB0.1uFCC040210%25V C1,C2,C3,C5,C6,C8,C9,C10,C11,C13,C17,C57,C71,C76,C78,C86,C99,C106,C109,C18,C19,C20,C21,C22,C23,C24,C25,C26,C27,C28,C29,C30,C31,C32,C33,C34,C35,C36,C37,C38,C39,C40,C41,C42,C43,C44,C45,C46,C47,C48,C49,C50,C51,C52,C53,C54,C55,C56,C115,C1 7 38-0541CAP 0402 X7R 50V ±10% 10nFTDKC1005X7R1H103K050BB10nFCC040210%50VC79,C81,C83,C84,C93,C95,C112,C118 1 38-0545CAP 0402 X5R 10V ±10% 4.7uFTDKC1005X5R1A475K050BC4.7uFCC040210%10VC107 4 38-0575CAP 0603 X5R 25V ±10% 1uFTaiyo YudenTMK107BJ105KA-T1uFCC060310%25VC77,C80,C82,C96 2 38-0588CAP 0603 X5R 25V ±10% 3.3uFTDKC1608X5R1E335K080AC3.3uFCC060310%25VC110,C111 1 3A-0346IND 1008CS ±5% 1uHCoilcraft1008CS-102XJL1uHIND_1008CS5%L3 2 3A-0678IND 0603CS ±5% 220nHCoilcraft0603CS-R22XJLW220nHIND_0603CS5%L4,L5 1 3A-0695IND 0603CS ±5% 39nHCoilcraft0603CS-39NXJL39nHIND_0603CS5%L8 1 3A-0746IND LQH44P ±20% 15uHMurataLQH44PN150MJ0L15uHIND_LQH44P_J020%L1 1 51-0138IC DSP Fixed Point 16 Bit 179-BGA RoHS Texas Instruments TMS320VC5507ZHH TMS320VC5507GHHBGA80P14X14-179U4 1 53-1028NC7SZ57P6X IC Logic UHS 2 Input SC70-6 FairchildNC7SZ57P6XNC7SZ57P6X SC70-6U14 2 53-1030NC7SZ58P6X IC Tiny Logic Configurable 2-InputFairchild NC7SZ58P6X NC7SZ58P6XSC70-6U15,U16 1 53-1054IC Logic D Flip Flop Single US8FairchildNC7SZ74K8XNC7SZ74K8XTSSOP50P310-8U5 1 54-0519IC EEPROM Serial Two-Wire TSSOP-8ON SemiCAT24M01YI-GT3AT24C1024B-TH TSOP65P640-8 U1 1 57-0719IC DAC 16-Bit Quad Channel TSSOP-16Texas Instruments DAC8565IBPWRG4 DAC8565IBPWTSOP65P640-16U3 158-0313IC Op Amp Dual 215MHz 3.4mA Industrial DFN-8Linear TechLT6231IDD#TRPBFLT6231IDD QFN50P300X300-9 U8 1 58-0325LTC6362 IC Op Amp Rail-to-Rail ADC Driver DFN-8Linear Tech LTC6362IDD#TRPBF LTC6362IDDQFN50P300X300-9U12 1 5C-0054IC VLDO Linear Regulator Low Noise Adjustable TSOT-23Linear TechLTC1844ES5-SD#TRMPBFLTC1844ES5-SD SOT23-5 U6 1 5C-0079LT3080EDD#PBF IC Reg LDO Adjustable 1.1A DFN-8Linear Tech LT3080EDD#PBF LT3080EDDQFN50P300X300-9U11 1 5F-0058IC Supervisor TPS3106K33 Ultra Low CurrentTexas InstrumentsTPS3106K33DBVRTPS3106K33DBVR SOT23-6 U2 2 64-0054Filter EMI LC High Frequency 1000pF 2606MurataNFE61PT102E1H9LNFE61PT102E1H9FIL_2606FL1,FL2 1 7A-0124IC RF Synthesizer 370MHz to 5700MHz Integrated VCO QFN-28Linear TechLTC6946IUFD-1#PBFLTC6946IUFD-1QFN50P400X500-29U9 1 7A-0126LTC5599 IC Quadrature Modulator 30 MHz to 1300 MHz QFN-24Linear Tech LTC5599IUF#TRPBF LTC559…

Text truncated - open the document above for the full version.

2600 West M Court #101 - Lincoln, Nebraska 68522  Phone: 402.477.0695  Fax: 402.477.2001  www.RadioActiveRF.com December 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 UV-1G Belt Pack FCC ID #: 2AA6F-UV-1GBP UV-1G Base Station FCC ID #: 2AA6F-UV-1GBS To whom it may concern: There are no users Tune up Procedures for the UV-1G Wireless Intercom System Belt Pack or Base Station. In the manufacturing process the frequency value for the digipot is loaded with ROM digitally and the power levels are set using a lookup table that is also loaded digitally. Dennis D. Haley (Agent) Eng Mgr [email protected]

Antenna Information Base Station: The base station transmitter outputs use TNC connectors. A telescoping whip for each transmitter is supplied, which is the Diamond model RH789 with a gain of 3.2dBi. The unit is designed for professional rather than consumer installation.

Antenna Type Antenna Manufacturer Antenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) 470179.63.200.074651150.313333333 6981553.200.064426100.465333333 FCC ID: 2AA6F-UV-1GBS WhipDiamondRH789 Compliance with 47 CFR 2.1091 and 1.1310 The EUT is a base station for a wireless intercom system operating under Part 74H in the 470 – 608 MHz and 614 – 698 MHz bands. The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The antenna is a whip antenna with a peak gain of 3.2 dBi. The maximum peak conducted output power is 179.6 mW. Since the transmit frequency is less than 1.5 GHz, and the output power is less than 1.5 W ERP, the EUT is categorically excluded from routine environmental evaluation per 47 CFR 2.1091(c). "KDB 447498 D01 General RF Exposure Guidance v05" provides the procedures, requirements, and authorization policies for mobile and portable devices. Section 7.1 best fits the exposure condition for this device. Since this mobile device is categorically excluded from routine evaluation; simple calculations may be used to estimate the power density to demonstrate compliance with 47 CFR 1.1310 requirements. The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population as (f MHz /1500) mW/cm 2 . The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: S = (PG)/4R 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = numeric power gain relative to an isotropic radiator R = distance to the center of the radiation of the antenna (20 cm = limit for MPE estimates) PG = EIRP Solving for S, the maximum power density 20 cm from the transmitting antenna is summarized in the following table: The power density does not exceed the 1.1310 limit at 20 cm; therefore, the exposure condition is compliant with FCC rules.

p2070003BS_FCC_ Part 1.1310_Rev 1.0 Page 1 of 4 Test Report Prepared for : Radio Active Designs Model: UV-1G Basestation Description: Wireless Intercom System FCC ID: 2AA6F-UV-1GBS To FCC Part 1.1310 Date of Issue: January 14, 2021 On the behalf of the applicant: Radio Active Designs 21 East Union Ave East Rutherford, NJ 07073 Attention of: Geoff Shearing Ph: (917)545-2680 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p2070003BS Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p2070003BS_FCC_ Part 1.1310_Rev 1.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 January 13, 2020 Greg Corbin Original Document p2070003BS_FCC_ Part 1.1310_Rev 1.0 Page 3 of 4 ANAB Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A EUT Description Model: UV-1G Basestation Description: Wireless Intercom System Software:3.1.4 Firmware: BASE201027A Serial Number: 101504 Additional Information: The Radio Active Designs® UV-1G is a two-channel full-duplex UHF/VHF wireless intercom system that utilizes up to six wireless Belt Pack units per Base Station. The system uses double sideband AM modulation. p2070003BS_FCC_ Part 1.1310_Rev 1.0 Page 4 of 4 MPE Evaluation This is a mobile device used in Uncontrolled Exposure environment. Limits Controlled Exposure 47 CFR 1.1310 Table 1, (A) 0.3-3.0 MHz: Limit [mW/cm²] = 100 3.0-30 MHz: Limit [mW/cm²] = (900/f²) 30-300 MHz: Limit [mW/cm²] = 1.0 300-1500 MHz: Limit [mW/cm²] = f/300 1500-100,000 MHz Limit [mW/cm²] = 5 Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data The maximum power allowed (250 mw) was used, along with the lowest transmit frequency (470 MHz) to produce the worse case results Test Frequency, MHz 470 Power, Conducted, mW (P) 250 Antenna Gain Isotropic 0 dBi Antenna Gain Numeric (G) 1 Antenna Type UHF Unity Gain 1/2 wave dipole whip Distance (R) 20 cm 푆푆= 푃푃∗퐺퐺 4휋휋푟푟 2 Power Density (S) mw/cm 2 Power Density (S) = 0.0497 mw/cm 2 Limit = (from above table) = 0.313 mw/cm 2 The EUT power density of 0.0497 mw/cm 2 is under the allowed limit of 0.313 mw/cm 2 per table 1B above. END OF TEST REPORT

P2070003BS_74H_Annex A _ Rev 1.0 Page 1 of 4 Annex A Emission Mask P2070003BS_74H_Annex A _ Rev 1.0 Page 2 of 4 Mask_BS_470.025 MHz_ Ch Spacing = 100 kHz_p2070003 Mask_BS_539.025 MHz_ Ch Spacing = 100 kHz_p2070003 P2070003BS_74H_Annex A _ Rev 1.0 Page 3 of 4 Mask_BS_607.975 MHz_ Ch Spacing = 100 kHz_p2070003 Mask_BS_653.025 MHz_ Ch Spacing = 100 kHz_p2070003 P2070003BS_74H_Annex A _ Rev 1.0 Page 4 of 4 Mask_BS_656.975 MHz_ Ch Spacing = 100 kHz_p2070003

P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 1 of 8 Annex B Radiated Spurious Emission P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 2 of 8 Radiated Spurious_ Standby mode_1 - 7 GHz_ TX disabled Radiated Spurious_ Standby mode_30 - 1000 MHz_ TX disabled P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 3 of 8 Radiated Spurious_ tuned freq 470.025 MHz_1 - 7 GHz Radiated Spurious_ tuned freq 470.025 MHz_2nd Harmonic 940 MHz P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 4 of 8 Radiated Spurious_ tuned freq 470.025 MHz_30 - 1000 MHz Radiated Spurious_ tuned freq 470.025 MHz_30 - 1000 MHz P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 5 of 8 Radiated Spurious_ tuned freq 539.025 MHz_1 - 7 GHz Radiated Spurious_ tuned freq 539.025 MHz_30 - 1000 MHz P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 6 of 8 Radiated Spurious_ tuned freq 607.975 MHz_1 - 7 GHz Radiated Spurious _ tuned freq 607.975 MHz_30 - 1000 MHz P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 7 of 8 Radiated Spurious_ tuned freq 653.025 MHz_1 - 7 GHz Radiated Spurious_ tuned freq 653.025 MHz_30 - 1000 MHz P2070003BS_Part 74H_Annex B _ Rev 1.0 Page 8 of 8 Radiated Spurious_ tuned freq 656.975 MHz_1 - 7 GHz Radiated Spurious_ tuned freq 656.975 MHz_30 - 1000 MHz

P2070003BS_FCC Part 74H_Basestation_Rev 6.0 Page 1 of 17 Test Report Prepared for : Radio Active Designs Model: UV-1G Basestation Description: Wireless Intercom System FCC ID: 2AA6F-UV-1GBS To Part 74H Date of Issue: November 16, 2020 On the behalf of the applicant: Radio Active Designs 21 East Union Ave East Rutherford, NJ 07073 Attention of: Geoff Shearing Ph: (917)545-2680 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p2070003BS Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. P2070003BS_FCC Part 74H_Basestation_Rev 6.0 Page 2 of 17 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 November 16, 2020 Greg Corbin Original Document 2.0 December 1, 2020 Greg Corbin Added EIRP to output power table on page 8 3.0 January 13, 2021 Greg Corbin Added Frequency Stability test data and updated emission mask using avg detector 4.0 January 25, 2021 Greg Corbin Added final stage voltage / current to page 6 5.0 January 29, 2021 Greg Corbin Removed any reference to C2PC and updated output power table on page 8 6.0 February 26, 2021 Greg Corbin added CW output power table to page 9 P2070003BS_FCC Part 74H_Basestation_Rev 6.0 Page 3 of 17 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 7 Statements of conformity 7 RF Output Power 8 Emission Mask 10 Spurious Emissions Transmitter 11 Frequency Stability 13 Measurement Uncertainty 16 Test Equipment Utilized 17 P2070003BS_FCC Part 74H_Basestation_Rev 6.0 Page 4 of 17 ANAB Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A P2070003BS_FCC Part 74H_Basestation_Rev 6.0 Page 5 of 17 Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J Part 74H, and ANSI C63.26-2015. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2014, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specified testing over a di…
