2AA7I-UE3RFID Handheld data collector

UE3 Reader User Manual Shielded USB cable with a ferrite core must be used with this unit to ensure compliance with the Class B FCC limits. 1 Copyright 1． Copyright ownership belongs to Shenzhen Zoko Industry Development Co., Ltd 2． The company’s products have been approved and being approved by the People’s Republic of patent protection. 3． This user manual shall replace all other versions published before. 4． Publish date: June 2013 2 UE3 Reader Product introduction Model： Product naming -- -- Product series no. Handheld series code Abbreviation of UHF 图 2 Product naming UE3 Reader，applies sensor and wireless RFID technology, with UHF module produced in America built inside, and is able to read ID cards, display data, store data and transmit data through wireless technology all at once. The product has PC plastic housing of high resistance, and is waterproof, dust-proof, anti-static and durable. The outstanding features of the handheld reader are user-friendly, of low power consumption and high precision, quick response and easily portable. 。 Contents This user manual provides operation and service instruction of UE3 reader, and is composed of six chapters. Chapter One: Safety warnings This chapter gives precautions and safety warnings. Chapter Two: Settings and operation instruction This chapter illustrates settings of the product and how to operate. Chapter Three：Maintenance This chapter provides instructions on daily maintenance of the products. Chapter Four：Trouble-Shooting This chapter gives solutions for frequently seen troubles. Chapter Five：Technical specification U E 3 3 This chapter introduces the technical spec and working standard of this product. Chapter Six：Product service and technical support This chapter shows access to service and technical supports. 4 Chapter One: Safety warnings Symbol illustration ★ Severe danger may be caused to threat safety. * Precautions and reminder. ※ Notes and description. ！ Warnings, it may affect or damage the instrument functions. Safety warnings ★ Do not change any components or parts of the device passed QA test. ★ Do not change battery or charge the device at dangerous place. ★ Never connect any accessories at dangerous place. ★ Never dismantle or open the device in a flammable or explosive environment. ★ The battery is specially produced for the device. Do not apply unauthorized batteries to the device or it may be dangerous! ★ Never user batteries that are not listed in this user manual! Chapter Two Settings and operation instruction Part 1 System composition 1. UE3 Reader Portable handheld device for user, able to read cards, store data and transmit data through wireless technology to management center. UHFRFID contactless card reading WIFI wireless data transmission Industrial product design, shatter-resistant, waterproof 2. RFID tag 5 Part 2 Operation instructions 1. Buttons Device is off. 1.User presses CENTER button for two seconds to turn device on. Device is in Read Mode(EPC default). 2.Read Mode: User presses CENTER to read UHF tag. 6 Little Mango UHF Reader Press CENTER button to read tag SETTINGS EPC:0c210531607300312202137f Press CENTER button to read tag SETTINGS 4.ReadMode:Userpresse sCENTERandreadsadiffe renttag EPC:2y345asdf43443456345899ddab Press CENTER button to read tag SETTINGS 7 1. In Read Mode, user presses LEFT button to display read “Settings”. User uses UP and DOWN button to highlight options. 2. User selects TID and presses LEFT button for “OK”. A beep will confirm the selection. 3. User presses RIGHT button to go back to Read Mode. 8 Select Read Mode :EPC TID User Memory Adjust Power Level OK BACK Select Read Mode: EPC TID User Memory Adjust Power Level OK BACK Little Mango UHF Reader Press CENTER button to read tag SETTINGS 4. User presses LEFT button for “OK” to set Power Level. 5. A beep confirms the selection. 6.User presses RIGHT button to return to Settings Mode Power Level 15dB Press UP or DOWN to change OK BACK Save Success! Power Level 15dB Press UP or DOWN to change OK BACK Select Read Mode: EPC TID User Memory Adjust Power Level OK BACK 9 Device is on. 1. User connects hand held device to computer with USB cable. User presses the DOWN button to switch to Memory Drive mode. 2. Computer application can access and download Data .txt file. See Appendix A for data file format. EPC:2y345asdf43443456345899ddab Press CENTER button to read tag SETTINGS Comma Separated Values (CSV). Columns: ID Column Name Column Format Example 1 Date-Time Stamp YY/MM/DDHH:MM:SS 11/02/2121:35:45 2 EPC 24hexadecimalscharacters(ma x) 0c210531607300312202137f 3 TID or User Memory 16hexadecimalscharacters(ma x) e28011302000295e 4 Mode Identifier “EPC” ,“TID” ,or “UID” TID 10 2. Function buttons 【Center button】Press center button and hold for 1 sec to turn on the device, or to read card, or to confirm OK. 【Right button】To cancel. 【Up button】To turn up. 【Down button】To turn down. b）Charging Charging of the handheld reader 1. Battery capacity indication： During normal operation, there’s battery indicator icon on the up right corner of the panel. 2. Low battery warning： If battery voltage is lower than 3.63V (battery indicator icon shows only one grid),there will be low battery warning on display panel when you turn on the device, accompanied by beep buzzer for five times. 3．Charging demands： When panels shows low battery warning or battery indicator shows only one grid, it demands immediate charging. 4. Charging methods： 1）Connect the handheld reader with charger USB plug. 2）Plug the charger directly to 100V∽240V AC power socket. Now the reader will have LED red light charging indicator. When it is fully charged, the LED light will turn green, indicating the reader is ready for normal operation. 5. Battery model：PL-503759 3.7DCV 1200mAh 6. Precautions： 1）Do not put the charger in environment of humidity or high temperature. 2）During operation the device may generate heat, and if the heat does not exceed 60°C in normal condition, …

Text truncated - open the document above for the full version.

1 [ November 28, 2013 ] To whom it may concern, Letter of Agency I, an officer of Shenzhen Zoko Industry Development Co.,Ltd do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Shenzhen Zoko Industry Development Co.,Ltd

1 [November 28, 2013] To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: 2AA7I-UE3 Request is hereby submitted by Shenzhen Zoko Industry Development Co.,Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Shenzhen Zoko Industry Development Co.,Ltd reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Shenzhen Zoko Industry Development Co.,Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, [Title] Managing Director Shenzhen Zoko Industry Development Co.,Ltd

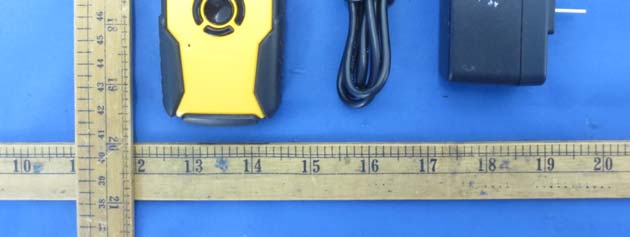

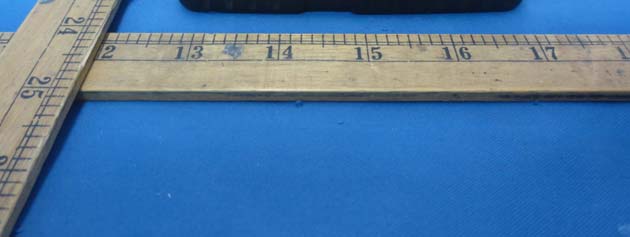

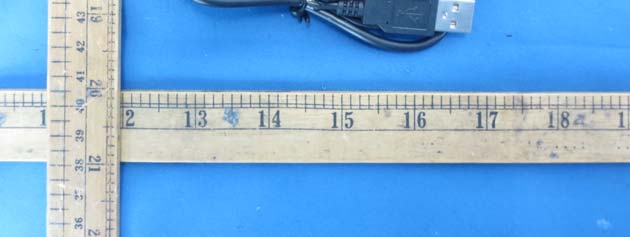

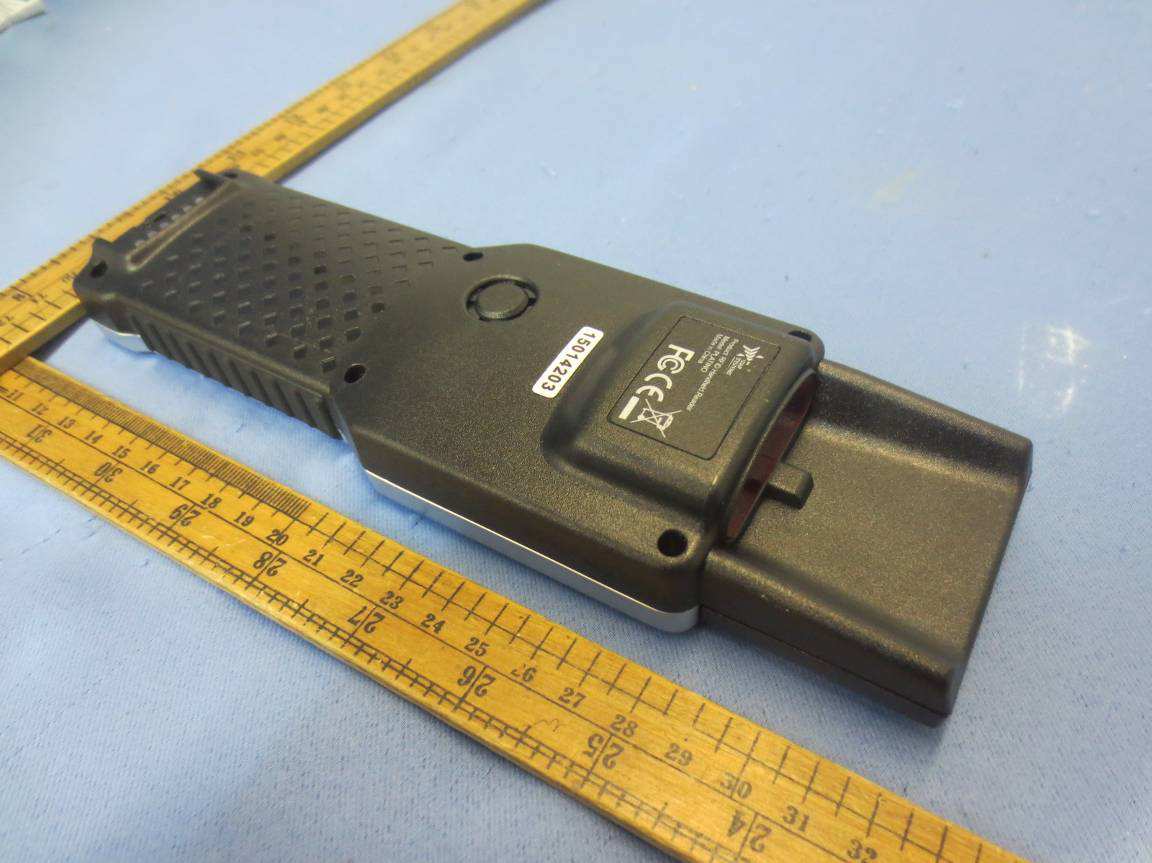

External Photos (RFID data collector) USB Power Adapter USB Cable

FCC ID: 2AA7I-UE3 Size: 28(W)*18(H)mm

Internal Photos (RFID data collector)

FCC ID: 2AA7I-UE3 1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a RFID data collector. The EUT was powered by a 3.7 VDC fully charged Li-ion rechargeable battery which is charged by USB power adapter with AC 120V, 60Hz input during the test. For more detail information pls. refer to the user manual. For Wifi function and operating frequency is 2412-2462MHz: Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK. Antenna Type: Integral antenna Antenna Gain: 2.18dBi The nominal conducted output power is 5.0dBm (Tolerance: +/- 3dB) According to the KDB 447498: The maximum peak conducted output power for the EUT is 7.69dBm in the frequency 2412MHz (802.11n-HT20) which is within the product variation. The minimum peak conducted output power for the EUT is 5.90dBm in the frequency 2462MHz (802.11b) which is within the production variation. The maximun conducted output power specified is 8dBm = 6.31mW The source- based time-averaging conducted output power = 6.31 * Duty cycle mW= 6.31 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.462) mW = 9.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. This requirement is according to KDB 865664 D02 FCC ID: 2AA7I-UE3 2 For RF ID function and operating frequency is 902.75-927.25MHz Modulation Type: DSB-ASK Antenna Type: Integral antenna Antenna Gain: 1.2dBi The Peak nominal radiated emission power (e.r.p) specified: -17.0dBm (Tolerance: +/- 3dB) The Peak nominal conducted output power specified: -16.05dBm (Tolerance: +/- 3dB) According to the KDB 447498: The maximun radiated emission for the EUT is 78.5dBμV/m at 3m in the frequency 914.75MHz = [(FS*D) ^2 / 30] mW-2.15 = -18.88dBm which is within the production variation. The minimum radiated emission for the EUT is 77.8dBμV/m at 3m in the frequency 902.75Hz = [(FS*D) ^2 / 30] mW-2.15 = -19.58dBm which is within the production variation. The maximun conducted output power specified is -13.05dBm = 0.05mW The source- based time-averaging conducted output power = 0.05 * Duty cycle mW= 0.05 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.92725) mW = 15.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. This requirement is according to KDB 865664 D02 FCC ID: 2AA7I-UE3 3 For both WIFI and RFID are simultaneous transmissions estimated According to the KDB 447498: When both WIFI and RFID are simultaneous transmissions, the maximum peak conducted output power for WIFI is 8.0dBm. In the simultaneous transmissions, WIFI’s estimated SAR values: = (max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm) * [sqrt(freq. in GHz)/7.5] W/kg = 6.31 / 5*[sqrt (2.462) / 7.5] W/kg = 0.264 W/kg When both WIFI and RFID are simultaneous transmissions, the maximun conducted output power for RFID is -13.05dBm. In the simultaneous transmissions, RFID’s estimated SAR values: = (max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm) * [sqrt(freq. in GHz)/7.5] W/kg = 0.05 / 5*[sqrt (0.92725) / 7.5] = 0.001 W/kg Sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode: WIFI’s estimated SAR values + RFID’s estimated SAR values = 0.264 + 0.001 W/kg = 0.265 W/kg The simultaneous transmissions SAR Evaluation: ≤ 0.4 W/kg This requirement is according to KDB 865664 D02

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Shenzhen Zoko Industry Development Co.,Ltd Application For Certification (FCC ID: 2AA7I-UE3) RFID data collector Model: UE3, U200, U201, U202, U203 Brand Name: ZOKO 902.75-927.25MHz Transceiver Report No.: 131018005SZN-005 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Sen Lv Project Engineer Billy Li Supervisor Date: January 9, 2014 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AA7I-UE3 Report No.: 131018005SZN-005 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AA7I-UE3 Report No.: 131018005SZN-005 ii MEASUREMENT/TECHNICAL REPORT Shenzhen Zoko Industry Development Co.,Ltd Model: UE3, U200, U201, U202, U203 FCC ID: 2AA7I-UE3 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXT - Part 15 Low Power Transceiver, Rx Verified Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Sen Lv Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0653 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AA7I-UE3 Report No.: 131018005SZN-005 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 2 1.4 Test Facility........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 5 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1Radiated Test Results............................................................................ 9 3.1.1 Field Strength Calculation................................................................................ 9 3.1.2 Radiated Emission Configuration Photograph ................................................ 10 3.1.3 Radiated Emissions....................................................................................... 10 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 12 3.2 Conducted Emission at Mains Terminal................................................... 16 3.2.1 Conducted Emissions Configuration Photograph......................................16 3.2.2 Conducted Emissions........................................................................16 4.0 Equipment Photographs................................................................................... 20 5…
