2AA7IT550-WIFIRFID Handheld Reader

T550 Handheld Reader User Manual Copyright
Copyright ownership belongs to Shenzhen Zoko Industry Development Co.,Ltd
The company’s products have been approved and being approved by the People’s Republic of patent protection.
This user manual shall replace all other versions published before.

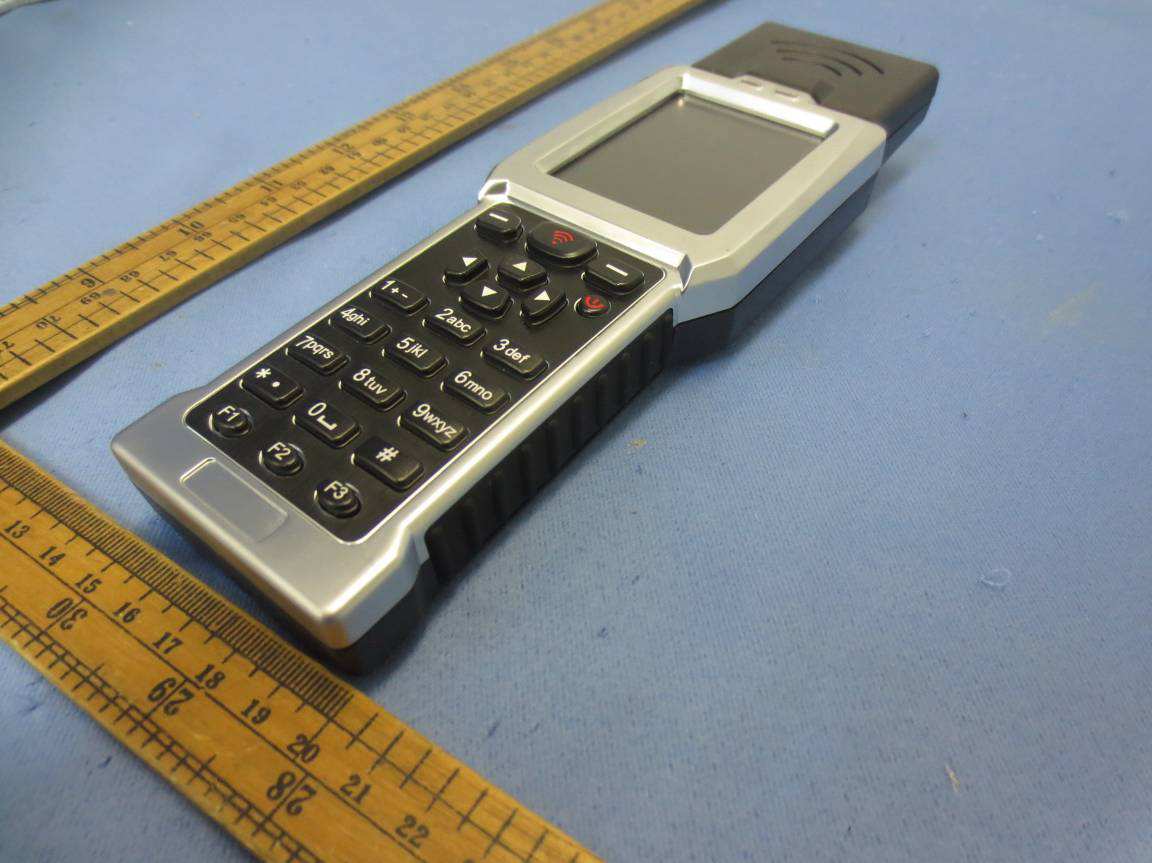

Publish date: September 2014 T550 Handheld Reader Product introduction T550 Handheld Reader，applies sensor and wireless RFID technology, with UHF module produced in America built inside, and is able to read ID cards, display data, store data and transmit data through wireless technology all at once. The product has PC plastic housing of high resistance, and is waterproof, dust-proof, anti-static and durable. The outstanding features of the handheld reader are user-friendly, of low power consumption and high precision, quick response and easily portable. Contents This user manual provides operation and service instruction of T550 handheld reader, and is composed of six chapters. Chapter One: Safety warnings This chapter gives precautions and safety warnings. Chapter Two: Settings and operation instruction This chapter illustrates settings of the product and how to operate. Chapter Three： ： ： ：Maintenance This chapter provides instructions on daily maintenance of the products. Chapter Four： ： ： ：Trouble-Shooting This chapter gives solutions for frequently seen troubles. Chapter Five： ：： ：Technical specification This chapter introduces the technical spec and working standard of this product. Chapter Six： ：： ：Product service and technical support This chapter shows access to service and technical supports. Chapter One: Safety warnings Symbol illustration ★ Severe danger may be caused to threat safety. * Precautions and reminder. ※ Notes and description. ！ Warnings, it may affect or damage the instrument fun ctions. Safety warnings ★ ★ ★ ★ Do not change any components or parts of the device passed QA test. ★ ★★ ★ Do not change battery or charge the device at dangerous place. ★ ★ ★ ★ Never connect any accessories at dangerous place. ★ N ever dismantle or open the device in a flammable or explosive environment. ★ T he battery is specially produced for the device. Do not apply unauthorized batteries to the device or it may be dangerous! ① Never user batteries that are not listed in this user manual! Chapter Two Settings and operation instruction Part 1 System composition 1. T550 T550T550 T550 Handheld Reader Portable handheld device for user, able to read cards, store data and transmit data through wireless technology to management center. ① UHFRFID contactless card reading ② WIFI or BT wireless data transmission ③ Industrial product design, shatter-resistant, waterproof 2. 2.2. 2. RFID tag Part 2 Operation instructions 1 . Buttons 1).ENTER (confirm key) 2).READ （read tag） 3 ).BACK （return） 4 ).POWER（on / off） 5 ).DIRECTIONS (UP, DOWN, LEFT, RIGHT) 6).NUMBER PAD (1,2,3...0,*,#) 7).FUNCTION 1 （F1） 图11 8).FUNCTION 2 （F2） 9). FUNCTION 3 （F3） 2、 、、 、Menu Boot into T550 main interface with default setting READ SINGLE TAG as picture 21. The display screen shows date, time, wireless connectivity and battery volume. If the tag to be read has been preset with read lock for user bank, then it requires ACCESS PASSWORD to read the tag. The tag content will be shown in red box marked with number 2. 1） Wireless connectivity. If the device is with Blueto oth (BT) wireless module, a white icon of BT indicates successful connection, while the icon with a read cross indicates a failure. If the device is with Wifi wireless module, a white icon of wifi signal indicates successful connection. 2） ACCESS PASSWORD. If the tag to be read has been set READ LOCK BANK, then it requires ACCESS PASSWORD to read the tag. Method is to use up and down keys to select this section. The chosen column will be in blue color with input box available. The current input method is shown on top middle column, like 123 marked in red in pic22. 3） Two items are shown in bottom part of screen as REA D/WRITE MODE and SETTING. Press ENTER key to enter READ/WRITE MODE interface. Press BACK key to enter SETTING interface. 4） Press READ key to read tag. Reading success is shown in pic 23, pic24, pic25, pic26, pic27. Pic21 Pic22 Pic23 Pic 24 3. READ/WRITE MODE In this interface user can use UP and DOWN key to select operation items. Chosen items will be in blue as pic31. Press ENTER to enter the selected program interface. Pic 25 Pic 26 Pic 27 4. READ MULTIPLE TAG interface 1）In this interface user can read multiple tags. Tag info will be displayed on the screen with numbers up to 9 pieces latest records. Use UP or DOWN keys to check previous or next page to read records. The screen can display max 100 pieces records. Content display as pic41. The number 16 marked in red box in pic41 is the tag number that have been read. COUNDT means the how many times the tag has been read. Pic 31 Pic 41 2） User UP and DOWN keys to check data as shown in pic42. The red content filled in green background indicates selected item for operation. Press F2 to switch to WRITE interface, the selected EPC code can be used as TARGET EPC in WRITE interface. Tag data can be record into SD storage medium by pressing F1 and transmitted to other device via wireless network. Press F3 to clear TAG record without saving or transmitting data. 5. WRITE TAG interface 1） This interface is to write TAG for three types of contents, namely RESERVED, EPC, USER. The interface is shown as pic51. UP and DOWN keys can be used to select items which will be in blue color once selected. Input content when cursor appears in the input box. MEMORY BANK is available with different options by pressing LEFT and RIGHT keys. TARGET EPC code can be achieved by means of manual typing input, import from MULTIPLE TAG interface, or pressing F1 to read tag. Pic 42 Pic 51 3） MEMORY BANK column is for user to select bank zone for data to be written. Bank zone has an option of RESERVED (reserved zone with 0-1 word f…
