2AA83-TK1001Bluetooth Keyboard

FCC ID: 2AA83-TK1001 All devices: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Part 15B compliance statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty Typo Products LLC warrants that its Typo Keyboards product, and the component parts thereof, will be free of defects in workmanship and materials for a period of six months from the date of first consumer purchase. Typo Products LLC will, without charge, repair or replace, at its option, defective keyboards, or component parts upon delivery to the Typo Products LLC's Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Typo Keyboards LLC's expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state or country to country.

ICHIA TECHNOLOGIES, I NC. 268, Hwa-Ya 2nd Rd.,Gueishan, Taoyuan, Taiwan, R.O.C Tel: +886-3-3973345 Fax: +886-3-3973346 e-mail: [email protected] www.ichia.com Confidentiality Request Letter Confidentiality Request regarding application for certification of FCC ID: 2AA83-TK1001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, and IC RSP-100, Section 10, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram, Schematics, Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Lwa Chung DQE assistant section manager

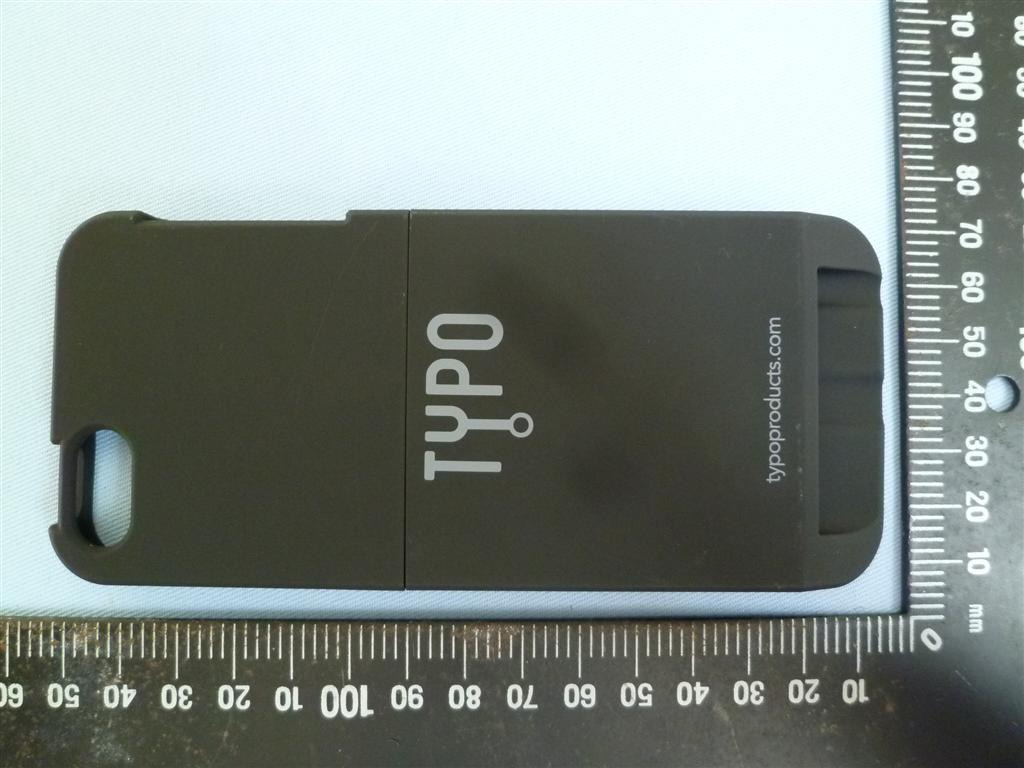

ATTACHMENT Photo Documentation Page 1 of 2 FCC ID: 2AA83-TK1001 Product: Bluetooth Keyboard Type Designation: TK1001 ATTACHMENT Photo Documentation Page 2 of 2 FCC ID: 2AA83-TK1001 Product: Bluetooth Keyboard Type Designation: TK1001

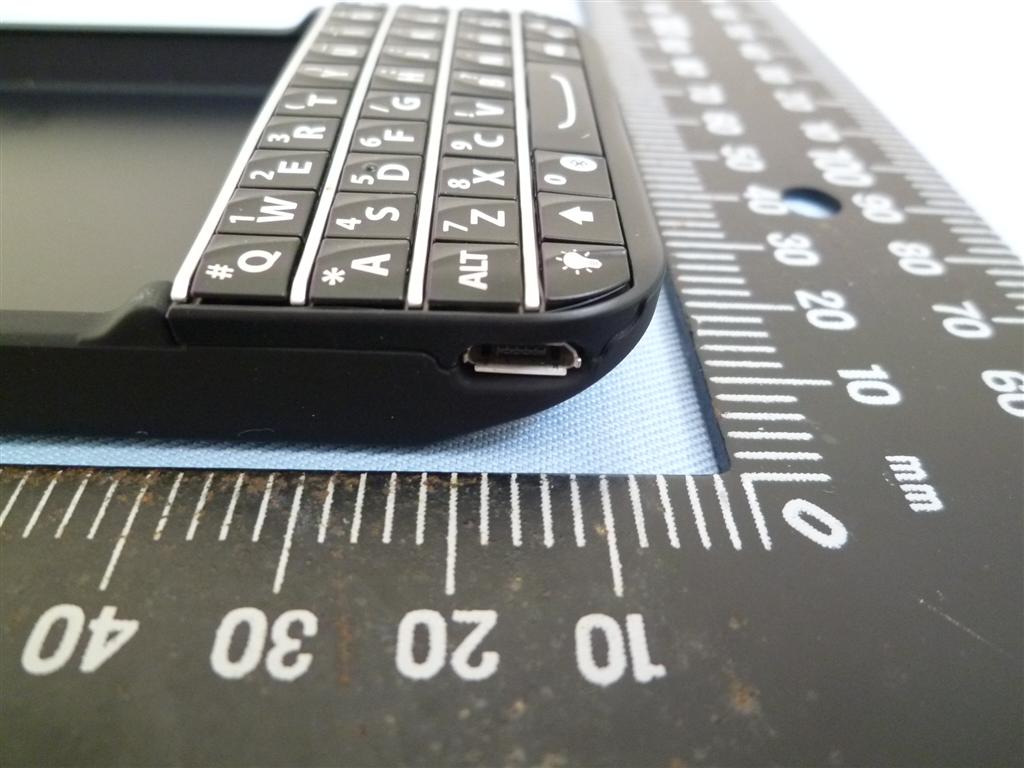

ATTACHMENT Photo Documentation Page 1 of 3 FCC ID: 2AA83-TK1001 Product: Bluetooth Keyboard Type Designation: TK1001 ATTACHMENT Photo Documentation Page 2 of 3 FCC ID: 2AA83-TK1001 Product: Bluetooth Keyboard Type Designation: TK1001 ATTACHMENT Photo Documentation Page 3 of 3 FCC ID: 2AA83-TK1001 Product: Bluetooth Keyboard Type Designation: TK1001

Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 2 von 19 Page 2 of 19 TEST SUMMARY 5.1.1 FIELD STRENGTH OF FUNDAMENTAL RESULT: Passed 5.1.2 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 3 von 19 Page 3 of 19 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 6 2.4 CALIBRATION ......................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS .............................................. 9 3.5 SUBMITTED DOCUMENTS ......................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 10 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 11 4.5 TEST SETUP DIAGRAM .......................................................................................... 11 5. TEST RESULTS ..................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 13 5.1.1 Field strength of fundamental..................................................................................................... 13 5.1.2 Spurious Emission ..................................................................................................................... 15 6. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 16 7. LIST OF TABLES ................................................................................................... 19 8. LIST OF PHOTOGRAPHS......................................................................................... 19 Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 4 von 19 Page 4 of 19 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Photo Documentation (File Name: 10044733APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10044733APPENDIX D) Test Specifications The following standards were applied (in bold: product standards, otherwise: basic standards). Table 1: Applied Standard and Test Levels Radio FCC 47CFR Part 15: Subpart C Section 15.249 ANSI C63.4:2009 Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 5 von 19 Page 5 of 19 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 6 von 19 Page 6 of 19 2.2 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until EMI Test Receiver R&S ESCI 7 100797 20-Dec-13 Bilog Antenna TESEQ CBL6111D 29802 29-Jun-14 Spectrum Analyzer R&S FSV 40 100921 13-Dec-13 Horn Antenna ETS-Lindgren 3117 138160 10-Jan-14 Horn Antenna (18GHz~40GHz) COM-POWER AH840 101031 29-Oct-15 Preamplifier (30MHz -1GHz) HP 8447F 2805A03335 2-Sep-14 Preamplifier (18 GHz -40 GHz) COM-POWER PAM-840 461257 2-Sep-14 Pre-Amplifier (1GHz~18GHz) EM Electronics EM30180 60558 23-Oct-14 Loop Antenna Schwarzbeck FMZB 1513 1513-076 28-Sep-14 EMI Test Receiver R&S ESCI 101094 29-Aug-14 LISN (1 phase) R&S ENV216 101243 5-Jun-14 LISN Rolf Heine NNB-2/16Z 99080 30-Aug-14 2.3 Traceability All measurement equipment calibrations are traceable to NML(Taiwan)/NIST(USA) or where calibration is performed outside Taiwan, to equivalent nationally recognized standards organizations. 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basics using in house standards or comparisons. Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 7 von 19 Page 7 of 19 2.5 Measurement Uncertainty The estimated combined standard uncertainty for radiated emissions and conducted emissions measurements are ±3dB. Table 3: Emission Measurement Uncertainty Parameter Uncertainty Radio Freque…

Text truncated - open the document above for the full version.

Test Report No.10044733 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10044733AppendixD) Contents Spurious Emissions, Fundamental and Band Edges ................................................................................... 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 12 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 18 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 24 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 27 Spurious Emissions, Fundamental and Band Edges 2 Spurious Emissions, Fundamental and Band Edges Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/5 17:13:07 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: Hugo Chang Test Mode: BT-2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2402.192 -7.97 81.61 73.64 114.00 -40.36 peak 2 2402.192 -7.97 40.18 32.21 94.00 -61.79 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 3 Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/12/5 17:14:29 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: Hugo Chang Test Mode: BT-2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2402.174 -7.97 84.82 76.85 114.00 -37.15 peak 2 2402.174 -7.97 40.94 32.97 94.00 -61.03 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 4 Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/5 17:11:39 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: Hugo Chang Test Mode: BT-2441-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.814 -7.92 80.92 73.00 114.00 -41.00 peak 2 2440.814 -7.92 39.49 31.57 94.00 -62.43 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 5 Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/12/5 17:10:11 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: Hugo Chang Test Mode: BT-2441-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2441.156 -7.92 84.57 76.65 114.00 -37.35 peak 2 2441.156 -7.92 40.06 32.14 94.00 -61.86 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 6 Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/5 17:03:41 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: Hugo Chang Test Mode: BT-2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2480.006 -7.88 79.97 72.09 114.00 -41.91 peak 2 2480.006 -7.88 43.26 35.38 94.00 -58.62 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 7 Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/12/5 17:08:02 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: Hugo Chang Test Mode: BT-2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2479.844 -7.88 86.09 78.21 114.00 -35.79 peak 2 2479.844 -7.88 40.30 32.42 94.00 -61.58 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 8 Radiated Bandedge Low Channel (Hor) Spurious Emissions, Fundamental and Band Edges 9 Low Channel (Ver) Spurious Emissions, Fundamental and Band Edges 10 High Channel (Hor) Spurious Emissions, Fundamental and Band Edges 11 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 12 Spurious Emissions, TX Mode, 1-18G Service No.: 114015157-RF Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/5 14:34:16 Applicant: ICHIA Test Rating: DC 5V Product: Bluetooth keyboard Temp.(°C °C°C °C)/Hum.(%): 19.8(°C °C°C °C)/53% Model No.: TK1001 Test Engineer: H…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 16 von 19 Page 16 of 19 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 17 von 19 Page 17 of 19 Photograph 2: Set-up for Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2) Produkte Products Prüfbericht - Nr.: Test Report No. 10044733 001 Seite 18 von 19 Page 18 of 19 Photograph 4: Set-up for for Mains Conducted testing Back Photograph 5: Set-up for for Mains Conducted testing Front
