2AA83-TK1002Keyboard

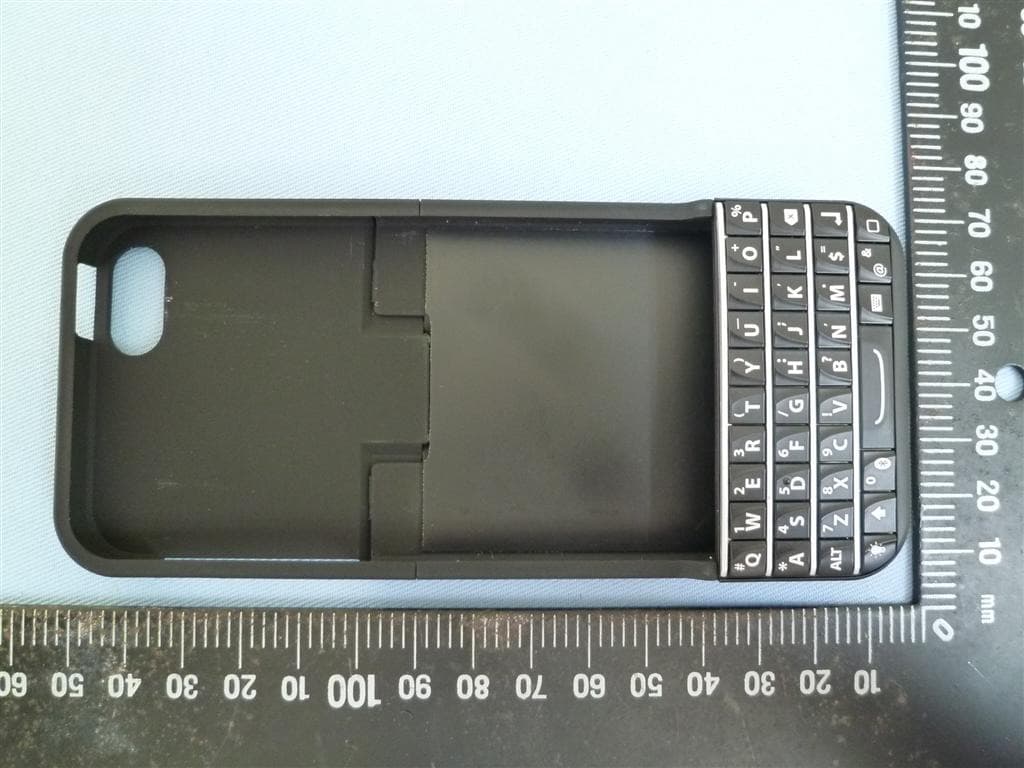

Report No: C140714Z03 Page 1 / 2 External Photos of EUT Report No: C140714Z03 Page 2 / 2

Report No: C140714Z03 Page 1 / 2 Internal Photos of EUT PCB Antenna RF Report No: C140714Z03 Page 2 / 2

Report No.: C140714Z03-RP1 FCC ID: 2AA83-TK1002 Page 1/32 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C for Keyboards Model: TK1002 Brand: TYPO Test Report Number: C140714Z03-RP1 Issued for ICHIA TECHNOLOGIES INC 268, HwaYa 2nd Road, Hwa-Ya Tech. Park, Gueishan,Taoyuan 333 Taiwan Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: July 28, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C140714Z03-RP1 FCC ID: 2AA83-TK1002 Page 2/32 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date. Revisions Effect Page Revised By 00 July 28, 2014 Initial Issue ALL Sinphy Xie Report No.: C140714Z03-RP1 FCC ID: 2AA83-TK1002 Page 3/32 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ..................................................................................................4 2 EUT DESCRIPTION .......................................................................................................5 3 TEST METHODOLOGY .................................................................................................6 3.1. DESCRIPTION OF TEST MODES.......................................................................................6 4 TEST METHODOLOGY .................................................................................................7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 5 INSTRUMENT CALIBRATION .......................................................................................8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................8 6.1. DESCRIPTION OF SUPPORT UNITS .................................................................................8 6.2. CONFIGURATION OF SYSTEM UNDER TEST..................................................................8 7 FACILITIES AND ACCREDITATIONS...........................................................................9 7.1. FACILITIES ..........................................................................................................................9 7.2. ACCREDITATIONS ..............................................................................................................9 7.3. MEASUREMENT UNCERTAINTY .......................................................................................9 8 FCC PART 15.249 REQUIREMENTS ..........................................................................10 8.1. BAND EDGES MEASUREMENT .......................................................................................10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ...........................................20 8.3. SPURIOUS EMISSIONS MEASUREMENT .......................................................................24 Report No.: C140714Z03-RP1 FCC ID: 2AA83-TK1002 Page 4/32 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Keyboards Model TK1002 Brand TYPO Tested July 14~25, 2014 Applicant ICHIA TECHNOLOGIES INC 268, HwaYa 2nd Road, Hwa-Ya Tech. Park, Gueishan,Taoyuan 333 Taiwan Manufacturer ICHIA TECHNOLOGIES INC 268, HwaYa 2nd Road, Hwa-Ya Tech. Park, Gueishan,Taoyuan 333 Taiwan APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140714Z03-RP1 FCC ID: 2AA83-TK1002 Page 5/32 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Keyboards Model TK1002 Brand TYPO Model Discrepancy N/A Identify Number C140714Z03-RP1 Power Supply DC5V supplied by the notebook Frequency Range 2402-2480 MHz Transmit Power Peak: 67.25dBuV/m (Max.) Average: 66.61dBuV/m (Max.) Modulation Technique FHSS(GFSK for 1Mbps) Number of Channels 79 Channels Antenna Specification PCB Antenna with 0dBi gain(Max) Temperature Range -20°C ~ +55°C Hardware Version TYPO-H-TK1002 Software Version TYPO-S-TK1002 Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: 2AA83-TK1002 filing to comply with Section 1…

Text truncated - open the document above for the full version.

Report No.: C140714Z03 FCC ID: 2AA83-TK1002 Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C140714Z03 FCC ID: 2AA83-TK1002 Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
