2AA8Y-416015EMITTER LABGUARD 3 RADIO IS USED TO MEASURE AND CONTROL PHYSICAL PARAMETERS IN LABORATORY

Intentionally left blank. Document history VERSIONDATEMODIFICATIONS A05/11/2013Creation User manual - Pictograms Note Equipment optimization tip Prohibited action notice Noteworthy point warning Danger or potential risk warning Reminder of the pre-requisites for implementation of the next instructions Labguard ™ is one of bioMérieux's registered trademarks. The information and graphs contained in this manual are not binding. bioMérieux therefore reserves the right to implement changes to the document without prior notice. bioMérieux will not approve any modifications whatsoever to the equipment implemented by the user. bioMérieux shall under no circumstance be held liable for any direct or consequential injury or damage whatsoever suffered by the user or by any third party, as a result of modifications to the equipment. •This equipment is for professional use only. •Users are required to read all the accompanying documents, including the statutory information, before using the equipment. Unpacking the device ........................................... 6 Learning about the equipment ...................................... 7 Labguard 3D ™ equipment ..................................... 7 The screen .............................................. 8 Front ................................................. 9 Rear ................................................. 10 Installing the device ........................................... 11 Switching the equipment on / off .................................... 13 Turning the device on ....................................... 13 Turning the device off ....................................... 13 Managing the sensors .......................................... 14 Detecting a sensor ......................................... 14 Validating disconnection of a sensor ............................... 15 Navigating from one channel to another ............................. 16 Understanding the indicator lights ................................... 17 Alarm indicators .......................................... 17 Status indicator .......................................... 17 Technical characteristics ......................................... 19 Maintenance ............................................... 20 Changing the batteries ...................................... 20 Disposal .............................................. 20 Cleaning the device ........................................ 20 Options and accessories ......................................... 21 Equipment conformity .......................................... 22 FCC compliance .......................................... 22 Industry conformity Canada (IC) ................................. 22 EC compliance ........................................... 23 Compliance statement .................................... 23 Contents Unpacking the device Check that the device has not been damaged during transport. Then check that all the accessories listed below are present. Transmitter •Unit •Unit support 1 Labguard 3 6 EM_RAD_E_QSG_EN-A Learning about the equipment Labguard 3D ™ equipment With Labguard 3D ™ equipment, you can: •Simultaneously measure the different physical parameters of the laboratory (temperature, humidity, CO2). •Provide alerts with visual alarms in real time in case of anomalies. •Save and transfer data and alarms to the Labguard ® software. 2 Labguard 3 7 EM_RAD_E_QSG_EN-A The screen 1Acquisition paused 2Acquisition in progress 3Value measured 4Lower threshold alarm 5Time threshold alarm 6High threshold alarm 7N/A 8Sensor absent 9Certificate expired 10Memory full 11Measurement unit 12Device powered by mains supply 13Battery level 14Channel name 15Radio signal power 16Device Ethernet connected 17Device USB connected 18Number of sensor connector Labguard 3 8 EM_RAD_E_QSG_EN-A Front 1ON/OFF button 2Multi-function button 3Alarm signaled 4Alarm indicator 5Ring for padlock 6Sensor connector 7MicroUSB connector 8Status indicator 9Screen Labguard 3 9 EM_RAD_E_QSG_EN-A Rear 14 screws 2Battery compartment Labguard 3 10 EM_RAD_E_QSG_EN-A Installing the device The device must be placed in a vertical position in order to avoid any interference. 1.Fix the transmitter support to the wall or to the unit to be monitored using the four screws or adhesive strips at the rear of the support. 2.Slide the device into the support. In the case where the device is installed on a metal surface, make sure the antenna extends beyond the surface to improve radio performance. 3 Labguard 3 11 EM_RAD_E_QSG_EN-A 3.For greater security, you can add a padlock. 4.Connect the sensors. 5.If you wish, connect the device directly to the mains power supply using the microUSB connector. Labguard 3 12 EM_RAD_E_QSG_EN-A Switching the equipment on / off Turning the device on To turn the device on, press and hold the ON/OFF button for 5 seconds. The status light turns green. Turning the device off To turn the device off, press and hold the ON/OFF button for 5 seconds. The status light turns red. 4 Labguard 3 13 EM_RAD_E_QSG_EN-A Managing the sensors Detecting a sensor You have connected a sensor to the device. 1. Press the multi-function button. 2.The channel you have just connected is displayed. 5 Labguard 3 14 EM_RAD_E_QSG_EN-A Validating disconnection of a sensor 1.Disconnect the sensor. This screen is displayed: 2.To validate disconnection, press the multi-function button. If another sensor is connected, the screen displays its status. If no other sensors are connected, then this screen is displayed: Labguard 3 15 EM_RAD_E_QSG_EN-A Navigating from one channel to another 1.Press the multi-function button. The status for channel 1 is displayed. 2.Press the multi-function button again. The status for channel 2 is displayed. Labguard 3 16 EM_RAD_E_QSG_EN-A Understanding the indicator lights Alarm indicators The transmitter signals technical problems or measurement problems via alarms. The alarm signaled is visible in red on the wall or on the ceilin…

Text truncated - open the document above for the full version.

Attn: TIMCO Engineering lnc. 849 N. W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Authority to Act as Agent On our behalf, I appoint M. Thomas LEDRESSEUR from Emitech Angers - site de Juigné, 21 rue de la Fuye PA de Lanserre, 49610 Juigné sur Loire FRANCE, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by TIMCO Engineering lnc., still resides with bioMérieux. This authorization is valid until further written notice from bioMérieux. 23 December 2013 By Johan DEVELON, R&D Instruments Manager

October 29, 2013 Attn: TIMCO Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Confidentiality Request regarding application for certification of FCC ID: 2AA8Y-416015 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational description 416015-OpDes.pdf Block diagram 416015-BlkDia.pdf Schematics 416015-Schem.pdf Parts List 416015-Partslst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its compet itors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Johan DEVELON R&D Instruments Manager

December 10, 2013 Attn: TIMCO Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 FCC ID: 2AA8Y-416015 IC : 11497A-416015 To Whom It May Concern: BioMérieux S.A., declare that the differences between models 416013, 416014 and 416015 are for the presence of a screen and the number of connector for sensors. Radio is strictly the same. Model Number of connector Screen 416013 1 No 416014 2 Yes 416015 4 Yes Sincerely, Johan DEVELON R&D Instruments Manager

Federal Communications Commission Authorizat ion and Evaluation Divisio n 1435 Oakland Mills Road Columbia, MD 21046 December 23, 2013 SUBJECT: FCC Application for 2AA8Y-416015 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Johan DEVELON R&D Instruments Manager

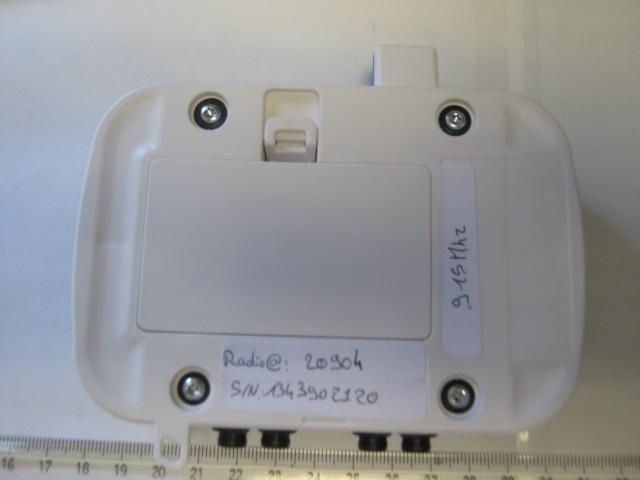

General view

Printed board Radio module Radio module without shield

RR051-12-106522-2-A Ed. 0 Certification test report According to the standards: CFR 47, FCC Part 15 Equipment under test: Emitter Labguard 3 radio FCC ID: 2AA8Y-416015 Company: BIOMERIEUX DISTRIBUTION: Mr BOUQUET (Company: BIOMERIEUX) Number of pages: 34 with 5 appendixes Technical Verification and Ed. Date Modified Written by Quality Approval pages Name Visa Name Visa 0 30-Dec-13 Creation T. LEDRESSEUR Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. RR051-12-106522-2/A Ed. 0 Page 2 out of 34 DESIGNATION OF PRODUCT: Emitter Labguard 3 radio Serial number (S/N): 1343902120 Reference / model (P/N): Emitter radio Software version: not communicated MANUFACTURER: BIOMERIEUX COMPANY SUBMITTING THE PRODUCT: Company: BIOMERIEUX Address: RUE MARYSE BASTIE KER LANN CS 17219 35172 BRUZ CEDEX Responsible: Mr BOUQUET Persons presents during the tests: Mr BOUQUET DATES OF TEST: 08-JUL-2013; 09-JUL-2013; 16-JUL-2013; 17-JUL-2013; TESTING LOCATION: EMITECH ANGERS laboratory at JUIGNE SUR LOIRE (49) FRANCE EMITECH ANGERS open area test site in JUIGNE SUR LOIRE (49) FRANCE FCC 2.948 Listed Site Registration Number: 90469 TESTED BY: T. LEDRESSEUR RR051-12-106522-2/A Ed. 0 Page 3 out of 34 CONTENTS TITLE PAGE 1. INTRODUCTION ............................................................................................................................................. 4 2. PRODUCT DESCRIPTION ............................................................................................................................. 4 3. NORMATIVE REFERENCE ............................................................................................................................ 4 4. TEST METHODOLOGY .................................................................................................................................. 5 5. TEST EQUIPMENT CALIBRATION DATES .................................................................................................. 6 6. TESTS AND CONCLUSIONS ........................................................................................................................ 7 7. MEASUREMENT OF THE CONDUCTED DISTURBANCES ......................................................................... 8 8. RADIATED EMISSION LIMITS .................................................................................................................... 11 9. MEASUREMENT OF THE CONDUCTED DISTURBANCES ....................................................................... 13 10. ADDITIONAL PROVISIONS TO THE GENERAL RADIATED EMISSION LIMITATIONS ......................... 18 11. FUNDAMENTAL AND HARMONICS FIELD STRENGTH ......................................................................... 19 12. OUT-OF-BAND EMISSIONS ...................................................................................................................... 21 APPENDIX 1: Photos of the equipment under test APPENDIX 2: Test set up APPENDIX 3: Test equipment list APPENDIX 4: 20 dB bandwidth APPENDIX 5: Band edge RR051-12-106522-2/A Ed. 0 Page 4 out of 34 1. INTRODUCTION This document presents the result of certification test carried out on the following equipment: Emitter Labguard 3 Radio in accordance with normative reference. 2. PRODUCT DESCRIPTION ITU Emission code: 500KF7D Class: A (commercial, industrial or business environment) Utilization: Indoor use Antenna type and gain: Integrated antenna, -1dBi Operating frequency range: 902-928MHz Number of channels: 18 Channel spacing: 500kHz Frequency generation: P.L.L Modulation: F.S.K Power source: 120 Vac -60 Hz Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 FCC Part 15 (2013) Radio Frequency Devices ANSI C63.4 (2003) Methods of Measurement of Radio-Noise Emissions from Low-voltage Electrical and Electronics Equipment in the range of 9 kHz to 40 GHz. RR051-12-106522-2/A Ed. 0 Page 5 out of 34 4. TEST METHODOLOGY Radio performance tests procedures given in CFR 47 part 15: Subpart B –Unintentional Radiators Paragraph 107: Conducted limits Paragraph 109: Radiated emission limits Subpart C – Intentional Radiators Paragraph 203: Antenna requirement Paragraph 205: Restricted bands of operation Paragraph 207: Conducted limits Paragraph 209: Radiated emission limits; general requirements Paragraph 212: Modular transmitter Paragraph 215: Additional provisions to the general radiated emission limitations Paragraph 249: Operation within the bands 902-928 MHZ, 2400-2483.5 MHz, 5725-5850 MHz and 24.0-24.25 GHz. RR051-12-106522-2/A Ed. 0 Page 6 out of 34 5. TEST EQUIPMENT CALIBRATION DATES Equipment Model Type Last verification Next verification Validity 1922 Microwave DB C020180F- 4B1 Low-noise amplifier 1 to 18 GHz 01/08/2012 01/08/2013 01/10/2013 1939 IMC WR42 Horn antenna 20/04/2012 20/04/2016 20/06/2016 3036 ALC Microwave ALN02- 0102 Low-noise amplifier 04/04/2013 04/04/2014 04/06/2014 7998 Dipole antenna VHAP Schwarzbeck 22/10/2012 22/10/2014 22/12/2014 7999 Dipole antenna UHAP Schwarzbeck 22/10/2012 22/10/2014 22/12/2014 8508 Alternative power supply 1000VA 1251RP California instruments 18/05/2011 18/05/2013 18/07/2013 8511 Préamplificateur 8447D Hewlett Packard 28/06/2012 28/06/2013 28/08/2013 8523 R&S FSEM30 Spectrum analyser 07/09/2012 07/09/2014 07/11/2014 8524 Test receiver HP8591EM Hewlett Packard 18/05/2013 18/05/2013 18/07/2013 8526 Schwarzbeck VHBB…
