www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 8 of 11 1.6 User Manual www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 9 of 11 www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 10 of 11 www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 11 of 11

www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 4 of 11 1.3 Block Diagram

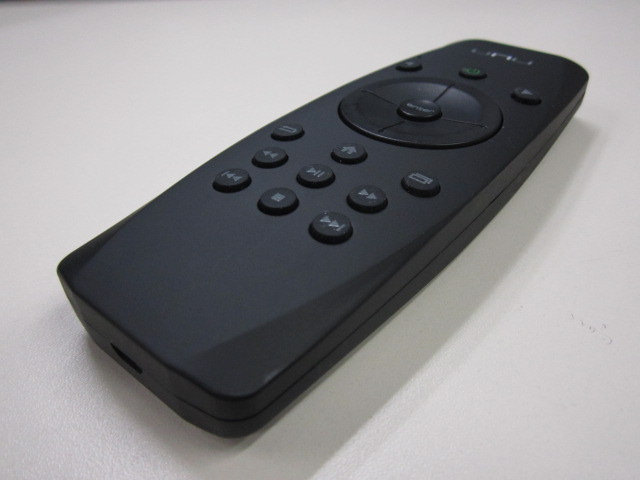

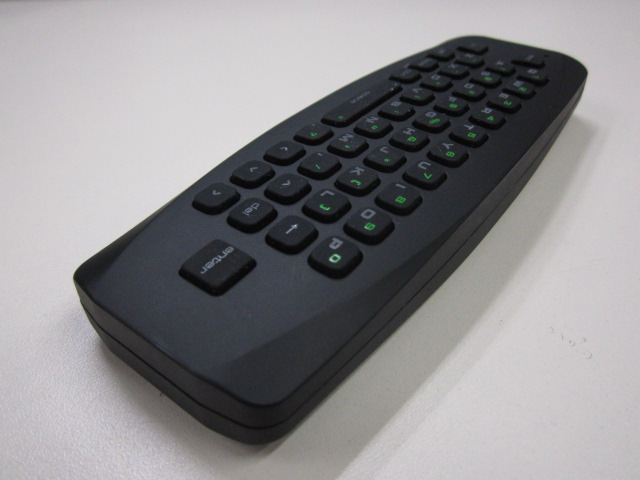

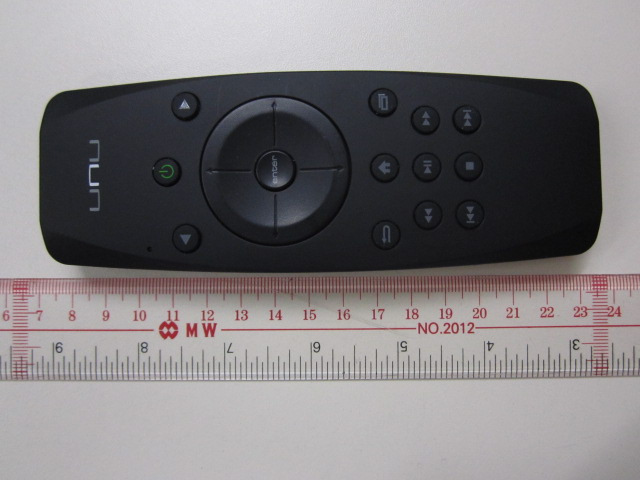

www.tuv.com Test Report No.: 14034388 001 Appendix 3 page 2 of 6 External View External View www.tuv.com Test Report No.: 14034388 001 Appendix 3 page 3 of 6 External View

www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 2 of 11 1.1 FCCID Label Artwork The yellow oval show the location of rating label

www.tuv.com Test Report No.: 14034388 001 Appendix 3 page 4 of 6 External View Internal View www.tuv.com Test Report No.: 14034388 001 Appendix 3 page 5 of 6 Internal View Internal View www.tuv.com Test Report No.: 14034388 001 Appendix 3 page 6 of 6 Internal View Internal View

www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 3 of 11 1.2 Operational Descriptions 1.2.1 Product Descriptions The test item is a Bluetooth Air Mouse based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1 MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625 μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The symbol rate on the channel is 1- 3 Mbps. The USB connector is for charging only, no data exchange is supported. 1.2.2 Technical Background of the Wireless Technology Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. The Bluetooth system consists of a radio unit, a link control unit, and a support unit for link management and host terminal interface functions.

www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 7 of 11 1.5 Bill of Materials

www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 5 of 11 1.4 Schematics www.tuv.com Test Report No.: 14034388 001 Appendix 4 page 6 of 11

www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 1 of 24 Appendix 1 Test Results www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 2 of 24 Disturbance Voltage on AC Mains Continuous Disturbance Test Information EUT Name: Wireless Bluetooth Airmouse Serial Number: V908354 (00131127146-012) Test Description: FCC Part 15 Class B Operating Conditions: Charging + Transmitting Comment: 120V 60Hz Description CE L1 Conducted Emission (FCC-P.15) - Class B 10 15 20 25 30 35 40 45 50 55 60 65 70 150k 300400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz FCC Part 15.107 Class B Voltage on Mains QP FCC Part 15.107 Class B Voltage on Mains AV Result Table_Single Frequency (MHz) QuasiPeak (dBμV) Average (dBμV) 0.150000 59.0 42.2 0.228000 50.1 32.0 0.534000 34.6 15.8 13.428000 33.2 28.3 www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 3 of 24 Continuous Disturbance Test Information EUT Name: Wireless Bluetooth Airmouse Serial Number: V908354 (00131127146-012) Test Description: FCC Part 15 Class B Operating Conditions: Charging + Transmitting Comment: 120V 60Hz Description CE N Conducted Emission (FCC-P.15) - Class B 10 15 20 25 30 35 40 45 50 55 60 65 70 150k 300400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz FCC Part 15.107 Class B Voltage on Mains QP FCC Part 15.107 Class B Voltage on Mains AV Result Table_Single Frequency (MHz) QuasiPeak (dBμV) Average (dBμV) 0.150000 61.2 43.3 0.174000 56.9 37.0 0.542750 35.9 27.1 12.900250 35.3 33.0 www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 4 of 24 Carrier Frequency Separation 8 DPSK www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 5 of 24 Number of hopping channels GFSK www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 6 of 24 Dwell Time GFSK www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 7 of 24 20dB Bandwidth GFSK Tx frequency: 2402MHz Tx frequency: 2441MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 8 of 24 Tx frequency: 2480MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 9 of 24 8 DPSK Tx frequency: 2402MHz Tx frequency: 2441MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 10 of 24 8 DPSK Tx frequency: 2480MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 11 of 24 Peak Output Power GFSK Tx frequency: 2402MHz Tx frequency: 2441MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 12 of 24 GFSK Tx frequency: 2480MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 13 of 24 Pi/4 DQPSK Tx frequency: 2402MHz Tx frequency: 2441MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 14 of 24 Pi/4 DQPSK Tx frequency: 2480MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 15 of 24 8 DPSK Tx frequency: 2402MHz Tx frequency: 2441MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 16 of 24 8 DPSK Tx frequency: 2480MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 17 of 24 Band Edge Compliance GFSK Tx frequency: 2402MHz (conducted measurement; hopping on) Tx frequency: 2480MHz (conducted measurement; hopping on) www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 18 of 24 GFSK Tx frequency: 2402MHz (conducted measurement; hopping off) Tx frequency: 2480MHz (conducted measurement; hopping off) www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 19 of 24 Tx frequency: 2402MHz (radiated measurement), GFSK Vertical Polarization www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 20 of 24 Horizontal Polarization www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 21 of 24 Tx frequency: 2480MHz (radiated measurement), GFSK Vertical Polarization www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 22 of 24 Horizontal Polarization www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 23 of 24 Spurious Emissions - Conducted Tx frequency: 2402MHz Tx frequency: 2441MHz www.tuv.com Test Report No.: 14034388 001 Appendix 1 page 24 of 24 Tx frequency: 2480MHz

www.tuv.com Test Report No.: 14034388 001 Appendix 2 page 2 of 3 Setup for Radiated Emission Setup for Radiated Emission www.tuv.com Test Report No.: 14034388 001 Appendix 2 page 3 of 3 Setup for Conducted Emission
