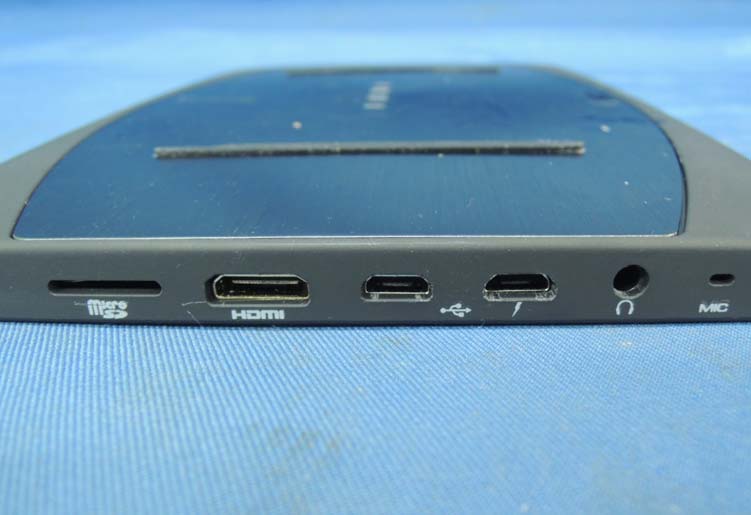

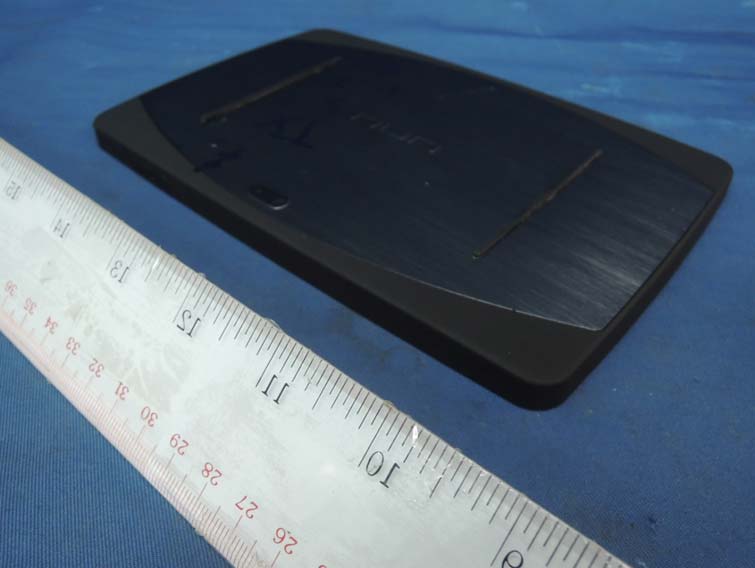

INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model : V01105 (External) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model : V01105 (External) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model : V01105 (External) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model : V01105 (External)

Report No.: 13090970HKG-002 Labelling Information The following labels is stuck on the back of the EUT. Label location Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm V906855 Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm V01099 Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm V908316 Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm V908323 Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm V907296 Report No.: 13090970HKG-002 Labelling Information Label Artwork: Label size: 40mm X 30mm Model Number Letter size 1.4mm Letter size 0.6mm M7005

INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal) INTERTEK TESTING SERVICE Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 Equipment Photographs Model: V01105 (Internal)

Analysis Report (Bluetooth) Report No.: 13090970HKG-002 The Equipment Under Test (EUT) is a tablet, equipped with HDMI, WiFi, Bluetooth 3.0/ 4.0, SD and USB Interface. The EUT operates in the frequency range from 2412MHz to 2462MHz at 802.11b,g,n HT20 (11 channels with 5MHz spacing) and also operates in the frequency range 2402MHz to 2480MHz at Bluetooth 3.0 (79 channels with 1MHz spacing) while 2402MHz to 2480MHz at Bluetooth 4.0 (40 channels with 2MHz spacing). The EUT is powered by an external AC/DC adaptor or / and 3.7 VDC (1 x 3.7V 3400mAh rechargeable battery). The adaptor accepts 100-240VAC. WiFi and Bluetooth portions are in the same module that shares a single antenna. The applicant declared that the EUT is using non-adaptive frequency hopping in Bluetooth 3.0. The type of antenna in the EUT is internal, integral. WiFi 802.11b, 802.11g, 802.11n (HT20): 2412MHz – 2462MHz, 11 channels, 5MHz spacing Bluetooth 4.0 2402MHz – 2480MHz, 40 channels, 2MHz spacing Bluetooth 3.0 2402MHz – 2480MHz, 79 channels, 1MHz spacing The applicant declared that non-adaptive frequency hopping is employed in this model. When the Bluetooth was stand-alone emitting, the Bluetooth portion emission is as below. Operating Mode Nominal Radiated Production Antenna Field Strength Tolerance Gain Bluetooth 4.0 103.0dBμV/m at 3m ±2dB 0dBi Bluetooth 3.0 97.8dBμV/m at 3m ±2dB 0dBi When the WiFi and Bluetooth modules were simultaneously emitting, the Bluetooth portion emission is as below. Operating Mode Nominal Radiated Production Antenna Field Strength Tolerance Gain Bluetooth 4.0 84.8dBμV/m at 3m ±2dB 0dBi Bluetooth 3.0 82.6dBμV/m at 3m ±2dB 0dBi According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 105.0dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 9.49mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 9.49mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Analysis Report (WiFi) Report No.: 13090970HKG-002 The Equipment Under Test (EUT) is a tablet, equipped with HDMI, WiFi, Bluetooth 3.0/ 4.0, SD and USB Interface. The EUT operates in the frequency range from 2412MHz to 2462MHz at 802.11b,g,n HT20 (11 channels with 5MHz spacing) and also operates in the frequency range 2402MHz to 2480MHz at Bluetooth 3.0 (79 channels with 1MHz spacing) while 2402MHz to 2480MHz at Bluetooth 4.0 (40 channels with 2MHz spacing). The EUT is powered by an external AC/DC adaptor or / and 3.7 VDC (1 x 3.7V 3400mAh rechargeable battery). The adaptor accepts 100-240VAC. WiFi and Bluetooth portions are in the same module that shares a single antenna. The applicant declared that the EUT is using non-adaptive frequency hopping in Bluetooth 3.0. The type of antenna in the EUT is internal, integral. WiFi 802.11b, 802.11g, 802.11n (HT20): 2412MHz – 2462MHz, 11 channels, 5MHz spacing Bluetooth 4.0 2402MHz – 2480MHz, 40 channels, 2MHz spacing Bluetooth 3.0 2402MHz – 2480MHz, 79 channels, 1MHz spacing The applicant declared that non-adaptive frequency hopping is employed in this model. When the WiFi portion was stand-alone emitting, the WiFi portion emission data is as below. Operating Mode Nominal Radiated Production Antenna Field Strength Tolerance Gain 802.11b 102.8dBμV/m at 3m ±2dB 0dBi 802.11g 101.2dBμV/m at 3m ±2dB 0dBi 802.11n (HT20) 100.9dBμV/m at 3m ±2dB 0dBi When the WiFi and Bluetooth portion were emitting simultaneously, the WiFi portion emission data is as below. Operating Mode Nominal Radiated Production Antenna Field Strength Tolerance Gain 802.11b 98.8dBμV/m at 3m ±2dB 0dBi 802.11g 97.4dBμV/m at 3m ±2dB 0dBi 802.11n (HT20) 96.4dBμV/m at 3m ±2dB 0dBi According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 104.8dBμV/m at 3m at frequency 2.412GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 9.06mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 9.06mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.462) mW = 9.56 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Simultaneous Transmission SAR exclusion considerations Since the WLAN (WiFi) and Bluetooth transmitters of this device may operate simultaneously, simultaneous transmission analysis is required. Per KDB 447498, simultaneous transmission SAR test exclusion can be applied when the sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit (≤ 1.6W/kg). When the standalone SAR test exclusion is applied, the standalone 1-g SAR must be estimated according to the following equation, Estimated SAR = )max/()5.7/)((TDPxGHzF where F(GHz) is the RF channel transmit frequency in GHz Pmax is the max. power of channel, including tune-up tolerance, mW TD is the min. test separation distance, mm For WLAN (WiFi) operation, Maximum Time-averaged Conducted Power of this device = 9.06 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.38 W/kg where Pmax = 9.06 mW, TD = 5 mm and F(GHz) = 2.462 GHz For Bluetooth 4.0 operation, Maximum Time-averaged Conducted Power of this device = 9.49 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.40 W/kg where Pmax = 9.49mW, TD = 5 mm and F(GHz) = 2.480 GHz Simultaneous Transmission Analysis WLAN SAR (W/kg) Bluetooth SAR (W/kg) Σ SAR (W/kg) Simultaneous SAR Required 0.38 0.40 0.78 No Conclusion Since the above summed SAR result for all simultaneous transmission conditions were below the SAR limit (1.6 W/kg), SAR evaluation for simultaneous transmission configuration are not required.

INTERTEK TESTING SERVICES Report No.:13090970HKG-002 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) (802.11b DSSS 11Mbps) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:13090970HKG-002 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) (802.11g OFDM 54Mbps) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:13090970HKG-002 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) (802.11n HT20 mcs7 65Mbps) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:13090970HKG-002 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) (Bluetooth 4.0) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:13090970HKG-002 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) (Bluetooth 3.0) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13090970HKG-002 Sunflex Europe GmbH Application For Certification (Original Grant) (FCC ID: 2AA95V01105) (IC: 11532A-V01105) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: December 2, 2013 INTERTEK TESTING SERVICES Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 i GENERAL INFORMATION Sunflex Europe GmbH BRAND NAME: snakebyte Vyper MODEL: V01105, V906855, V01099, V908316, V908323, V907296, M7005 FCC ID: 2AA95V01105 IC: 11532A-V01105 Grantee: Sunflex Europe GmbH Grantee Address: Konrad-Zuse-Str.13 58239 Schwerte Germany Contact Person: Jens Lawrenz Tel: +49-2304-59754 - 0 Fax: +49-2304-59754 - 29 e-mail: [email protected] Manufacturer: Sunflex Europe GmbH Manufacturer Address: Konrad-Zuse-Str.13 58239 Schwerte Germany Brand Name: snakebyte Vyper Model: V01105, V906855, V01099, V908316, V908323, V907296, M7005 Type of EUT: Transceiver Description of EUT: 7inch Tablet PC Serial Number: N/A FCC ID / IC: 2AA95V01105 / 11532A-V01105 Date of Sample Submitted: September 25, 2013 Date of Test: September 25, 2013 to October 22, 2013 Report No.: 13090970HKG-002 Report Date: December 2, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 ii SUMMARY OF TEST RESULT Sunflex Europe GmbH BRAND NAME: snakebyte Vyper MODEL: V01105, V906855, V01099, V908316, V908323, V907296, M7005 FCC ID: 2AA95V01105 IC: 11532A-V01105 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Digital Device Radiated Emissions 15.109 / RSS-210 2.5 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ....................................................................................... 1 1.2 Related Submittal(s) Grants ........................................................................... 1 1.3 Test Methodology .......................................................................................... 1 1.4 Test Facility ................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification.................................................................................................... 2 2.2 EUT Exercising Software ............................................................................... 2 2.3 Special Accessories....................................................................................... 2 2.4 Equipment Modification.................................................................................. 2 2.5 Measurement Uncertainty .............................................................................. 3 2.6 Support Equipment List and Description......................................................... 3 3.0 Emission Results ............................................................................................ 4 3.1 Field Strength Calculation .............................................................................. 4 3.2 Radiated Emission Configuration Photograph ................................................ 5 3.3 Radiated Emission Data ................................................................................ 5 3.4 Conducted Emission Configuration Photograph ............................................. 5 3.5 Conducted Emission Data.............................................................................. 5 4.0 Equipment Photographs ............................................................................... 30 5.0 Product…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: 13090970HKG-002 FCC ID: 2AA95V01105 IC: 11532A-V01105 6 Worst-Case Operating Mode: WiFi + Bluetooth Transmitting, with docking EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 204 kHz 45.48 L1 -17.95 2 CISPR Average204 kHz 36.17 L1 -17.27 1 Quasi Peak 235.5 kHz 36.85 L1 -25.39 1 Quasi Peak 334.5 kHz 42.38 L1 -16.95 2 CISPR Average402 kHz 36.88 L1 -10.92 1 Quasi Peak 406.5 kHz 33.16 L1 -24.55 2 CISPR Average537 kHz 32.11 L1 -13.88 1 Quasi Peak 604.5 kHz 30.82 L1 -25.17 2 CISPR Average739.5 kHz 22.64 L1 -23.35 1 Quasi Peak 807 kHz 25.51 L1 -30.48 2 CISPR Average807 kHz 19.83 L1 -26.16 1 Quasi Peak 1.2435 MHz 24.07 L1 -31.92 2 CISPR Average1.2435 MHz 14.46 L1 -31.53 1 Quasi Peak 1.545 MHz 23.98 L1 -32.02 2 CISPR Average1.545 MHz 13.89 L1 -32.10 2 CISPR Average2.3505 MHz 14.75 L1 -31.24 1 Quasi Peak 2.922 MHz 27.51 L1 -28.48 2 CISPR Average3.8265 MHz 24.33 L1 -21.66 1 Quasi Peak 4.029 MHz 34.44 L1 -21.55 1 Quasi Peak 4.461 MHz 33.84 L1 -22.16 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP
