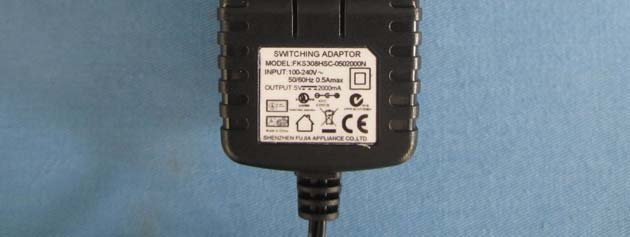

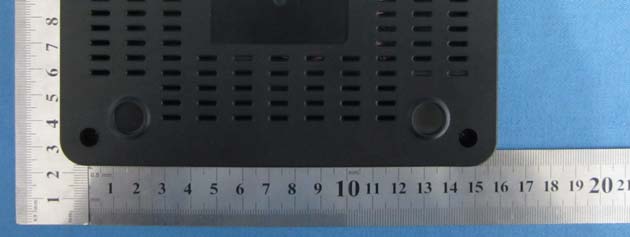

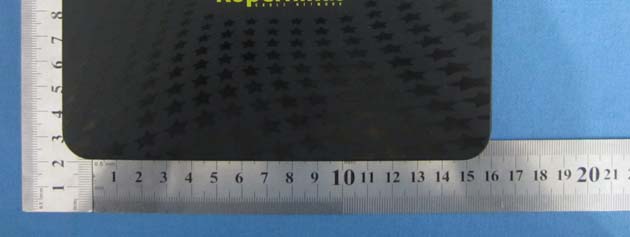

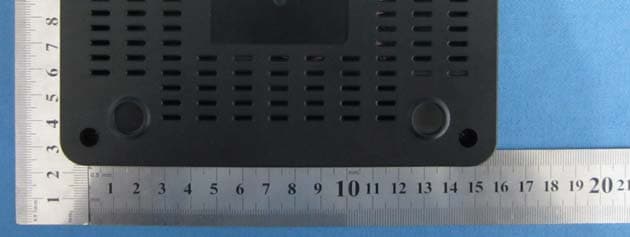

2AA9TTHD601DC0001Android OTT Box

THD601DC Set-top box 1. Safety............................................................................................................................ 2. Appearance.................................................................................................................. 3. Rear Panel Connection................................................................................................ 4. Remote......................................................................................................................... 5 First Time Set-Up.......................................................................................................... 6. Network Settings.......................................................................................................... 6.1 Available Networks and Checking Current Network Status........................................ 6.2 Connecting to Cable Network..................................................................................... 6.3 Connecting to WiFi..................................................................................................... 7. Video Settings............................................................................................................... 7.1 Available Video Interfaces.......................................................................................... 7.2 Screen size settings................................................................................................... 8 Specification.................................................................................................................. Contents 1 2 3 4 7 8 8 8 8 10 10 10 12 ! 1 1 Safety End-user Agreement Please read this Agreement carefully before operating, and guarantee that: 1. Do not disassemble this product without authorization; 2. Do not read or refresh the firmware through non-normal channels; 3. Do not perform reverse-engineering or disassembling to any software and codes of this product; 4. This product and the Agreement can be transferred to a third party only when the terms and conditions in this Agreement are accepted. When you transfer all or any part of this product to a third party, the permission to use this product terminates automatically. Instructions for User’s Manual: Before operating, please read the User’s Manual carefully. We are not responsible for any direct or indirect losses caused by hardware damage, application damage, file lost or system crash due to improper operation. It is assumed that you have carefully read and understood the Agreement, and will abide by the terms and conditions. Notice: Dear users, thanks for purchasing this product. Before operating, please read the following notice: Do not expose this unit to the rain or moist environment to avoid fire or electric shock. To avoid fire, electric shock or product damage, please keep this unit away from rain, moisture, and water drops or spray. Safety Guide 1. Please use dedicated adapter only; do not share with other units. 2. Keep the adapter power cord and plug away from heat sources. 3. Do not place any heavy object on the power cord or plug. 4. Do not disassemble the adapter or power cord. 5. To ensure your safety, do not open the shell; please ask qualified personnel for repair. Maintenance Tips 1. The product structure is complicated; please ask qualified personnel for maintenance. 2. Do not remove any parts without permission, or else the warranty will be void. 3. For maintenance, please contact local service center. 4. Replace the component or part with genuine ones only. ! 2 2 Appearance Front Panel  Rear Panel 1. Power indicator 1 ;9(;9(;9( 1 2 3 4 5 6 8 7 1 23 1. WiFi antenna 2. 5V 2A 3. A/V out 4. Optical fiber out 5. Reset key 6. TF card 7. RJ45 network interface 8. HDMI out ! 3 3 Rear Panel Connection Rear Panel Connection .*3/IUTTKIZOUTIGHRK '<IUTTKIZOUTIGHRK Optical fiber connection cable White Red Yellow ! 4 3 Rear Panel Connection Rear Panel Connection Tips: Some applications require mouse operation! Tips: Certain functions may be added or deleted due to software update. The unit shall prevail. Internet Broadband Internet connection Broadband Router/Modem Wired Network WA N12 LA N 34 5 4 Remote 1 2 3 4 6 7 8 5 10 14 15 9 11 13 12 17 18 19 21 24 20 22 23 25 26 16 27 6 4 Remote 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 21 22 23 24 25 Shortcut to the Main Menu Go in and out of Standby Volume Up/Dn Shortcut to the System Setup menu Mute/Un-Mute sound Skip to next file/Skip to previous file Red button. Functionality depends on the application 19 20 No. Key Function Numeric input Generic exit button. Functionality depends on the application Move left, right, up, down OK Green button. Functionality depends on the application Play/Pause Stop Blue button. Functionality depends on the application Yellow button. Functionality depends on the application 26 Change the screen resolution on the fly Show additional information when available Show EPG when available Shortcut to the PLEX APP Shortcut to the YouTube APP Multipurpose delete button Channel Up/Dn Back one level Shortcut to the Skype APP Shortcut to the Netflix APP 5 First Time Set-Up When operating the box for the first time, you will be asked to set-up a basic set of features that are essential for having a good IPTV experience. Be advised that without a proper internet connection you cannot proceed to the main menu. Chapter 6 describes in detail on how to set-up the network. 7 6 Network Settings 6.1 Available Networks and Checking Current Network Status Check the available guaranteed bandwidth with your ISP. Recommended bandwidth: To ensure smooth playing of Internet video resources, the bandwidth should be at least 2Mbps. Router: For easy and quick connection, a wireless router is recommended. A common wireless router can meet the bandwidth requirement for ITPV. The THD601DC Set-Top-Box in…

Text truncated - open the document above for the full version.

Differences Declaration To whom concern, We TelergyHD BV hereby declares: The product model(s) THD601DC HYBRID, THD601DC MINI are identical in the same PCB layout, interior structure and electrical circuits with the model THD601DC which tested in Global United Technology Services Co., Ltd., the only differences are the model name for commercial purpose. Authorized signature: Date: 2013-12-13

Label location

RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 802.11b mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2412MHz) 32.43 0.0102 1.0 PASS Middle (2437MHz) 33.34 0.0105 1.0 PASS Highest (2462MHz) 35.48 0.0112 1.0 PASS 802.11g mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2412MHz) 10.59 0.0033 1.0 PASS Middle (2437MHz) 10.69 0.0034 1.0 PASS Highest (2462MHz) 11.86 0.0037 1.0 PASS 802.11n(H20) mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2412MHz) 9.68 0.0031 1.0 PASS Middle (2437MHz) 10.57 0.0033 1.0 PASS Highest (2462MHz) 11.56 0.0036 1.0 PASS 802.11n(H40) mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2422MHz) 9.64 0.0030 1.0 PASS Middle (2437MHz) 10.35 0.0033 1.0 PASS Highest (2452MHz) 10.84 0.0034 1.0 PASS Remark: antenna gain=2.0 dBi

Global United Technology Services Co., Ltd. Report No.: GTSE13100176401 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: TelergyHD BV Address of Applicant: Witte Kruislaan 6 1217 AP Hilversum The Netherlands Equipment Under Test (EUT) Product Name: Android OTT Box Model No.: THD601DC, THD601DC HYBRID, THD601DC MINI FCC ID: 2AA9TTHD601DC0001 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2012 Date of sample receipt: October 29, 2013 Date of Test: October 29-December 03, 2013 Date of report issued: December 09, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE13100176401 Global United Technology Services Co., Ltd. Project No.: GTSE131001764RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 67 2 Version Version No. Date Description 00 December 09, 2013 Original Prepared By: Date: December 09, 2013 Project Engineer Check By: Date: December 09, 2013 Reviewer Report No.: GTSE13100176401 Global United Technology Services Co., Ltd. Project No.: GTSE131001764RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 67 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 13 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 18 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 23 7.6 BAND EDGES .................................................................................................................................... 28 7.6.1 Conducted Emission Method ..................................................................................................... 28 7.6.2 Radiated Emission Method ........................................................................................................ 31 7.7 SPURIOUS EMISSION ......................................................................................................................... 36 7.7.1 Conducted Emission Method ......................................................................…
