2AAAH-OHM001Ohm

WHAT TO DO WITH YOUR NEW FOAM BRICK The foam brick you are holding is the end result of an indecisive creative director and two pushed deadlines. In a perfect world, you would be holding a custom-molded foam enclosure with a high-tech, heat-treated texture that mimics Ohm's sleek aesthetic. Basically, it was supposed to look really freaking cool. Instead, you got this weird foam brick. But in the interest of looking at the bright side and saving the world, please consider the above uses to give your weird foam brick a second life. Beverage Barge Horrible Boat Anchor Igloo Patch Tortilla Warmer Vertical Optimization Device Hamster Wrestling Ring New Friend Robot Jockstrap Pet Coffin Ninja Dartboard Goth Loofah Emergency Umbrella OHM portable speaker wireless charging dock Ohm was invented by María Morrill, a homemaker from Bayamon, Puerto Rico. While doing research on which portable speaker to buy, Maria found herself underwhelmed by the options. This busy stay-at-home-mom challenged herself to invent something better... and now she and her family take their tunes to go with Ohm. It all started with María’s concept Submitted to Quirky in May ‘10 And now you have Ohm! Like all Quirky products, Ohm was invented and influenced by real people like you. Ordinary people with extraordinary imaginations submit ideas to Quirky every day, then we collaborate with our online community to make the best of those ideas a reality. When a product is sold, we share a cut of the revenue with all those who had an impact. HOWQUIRKYWORKS Submityouridea Helpusdecide Influenceandearn Wemakeitreal Theworldprospers Submityourproductideato 1901 influencers helped bring María’s idea to life. USING OHM • To turn on/off: press and hold power button. • To toggle play/pause: press play/pause button. • To adjust volume: press +/- button. (16 volume levels) • To operate speakerphone: • press play/pause button to answer an incoming call. • press and hold play/pause button to reject an incoming call or end a call. • press play/pause button while on a call to toggle mute/unmute. • Ohm will make a sound when the battery reaches 25% charge and 10% charge states. • Ohm will automatically turn off if the battery becomes too hot during charge or if the battery reaches a critical low. • Ohm’s USB charging output will be reduced from 2.1 A to 1 A if all charging ports are in use at once. FEATURESANDFUNCTIONS • 5 watts total power output • Dual drivers, single passive bass radiators • Wireless charging docking pad for Qi compatible devices • Wirelessly connects to Bluetooth® v4.0 devices for playback • Integrated microphone for speakerphone functionality (with dual microphone noise cancellation) • Wireless range up to 30 . • 6-8 hours of continuous playback on fully-charged battery • 1 high-powered USB port on charging dock • 1 Micro-USB port on speaker • Voltage range 100~240V AC (50Hz~60Hz) ALSOINTHEBOX • 2’ 3.5mm auxiliary cable To connect your non-Bluetooth® device • 1’ USB to Micro-USB cable To charge the speaker without the dock • AC power adapter wall plug To power the charging dock M a r í a M o r r i l l I N V E N T E D B Y R E A L P E O P L E L I K E Y O U CONNECTINGTOYOURBLUETOOTH®DEVICE 1 Turn on Bluetooth® from your device. 2 Press and hold the power button on Ohm. You will hear a sound when it turns on. 3 Place your device close to the Ohm speaker. 4 Press and hold the Bluetooth® button on the Ohm speaker until you hear a sound. The LED light will be flashing as it connects. 5 From your device, select “Ohm” from the list of Bluetooth® devices and wait for a confirmation sound from Ohm. 6 Once you hear the confirmation sound, Ohm is connected to your device. If Ohm does not connect, press and hold the Bluetooth® button to repeat the pairing process. 7 Once connected, you will be able to control music from your device wirelessly within a 30 . range. CONNECTINGTOANONBLUETOOTH®DEVICE • Use the included 3.5mm auxiliary cable to connect Ohm to your non-Bluetooth® device. UNDERSTANDINGOHM’SSIGNALS • When Ohm is fully charged and power is ON, the LED white light will be on. • When charging, the LED white light will flash evenly. • If power is turned OFF, the LED light will remain on for 10 seconds, then fade off. • Aer 10 minutes of inactivity, Ohm will automatically turn off to conserve battery life. • When the battery becomes too hot or reaches a critical low, the power light will turn red and Ohm will turn off. IMPORTANTSAFETYINFORMATION Read all instructions and warnings prior to using Ohm. Failure to comply with instructions and warnings constitutes improper use of Ohm. Save all instructions. Quirky, Inc. is not responsible for improper use, which may result in personal injury or product damage. Quirky, Inc. is not responsible for any damages one may suffer as a result of use, intended or unintended. Keep away from children. CAUTION: RISK OF ELECTRIC SHOCK. Do not expose device to liquid, moisture, humidity, or rain. Do not use near a bathtub, sink, sauna, pool, or steam room. Do not place objects filled with water, such as a vase, on the device. CAUTION: RISK OF FIRE OR EXPLOSION. Do not expose to excessive heat such as sunshine, open flame or other heat sources. Do not dispose of device in fire, as explosion may occur. Do not block any ventilation openings. Clean only with a dry cloth. Do not clean device while being charged. Use only accessories and attachments as supplied and designated in the instructions. Do not attempt to modify or disassemble device. There are no user-serviceable parts. Refer all servicing to qualified personnel. Unplug this device during lightning storms or when unused for long periods of time. Store in a cool, dry place. FCCWARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Quirky, Inc. ______________________________________________________ 2014-11-20 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Quirky, Inc. _ hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Name: Ohm Model name: Ohm FCC ID: 2AAAH-OHM001 Sincerely, Client’s signature ： Client’s name / title ： Steve Heintz/General Counsel Contact information / address: Quirky, Inc./606 W 28th St Floor 7 New York, NY 10001 United States

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Quirky, Inc. 2014-11-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAAH-OHM001 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Steve Heintz E-mail: [email protected] Phone: 2123891390 Fax: 2123891390 Address: 606 W 28th St Floor 7 New York, NY 10001 United States

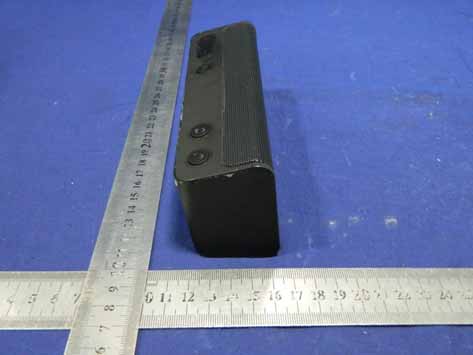

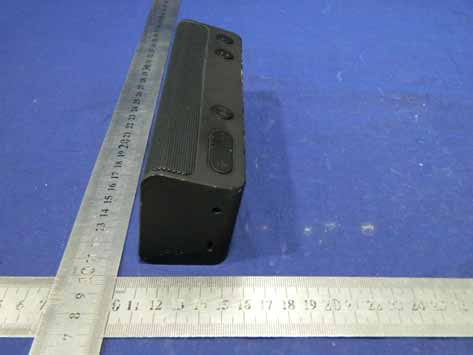

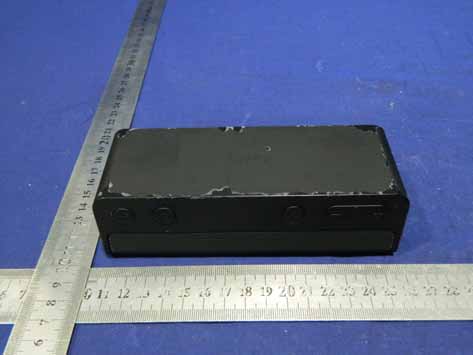

External Photos

LABEL LOCATION LABEL LOCATION

Internal Photos BT module

FCC ID : 2AAAH-OHM001 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result BT DSS Channel Freq. (MHz) modulation conducted power (mW) Tune-up power (dBm) Max tune- up power (dBm) Antenn a Gain Numeri c Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 1.04 mW 0.189 dBm -1dBm to +1dBm For GFSK CH_0 1 0.673 0.00017 1 2441 GFSK 1.79 mW 2.528 dBm +1dBm to +3dBm For GFSK CH_39 3 0.673 0.00027 1 2480 GFSK 1.79 mW 2.522 dBm +1dBm to +3dBm For GFSK CH_78 3 0.673 0.00027 1 2402 1/4π- DQPSK 0.62 -2.102 dBm -2.5dBm to -0.5dBm forπ/4 – DQPSK CH_0 -0.5 0.673 0.00012 1 2441 1/4π- DQPSK 1.03 mW 0.117 dBm 0dBm to +2dBm forπ/4 –DQPSK CH_39 2 0.673 0.00021 1 2480 1/4π- DQPSK 1.01 mW 0.063 dBm 0dBm to +2dBm forπ/4 –DQPSK CH_78 2 0.673 0.00021 1 2402 8DPSK 0.65 mW -1.898 dBm -2.5dBm to -0.5dBm For 8DPSK CH_0 -0.5 0.673 0.00012 1 2441 8DPSK 1.12 mW 0.49 dBm 0dBm to +2dBm For 8DPSK CH_39 2 0.673 0.00021 1 2480 8DPSK 1.10 mW 0.408 dBm 0dBm to +2dBm For 8DPSK CH_78 2 0.673 0.00021 1 BT DTS Channel Freq. (MHz) modulation conducted power (mW) Tune-up power (dBm) Max tune- up power (dBm) Antenn a Gain Numeri c Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 0.4mW -4.017dBm -5dBm to -3dBm For CH_0 -3 0.673 0.00007 1 2440 GFSK 0.87 mW -0.594 dBm -2dBm to 0dBm For CH_19 0 0.673 0.00013 1 2480 GFSK 0.87 mW -0.593 dBm -2dBm to 0dBm For CH_39 0 0.673 0.00013 1

TRF No：FCC 15.247/A Page 1 of 55 Report No: ES141017109E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF Ohm MODEL No.: Ohm FCC ID: 2AAAH-OHM001 Tr ad e m ar k : Q u ir k y REPORT NO: ES141017109E1 ISSUE DATE: November 07, 2014 Prepared for Quirky, Inc. 606 W 28th St Floor 7 New York, NY 10001 United States Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 2 of 55 Report No: ES141017109E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World VERIFICATION OF COMPLIANCE Applicant: Quirky, Inc. 606 W 28th St Floor 7 New York, NY 10001 United States Manufacturer: Quirky, Inc. 606 W 28th St Floor 7 New York, NY 10001 United States Product Name: Ohm Model Number: Ohm Serial Number: 00000000000000 File Number: ES141017109E1 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : October 17, 2014 to November 07, 2014 Prepared by : Yaping Shen/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.247/A Page 3 of 55 Report No: ES141017109E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Table of Contents 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION ................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................... 5 1.3 TEST METHODOLOGY ....................................................................................................................... 5 1.4 SPECIAL ACCESSORIES ..................................................................................................................... 5 1.5 EQUIPMENT MODIFICATIONS ......................................................................................................... 5 1.6 TEST FACILITY .................................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION ....................................................................................................................... 7 2.2 EUT EXERCISE ..................................................................................................................................... 7 2.3 TEST PROCEDURE ............................................................................................................................... 7 2.4 LIMITATION ......................................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM ....................................................................................... 10 2.6 EQUIPMENT USED IN TESTED SYSTEM ....................................................................................... 10 2.7 DESCRIPTION OF TEST MODES ..................................................................................................... 11 3. SUMMARY OF TEST RESULTS ....................................................................................... 12 4. CONDUCTED EMISSIONS TEST ..................................................................................... 13 4.1 MEASUREMENT PROCEDURE: ....................................................................................................... 13 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 13 4.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 13 4.4 CONDUCTED EMISSION LIMIT ...................................................................................................... 13 4.5 MEASUREMENT RESULT: ............................................................................................................... 13 5. RADIATED EMISSION TEST ............................................................................................ 16 5.1 MEASUREMENT PROCEDURE ........................................................................................................ 16 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 17 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 18 5.4 MEASUREMENT RESULT .................................................................................................................. 18 6. CHANNEL SEPARATION TEST ....................................................................................... 28 6.1 MEASUREMENT PROCEDURE .................................................…
