2AAAH-WR001Wink Relay

1 USER GUIDE GUIDE DE L'UTILISATEUR 2 ENGLISH 3 TABLE OF CONTENTS Important safety information Overview Features & Wi-Fi requirement Parts included Inside Relay and what it does Installation • Power box Double gang box Single gang box • Main unit Setting up Relay • Logging into Wink • Customizing Relay Warranty Compliance Troubleshooting 4 6 8 10 12 16 18 18 22 26 28 28 28 30 32 36 4 IMPORTANT SAFETY INFORMATION Carefully read all safety information before installing. WARNING: RISK OF ELECTRIC SHOCK • Before installing, servicing, or removing Relay, TURN OFF POWER AT CIRCUIT BREAKER. • After power has been turned off, make sure the light switch you are going to replace with Relay is powered down before continuing installation. NOTE: It is recommended to use a circuit tester to make sure the circuit is off. • Installation involves handling high-voltage wires; follow warnings and safety instructions carefully. 5 CAUTIONS & REQUIREMENTS • Relay should be installed by a qualified electrician. • It must be installed and/or used in accordance with appropriate electrical codes and regulations. • Only use this device with copper or copper-clad wires. • Relay can ONLY be installed in a light load gang box (a gang box that controls lights only). • Relay can only be used in a single or double gang box. Do not install in a multi-gang box unit. • Relay can only be used in a single or double gang box where a neutral wire is present. • Relay replaces single or double light switches not wired to an AC outlet. • The included wire stripper has an exposed blade which could potentially cause injury. Use with caution. • Use this device only for its intended purpose as described in this user guide. • This device must be properly installed in accordance with the installation instructions before it is used. 6 7 OVERVIEW GET INSTANT ACCESS TO YOUR CONNECTED HOME ON A TOUCHSCREEN THAT’S TAILORED TO YOU. CONTROL SMART LIGHTS, LOCKS, WINDOWS, A/Cs, AND MORE, ALL FROM WINK RELAY. 8 1 FEATURES 4.3" multi-touch LCD display. 2x smart switches trigger lights or user preset actions. Designed to control up to two (2) light loads. Microphone and speaker for intercom functionality. Temperature and humidity sensor. Proximity sensor: Bluetooth ® Low Energy (BLE) allows Relay to recognize which user is present via their smartphone and activates their stored user profile. NOTE: Runs the Wink app (Wi-Fi ® , Bluetooth ® , and ZigBee ® compatible). WI-FI REQUIREMENT Relay can ONLY connect to a 2.4GHz router broadcasting with a 20 MHz bandwidth. 2 3 4 9 1 2 3 4 10 MAIN UNITPOWER BOX PARTS INCLUDED 11 USER GUIDE SCREWDRIVER SCREWS (2) WIRE STRIPPER* SNAP PL ATES (2) WIRE CONNECTOR** ** Wire stripper is provided in case your wires need to be trimmed or stripped for proper installation. ** A push-in wire connector works as a ‘finger trap’ for wires; simply push wires into an available pole to lock. 12 INSIDE RELAY AND WHAT IT DOES Central processor host (Freescale i.MX6) This board runs Android as the underlying OS to launch a custom build of the Wink app. System memory host DDR3 512M x 64 NAND Flash 2GB Serial NOR Flash 4MB 4.3" capacitive multi- touch screen [MRD DISP 001] The touch screen is the central interaction point for this product. With a quick swipe, you can switch between your personalized dashboard and various screens that control local light loads and many other functions. 13 Bluetooth / Wi-Fi combo chip (Semco SWB B53 based on Broadcom BCM4334) [MRD SW 002] This chip provides Wi-Fi, Bluetooth, and BLE (Bluetooth Low Energy) connectivity. Bluetooth connectivity allows a wider spectrum of products to interact with the Wink platform on Relay. It also lets Relay identify multiple users and create custom experiences based on whose Bluetooth-equipped smartphone is nearby. ZigBee module (Silicon Images EM357 Ember) [MRD SW 003] The use of ZigBee allows you to add support for existing products, such as wireless light bulbs, as well as other smart/ connected home products in the future. The use of ZigBee also acts as a passive extender for other ZigBee products you may already own. 14 2x smart switches These switches can control local loads (the lights tied to your previous switch) or be configured to operate virtually any compatible smart product that reacts to on/off switches: garage door openers, smart light bulbs, smart power strips, etc. Motion/proximity sensor [MRD INP 001] The motion/proximity IR sensor tells Relay when you’re approaching, giving the unit time to wake up and display your personalized dashboard. 2x mechanical AC relays The AC relays are your light switches. Relay, when given the signal, switches the local light loads on and off. This signal can come from the local buttons, the touch screen, or any other device running the Wink app. 15 AC/DC converter The converter is how the light switch is powered. The AC power from the gang box is converted to DC. Temperature & humidity sensor Temperature and humidity sensors put even more data about your home at your fingertips. Microphone [MRD INP 003] The microphone provides a voice recording opportunity as well as the ability to incorporate an internal intercom system. Speaker [MRD OUT 001] The speaker allows for the ability to incorporate intercom operability and other listening functions. 16 17 I N STA LL ATI O N WARNING: RISK OF ELECTRIC SHOCK • Disconnect power to switch at the circuit breaker. • If you are unsure about any of the instructions, consult a qualified electrician. • Test the existing light switch to make sure the circuit breaker is off. NOTE • Installation by a qualified electrician is strongly recommended. • Relay can only be used with a single or double gang box. Do not install in a multi-gang box unit. • Replaces single or double light switches not wired to an AC outlet. We recommend installing Relay in a double gang box so you will have the ability to control two light loads rather than one. 18 3 1 5 4 2 TYPICAL DOUBLE GANG BOX 1 Line connection …

Text truncated - open the document above for the full version.

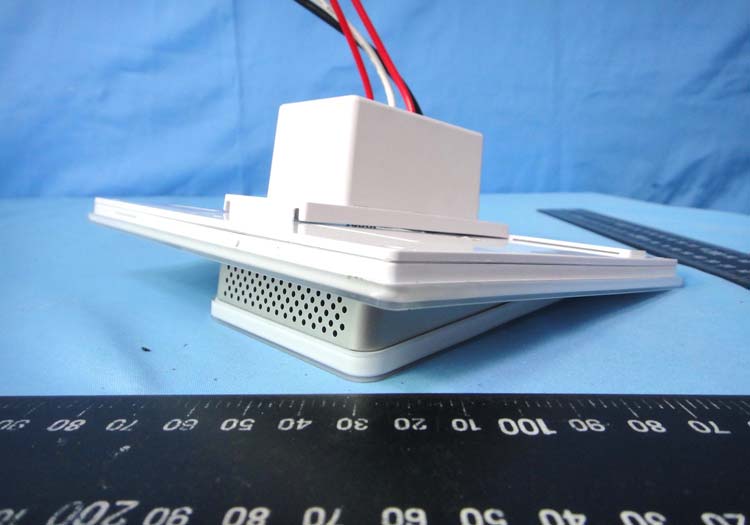

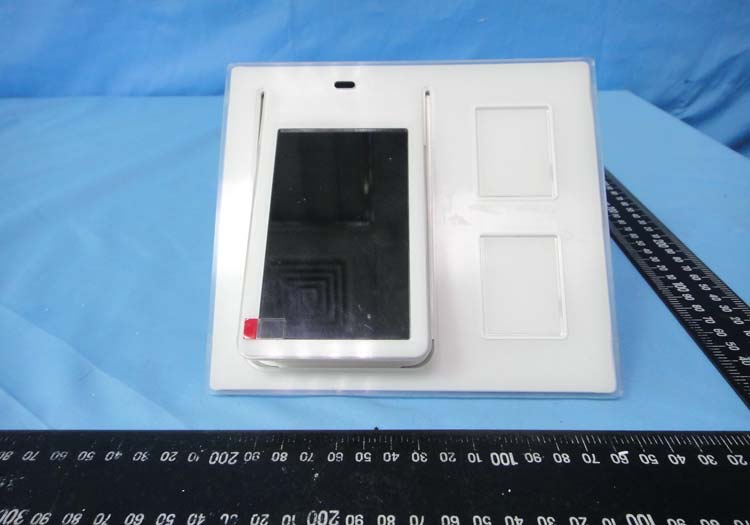

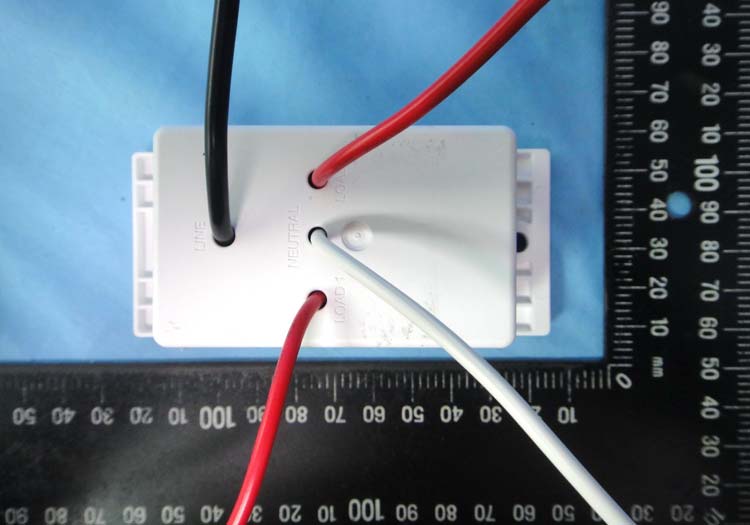

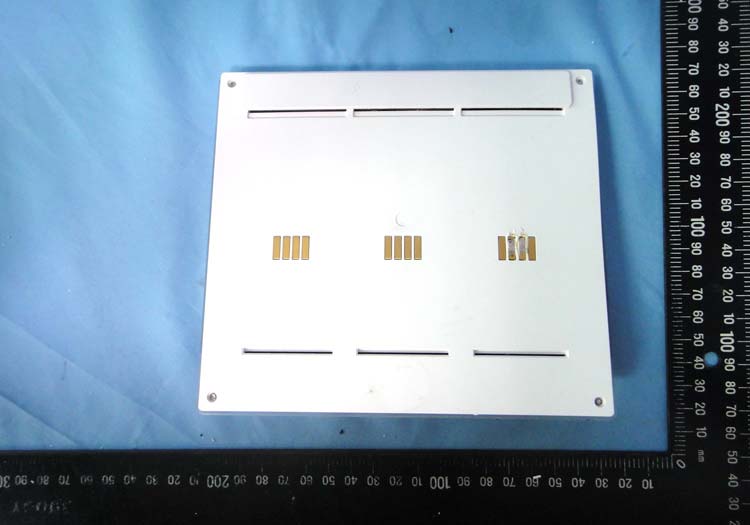

1 of 6 External Photos Model Number: PRLAY-WH01 FCC ID: 2AAAH-WR001 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 )

ID Label info & Label Location FCC ID : 2AAAH-WR001 IC: 11309A-WR001 BACK VIEW

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1409RS13 Applicant ： Quirky, Inc. Manufacturer ： FLEXComputing（suzhou）Co.Ltd Product Type ： Wink Relay Trade Name ： Wink Model Number ： PRLAY-WH01 Date of Received ： Aug. 15, 2014 Test Period ： Sep. 11, 2014 Date of Issued ： Sep. 12, 2014 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 H46-2/99-237E CANADA RSS-102 Issue 4 March 2010 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1409RS13Page 1 of 6 ©2014 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................6 Report Number: 1409RS13Page 2 of 6 ©2014 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Quirky, Inc. Applicant Address 606 W. 28th St.,Apt. 4FW,New York New York 10001 United States Manufacturer FLEXComputing（suzhou）Co.Ltd Manufacturer Address No.1 Guanpu Road, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China Product Type Wink Relay Trade Name Wink Model Number PRLAY-WH01 IC 11309A-WR001 Frequency Range 2412 - 2462 MHz IEEE 802.11b / IEEE 802.11g 2412 - 2462 MHz IEEE 802.11n (2.4GHz) 20MHz 2405 - 2470 MHz Zigbee 2402 - 2480 MHz Bluetooth v3.0, Bluetooth v4.0 LE Transmit Power IEEE 802.11b: 0.033 W / 15.13 dBm (conducted power) IEEE 802.11g: 0.018 W / 12.64 dBm IEEE 802.11n (2.4GHz) 20MHz: 0.019 W / 12.68 dBm Zigbee: 0.009 W / 9.74 dBm Bluetooth v3.0: 0.008 W / 8.99 dBm Bluetooth v4.0 LE: 0.004 W / 6.01 dBm Antenna Specification IEEE 802.11b, IEEE 802.11g: 3.4 dBi IEEE 802.11n (2.4GHz) 20MHz: 3.4 dBi Zigbee: 3.07 dBi Bluetooth v3.0, Bluetooth v4.0 LE: 3.4 dBi Antenna Designation PCB Antenna Temperature Range -30 ~ +70°C RF Evaluation 0.15 W/m 2 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1409RS13Page 3 of 6 ©2014 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1409RS13Page 4 of 6 ©2014 A Test Lab Techno Corp. 3. RF Output Power Band Date Rate CH Frequency (MHz) Average Conducted power (dBm) Lowest 2412.0 14.42 Middle 2437.0 14.92 IEEE 802.11b 1M Highest 2462.0 15.13 Lowest 2412.0 12.26 Middle 2437.0 12.34 IEEE 802.11g 6M Highest 2462.0 12.64 Lowest 2412.0 12.07 Middle 2437.0 12.36 IEEE 802.11n (2.4GHz) 20MHz 6.5M Highest 2462.0 12.68 Lowest 2405.0 7.95 Middle 2440.0 7.97 Zigbee --- Highest 2470.0 9.74 Lowest 2402.0 8.65 Middle 2441.0 8.99 Bluetooth v3.0 1M Highest 2480.0 8.29 Lowest 2402.0 5.61 Middle 2440.0 6.01 Bluetooth v4.0 LE --- Highest 2480.0 5.66 Report Number: 1409RS13Page 5 of 6 ©2014 A Test Lab Techno Corp. 4. Test Result Band Data Rate Frequency (MHz) Limit (mw) Distance [R] (cm) Max tune-up Power (upper limit) [P] (dBm) ANT Gain (dBi) Numeric Gain [G] (dBi) Duty Cycle [P] x [G] with Duty cycle [TP] (mW) Pow…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： Wink Relay Applicant ： Quirky, Inc. Address ： 606 W 28th St, Floor 7 New York NY 10001 United States Trade Name ： Wink Model Number ： PRLAY-WH01 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2013 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4:2009 Receive Date ： Aug. 15, 2014 Test Period ： Aug. 23 ~ Aug. 26, 2014 Issue Date ： Aug. 29, 2014 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1408FR36 1 of 40 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Aug. 29, 2014 Initial Issue Report Number: 1408FR36 2 of 40 A Test Lab Techno Corp. Verification of Compliance Issued Date: 08/29/2014 Product Type : Wink Relay Applicant : Quirky, Inc. Address : 606 W 28th St, Floor 7 New York NY 10001 United States Trade Name : Wink Model Number : PRLAY-WH01 FCC ID : 2AAAH-WR001 EUT Rated Voltage : AC 120V, 8A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2013 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4:2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) Report Number: 1408FR36 3 of 40 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Test Setup............................................................................................................................................. 10 4.4. Test Procedure ......................................................................................................................................11 4.5. Test Result............................................................................................................................................ 12 5 Radiated Emission Measurement............................................................................................................... 14 5.1. Limit ...................................................................................................................................................... 14 5.2. Test Instruments ................................................................................................................................... 14 5.3. Setup .................................................................................................................................................... 15 5.4. Test Procedure ..................................................................................................................................... 16 5.5. Test Result............................................................................................................................................ 18 6 Maximum Conducted Output Power Measurement.................................................................................. 21 6.1. Limit ...................................................................................................................................................... 21 6.2. Test Setup..................................................................................................................…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： Wink Relay Applicant ： Quirky, Inc. Address ： 606 W 28th St, Floor 7 New York NY 10001 United States Trade Name ： Wink Model Number ： PRLAY-WH01 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2013 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4:2009 Receive Date ： Aug. 15, 2014 Test Period ： Aug. 22 ~ Aug. 26, 2014 Issue Date ： Sep. 01, 2014 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1408FR34 1 of 64 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Sep. 01, 2014 Initial Issue Report Number: 1408FR34 2 of 64 A Test Lab Techno Corp. Verification of Compliance Issued Date: 09/01/2014 Product Type : Wink Relay Applicant : Quirky, Inc. Address : 606 W 28th St, Floor 7 New York NY 10001 United States Trade Name : Wink Model Number : PRLAY-WH01 FCC ID : 2AAAH-WR001 EUT Rated Voltage : AC 120V, 8A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2013 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4:2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) Report Number: 1408FR34 3 of 64 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Test Setup............................................................................................................................................. 10 4.4. Test Procedure ......................................................................................................................................11 4.5. Test Result............................................................................................................................................ 12 5 Radiated Emission Measurement............................................................................................................... 14 5.1. Limit ...................................................................................................................................................... 14 5.2. Test Instruments ................................................................................................................................... 14 5.3. Setup .................................................................................................................................................... 15 5.4. Test Procedure ..................................................................................................................................... 16 5.5. Test Result............................................................................................................................................ 18 6 Maximum Conducted Output Power Measurement.................................................................................. 26 6.1. Limit ...................................................................................................................................................... 26 6.2. Test Setup..................................................................................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 1408FR34 1 of 3 A Test Lab Techno Corp. Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1408FR34 2 of 3 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1408FR34 3 of 3 A Test Lab Techno Corp.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 1408FR36 1 of 3 A Test Lab Techno Corp. Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1408FR36 2 of 3 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1408FR36 3 of 3 A Test Lab Techno Corp.
