2AABM-BTWS582Wireless (Bluetooth+SKAA 2.4GHz) headphones

343 Vanderbilt Avenue Norwood, MA 02062 Telephone: (781) 762-6300 Fax: (781) 762-6868 FS-BTWS582 WIRELESS HEADPHONES USER GUIDE Important Safety Instructions 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.Only use attachments/accessories specified by the manufacturer. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15.Grounding or Polarization–This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings–This product is equipped with a three-wire grounding- type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 16.Ventilation–Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’ s instructions have been adhered to. 17.The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 18.CLASS II apparatus with double insulation, and no protective earth provided. 19.CAUTION: Danger of explosion if the remote control battery is incorrectly replaced. Replace only with the same or equivalent type. 20.WARNING: The remote control battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. 21.No naked flame sources, such as lighted candles, should be placed on the apparatus. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Important Safety Instructions 1/18 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interfer- ence that may cause undesired operation. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inerference to radio communications. However, there is no guarantee that interference will not occur in a particu- lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment into an outlet different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: To comply with the limits for an FCC Class B comput ing device, always use any shielded signal cord supplied with this unit. The Federal Communications Commission warns that changes or modifica- tions of the unit not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the equipment. Radio Frequency Interference Statement Warning: This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Eur…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-01-17> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AABM-BTWS582 FS-BTWS582 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Xiaoping Zeng/ Manager Company: TECH-AUDIO CO., LTD Address: NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Phone: +86-592-7231502 Fax: +86-592-6023178 E-Mail: [email protected]

TECH-AUDIO CO., LTD NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Date: January 17, 2020 FCC ID: 2AABM-BTWS582 Model Number: FS-BTWS582 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, TECH-AUDIO CO., LTD hereby declare that our product (Wireless(Bluetooth+SKAA 2.4GHz) headphones) Model Number: FS-BTWS582 will disable Bluetooth Lower Energy function (Bluetooth V4.0 LE) by software and only open Bluetooth Classics function (Bluetooth V4.0) although Bluetooth modular BTM8760 support both Bluetooth Lower Energy (Bluetooth V4.0 LE) and Bluetooth Classics (Bluetooth V4.0) due to marketing purposes. End-user will only use Bluetooth Classics (Bluetooth V4.0) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Xiaoping Zeng/ Manager Company: TECH-AUDIO CO., LTD Address: NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Phone: +86-592-7231502 Fax: +86-592-6023178 E-Mail: [email protected]

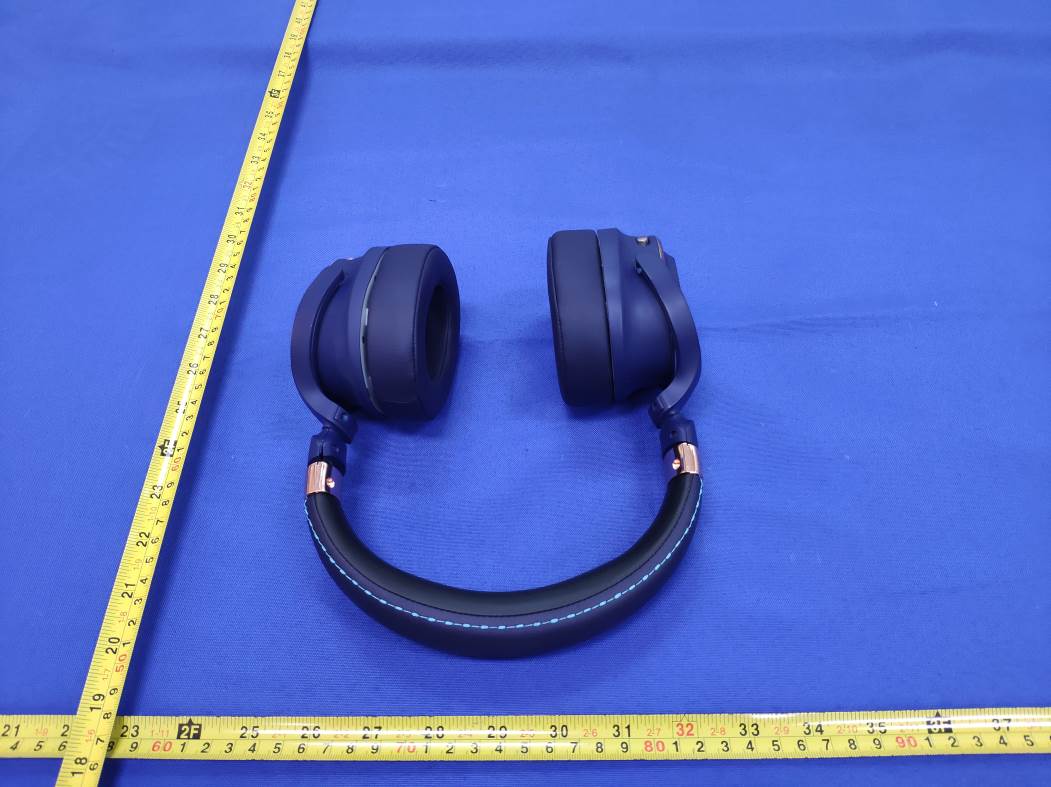

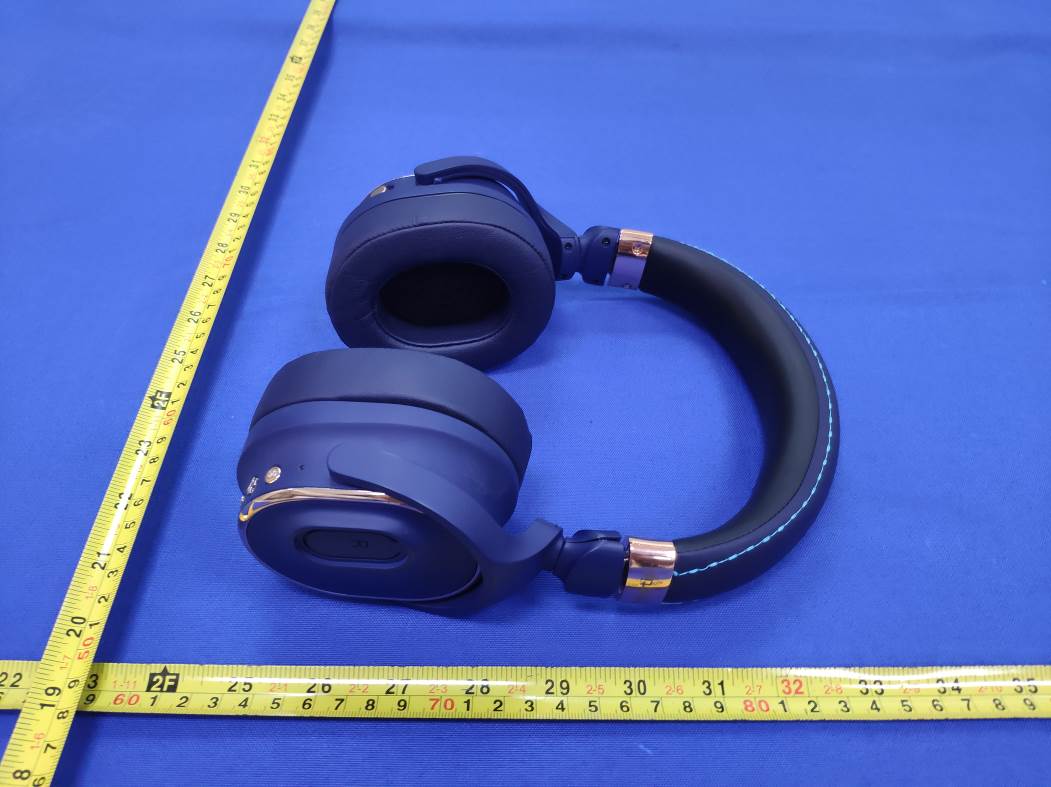

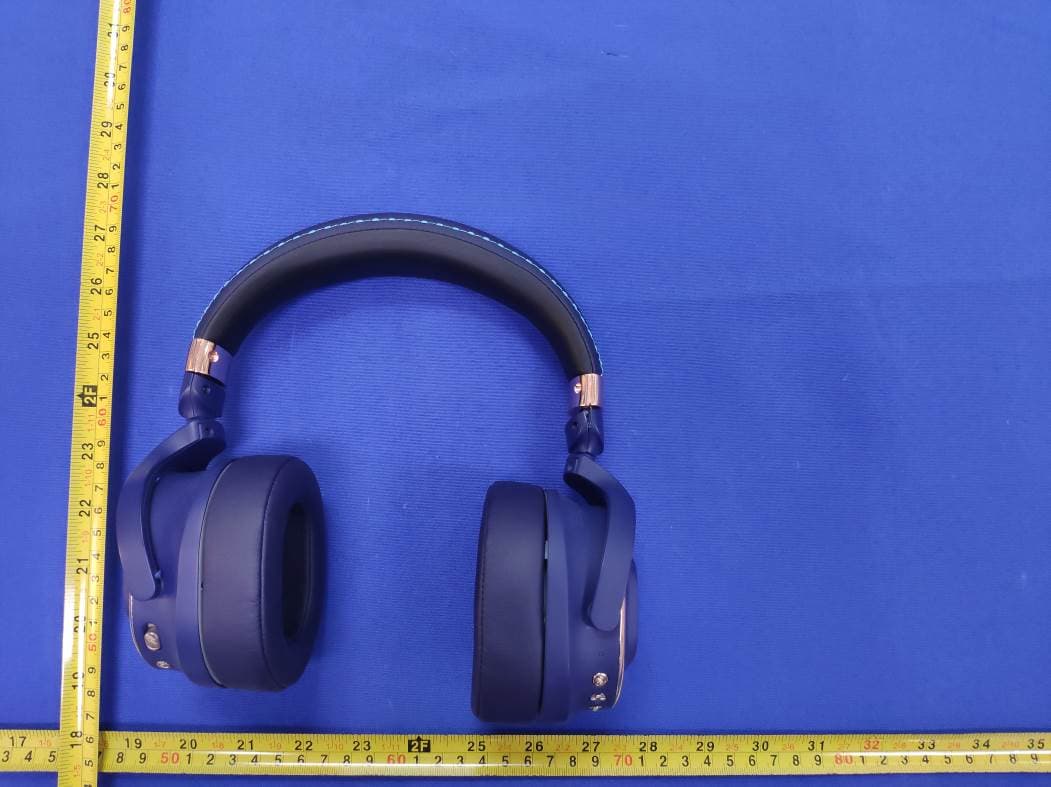

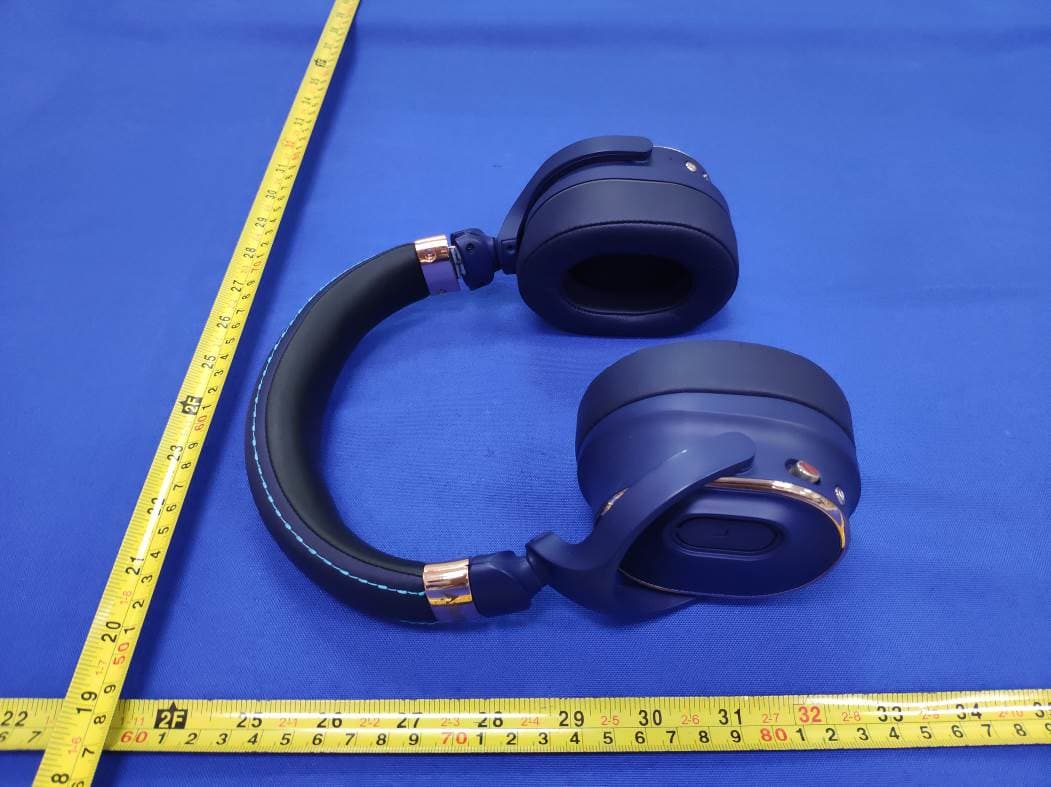

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.5cm*W2.5cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 1. NTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 11 Fig. 12 BT Antenna 2.4G Receive Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Fig. 13 Fig. 14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v06 FCC Part 2 §2.1093 1. Evaluation method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 2. Conducted Power Results Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 6.507 39 2441 8.441 78 2480 9.059 π/4DQPSK 0 2402 5.735 39 2441 7.646 78 2480 7.902 8DPSK 0 2402 5.738 39 2441 7.758 78 2480 8.142 3. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 6.5 8.5 8.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.5 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.5 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 4. Evaluation Results 4.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.50 5 9.5 8.9125 2.8 < 3.0 Ye s π/4DQPSK 2.50 5 9.0 7.9433 2.5 < 3.0 Ye s 8DPSK 2.50 5 9.0 7.9433 2. 5 < 3.0 Ye s Remark: 1. RF output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 4.2 Simultaneous Transmission for SAR Exclusion The sample support one BT modular and one antenna, 2.4GHz SRD only for receiver function, no need consider simultaneous transmission; 5. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABMFS-BTWS582 Report No.: LCS190929068AE Page 1 of 47 Appendix A RF Test Data for BT V4.0 (BDR/EDR) (Conducted Measurement) Product Name: Bluetooth headphones Trade Mark: Test Model: FS-BTWS582 Environmental Conditions Temperature: 23.5 °C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Tom Liu Supervised by: Jayden.Zhuo A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 6.507 21 PASS MCH 8.441 21 PASS HCH 9.059 21 PASS π/4DQPSK LCH 5.735 21 PASS MCH 7.646 21 PASS HCH 7.902 21 PASS 8DPSK LCH 5.738 21 PASS MCH 7.758 21 PASS HCH 8.142 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 7 of 47 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.84296 0.8648 Not Specified PASS MCH 0.83700 0.8567 Not Specified PASS HCH 0.83398 0.8387 Not Specified PASS π/4DQPSK LCH 1.1821 1.220 Not Specified PASS MCH 1.1740 1.220 Not Specified PASS HCH 1.1652 1.219 Not Specified PASS 8DPSK LCH 1.1661 1.208 Not Specified PASS MCH 1.1562 1.206 Not Specified PASS HCH 1.1462 1.208 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.002 0.58 PASS MCH 1.004 0.57 PASS HCH 1.002 0.56 PASS π/4DQPSK LCH 1.002 0.81 PASS MCH 1.005 0.81 PASS HCH 1.002 0.81 PASS 8DPSK LCH 1.003 0.81 PASS MCH 0.993 0.80 PASS HCH 1.002 0.81 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 18 of 47 π/4DQPSK/Hop 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.886 106.7 0.31 0.4 PASS DH5 MCH 2.889 106.7 0.31 0.4 PASS DH5 HCH 2.891 106.7 0.31 0.4 PASS π/4DQPSK 2DH5 LCH 2.898 106.7 0.30 0.4 PASS 2DH5 MCH 2.898 106.7 0.31 0.4 PASS 2DH5 HCH 2.899 106.7 0.31 0.4 PASS 8DPSK 3DH5 LCH 2.898 106.7 0.31 0.4 PASS 3DH5 MCH 2.901 106.7 0.31 0.4 PASS 3DH5 HCH 2.895 106.7 0.31 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 6.323 -65.595 -13.68 PASS MCH 8.328 -64.801 -11.87 PASS HCH 6.939 -65.180 -13.06 PASS π/4DQPSK LCH 6.323 -66.321 -13.68 PASS MCH 8.396 -65.312 -11.60 PASS HCH 6.852 -63.244 -13.15 PASS 8DPSK LCH 5.153 -64.151 -14.85 PASS MCH 6.826 -66.038 -13.17 PASS HCH 6.921 -66.331 -11.08 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 25 of 47 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR TECH-AUDIO CO., LTD Wireless (Bluetooth+SKAA 2.4GHz) headphones Test Model: FS-BTWS582 Prepared for : TECH-AUDIO CO., LTD Address : NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 29, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : September 29, 2019 ~ January 15, 2020 Date of Report : January 15, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................ : LCS190929068AE Date of Issue .................................. : January 15, 2020 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : TECH-AUDIO CO., LTD Address .......................................... : NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Wireless(Bluetooth+SKAA 2.4GHz) headphones Trade Mark ..................................... : Test Model ..................................... : FS-BTWS582 Ratings ........................................... : DC 3.7V by Battery (2200mAh) Recharged By DC 5V Result ........................................... : Positive Compiled by: Supervised by: Approved by: Marry Chen /Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS190929068AE January 15, 2020 Date of issue Test Model........................... : FS-BTWS582 EUT......................................... : Wireless(Bluetooth+SKAA 2.4GHz) headphones Applicant............................... : TECH-AUDIO CO., LTD Address.................................. : NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Atlantic Technology Address................................... : 343 Vanderbilt Avenue, Norwood, MA 02062-5060 Telephone............................... : / Fax.......................................... : / Factory................................... : Xiamen Tech-Sound Co., Ltd Address................................... : NO.170, Ji Yin Road, Tong An District, Xiamen, China. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 January 15, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 Report No.: LCS190929068AE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................ 6 1.1 Description of Device (EUT) ....................................................................................................................... 6 1.2 Support equipment List ............................................................................................................................... 6 1.3 External I/O Cable ........................................................................................................................................ 7 1.4 Description of Test Facility ..........................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRSAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-BTWS582 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
