2AABM-FSBT210AWireless Stereo Bluetooth headphones

Limited Product Warranty Atlantic Technology warrants this product to be free of defects in material or workmanship for a period of one (1) year from the date of original retail purchase. This warranty is available only to the original purchaser, and only if purchased from an authorized Atlantic Technology distributor or reseller. If your product is found to be defective during the warranty period, Atlantic Technology will, at its sole option, either repair the product or replace the product with a new or factory reconditioned or substantially equivalent model. This limited warranty does not apply to loss, theft, or any defects attributable to damage beyond the reasonable control of Atlantic Technolgy including damage caused by abuse, misuse, misapplication or modifications performed by anyone other than Atlantic Technology. This warranty applies only to the external shell of the product, the internal components and cable. The carrying case, cleaning tool, any adapters and other included accessories are warranted for 30 days. Eartips are not covered by the warranty. Repair/Replacement Warranty This Limited Warranty shall apply to any repair, replacement part or replacement product for the remainder of the original warranty period or for thirty (30) days, whichever period of time is greater. Any parts or product replaced under warranty will become the property of Atlantic Technology. Requesting Warranty Support If your product is not functioning properly, first ensure that the sound bore is not blocked by earwax and that the unit is completely dry. Performing these simple troubleshooting steps could solve the problem and eliminate the need for factory service. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after retail purchase. Limitation of Liability Atlantic Technology disclaims any and all implied warranties, warranties of merchantability and fitness for a particular purpose to the maximum extent permissible by law. Atlantic Technology shall not be liable for any special, incidental or consequential damages caused by the use, misuse, or inability to use this product. If purchased under a government contract, those contract terms supersede terms stated herein. In some locations, implied warranties cannot be limited. Under certain conditions, these limitations or exclusions may therefore not apply to you. This warranty replaces all other warranties for this product. The chart (see below) is based on OSHA's (Occupational Health Administration) exposure information for industry. Remember that these guidelines are based on average hearing sensitivity. Your sensitivity may be above or below these levels. + POWER/PAIR STATUS INDICATOR CHARGING JACK HEADPHONE JACK Operation 1. Turn on the headset by pressing the Power/Pair button for 2 seconds.The headset will automatically go to pairing mode and the status indicator will begin pulsing RED/BLUE. 2. Connect to “FS-BT210 Atlantic Technology” from your device. 3. Once connected, you will hear the connected voice and the indicator will turn solid BLUE. Turning Off Press the Power/Pair button for 5 seconds to turn the headset off. LOW Battery The indicator will glow to slow RED with voice reminder. Charging Use the included Micro-USB cable to charge with USB wall adapter (not included). The status indicator will glow RED until the headset is charged and glow BLUE when full charged. Functions 1. The headset can be connected to an audio source using the supplied audio cable. When the audio cable is connected the Bluetooth function and controls are disabled. 2. You can reject a second incoming call by pressing and holding 5 seconds of Power/Pair button. Using the Supplied Audio Cable Volume up button Multi-function button Volume down button ŸPress once to play/pause or answer/end a call. Ÿ Double press to skip forward. ŸTriple press to skip backward. ŸPress and hold to ignore an incoming call. Function What to do Play/Pause Skip Forward Skip Backward Volume Up Answer/End Call Volume Down Press once to play/pause Press once to answer/end a call Double press to skip forward Triple press to skip backward Press + Press -

TECH-AUDIO CO., LTD Add: NO.3,TungShih li ,Ping Cheng Tao Yuan ,Taiwan. Tel: +86-592-7231502 Fax: +86-592-6023178 Date: 2020-04-17 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, TECH-AUDIO CO., LTD Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only model name and shell color is different for these models.. Product name: Wireless Stereo Bluetooth headphones Trade Mark: N/A Model No.: FS-BT210, FS-BT220, FS-BT230, FS-BT250, FS-BT300 Sincerely, Client’s name / title : Xiaoping zeng / Manager Address: NO.3,TungShih li ,Ping Cheng Tao Yuan ,Taiwan. Tel: +86-592-7231502 Fax: +86-592-6023178 E-mail: [email protected]

TECH-AUDIO CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-04-17 Subject; Request for Confidentiality FCC ID: 2AABM-FSBT210A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiaoping zeng Title: Manager

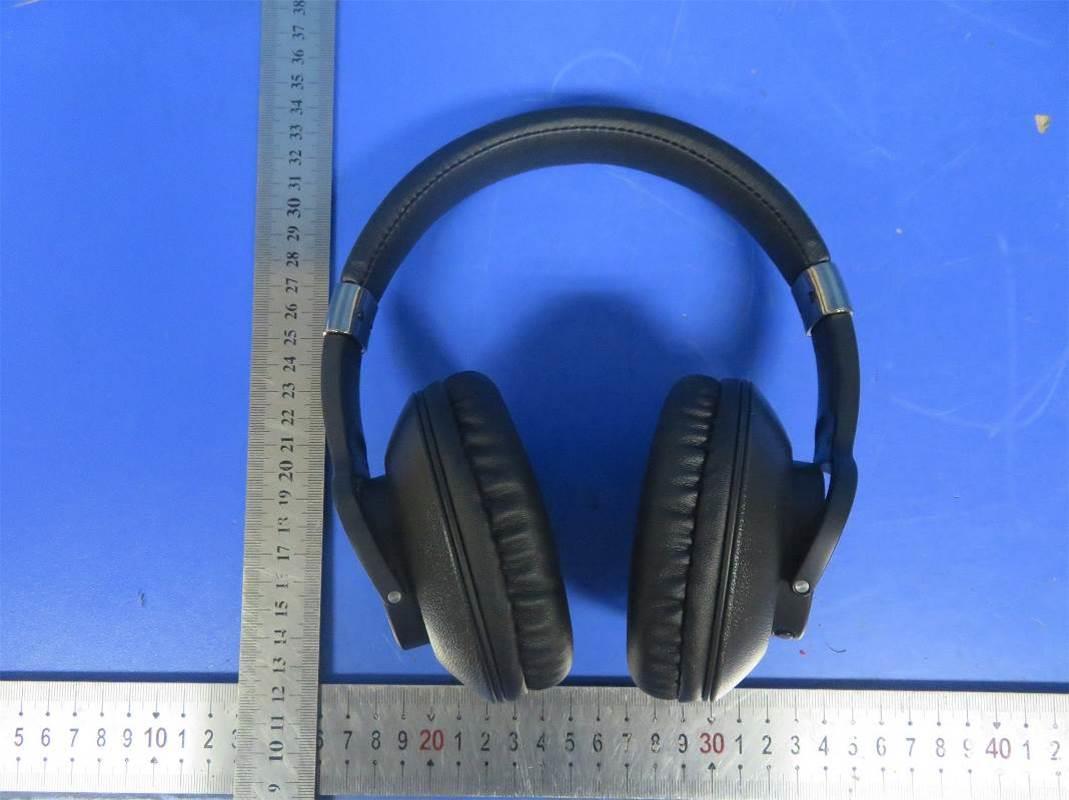

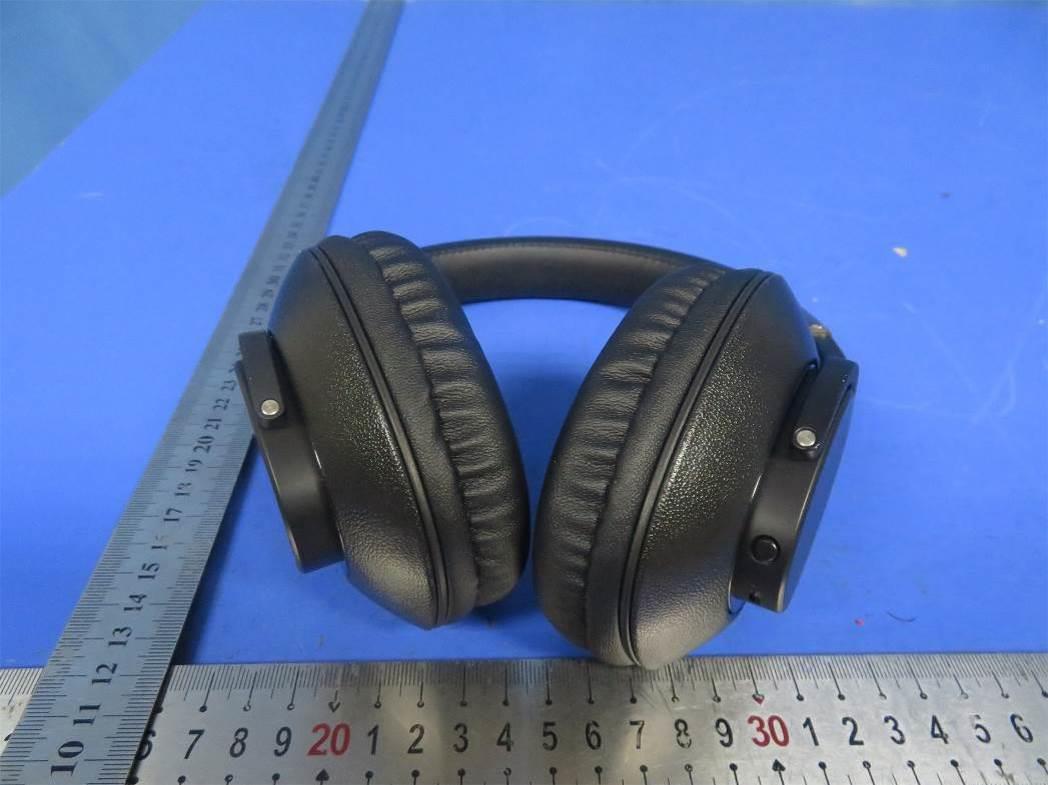

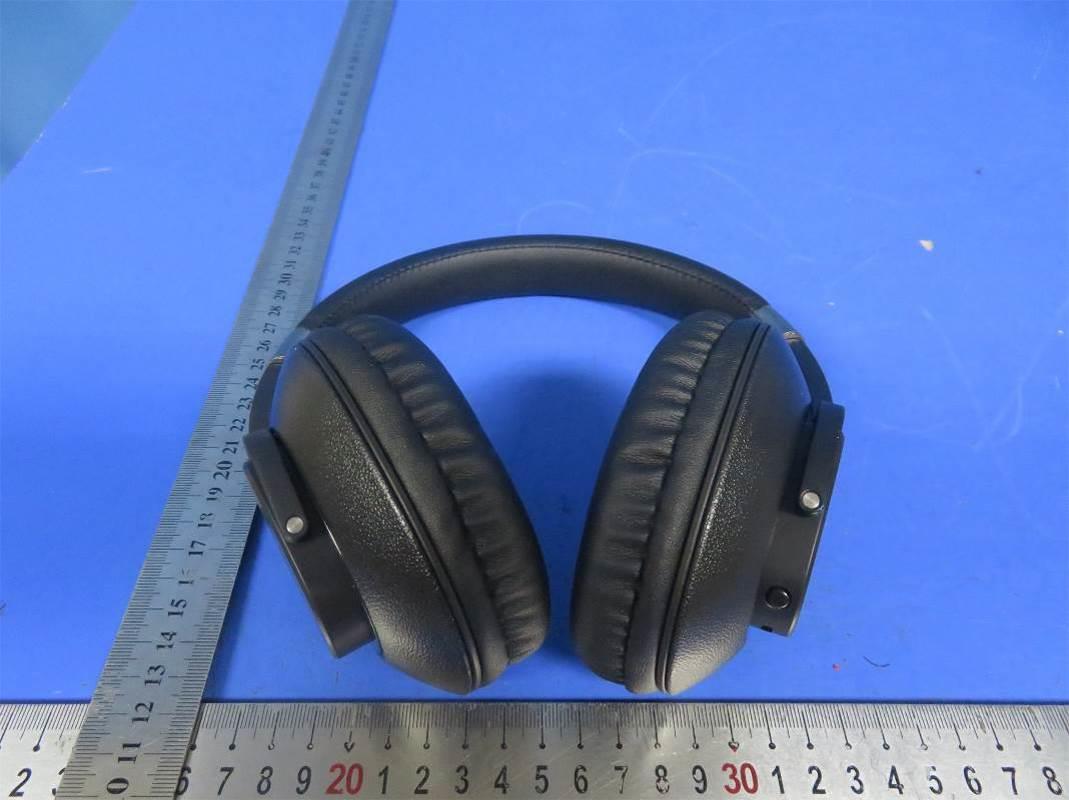

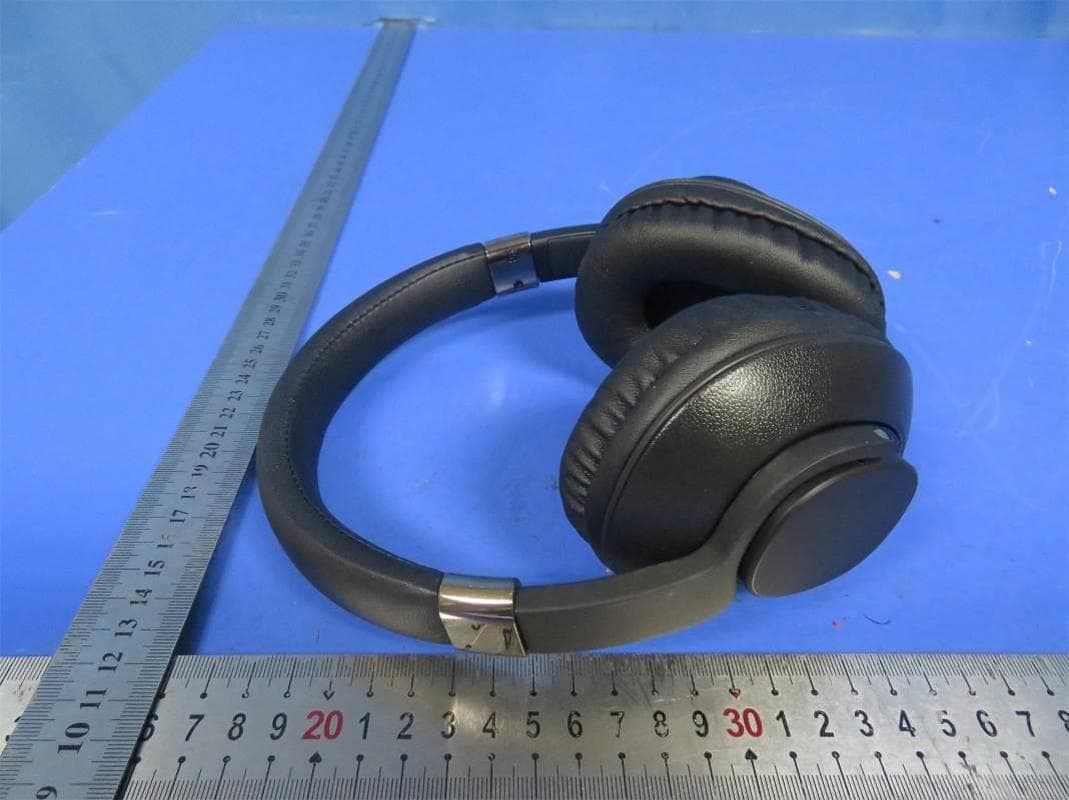

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L4.0cm*W0.3cm Label Location FCC ID: 2AABM-FSBT210A Model No.: FS-BT210 Wireless Stereo Bluetooth headphones

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antanna Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Fig.5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AABM-FSBT210A Name of EUT Wireless Stereo Bluetooth headphones Model Number FS-BT210, FS-BT220, FS-BT230, FS-BT250, FS-BT300 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Test Model FS-BT210 Hardware version V1.0 Software version V1.0 BT Modulation Type GFSK, π/4-DQPSK, 8DPSK for Bluetooth V4.0 (BDR/EDR) GFSK for Bluetooth V4.0 (BT LE) Antenna Type Internal Antenna Antenna Gain 1.0dBi Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a). The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b). The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Max Peak Conducted Power (dBm) GFSK 0 2402 -1.652 39 2441 -0.664 78 2480 -1.619 π/4DQPSK 0 2402 -2.302 39 2441 -1.212 78 2480 -2.372 8DPSK 0 2402 -0.117 39 2441 -1.085 78 2480 -2.182 GFSK BT LE 0 2402 -8.228 19 2440 -4.075 39 2480 -2.402 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -1.0 0.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 -1.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 -1.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 BT LE (Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) -8.0 -4.0 -2.0 Tolerance ±…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 1 of 14 Appendix B RF Test Data for BT V4.2 (BLE) (Conducted Measurement) Product Name: Wireless Stereo Bluetooth headphones Trade Mark: N/A Test Model: FS-BT210 Environmental Conditions Temperature: 23.9 C Relative Humidity: 54% ATM Pressure: 100.0 kPa Test Engineer: Tom Liu Supervised by: Jayden.Zhuo B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -8.228 30 PASS BT LE MCH -4.075 30 PASS BT LE HCH -2.402 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -23.863 8 PASS BT LE MCH -19.670 8 PASS BT LE HCH -18.098 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.7034 ≥0.5 PASS BT LE MCH 0.6962 ≥0.5 PASS BT LE HCH 0.6972 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -8.318 -50.698 -28.32 PASS BT LE MCH -4.606 -49.335 -24.61 PASS BT LE HCH -2.912 -44.749 -22.91 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -8.220 -63.062 -28.22 PASS BT LE HCH -2.362 -63.613 -22.36 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -52.717 2 0 44.54 PEAK 74 PASS Ant1 2310.0 -61.335 2 0 35.93 AV 54 PASS Ant1 2390.0 -52.106 2 0 45.15 PEAK 74 PASS Ant1 2390.0 -60.952 2 0 36.31 AV 54 PASS 2480 Ant1 2483.5 -51.442 2 0 45.82 PEAK 74 PASS Ant1 2483.5 -60.092 2 0 37.17 AV 54 PASS Ant1 2500.0 -51.840 2 0 45.42 PEAK 74 PASS Ant1 2500.0 -60.814 2 0 36.45 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210 Report No.: LCS200225137AE001 Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 43 FCC TEST REPORT For TECH-AUDIO CO., LTD Wireless Stereo Bluetooth headphones Test Model: FS-BT210 Additional Model No.: Please Refer To Page 06 Prepared for : TECH-AUDIO CO., LTD Address : NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 25, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : February 25, 2020~ March 13, 2020 Date of Report : March 13, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 43 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200225137AE001 Date of Issue ................................... : March 13, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : TECH-AUDIO CO., LTD Address ........................................... : NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Wireless Stereo Bluetooth headphones Trade Mark ...................................... : N/A Model/ Type reference .................... : FS-BT210 Ratings ............................................ : DC 3.7V, 430mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Marry Chen /Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 43 FCC -- TEST REPORT Type / Model........................... : FS-BT210 EUT......................................... : Wireless Stereo Bluetooth headphones Applicant............................... : TECH-AUDIO CO., LTD Address.................................. : NO.3, TungShih li, Ping Cheng Tao Yuan, Taiwan. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Atlantic Technology Address................................... : 343 Vanderbilt Avenue, Norwood, MA 02062-5060 Telephone............................... : / Fax.......................................... : / Factory................................... : Xiamen Tech-Sound Co., Ltd Address................................... : NO.170, Ji Yin Road, Tong An District, Xiamen, China. Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200225137AE001 March 13, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 43 Revision History Revision Issue Date Revisions Revised By 000 March 13, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 43 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ......................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AABM-FSBT210A Report No.: LCS200225137AE001 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 1.2. Photo of Conducted Emissions Measurement Fig. 3
