Eaton ® LifeSense ® Wireless System Quick Setup Guide 2EATON LifeSense Wireless System Quick Setup Guide E-HOOV-II002-E July 2014 LifeSense Wireless System Quick Setup Guide Each LifeSense kit contains: These device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The devices may not cause harmful interference, and (2) the devices must accept any interference received, including interference that may cause undesired operation. The user is cautioned these devices are intentional radiators and changes or modifications not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Per RSS-Gen, Section 7.1.3 This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Suivant la section 7.1.3 du RSS-Gen, Cet appareil est conforme avec la norme RSS d'Industrie Canada exempt de licence. Son fonctionnement est soumis aux deux conditions suivantes: (1) ce dispositif ne doit pas causer d'interférences, et (2) cet appareil doit accepter toutes les interférences, y compris celles pouvant causer un mauvais fonctionnement de l'appareil. • LifeSense hose assembly (1-100) o Sensor assembly (one per hose assembly) - FCC ID 2AABYS01; IC: 12063A-S01 o Protective sleeve (one per hose assembly) • Wireless gateway/hose diagnostic unit (1) - FCC ID 2AABYG01; IC: 12063A-G01 o Power cord (1) o Programming cable (1–sold separately) o WIFI antenna (1) o Sensor antenna (1) o Sensor Key Fob (2) Table of Contents Part Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 4 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Hose Assembly Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Configuring a New Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 12 Configuring Ethernet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .13 - 15 Configuring WIFI Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 - 18 Associating a Sensor with the Wireless Gateway (HDU) . . . . . . . . . . 19 Sensor Status and Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 LifeSense Setup Information Form . . . . . . . . . . . . . . . . . . . . . . . . . .21 - 22 IMPORTANT: Before you begin the installation of your LifeSense system read through the safety instructions in this guide. For more detailed instructions on installing your system please refer to the complete LifeSense Assembly, Installation and Service Manual (E-HOOV-TI001-E2) available on Eaton's literature library (http://hydliterature.eaton.com/ literature/). Hard copies of the catalog are available through Workflow One (WFO) using the Customer Connect portal, Distributor Resources, Literature. If you are unable to access the literature ordering site please contact WFO by calling 800-625-9100 or e-mailing [email protected] and WFO will walk you through the process. 3EATON LifeSense Wireless System Quick Setup Guide E-HOOV-II002-E July 2014 Part Listing 8 10 11 11 12 7 9 1 2 3 3 4 5 Sensor Type 2 (-16) Sensor Type 1 (-08 and -12) 2 4 6 4EATON LifeSense Wireless System Quick Setup Guide E-HOOV-II002-E July 2014 Item No.Qty. Req'd.DescriptionPart NumberMaterial 16NutFF91117C-33-01Stainless Steel 21Upper Shell* Assembly, -08 SizeFF92117SU-08-01Black Nylon 1Upper Shell* Assembly, -12 SizeFF92117SU-12-01Black Nylon 1Upper Shell* Assembly, -16 SizeFF92117SU-16-01Black Nylon 32Gasket, -08 Size*FF92117C-36Black Nylon 2Gasket, -12 Size*FF92117C-70Black Nylon 41Shell- Lower Half*, -08 SizeFF92117C-48Black Nylon 1Shell- Lower Half*, -12 SizeFF92117C-57Black Nylon 1Shell- Lower Half*, -16 SizeFF92117C-63-01Black Nylon/Overmold Gasket 56Panhead Machine Screw, -08 & -12 SizeFF91117C-68Stainless Steel 66Thread Rolling Screw, -16 SizeFF91117C-71Stainless Steel 71Heat-Shrink Tubing For -08FF91117PS-08 Polyolefin 1Heat-Shrink Tubing For -12FF91117PS-12Polyolefin 1Heat-Shrink Tubing For -16FF91117PS-16Polyolefin 81Wireless Gateway/HDU AssemblyFF92117-01-- 91Power CableFF92117C-140-02-- 101Window Mount Antenna*, 433Mhz FF92117C-151-02-- 112Key FobFF92117KF-01-- 121Window Mount Antenna*, Wi-Fi FF92117C-152-02-- *Part not sold separately. Part Listing 5EATON LifeSense Wireless System Quick Setup Guide E-HOOV-II002-E July 2014 Safety Instructions The Eaton LifeSense system utilizes unique hose and fittings (U.S. Patent No. 7,555,936 and 8,183,872). Only the specified LifeSense hose and fittings can be used in this system. DO NOT use other Eaton hose and hose fittings (e.g., Aeroquip, Weatherhead, or SEL), or hose and hose fittings supplied by another manufacturer with this system. Eaton hereby disclaims any obligation or liability (including incidental and consequential damages) arising from breach of contract, warranty, or tort (under negligence of strict liability theories) should other Eaton hose and hose fittings, or hose and hose fittings supplied by another manufacturer be used interchangeably with this system, or in the event that production, assembly, or installation instructions for each specified component of Eaton LifeSense are not followed. WARNING Failure to follow process and product instructions and limitations could lead to premature hose assembly failures, resulting in property damage, serious injury or death. WARNING Eaton LifeSense is designed to provide advance warning of impending failures due to fatigue and external abrasion. Eaton LifeSense is not designed to provide advance warning of …

Text truncated - open the document above for the full version.

WTD 13.4.9 FCC Compliance Opinion SPCD0019 Information about the Applicant Grantee (Company Name) Eaton Aeroquip FCC Contact Person Benjamin Hoxie Address 1225 West Main Street City, State, Zip Van Wert, OH 43537 Job Number SPCD0019 Model FF92117-01 FCC ID 2AABYG01 Agent Approval Type Original Equipment Class DSR Remote Control/Security Device Transmitter DTS Digital Transmission System Rule Part 15.231, 15.247 Overview The Wireless Hose Gateway, model FF92117-01, is a heavy industrial vehicle mounted device to receive status messages from hose sensors and relay this information to a server via WI-FI or Ethernet. The device contains a 433 MHz transceiver and a Wi-Fi module. The cellular modem module is not populated in this version of the product. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 10/14/2014

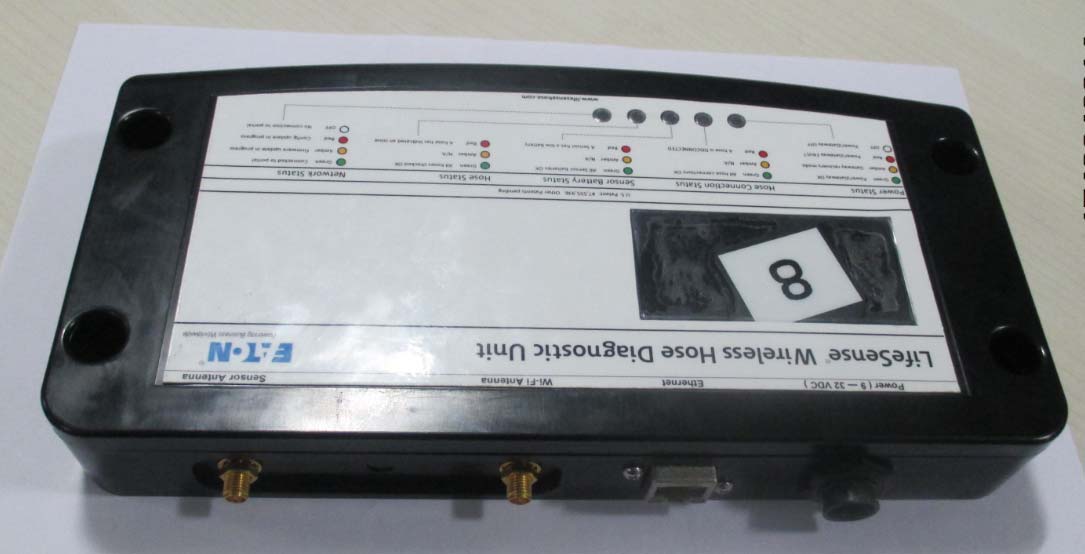

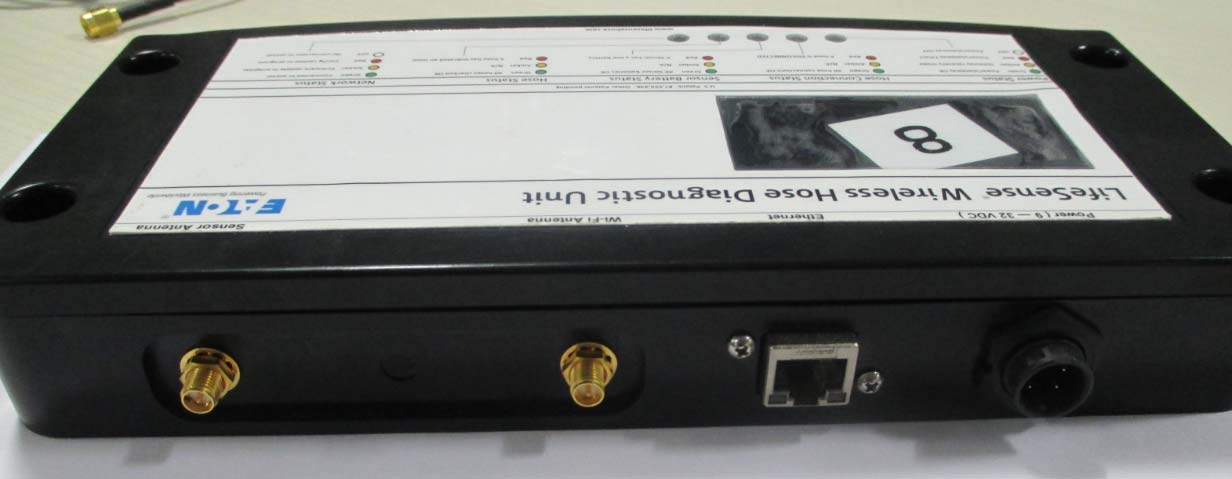

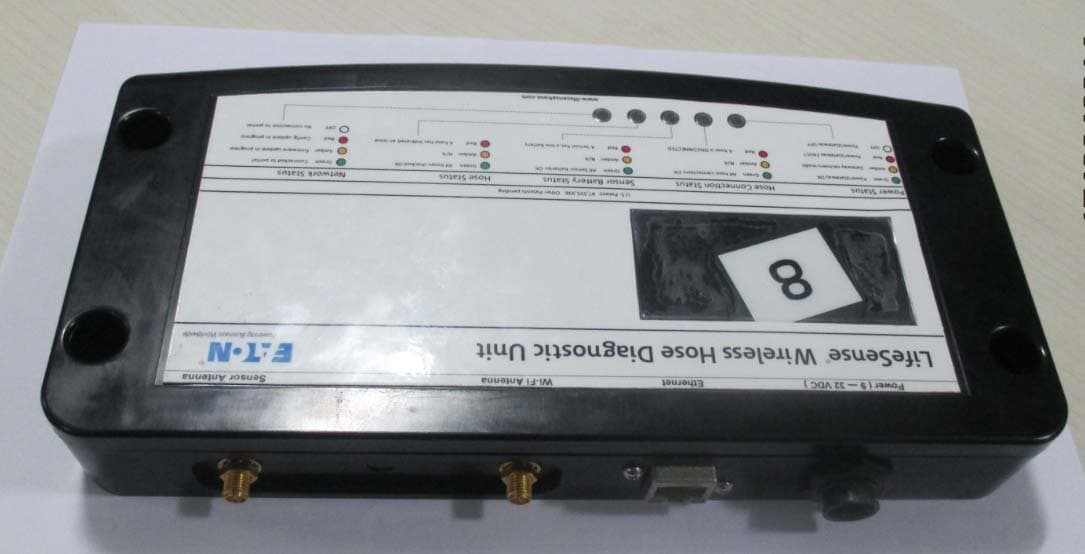

External Photos: UHF Antenna WiFi Antenna Ethernet Port Power Connector Status LEDs WiFi Antenna: UHF Antenna:

Eaton Aeroquip LLC 1225 West Main Street Van Wert, Ohio 45891, U.S.A. Grantee Code No. 2AABY Page 1 of 3 ______________________________________________________________________________________________________________________________ Subject: LABEL & LOCATION (FCC ID) FCC ID- 2AABYG01 Printed label below Is installed under a window in a polycarbonate decal UID: 1110512000 WI-FI MAC ID: 00:20:85:F3:7F:FD Eth MAC ID : 00:20:85:F3:00:00 FCC ID: 2AABYG01 IC: 12063A-G01 portal.lifesensehose.com Eaton Aeroquip LLC 1225 West Main Street Van Wert, Ohio 45891, U.S.A. Grantee Code No. 2AABY Page 2 of 3 ______________________________________________________________________________________________________________________________ Subject: LABEL & LOCATION (FCC ID) Decal Print Eaton Aeroquip LLC 1225 West Main Street Van Wert, Ohio 45891, U.S.A. Grantee Code No. 2AABY Page 3 of 3 ______________________________________________________________________________________________________________________________ Subject: LABEL & LOCATION (FCC ID) Model code is called out as a part number on the decal. Placement: Top of the Product as shown below.

Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 1 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Status Indication LEDs (D5, D6, D7, D8, D15) Input Protection circuitry (U9, U12, TVs etc.) Cellular section (not mounted on board) Ethernet Transceiver U1 circuitry and surface mount magnetic (U2) circuitry. Wifi Module (U14) Controller section 433MHz RFM Module (U13) Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 2 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Close up Photos: Input Protection circuitry (U9, U12, TVs etc.) Status Indication LEDs (D5, D6, D7, D8, D15) Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 3 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Cellular section (not mounted on board): Controller section & Wifi module: Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 4 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Ethernet Transceiver U1 circuitry and surface mount magnetic (U2) circuitry. Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 5 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway 433MHz RFM Module & Wifi Module: Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 6 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Solder side of the board: Slots for PCB Screws Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 7 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 8 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Enclosure inner surface after removing the PCB: Eaton Hydraulics Inc. 7945, Wallace Road Eden Prairie, MN 55344 Page 9 of 9 ______________________________________________________________________________________________________________________________ Subject: Internal Photos of Gateway Top Enclosure LED Lead Pipes

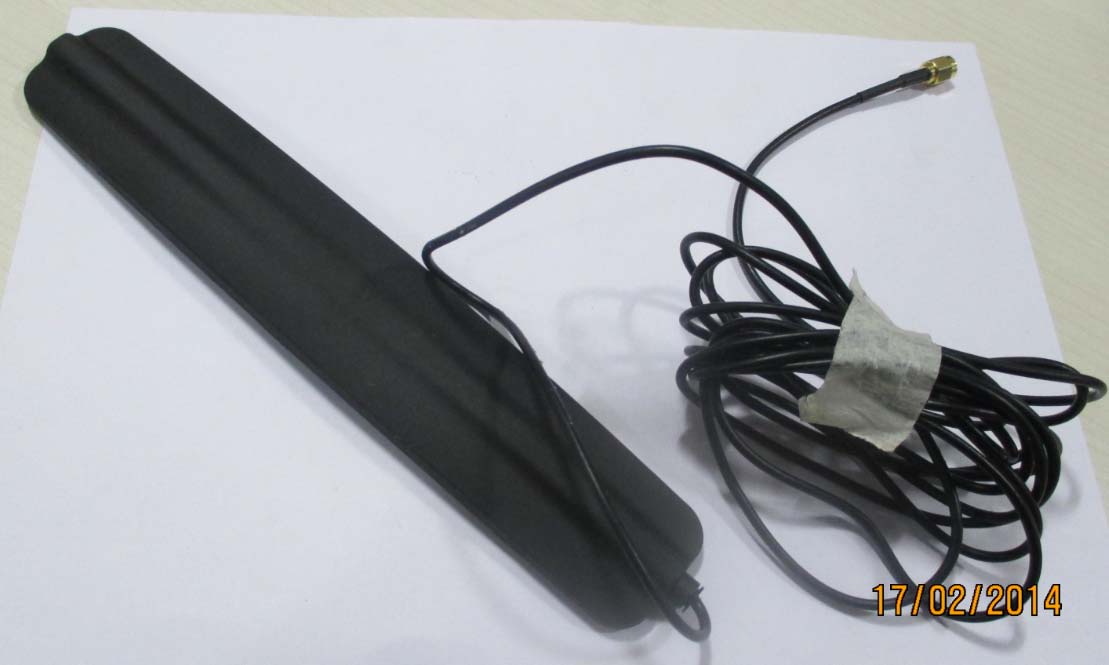

Eaton Hydraulics, Inc. 7945 Wallace Road Eden Prairie, MN 55344 ___________________________________________________________________________________________________________________________________ Subject: Wireless Gateway antenna Info ___________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________________________________________ Notice to persons receiving this drawing and/or technical information. EATON Corporation claims proprietary rights in the information disclosed hereon. This document is issued in confidence and is not to be reproduced or used to manufacture anything shown hereon without the written permission of the EATON Corporation. Gateway Kit Drawing Wifi Antenna: Part No- Taoglas WA.500W.301151 Dual band 2.4 to 2.5GHz, 4.9-6GHz Impedance-50Ohm Peak Gain (on glass) - 6.886dBi at 2.45GHz (for 2.4-2.5GHz range), 5.757dBi at 5.35GHz (for 4.9-6GHz range). UHF Antenna (433MHz Antenna) Part No- ISA.01.A.301111 Type-glass Mount Antenna Band- 400-470MHz Peak gain- 1.5dBi Impedance-50Ohm

Eaton Corporation Model: LifeSense Wireless Gateway Report No: SPCD0019.4 FCC 2.1091:2013 Maximum Permissible Exposure Level Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Evaluation Date of Evaluation: October 13, 2014 Eaton Corporation Model: LifeSense Wireless Gateway Emissions Description of Evaluation Specification Evaluation Method Pass/Fail Maximum Permissible Exposure FCC 2.1091:2013 KDB 447498 D01 General RF Exposure Guidance v05r02 Pass Approved By: Donald Facteau, IT Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Report No. SPCD0019.42/9 REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. Report No. SPCD0019.43/9 REV 2014.08.11 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Report No. SPCD0019.44/9 REV 2013.06.28 FACILITIES Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-0 5,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A- 0108 A- 0029 A- 0109 A- 0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834F-1 NVLAP NVLAP Lab Code: 200630-0 NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200629-0 Report No. SPCD0019.45/9 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: Eaton Corporation Address: 7945 Wallace Road City, State, Zip: Eden Prairie, MN 55344 Test Requested By: John Capesius Model: LifeSense Wireless Gateway Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): 802.11 bgn wireless gateway operating as a DTS device in the 2.4 GHz band. The EUT also contains a low power transceiver operating at 433 MHz using FSK modulation which is certified under FCC 15.231 and is exempt from RF exposure requirements. Testing Objective: To demonstrate compliance with FCC requirements for RF exposure for 2.1091 mobile devices Report No. SPCD0019.46/9 WD.12.29.11 Maximum Permissible Exposure (MPE) OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the state…
