2AAC9-KL1000ACoding Transmitter Module

This device is so small that it is not practicable to place the statement specified under FCC 15.19 paragraph (a) of this section on it. Shenzhen Kelvin Electronics Co., Ltd. Brand Name: Kelvin Product Name: Coding Transmitter Module Model Name: KL1000A FCC ID: 2AAC9-KL1000A 1. Description This module is designed as a manually operated transmitter and used for alarm systems, door openers and remote switches. It is designed to use DC 3V battery for power supply only. 2. Feature ◎ Use imported 7G UHF audion, SMT technology, SAW to fix frequency ◎ Working voltage is selective with suitable power(Typical: DC 3V) ◎ Simply operate, small size with low price ◎ Stable function with long working life ◎ Frequency can be customized ,Generally 433.92MHz ◎ Compatible chip：EV1527 3. Use ◎burglar alarm ◎Wireless remote, household appliance control, home burglary system ◎ Remote garage door, roller shutter door, flexible door 4. Tech Data Working voltage：DC 3V by battery Working current：7.5mA Working frequency： 433.92MHZ +/- 0.5MHz Code mode: EV1527 Modulation mode：OOK Transmission：less than 10Kbps Working temperature：-10°C~+70°C Size：42*20*9mm 5. FCC Warning Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This device is intended only for OEM integrators. When this module is installed into a Host Device, it must be shielded. Integration is strictly restricted under control of the Grantee.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Shenzhen Kelvin Electronics Co., Ltd. Add: Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 2013-06-04 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2AAC9-KL1000A Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Kelvin Electronics Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: Coding Transmitter Module Model no.: KL100, KL140, KL150, KL160, KL170, KL180, KL190, KL200, KL210, KL216, KL238, KL258, KL268, KL280, KL300, KL348, KL500, KL506, KL510, KL600, KL700, KL715, KL800, KL1000, KL1000A, KL1200, KL1200A, KL1500, KL1500A Sincerely, Client’s name / title : Peter Wu / Manager Contact information / address : Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 E-Mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Kelvin Electronics Co., Ltd. Add: Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 2013-05-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AAC9-KL1000A We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Peter Wu / Manager Contact information / address : Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 E-Mail: [email protected]

Shenzhen Kelvin Electronics Co., Ltd. Add: Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 Date: 2013-06-06 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2AAC9-KL1000A Dear Sir/Madam, We, Shenzhen Kelvin Electronics Co., Ltd. Hereby declares the following statement for SIEMIC, INC, Coding Transmitter Module (FCC ID: 2AAC9-KL1000A )the radio operational timing is control by radio module itself. Sincerely, Client’s name / title : Peter Wu / Manager Contact information / address : Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 E-Mail: [email protected]

Shenzhen Kelvin Electronics Co., Ltd. Add: Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 Date: 2013-06-04 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2AAC9-KL1000A Dear Sir/Madam, We, Shenzhen Kelvin Electronics Co., Ltd. Hereby declares the following statement for SIEMIC, INC, PCB board, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Coding Transmitter Module Model no.: KL100, KL140, KL150, KL160, KL170, KL180, KL190, KL200, KL210, KL216, KL238, KL258, KL268, KL280, KL300, KL348, KL500, KL506, KL510, KL600, KL700, KL715, KL800, KL1000, KL1000A, KL1200, KL1200A, KL1500, KL1500A Sincerely, Client’s name / title : Peter Wu / Manager Contact information / address : Floor 3, Block 7, HuaXing Industry District, Shilongkeng Village, Shuijing, Buji Street, Longgang District, Shenzhen, China. Tel: 0755-89795286 Fax: 0755-89673076 E-Mail: [email protected]

Applicant/Grantee Shenzhen Kelvin Electronics Co., Ltd. FCC ID: 2AAC9-KL1000A Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval ■ Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The module is strictly limited to integration by the Grantee himself or his dedicated OEM Integrator. N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered Data input stage has been integrated in chip(EV1527). Y 3 The modular transmitter must have its own power supply regulation. 3.0V(Typical) Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. EUT is equipped with an integral antenna，Detail pleas reference internal photo. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Pleas reference exhibition test setup photo for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: “2AAC9-KL1000A” or “Contains FCC ID: “2AAC9-KL1000A.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The instruction on the labeling rule of the end product has been stated in the user manual of this module, please also see the exhibition label sample. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instruction for maintaining compliance has been clearly stated in the user manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Due to Low Output Power, the device meets FCC RF Exposure exemption Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Client’s name / title : Peter Wu / Manager Contact information / address : Flat C, 11/F., China Trade Centre, 12…

Text truncated - open the document above for the full version.

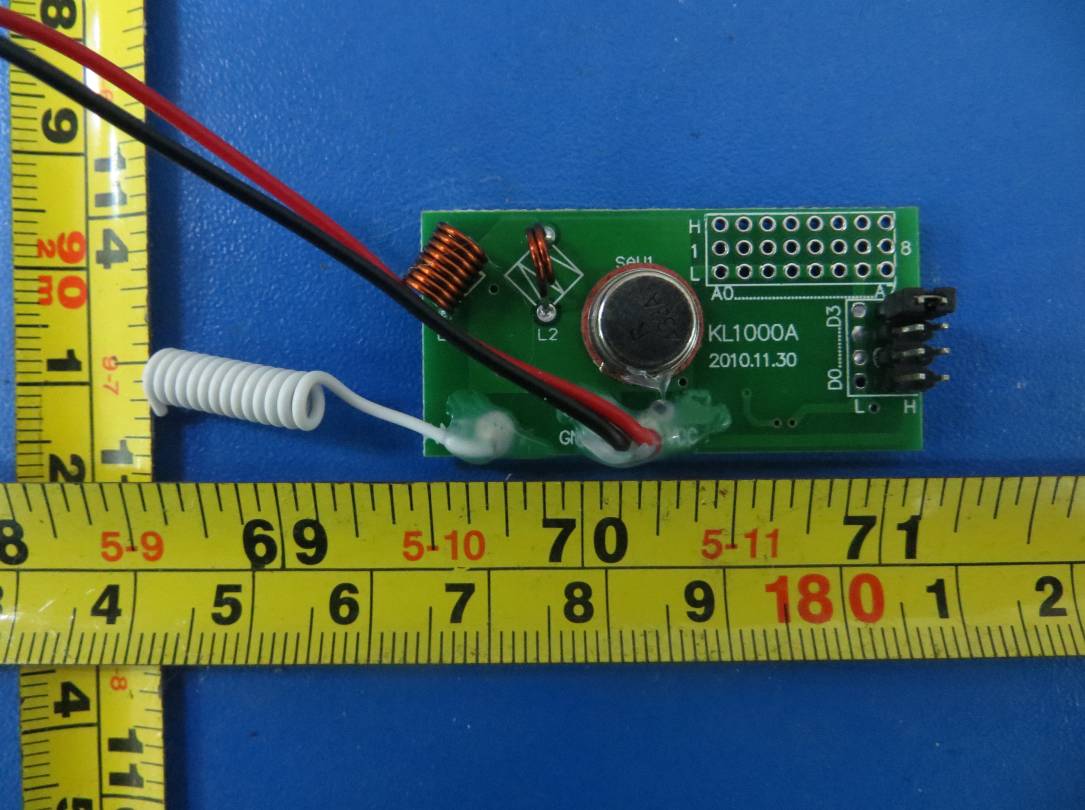

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAC9-KL1000A Report No.: LCS130413425TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. EUT PHOTOGRAPHS Fig.1 Fig.2 Antenna
