2AAC9-KL3000-4RF Remote Control

User manual of KL3000-1 KL3000-2 KL3000-4 KL3000-8 KL3000-12 RF Remote Control Parameter: Working Voltage：DC9V Working Current：70mA Frequency：433.88MHZ Modulation：ASK（ASK） Temperature：-20-55°C Dimension：49*31*8mm Weight : 9.6g Encode type: Learning code Operation Method: 1. Match code: Hold learning button and learning indicator light blinks, then press any buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 80 remote controls can be matched. 2. Delete code: Hold learning button till the indicator LED lights and then off, delete successfully. 3. Set working mode: S1 & S2 program the sequence as follows: Jumper on S1→ Toggle Jumper on S2→ Latched No Jumper on S1 &S2→ Momentary Working Mode: 1. Non-lock/Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others. 2. Self-lock/Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others. 3. Inter lock/Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Kelvin Electronics Co,. Ltd. Address: Floor3,Block7,Huaxing district, Shilongkeng Village,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Tel: 0755-89795286 Fax: 0755-89673076 2015-10-21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AAC9-KL3000-4 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Peter Wu / Manager Contact information / address : Floor3,Block7,Huaxing district, Shilongkeng Village,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Tel: 0755-89795286 Fax: 0755-89673076 E-mail: [email protected]

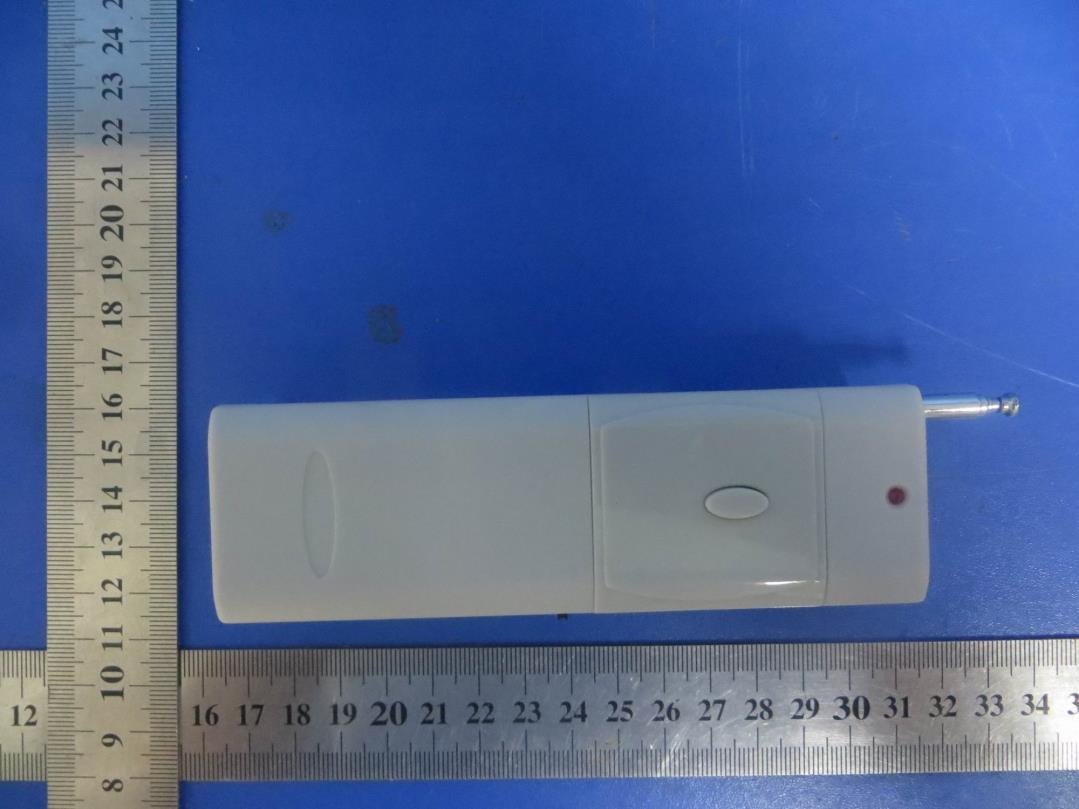

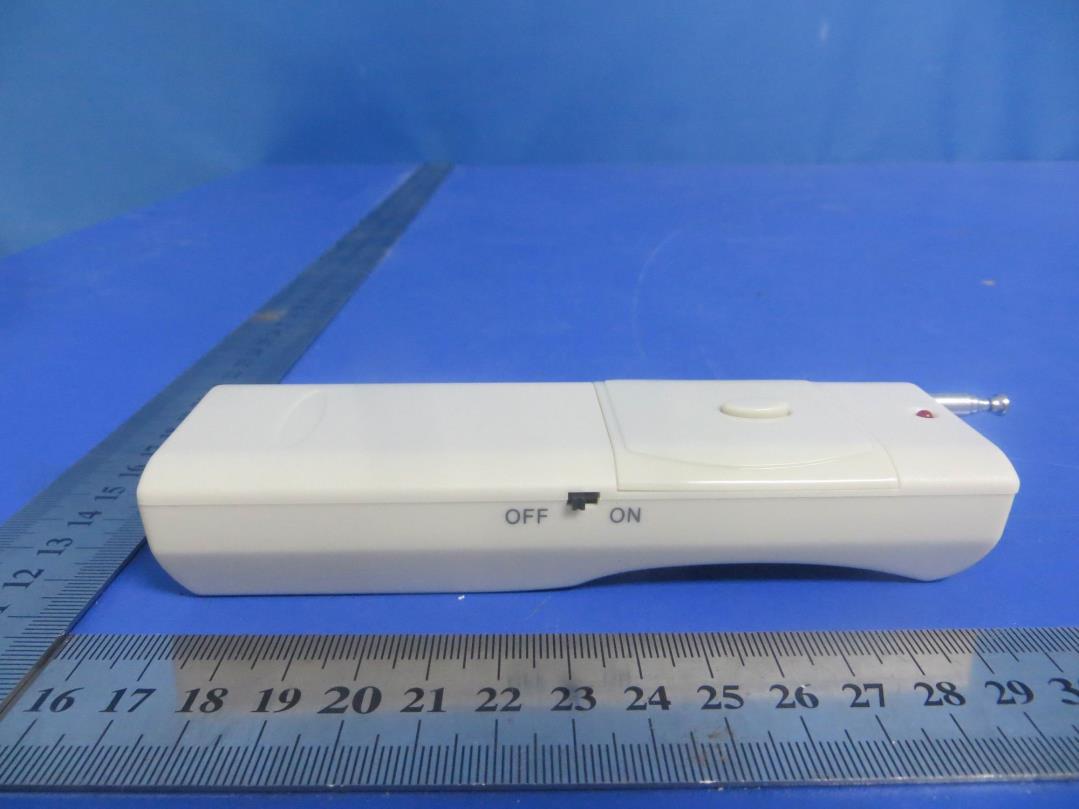

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L5.0cm*W2.0cm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label And Location RF Remote Control Model No.: KL3000-4 FCC ID: 2AAC9-KL3000-4 Power supply: DC 9V This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 28 FCC TEST REPORT For Shenzhen Kelvin Electronics Co,. Ltd. RF Remote Control Model No.: KL3000-4 Additional model No.: KL3000-1, KL3000-2, KL3000-8, KL3000-12 Prepared for : Shenzhen Kelvin Electronics Co,. Ltd. Address : Floor3,Block7,Huaxing district, Shilongkeng Village,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : September 08, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : September 08, 2015– September 22, 2014 Date of Report : September 22, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 28 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2013 Report Reference No. .............. : LCS1509080324E Date of Issue ................................ : September 22, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen Kelvin Electronics Co,. Ltd. Address ........................................ : Floor3,Block7,Huaxingdistrict,ShilongkengVillage,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2013, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : RF Remote Control Trade Mark .................................. : N/A Model/ Type reference ................. : KL3000-4 Ratings ......................................... : DC 9.0V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Dick Su/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 28 FCC--TEST REPORT Type / Model........................... : KL3000-4 EUT......................................... : RF Remote Control Applicant............................... : Shenzhen Kelvin Electronics Co,. Ltd. Address.................................. : Floor3,Block7,Huaxingdistrict,ShilongkengVillage,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Kelvin Electronics Co,. Ltd. Address................................... : Floor3,Block7,Huaxing district, ShilongkengVillage,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Kelvin Electronics Co,. Ltd. Address................................... : Floor3,Block7,Huaxing district, ShilongkengVillage,Shuijing,Buji Street,Longgang District,Shenzhen,Guangdong,P.R China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1509080324E September 22, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAC9-KL3000-4 Report No.: LCS1509080324E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 5 1.5. EXTERNAL I/O PORT .............…
