2AACD-EECCOPLUSpowerlineECCO+

SCANNDY USER GUIDE Page 1 powerlineECCO+ Quick Reference Guide SCANNDY USER GUIDE Page 2 © 2014 by advanced PANMOBIL systems GmbH & Co. KG This manual contains proprietary information of advanced PANMOBIL systems GmbH & Co. KG. It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the expressed written permission of advanced PANMOBIL systems GmbH & Co. KG. Software and product improvement The software is provided strictly on an “as is” basis. The user shall not modify, merge, or corporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from PANMOBIL. The user agrees not to decompile, disassemble, decode, or reverse engineer any program delivered to the user or any portion thereof. PANMOBIL reserves the right to make changes to any software or product to improve reliability, function, or design. PANMOBIL does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any PANMOBIL intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in PANMOBIL products. Trademarks PANMOBIL and powerlineECCO+ are registered trademarks. Bluetooth is a registered trademark of Bluetooth SIG. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation. All other product or service names are the property of their respective owners. advanced PANMOBIL systems GmbH & Co. KG Hansestraße 91 D-51149 Cologne, Germany Warranty For the complete PANMOBIL hardware product warranty statement, go to: www.PANMOBIL.com SCANNDY USER GUIDE Page 3 PRODUCT REFERENCE powerlineECCO+ Introduction PANMOBIL’s powerlineECCO+ devices capture and store barcode and RFID data for a variety of uses, and transmit barcode and RFID data to a host via USB connection, Bluetooth or Wi-Fi. This document provides a basic instruction using the powerlineECCO+ devices. For information about settings and configurations, please refer to the product user manual on www.PANMOBIL.com 1 7 8 3 2 4 5 6 8 7 9 12 10 13 11 SCANNDY USER GUIDE Page 4 No. Description Function 1 Green LED Lights up green when ECCO+ is turned ON. When the battery level is empty, it flashes every 2 sec (Further function can be user defined with the programming interface) 2 Yellow LED Lights up yellow if a barcode or RFID tag was read successfully. Is flashing yellow (500ms) when connected to USB (Further function can be user defined with the programming interface) 3 Red LED Lights up red if connected to a battery charger (USB or power adapter) Red = Battery charging Off = Battery fully charged 4 Blue LED Lights up blue when ECCO+ is connected to Bluetooth Is flashing fast (500ms) while Wi-Fi is associated Is flashing blue (3 sec.) when Wi-Fi is connected (Further function can be user defined with the programming interface) 5 Key 1 (Trigger button) Triggers the barcode and/or the RFID reader (Further function can be user defined by Universal Configurator or with the programming interface) 6 Key 2 (custom) (This function can be configured by using Universal Configurator or with the programming interface) 7 Key 3 (Custom) (This function can be configured by using Universal Configurator or with the programming interface) 8 Key 4 (Custom) Power ON/OFF button (This function can be configured by using Universal Configurator or with the programming interface) Power key to turn the unit ON. Pressing this key for 3 sec. turns the unit OFF 9 Configuration Mode Alternative configuration mode Follow the steps below to set the configuration mode 1.Switch off the device 2.Press and hold key 4 and 5 until a beep sound appears (this may take a few seconds) SCANNDY USER GUIDE Page 5 3. Connect the device to a computer via USB 4. The device will be mounted as a removable drive “SCANNDY” 5. Open the file “config.ini” or use the Universal Configurator to modify the settings 6. Press button 3 (Trigger) until a beep sound appears 7. The device restarts with the new settings 10 USB protection clip Mini-USB Interface Rubber clip to protect the Mini USB port Main communication and battery charging interface 11 RESET Press and hold the keys 5+6+7+8 for 5 seconds to reset the device. !!! Please note !!! By the reset the device loses its timestamp. Before you continue to use it, you must synchronize the time settings by connecting the device again with the Smart Universal Configurator . The time thereby automatically synchronized with the system time of your PC. Specific configuration settings and data will be not lost by the reset. 12 Scanning window RFID antenna (option) Protection glass for the barcode and RFID reader. To have the best reading performance, keep the glass clean and free of scratches. Antenna for RFID reader/writer 13 Clip holder (accessories) Holder to fix the shirt clip, belt clip or neck belt (accessories) 14 Int. Li-Ion battery Rechargeable Li-Ion battery 1500mAh CHARGING THE BATTERY Before the first operation, the main battery should be fully charged by using the included power adapter or through the USB interface of the computer. As long as the battery is charging, the red LED (3) lights solid red. After the battery is fully charged the red LED (3) turns off. SCANNDY USER GUIDE Page 6 1.Remove the USB protection clip (9) from the device 2.Connect the device to the USB port of a computer or to the USB power adapter (accessories) 3.As long as the battery is charging, the red LED (3) lights solid red 4.After the battery is fully charged the red LED (3) turns off. A full recharge of the battery takes appro…

Text truncated - open the document above for the full version.

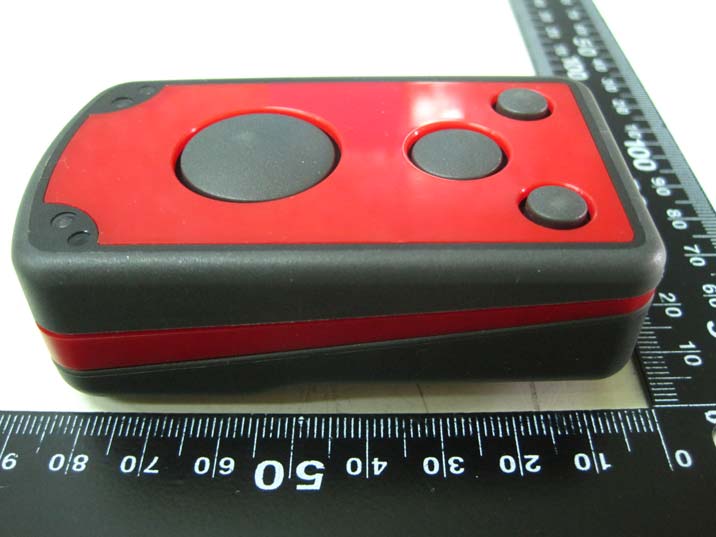

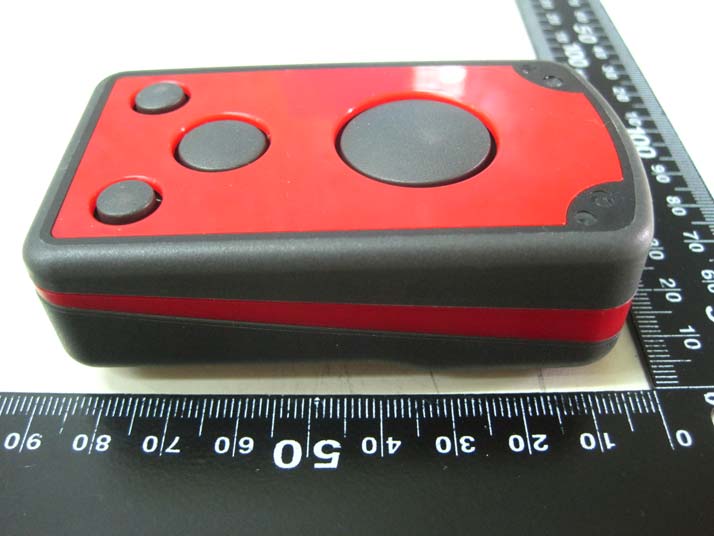

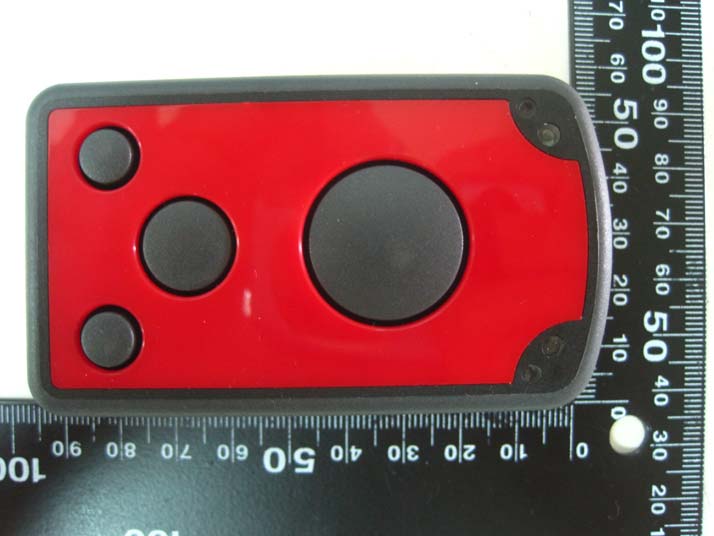

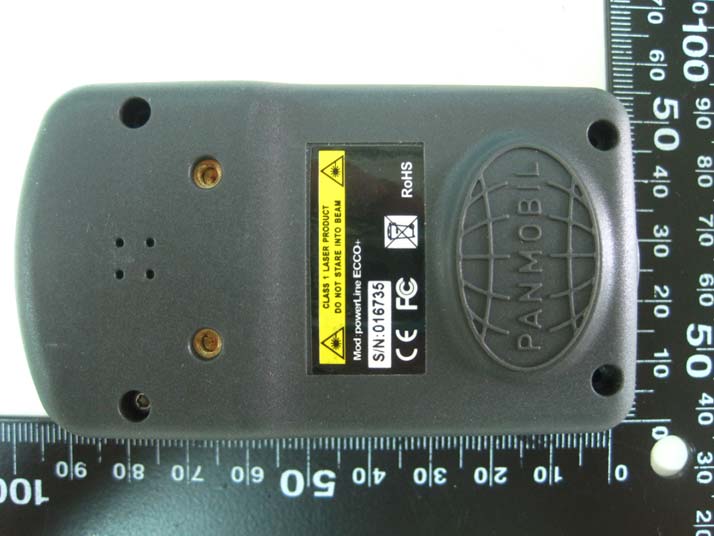

HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 99 of 110 14 Photographs of the EUT Front View of the EUT Rear View of the EUT HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 100 of 110 Side View of the EUT Side View of the EUT HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 101 of 110 Front View of the EUT Rear View of the PCB

powerlineECCO+ product Label and position FCC ID: 2AACD-ECCOPLUS Label: Label position on device:

HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 102 of 110 Inside View of the PCB Front View of the PCB1 (with PCB2 & PCB3) HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 103 of 110 Rear View of the PCB1 View of the Bluetooth module (without PCB2 & PCB3) Chip Ceramic BT Antenna HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 104 of 110 Front View of the PCB2 Rear View of the PCB2 HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 105 of 110 Front View of the PCB3 Rear View of the PCB3 HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 106 of 110 Front View of the PCB4 Rear View of the PCB4 HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 107 of 110 Front View of the UHF Antenna Rear View of the UHF Antenna HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 108 of 110 Front View of the connecting cable of BT Antenna Speaker HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 109 of 110 Front View of Battery Rear View of Battery HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 110 of 110 Front View of Flexible Flat Cable Rear View of Flexible Flat Cable

HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-FD FCC Test Report Page 1 of 29 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with FCC Part 15 Subpart B The product Equipment Under Test ： powerlineECCO+ Model Number ： powerlineECCO+ Product Series ： N/A Report Number ： HA150773-CE Issue Date ： 30-SEP-2015 Test Result ： Compliance is produced by advanced PANMOBIL Systems GmbH & Co. KG Hansestrasse 91, D-51149 Koeln, Germany HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 ICES No.:46405-11226 HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-FD FCC Test Report Page 2 of 29 Contents 1 General Description 5 1.1 Description of EUT 5 1.2 Test Facility 6 1.3 Test Instruments 6 1.4 Test Methodology 7 1.5 Auxiliary Equipments 7 1.6 Block Diagram 7 1.7 Identifying the Final Test Mode 7 1.8 Final Test Mode 7 1.9 Condition of Power Supply 7 1.10 EUT Configuration 8 1.11 Test Facility 8 2 Radiated Disturbance Emission Test – Below 1 GHz 9 2.1 Test Instruments 9 2.2 Test Arrangement and Procedure 9 2.3 Radiated Disturbance Limit 9 2.4 Test Result 10 3 Radiated Disturbance Emission Test – Above 1 GHz 13 3.1 Test Instruments 13 3.2 Test Configuration and Procedure 13 3.3 Radiated Limit 14 3.4 Test Result 14 4 Photographs of the Tests 17 4.1 Radiated Disturbances Emission Test – Below 1 GHz 17 4.2 Radiated Disturbances Emission Test – Above 1 GHz 18 5 Photographs of the EUT 19 HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-FD FCC Test Report Page 3 of 29 Verification Applicant： advanced PANMOBIL Systems GmbH & Co. KG Manufacturer： advanced PANMOBIL Systems GmbH & Co. KG Equipment Under Test： powerlineECCO+ Model Number： powerlineECCO+ Product Series： N/A Sample Received Date： 2015-07-28 Test Standard： Emission: FCC Part 15 Subpart B: Class B CISPR 22: Class B Deviations from standard test methods & any other specifications : NONE Remark: This report details the results of the test carried out on one sample. The test results are contained in this test report and HongAn Technology Co., Ltd. assumes full responsibility for the accuracy and completeness of these tests. This report shows the EUT is technically compliant with FCC Part 15 B and CISPR 22 Class B official requirements. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. Documented by: Date: 2015-09-30 Jody Peng/ ADM. Dept Staff Tested by: Date: 2015-09-08 Eason Hsieh/ ENG. Dept. Staff Approved by: Date: 2015-09-30 Peter Chin/ Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-FD FCC Test Report Page 4 of 29 Summary of Test Result Emission Test Standard Test Item Test ResultRemark FCC Part15B CISPR22 Class B Radiated Emission (Below 1GHz) Pass Highest Emission H: 483.960MHz, 49.58dBuV, Margin-1.21 dB Antenna Height 1.30 m, Turntable Angle 226° V: 125.060MHz, 51.01dBuV, Margin-2.78 dB Antenna Height 1.24 m, Turntable Angle 238° FCC Part15B CISPR22 Class B Radiated Emission (Above 1GHz) Pass Highest Emission H: 4960.000MHz, 50.76dBuV, Margin-2.09 dB Antenna Height 1 m, Turntable Angle 324° V: 4885.000MHz, 51.04dBuV, Margin-2.10 dB Antenna Height 1 m, Turntable Angle 295° Measurement Uncertainty – Emission The following measurement uncertainty has been calculated for Emission Tests performed on the EUT as specified in CISPR 16-4-2: Test Item Uncertainty Conducted Emission ± 3.61dB Below 1GHz ± 5.04dB Radiated Emission Above 1GHz ± 4.97dB This reported expanded uncertainty is based on a standard uncertainty multiplied by a coverage factor of k = 2, providing a level of confidence of approximately 95%. HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-FD FCC Test Report Page 5 of 29 1 General Description 1.1 Description of EUT Equipment Under Test : powerlineECCO+ Model Number : powerlineECCO+ Series : N/A Applicant Address of Applicant : advanced PANMOBIL Systems GmbH & Co. KG Hansestrasse 91, D-51149 Koeln, Germany Manufacturer Address of Manufacturer : advanced PANMOBIL Systems GmbH & Co. KG Hansestrasse 91, D-51149 Koeln, Germany Power Supply : DC 5V through the USB system Data Cable : Charging Cable Shielded Non-Shielded Detachable Un-Detachable, 1.45m w Ferrite Core w/o Ferrite Core Description of EUT : Dimensions : 8.7 cm (L) X4.8 cm (W) X 2.6 cm (H) Weight : 96g Highest Frequency of the Internal Source : 928MHz Position : Table-top / Floor-standing Intended Function : The EUT is a powerlineECCO+. HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-FD FCC Test Report Page 6 of 29 1.2 Test Facility All the Conducted Emission Tests are performed at No. 15-1, Cweishuh Keng, Cweipin Village, Linkou, New Taipei City, Taiwan, R.O.C. 1.3 Test Instruments 1.3.1. Instruments Used for Emission Measurement HA1 Note: The instruments listed above are within their calibration period of 1 year. Instrument Manufacturer Model Serial No. Calibration Date Application L.I.S.N. Mess Tec NNB-2/16Z 03/1006 2015-05-12 L.I.S.N. EMCIS LN2-16 LN04023 2015-02-13 Pulse Limiter Mess Tec PL10 N/A 2014-11-30 RF Cable N/A N/A N/A 2014-10-05 Conducted Disturbance Coupling AND Decoupling Network SCHAFFNER ISN T400 16832 2014-10-08 RF Current Probe FCC F-33-4 53 2015-05-16 Conducted Disturbance at Telecommunication Port EMI Receiver R&S ESCI 100615 2015-02-13 Conducted Disturbance Radiated Disturbance (Below 1GHz) Bilog Antenna Teseq GmbH CBL6111D25769 2015-02-06 Pre-Amplifier WIRELESS FPA-6592G 60009 2015-07-08 Spectrum Analyzer R & S FSL6 100564 2015-06-15 RF Cable MIYAZAKI 8D-F8 N/A 2015-02-08 Radiated Disturbance (Below 1GHz) Double-Ridged Waveguide Horn EMCO 3115 9912-59922015-05-14 Preamplifier HD HD1718…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 1 of 49 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： powerlineECCO+ Model Number ： powerlineECCO+ Product Series ： N/A Report Number ： HA150774-RA Issue Date ： 01-Oct-2015 Test Result ： Compliance is produced by advanced PANMOBIL Systems GmbH & Co. KG Hansestrasse 91, D-51149 Koeln, Germany HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 2 of 49 Contents 1 General Description 5 1.1 Description of EUT 5 1.2 Test Instruments 6 1.3 Auxiliary Equipments 7 1.4 EUT SETUP 7 1.5 Identifying the Final Test Mode 7 1.6 Final Test Mode 7 1.7 Condition of Power Supply 8 1.8 EUT Configuration 8 1.9 Test Methodology 8 1.10 General Test Procedures 8 1.11 Modification 8 1.12 FCC Part 15.205 restricted bands of operations 9 1.13 Qualification of Test Facility 10 2 Power line Conducted Emission Measurement 11 2.1 Test Instruments 11 2.2 Test Arrangement and Procedure 11 2.3 Limit (§ 15.207) 11 2.4 Test Result 11 3 Radiated Emission Test 12 3.1 Test Instruments 16 3.2 Test Arrangement and Procedure 16 3.3 Limit of Field Strength of Fundamental (§ 15.249(a)) 17 3.4 Limit (§ 15.205 & § 15.209 & § 15.249(d) ) 17 3.5 Test Result 19 4 Antenna requirement 36 4.1 Limit (§ 15.203) 36 4.2 Test Result 36 5 Photographs of the Tests 37 5.1 Radiated Disturbances Emission Test 37 6 Photographs of the EUT 38 HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 3 of 49 Test Result Certification Applicant ： advanced PANMOBIL Systems GmbH & Co. KG Address of Applicant ： Hansestrasse 91, D-51149 Koeln, Germany Manufacturer ： advanced PANMOBIL Systems GmbH & Co. KG Address of Manufacturer ： Hansestrasse 91, D-51149 Koeln, Germany Trade Name ： ECCO+ Equipment Under Test ： powerlineECCO+ Model Number ： powerlineECCO+ Product Series ： N/A FCC ID ： 2AACD-EECCOPLUS Filing Type ： Certification Sample Received Date ： 28-Jul-2015 Test Standard ： FCC Part 15 Subpart C §15.249 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in both ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.249. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. Documented by: 2015-10-01 Kay Wang/ ADM. Dept Staff Tested by: 2015-09-07 Eason Hsieh / ENG. Dept. Staff Approved by: Date: 2015-10-01 Peter Chin / Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 4 of 49 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 Not applicable 3 Radiated emission limits FCC part 15 subpart C §209 Compliance 4 20dB Bandwidth FCC part 15 subpart C §215 Compliance 5 Field Strength FCC part 15 subpart C §249(a) Compliance 6 Emissions Radiated outside of the specified frequency bands FCC part 15 subpart C §249(d) Compliance HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 5 of 49 1 General Description 1.1 Description of EUT Equipment Under Test : powerlineECCO+ Model Number of EUT : powerlineECCO+ Product Series : N/A Power Supply : Li-Ploymer Battery DC 3.7 V, 1500mAh Frequency Range : 902~928 MHz Transmit Power : 62.46 dBuV/m @ 902 MHz Number of Channels : 27 Channels Carrier Frequency of Each Channel : 00 902 07 909 14 916 21 923 01 903 08 910 15 917 22 924 02 904 09 911 16 918 23 925 03 905 10 912 17 919 24 926 04 906 11 913 18 920 25 927 05 907 12 914 19 921 26 928 06 908 13 915 20 922 Antenna Specification : Loop PCB Antenna/ Gain: 0 dBi Modulation Technique : ASK Specification : Dimensions：87 mm (L) X 48 mm (W) X 26 mm (H) Weight：90g Function：The EUT is an UHF RFID reader. ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 6 of 49 1.2 Test Instruments HA2 Instrument Name Manufacture Mode Model Number Serial NumberLast Cal. Date Next Cal. Date RF Amplifier Schaffner CPA9231A 0405 01-JUN-2015 31-MAY-2016 EMI Receiver R&S ESCI 100931 25-JUL-2015 24-JUL-2016 Spectrum Analyzer R&S FSV 101629 27-JAN-2015 26-JAN-2016 Preamplifier HD HD17187 004 01-JUN-2015 31-MAY-2016 Bilog Antenna TESEQ CBL6111D 38521 04-JUN-2015 03-JUN-2016 Double-Ridged Waveguide Horn EMCO 3115 9912-5992 01-JUN-2015 31-MAY-2016 Horn Antenna (18-40GHz) Com-Power AH-840 101042 02-JUN-2015 01-JUN-2016 Microwave Preamplifier Com-Power PAM-840 461269 04-JUN-2015 03-JUN-2016 L.I.S.N. Rolf Heine Hochfrequenzte chnik NNB-4/32T 00001 18-MAR-2015 17-MAR-2016 L.I.S.N. EMCO 3810/2NM 9702-1818 20-MAR-2015 19-MAR-2016 ※ The test equipments used are calibrated and can be traced to National ITRI and International Standards. HongAn TECHNOLOGY CO., LTD. Report No.: HA150774-RA FCC Test Report Page 7 of 49 1.3 Auxiliary Equipments 1.3.1. Provided by HongAn Technology Co., Ltd. for Emission Test. N/A 1.3.2. Provided by the Manufacturer N/A 1.4 EUT SETUP Note: Main Test Sample: powerlineECCO+ 1.5 Identifying the Final Test Mode 1. Mode 1: TX CH 00 (902MHz). 2. Mode 2: TX CH 13 (915MHz). 3. Mode 3: TX CH 26 …

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA150773-RA FCC Test Report Page 98 of 110 13 Photographs of the Tests 13.1 Radiated Disturbances Emission Test Below 1 GHz Above 1 GHz
