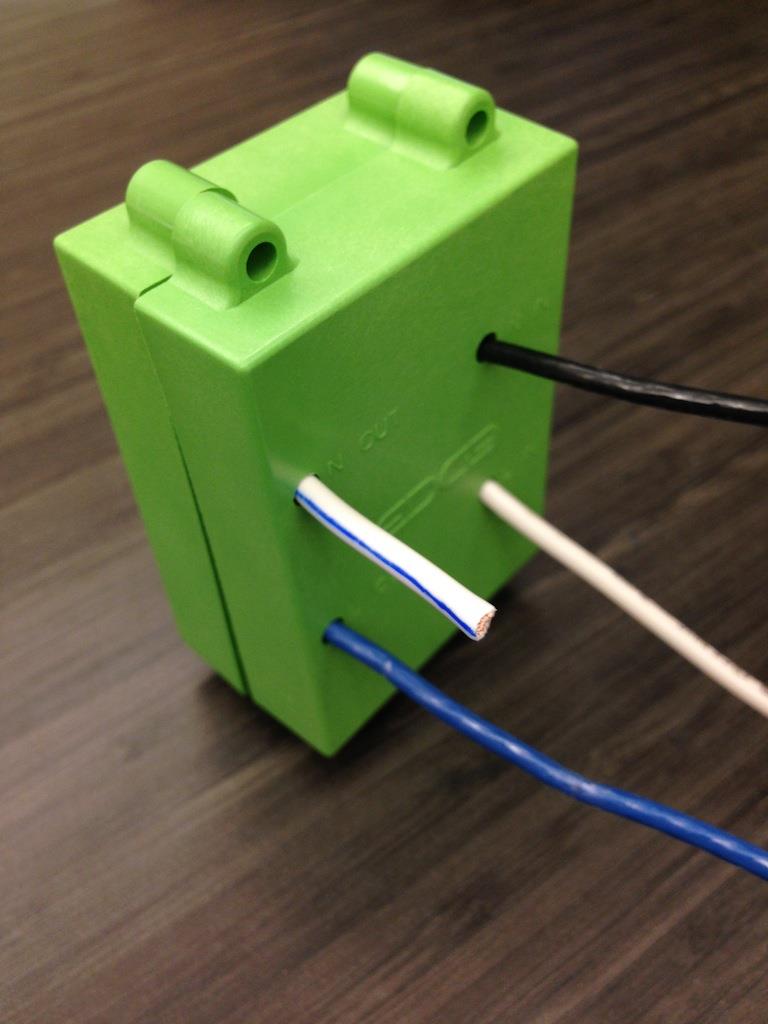

2AACXSMART-1Outlet & Switch Device for Home Automation

FCC ID: 2AACXSMART-1 FCC ID: 2AACXSMART-1 FCC ID: 2AACXSMART-1

FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Outlet Control Model: 010001 - 001 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz Max Load: 15A (1800W) resistive, 600W incandescent, 1/2HP motor FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Powered Switch Model: 010001 - 002 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Battery Switch Model: 010001 - 003 3V DC, or 6V - 9V DC Frequency: 907.245MHz - 927.173MHz Class 2 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz Max Load: 15A 120V~ (1800W) resistive, 600W incandescent, 1/2HP motor Lighting Control Model: 010001 - 004 FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Dry Contacts Model: 010001 - 005 FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz Max Load: 15A 120V~ (1800W) resistive, 10A 35V DC,600W incandescent, 1/2HP motor FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Wall Control Model: 010001 - 006 Use only for lighting loads 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz Max Load: 150 W Product Label PN: 220001-001 Product Label PN: 220001-006 Product Label PN: 220001-005 Product Label PN: 220001-004 Product Label PN: 220001-003 Product Label PN: 220001-002 CAUTION FOR CONTROL OF PERMANENTLY IN- STALLED INCANDESCENT - LAMP FIX- TURES ONLY. Warning Label PN: 220002 (for products –004, -006, –007 only) Date Code (Year, Week, Day), Model, and Serial ID (Code 128 Barcode and HEX) Label PN: 220003 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz Max Load: 15A 120V~ (1800W) resistive, 600W incandescent, 1/2HP motor Dual Lighting Control Model: 010001 - 007 FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Product Label PN: 220001-007 HEX: XX XX XX XX XX XX XX XX MODEL: XXXX DOM: YYMMDD 120V~, 60Hz, 2mA typical, 25mA max. Frequency: 907.245MHz - 927.173MHz Max Load: 20A 240V~ Monitoring Device Model: 010001 - 008 FCC ID: 2AACXSMART-1 IC: 11483A-SMART1 Made in China www.edgehome.com Product Label PN: 220001-008

FCC ID: 2AACXSMART-1 FCC ID: 2AACXSMART-1 FCC ID: 2AACXSMART-1

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Outlet & Switch Device for Home Automation MODEL NUMBER: 010001 REPORT NUMBER: 13U16004 ISSUE DATE: October 28, 2013 Prepared for Green Edge Technologies 15333 Avenue of Science San Diego, CA 92128, USA Prepared by UL LLC 333 Pfingsten Road Northbrook, IL 60062, USA TEL: (847) 272-8800 REPORT NO: 13U16004 DATE: October 28 2013 Page 2 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC Revision History Rev. Issue Date Revisions Revised By -- Oct.28, 2013 Initial Issue BM REPORT NO: 13U16004 DATE: October 28 2013 Page 3 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ............................................................................................................... 4 2. TEST METHODOLOGY..................................................................................................................................... 5 3. FACILITIES AND ACCREDITATION ............................................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................................... 5 4.2. SAMPLE CALCULATION .............................................................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................................................. 5 5. EQUIPMENT UNDER TEST .............................................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................................................. 6 5.2. MAXIMUM OUTPUT E-FIELD STRENGTH ................................................................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................................... 6 5.4. SOFTWARE AND FIRMWARE ...................................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE ........................................................................................... 6 5.6. DESCRIPTION OF TEST SETUP .................................................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................................. 9 7. TEST RESULTS ................................................................................................................................................. 10 7.1. BANDWIDTH MEASUREMENTS ................................................................................................................ 10 7.1.1. 99% BANDWIDTH .............................................................................................................................. 10 7.1.2. 20dB BANDWIDTH............................................................................................................................. 14 7.2. RADIATED EMISSIONS ............................................................................................................................... 18 7.2.1. Below 1GHz Fundamental and Spurious Emissions ............................................................................. 19 7.2.2. Above 1GHz Emissions ........................................................................................................................ 23 7.3. AC POWER LINE CONDUCTED EMISSIONS ........................................................................................... 29 8. SETUP PHOTOS ................................................................................................................................................ 36 REPORT NO: 13U16004 DATE: October 28 2013 Page 4 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Green Edge Technologies 15333 Avenue of Science San Diego CA 92188, USA EUT DESCRIPTION: Outlet & Switch Device for Home Automation MODEL: 010001 SERIAL NUMBER: Prototype DATE TESTED: October 02, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15.249 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex A2.9 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL LLC. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC. wil…

Text truncated - open the document above for the full version.

REPORT NO: 13U16004 DATE: October 28 2013 Page 36 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP X-Axis Photo REPORT NO: 13U16004 DATE: October 28 2013 Page 37 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC Y-Axis Photo REPORT NO: 13U16004 DATE: October 28 2013 Page 38 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC Z-Axis Photo REPORT NO: 13U16004 DATE: October 28 2013 Page 39 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC Overall Radiated Emissions Setup REPORT NO: 13U16004 DATE: October 28 2013 Page 40 of 41 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC LINE CONDUCTED EMISSIONS MEASUREMENT SETUP
