2AADIKWR1018M0Dual Face Motion Remote Control

Philips Home Control Confidential ©Philips Home Control, 2013 Page 1 of 14 Manual of KWR101830/01B, KWR101830/01BS & KWR101830BU Philips Home Control Confidential ©Philips Home Control, 2013 Page 2 of 14 FCC Statement FCC Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. No special accessory is required to enable the equipment to comply with the emission limits. KWR101830/01B Manual (Draft Version) Status :Draft, For Review Page 3 of 14 Philips Proprietary &Confidential Philips Home Control Company Restricted 1. Product Description 1.1 Product Features • Dual button entry RC and KWR. • Number of keys: 38 for KEYBOARD, 18 for RC. Total 56 keys. • 4 main functions: Remote Control, Mouse Cursor Control, Qwerty KEYBOARD for text entry and downstream data transfer. • 128k Flash for handling RF functions. • 6 axis motion pointing. • IR Learn using Data Flash. • IR Database. • IR uses Flash chip. • Low voltage alert through LED blinks. • Works with USB Receiver dongle OVU810006. KWR101830/01B Manual (Draft Version) Status :Draft, For Review Page 4 of 14 Philips Proprietary &Confidential Philips Home Control Company Restricted 1.2 Product Picture for illustration only KWR101830/01B Manual (Draft Version) Status :Draft, For Review Page 5 of 14 Philips Proprietary &Confidential Philips Home Control Company Restricted 2. RF Functions 2.1 RF Pairing 1) Make sure RC is within 1m distance from the STB and no other RF RCs are present. 2) Make sure the Qwerty keyboard faces upwards. 3) Press and hold Keyboard W and Keyboard O keys together for at least 5 seconds. 4) The KEYBOARD LED will start blinking, and RC is now in pairing mode. 5) Activate pairing mode on STB (STB sends activate command or reset dongle power). 6) Once the pairing is successful, the KEYBOARD LED will be turned off; otherwise, the KEYBOARD LED will stay lit till timeout. There will be a 30 seconds timeout for RC to be in pairing mode. Previously paired receiver shall be retained as long as the STB did not initiate the pairing. See Note below on different pairing scenarios. User can start from Step 1 again if pairing failed. Note: When a previously paired RC starts pairing with 1. Different receiver o Only upon successful pairing, the RC shall replace the previously paired receiver with the new receiver. o If the pairing process fails or pairing timeout occurs, the previously paired receiver will be retained. 2. Same receiver o Previously paired information of the same receiver shall first be erased from the RC before pairing process starts. o If the pairing process fails or pairing timeout occurs, the previously paired receiver will not be retained. At any one time,  Only one RC is allowed to be in pairing mode, i.e. no concurrent pairing is allowed.  Each RC can only work with one receiver, i.e. 1-to-1 pairing. 2.2 RF Un-Pairing The following steps for un-pairing: 1) Make sure the Qwerty keyboard faces upwards. 2) Press and hold Keyboard X and Keyboard UP keys together for at least 5 seconds. 3) The KEYBOARD LED will start blinking slowly after 5 seconds. 4) Reset the power or battery and the RC is ready to pair again. 2.3 Remote Idling, RF Link Timeout with connection When detected no activity, the RC will enter SLEEP mode. During SLEEP mode, RF link will be disconnected to preserve power. Pressing any key or any gesture action will resume the RC to ACTIVE mode almost immediately. The key-press that resumes the RC from SLEEP mode will be remembered and transmitted. When the RC wakes up from SLEEP mode, there may be reconnection latency depending on the RF link condition with the receivers. Once the RF (2.4G) link has been established, the RC will execute upon ANY key-press. Key presses prior to successful RF link connection will not be transmitted. KWR101830/01B Manual (Draft Version) Status :Draft, For Review Page 6 of 14 Philips Proprietary &Confidential Philips Home Control Company Restricted 2.4 RF Broken Link RF link is broken when the RF (2.4G) connection is lost or when the receivers sleep or during system shutdown states (S3, S4 or S5) or due to out-of-range. 2.5 RF ACTIVE / SLEEP From RF ACTIVE >> SLEEP User action Remote Control action No key-press for less than 15 seconds. RF goes to SLEEP. In SLEEP mode, all LEDs are OFF. No motion senses for about 15 seconds. RF goes to SLEEP. In SLEEP mode, all LEDs are OFF. 2.6 RF Auto Connection When the RC wakes up or resumes from SLEEP mode or come back within range of a powered-on paired receiver, the RF link will be reconnected automati…

Text truncated - open the document above for the full version.

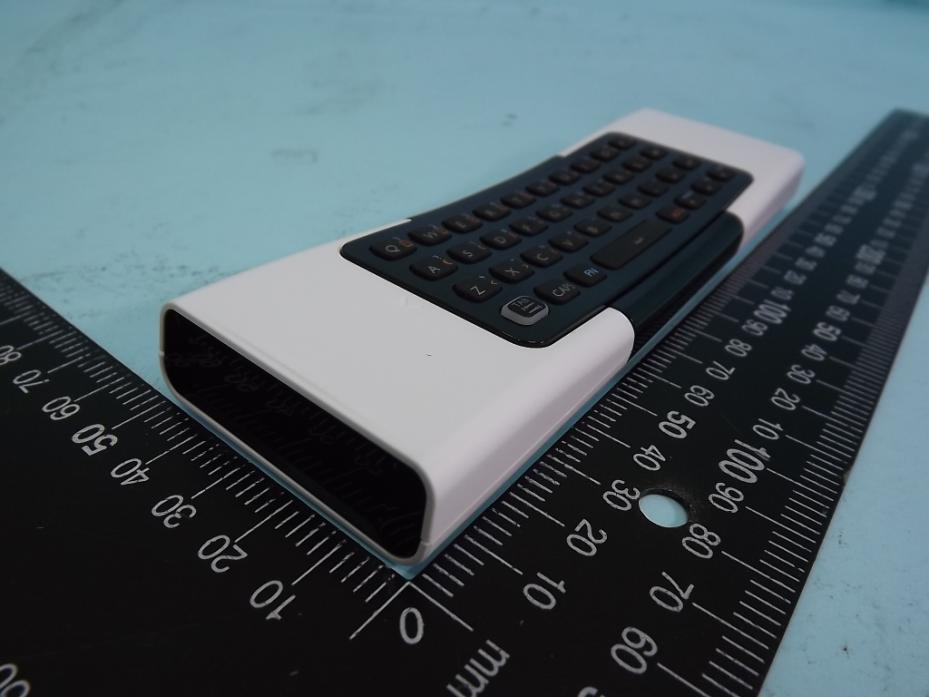

FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

ALL RIGHTS ARE RESERVED. REPRODUCTION INWHOLE OR IN PART IS PROHIBITED WITHOUT THEWRITTEN CONSENT OF THE COPYRIGHT OWNER. NAME NAAM SUPERS. VERV. SH. BL. SH. BL. END10 MW A4A 166-01A4 . . 1 Vincent Neo 3139 228 1222 KWR101830/01BS 2013-01-31 vn A-BOX Photo Label Product 12NC (To be indicated) Product Model no. (To be indicated) GGG: S,PTR,TR,EO S=Sample PTR=Pre-Trial Run TR= Trial-Run EO= Concession Order (same as Risk Order) FACTORY PLATE Blank Label to use size approx 20 X 7.5mm: 3139 225 50894 To paste inside the battery compartment. KWR101830/01BU GGG 3139 228 12211 MADE IN XXXXX BS XX XXXXX X XXXXXX FCC ID: 2AADIKWR1018M0 Production YEAR and WEEK code only (To be filled by Production) COUNTRY ORIGIN (To be filled by production) Align the factory label to the edge of the battery compartment PHOTO LABEL 3139 228 12221 MADE IN XXXXXXXXX QTY :60 PCS XX : XXXXX LOT NO.: XXX/XXX CTN : XXX/XXX Carton Number (To be filled by Production) Production Code Lot Number (To be filled by production) (To be filled by Production) COUNTRY ORIGIN (To be filled by production) Product 12NC (to be provided by Project) Product Type no. (to be provided by Project) Carton Quantity (To be provided by Project) KWR101830/01BS .1 6JUN2013 Change of FCC ID 06/06/2013 VN

FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP352403 SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : 1 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Dual Face Motion Remote Control Brand Name : PHILIPS Model No. : KWR101830/01BU; KWR101830/01BS; KWR101830/01B; KWR101831/01BU; KWR101831/01BS; KWR101832/01U; KWR101832/01S; KWR101833/01BU; KWR101833/01BS; KWR101834/01BU; KWR101834/01BS; KWR1018xx/01BU; KWR1018xx/01BS; KWR1018xx/01U; KWR1018xx/01S The xx represented by 00 ~ 99 FCC ID : 2AADIKWR1018M0 Standard : 47 CFR FCC Part 15.249 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DXX Applicant : Home Control Singapore Pte. Ltd. Philips Home Control 620A Lorong 1 Toa Payoh Singapore 319762. Manufacturer : PT HonFoong Plastics Industries Jalan Beringin Lot 327,328,329,330 Jalan Gaharu, Lot 232,233,247 Batamindo Industrial Park Mukakuning P. Batam Indonesia. Multiple Listing : Please refer to section 1.2 The product sample received on Jun. 06, 2013 and completely tested on Aug. 26, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : 2 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Table for Multiple Listing ........................................................................................................................ 7 1.3 Support Equipment ................................................................................................................................. 7 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Testing Location Information .................................................................................................................. 8 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Test Setup Diagram ............................................................................................................................. 10 3 TRANSMITTER TEST RESULT .......................................................................................................... 11 3.1 AC Power-line Conducted Emissions .................................................................................................. 11 3.2 Emission Bandwidth ............................................................................................................................. 12 3.3 Fundamental and Band Edge Emissions ............................................................................................. 16 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 18 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 28 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : 3 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions - FCC 15.207 NA 3.2 15.215(c) Emission Bandwidth 6.96 MHz; fall in band Information only Complied 3.3 15.249(a) Fundamental Emissions [dBuV/m at 3m]: 82.79 (Margin 11.21dB) average [dBuV/m at 3m]: average: 94 Complied 3.4 15.249(a)/ (d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]:9900.000MHz 67.29 (Margin 6.71dB) - PK 47.72 (Margin 6.28dB) - AV Harmonics: 54 dBuV/m@3m Other band: 50 dB or FCC 15.209, whichever is the lesser attenuation. Complied NA = Not Applicable FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : 4 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR352403 Rev. 01 Initial issue of report Sep. 03, 2013 902 MHz – 928 MHz FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : 5 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Modulation Ch. Frequency (MHz) Channel Number Fundamental Field Strength (dBuV/m) Co-location 2400-2483.5 O-QPSK 2425~2475382.79 N/A Note 1: Field strength performed average level at 3m. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmit…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 hotographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR352403 SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
