Insert the 4 AA alkaline batteries (included) in the Pronto. The red LED on the Pronto will start blinking. Inserta las 4 pilas alcalinas AA (incluidas) en tu Pronto. El LED rojo en el Pronto empezará a parpadear. Insérez les 4 piles alcalines AA (inclus) dans votre Pronto. La LED rouge sur le Pronto se met à clignoter. Quick Start Guide/ Prise en Main / Para Empezar www.getpronto.com This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfu l interference to radio or television reception, which can be determined by turning the equipment measures: - Reorient or relocate the receiving antenna. - In crease the separation between the equipment and receiver. connected. - Consult the dealer or an experienced radio/TV technician for help. - ance to this equipment would void the user’s authority to operate this device. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio ex- em pts de licence. L‘exploitation est autorisée aux deux conditions suivantes : (1) l‘appareil ne doit pas produire de brouillage, et (2) l‘appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d‘en compromettre le fonctionnement. 3139 226 2788.2 Download free Peel Smart Remote App to your iPad or i Phone from Apple App Store and open the app Téléchargez gratuite ment l’app Peel Smart Re- mote sur votre iPad ou iPhone depuis la bou- tique app d’Apple et ouvrez l‘app Descarga la Aplicación Peel Smart Remote en tu iPad o tu iPhone desde Apple App Store (Ti- enda de Aplicaciones de Apple) y abre la apli- cación Set up the inte ractive TV Guide (available in USA / Canada, other countries coming soon) Installez le guide TV inte ractif (disponible aux États-Unis /Canada, bientôt dans d’autres pays) EE. UU. y Canadá, y en breve en otros países) Place Pronto within 32ft (10m) of your devices (line of sight required). Use the Peel Smart Re- mote App to select your devices. Positionnez le Pronto Air à 32ft (10 m) de vos appareils (ligne de visée requise). Utilisez l’app Peel Smart Remote pour sélectionner vos ap- pareils. Coloca Pronto a menos de 32ft (10 m) de tus dis- posit ivos (línea de visión necesaria). Utiliza la aplicación de Peel Smart Remote para seleccio- nar tu s dispositivos. For more informat ion, safety instructions and limited warranty please visit: www.getpronto.com/support Pour plus d‘informat ion, des consignes de sécurité et garantie limitée, visi- tez: www.getpronto.com/support Para obtener más información, instrucciones de seguridad y garantía limita- da, visite: www.getpronto.com/support QDID: 46840, 26384, 23454

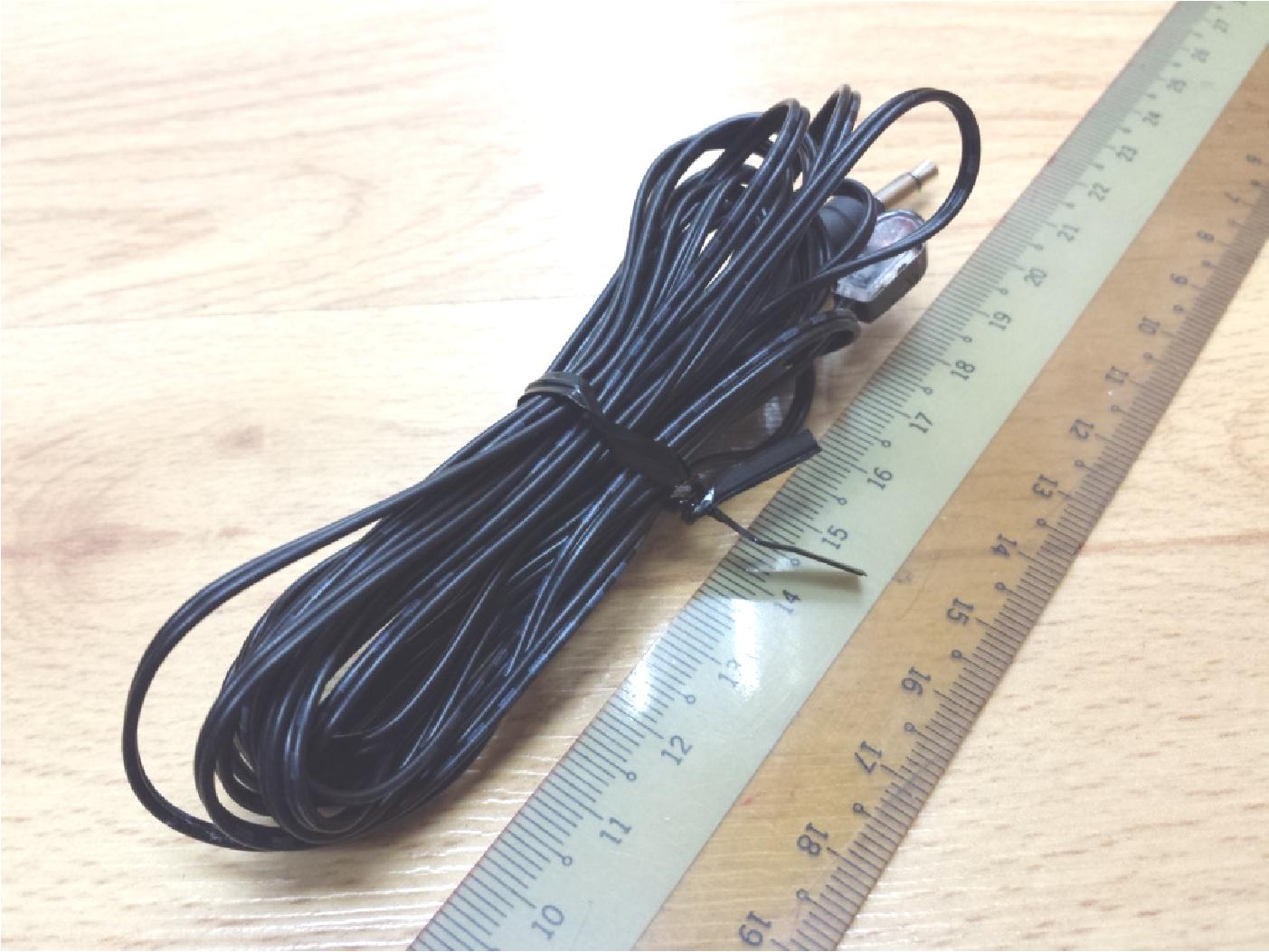

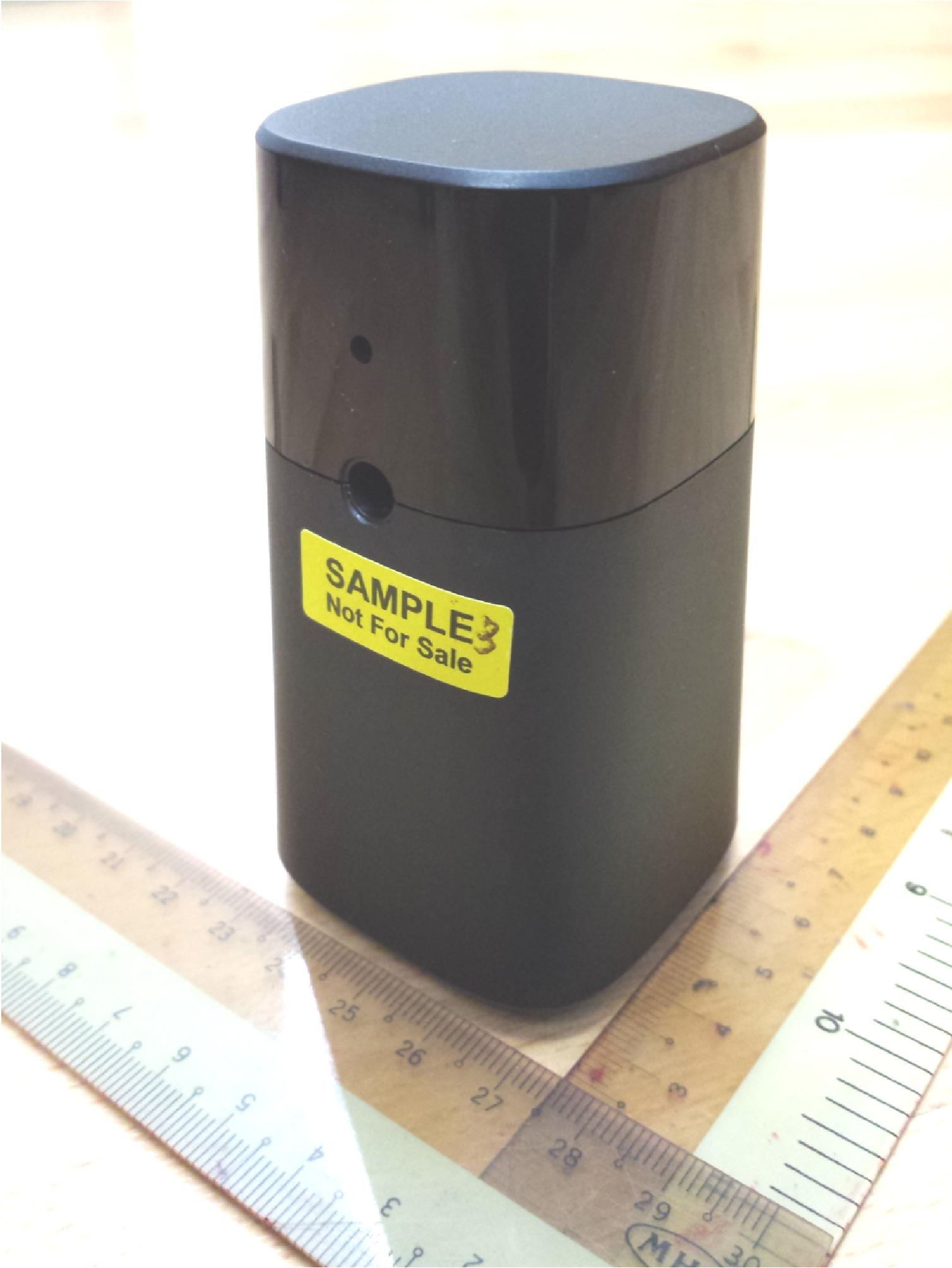

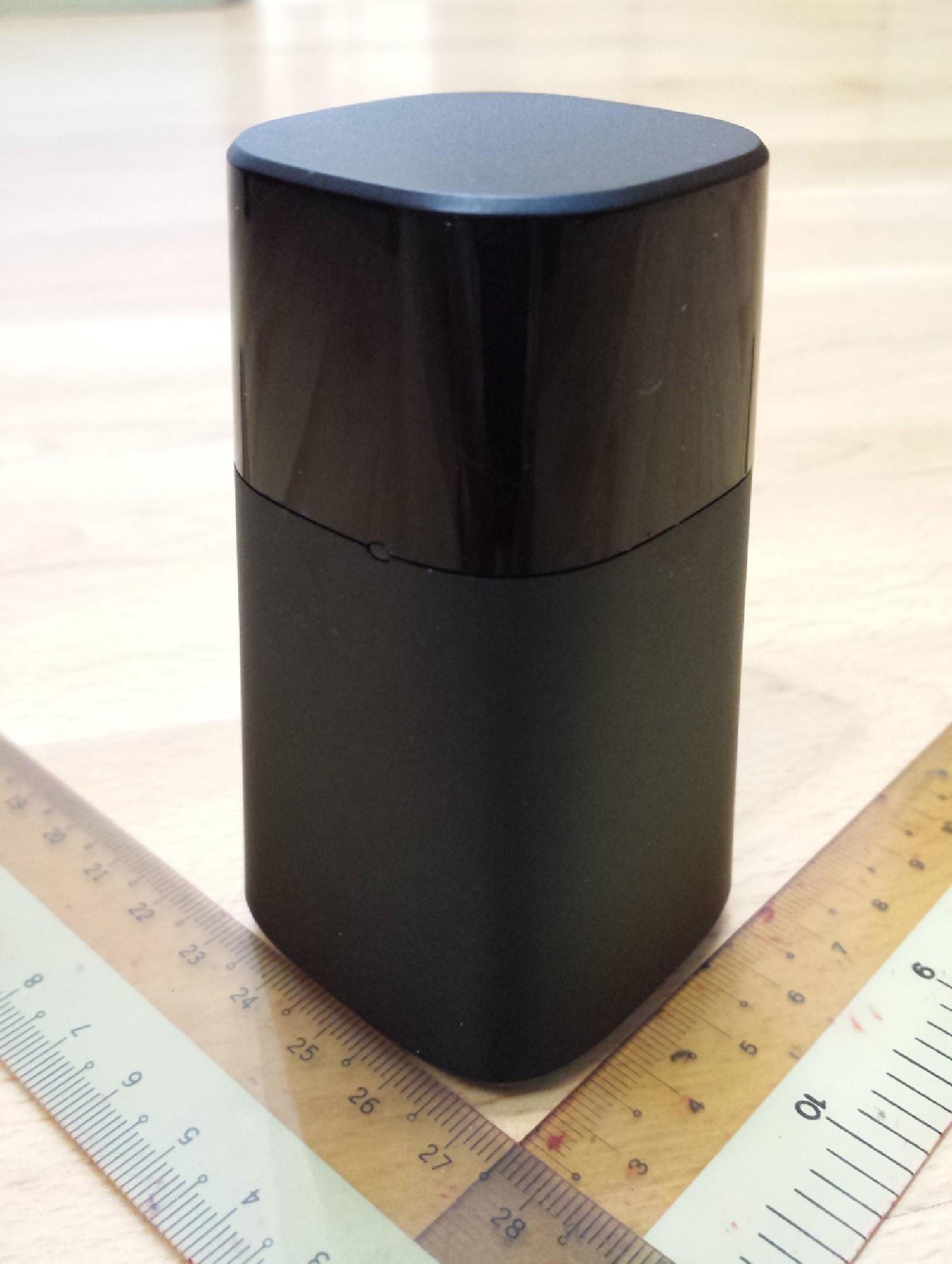

FCC ID: 2AADIOV500201 Model: OV500201/01BRPS EXTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUTView1 FCC ID: 2AADIOV500201 Model: OV500201/01BRPS EXTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUTView2 FCC ID: 2AADIOV500201 Model: OV500201/01BRPS EXTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUTView3 FCC ID: 2AADIOV500201 Model: OV500201/01BRPS EXTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS IR Emitter

FCC ID: 2AADIOV500201 Model: OV500201/01BRPS INTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUT Internal View1 EUT Internal View2 FCC ID: 2AADIOV500201 Model: OV500201/01BRPS INTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUT Internal View3 FCC ID: 2AADIOV500201 Model: OV500201/01BRPS INTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUT PCB View 1 FCC ID: 2AADIOV500201 Model: OV500201/01BRPS INTERNAL PHOTOGRAPHS EUT PHOTOGRAPHS EUT PCBView 2 RF Antenna RFModule

Test Report No. 7191102563-EEC14/01 dated 31 Dec 2014 Note: This report is issued subject to the Testing and Certification Regulations of the TÜV SÜDGroup and the General Terms and Conditions of Business of TÜV SÜD PSB Pte Ltd. In addition, this report is governed by the terms set out within this report. LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0382-B-1 LA-2007-0383-G LA-2007-0383-G-1 LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D FFT-2013-0002-A The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC- SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 72 FORMAL REPORT ON TESTING IN ACCORDANCE WITH 47 CFR FCC Parts 15B & C : 2012 OF A PRONTO [ Model : OV500201/01BRPS ] [ FCC ID : 2AADIOV500201 ] TEST FACILITY TÜV SÜD PSB Pte Ltd Electrical & Electronics Centre (EEC), Product Services, No. 1 Science Park Drive, Singapore 118221 FCC REG. NO. 99142 (3m and 10m Semi-Anechoic Chamber, Science Park) 160581 (3m and 10m Semi-Anechoic Chamber, International Business Park) IND. CANADA REG. NO. 2932I-1 (3m and 10m Semi-Anechoic Chamber, Science Park) 2932N-1 (10m Semi-Anechoic Chamber, International Business Park) PREPARED FOR Home Control Singapore Pte Ltd 620A Lorong 1 Toa Payoh Singapore 319762 Tel : +65 6882 3321Fax : +65 6254 1691 QUOTATION NUMBER 2191009333 JOB NUMBER 7191102563 TEST PERIOD 09 Dec 2014 – 26 Dec 2014 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Higher Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Home Control Singapore Pte LtdPage 2 of 72 Pronto [ Model : OV500201/01BRPS ] [ FCC ID : 2AADIOV500201 ] Test Report No. 7191102563-EEC14/01 dated 31 Dec 2014 TABLE OF CONTENTS TEST SUMMARY ........................................................................................................................................ 3 PRODUCT DESCRIPTION .......................................................................................................................... 5 SUPPORTING EQUIPMENT DESCRIPTION ............................................................................................... 6 EUT OPERATING CONDITIONS ................................................................................................................. 7 RADIATED EMISSION TEST ....................................................................................................................... 8 SPECTRUM BANDWIDTH (6dB BANDWIDTH MEASUREMENT) TEST ................................................... 13 MAXIMUM PEAK POWER TEST ............................................................................................................... 17 RF CONDUCTED SPURIOUS EMISSIONS (NON-RESTRICTED BANDS) TEST ...................................... 19 RF CONDUCTED SPURIOUS EMISSIONS (RESTRICTED BANDS) TEST ............................................... 24 BAND EDGE COMPLIANCE (CONDUCTED) TEST................................................................................... 42 BAND EDGE COMPLIANCE (RADIATED) TEST ....................................................................................... 45 PEAK POWER SPECTRAL DENSITY TEST .............................................................................................. 50 MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST ................................................................................ 54 ANNEX A TEST SETUP / EUT PHOTOGRAPHS / DIAGRAMS ................................................................. 56 ANNEX B USER MANUALTECHNICAL DESCRIPTION BLOCK & CIRCUIT DIAGRAMS .......................... 70 ANNEX C FCC LABEL & POSITION .......................................................................................................... 71 Home Control Singapore Pte LtdPage 3 of 72 Pronto [ Model : OV500201/01BRPS ] [ FCC ID : 2AADIOV500201 ] Test Report No. 7191102563-EEC14/01 dated 31 Dec 2014 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail 47 CFR FCC Part 15: 2012 15.107(a), 15.207Conducted EmissionsNot Applicable * See Note 5 15.109(a), 15.205, 15.209Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.247(a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement) Pass 15.247(b)(3)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious Emissions (Non- Restricted Bands) Pass 15.247(d)RF Conducted Spurious Emissions (Restricted Bands) Pass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Refer to page 54 for details 15.35(c)Duty Cycle Factor ComputationNot Applicable * See Note 1 Home Control Singapore Pte LtdPage 4 of 72 Pronto [ Model : OV500201/01BRPS ] [ FCC ID : 2AADIOV500201 ] Test Report No. 7191102563-EEC14/01 dated 31 Dec 2014 TEST SUMMARY Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode with continuous RF transmission. Transmit Channel Frequency (MHz) Channel 0 (Lower Channel)2402 Channel 19 (Middle Channel)2440 Channel 39 (Upper Channel)2480 2. The EUT is a Class B device when in non-transmitting state and meets the 47 CFR FCC Part15B Class B requirements. 3. All test measurement procedures are according to ANSI C63.4: 2…

Text truncated - open the document above for the full version.

FCC ID: 2AADIOV500201 Model: OV500201/01BRPS Test setup photo RADIATED EMISSION TEST Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) FCC ID: 2AADIOV500201 Model: OV500201/01BRPS Test setup photo CONDUCTED EMISSION TEST The Equipment Under Test (EUT) is a battery operated device and contains no provision for public utility connections
