2AADJFFS-THRF Transmitter

FreFlow® Instruction Manual ©2014 Sony Engineering Corporation Printed in Japan Before operating the product, please read this manual thoroughly and retain it for future reference. Design and specifications are subject to change without notice. Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that any changes or modifications not expressly approved in this manual could void the user’s authority to operate the equipment. Properly shielded and grounded cables and connectors must be used for connection to host computers and / or peripherals in order to meet FCC emission limits. AC adaptor with ferrite core must be used for RF interference suppression. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Notes on Use Do not disassemble or modify the product. Doing so may lead to fire, injury, etc. The product is not waterproof. Do not allow it to get wet nor use it in water. Doing so may lead to electrical shock or damage to the product. Do not apply strong impact or swing the product around. Doing so may lead to injury or damage to the product. Do not use the product if malfunctioning or damaged. Doing so may lead to shock or injury. The product may not be able to send signals in some wireless operating environments. Immediately discontinue use if... the product is dropped or subjected to an impact in which the interior is exposed. the product emits a strange smell, heat, or smoke. When dirty, this unit may be cleaned with a clean, dry cloth. Do not allow this unit to come in contact with alcohol or other chemicals. Signal reception may be impaired in some wireless operating environments. If you feel ill while using the product, turn off the power and discontinue use. How to Use  Attach the antenna. Screw in the antenna firmly. Power switch Power cord Antenna AC Plug DC IN Jack  Connect the Power cord to the DC IN Jack, and then connect the AC Plug to the wall outlet.  Press the power switch to turn on the product. Settings The settings screen is displayed on the display panel when the product is turned on. Display panel Default setting values are shown below. Page 1 Carrier wave : 001/000 Ctrl NodeID : 0001 DMX cntrl CH : 001 DMX FREE CH : 002 Page 2 DMX Rand CH : 003 Reserved : 004 DMX channel : 005-054 ID Count : 10 Page 3 DMX Nosignal : Free RF Power : 0 B-Cast cntl : ON Refresh time : 0.5SEC Page 4 Sleep mode : OFF Field Test : OFF To Change Settings Up button Enter button Right button Left button Down button  Press the up or down button to select the setting item you want to change. If you press the down button while the cursor is on the bottom item, the next page will be displayed. If you press the up button while on the top item, the previous page will be displayed.  Press the left or right button to change the setting value.  Press the enter button to finalize the setting. Setting values are not actually changed until you press the enter button, even when the values are shown on the display as having been changed. Specifications Power output: 100 mW Operating frequency: 902.2 MHz - 926.7 MHz Active channel: 1 Operation mode: GFSK Data rate: 80 kbps Antenna cable length: 3 m Use: Wireless control of LED lighting devices Antenna connector/Gain: SMA (reverse polarity) Materials: Urethane MADE IN JAPAN FreFlow® and its logo are trademarks or registered trademarks of Sony Engineering Corporation.

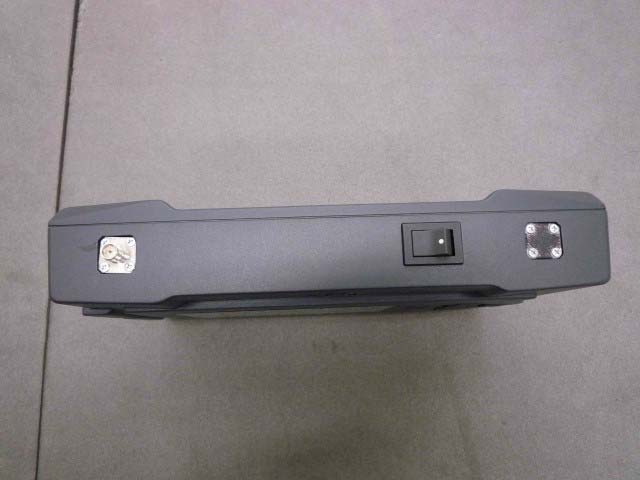

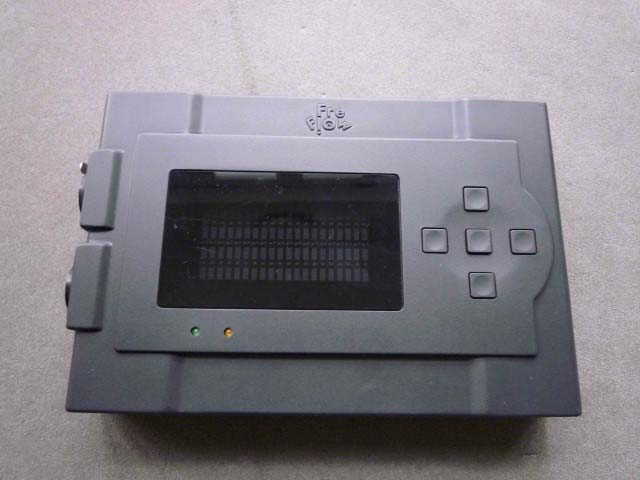

Photo FFS-TH Front Rear Photo FFS-TH Top Bottom Photo FFS-TH Right Photo FFS-TH Left Photo FFS-TH With Antenna & Antenna Cable RP- SMA(F) Connector of Antenna Cable RP-SMA(M) Connector of FFS-TH

FFS Ͳd,>ĂďĞů Position

Photo FFS-TH RF Part Photo FFS-TH RF Part Photo FFS-TH RF Part

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Sony Engin eering Corporation T ype of Equipment: RF Transmitter M odel N o. : FFS-T H FCC ID: 2AADJFFS-TH Sony Engineering Corporation declares that M odel : FFS-TH com p lies w ith F C C ra dia tion ex p osu re requ irem ent sp ecified in the F C C R u les 2 .1 0 9 1 . RF Exposure Calculations: T h e follow in g in form ation provides th e m in im um separation distan ce for th e h igh est gain antenna provided with the “FFS-TH“ as calculated from FC C Part 1, §1.1310, T A B L E 1 (B ) L im its for G en eral Population / U n con trolled E xposure. T h is calculation is based on th e h igh est E IR P possible from th e system , considering m axim um power and antenna gain, and considering a 1.0m W /cm ^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G ) / (4* π * r 2 ) Where P = 88.92 m W (M axim um average output pow er) G = 1.58 N um erical A ntenna gain; equal to 2.00 dBi r =20.0 cm For: FFS-THS = 0.02804 mW/cm 2 E ven takin g in to accoun t th e toleran ce, th is device can be satisfied w ith th e lim its. No. : 10569798S RF Exposure / SAR Statement

Test report No. : 10569798S Page : 2 of 35 Issued date : February 3, 2015 Revised date : February 10, 2015 FCC ID : 2AADJFFS-TH UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10569798S Revision Test report No. Date Page revised Contents - (Original) 10569798S February 3, 2015 - - 1 10569798S February 10, 20159 Addition of Remark about ferrite core Test report No. : 10569798S Page : 3 of 35 Issued date : February 3, 2015 FCC ID : 2AADJFFS-TH UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 4 SECTION 3: Test specification, procedures & results ........................................................ 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ....................................................................................... 10 SECTION 6: Carrier frequency separation ........................................................................ 11 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 11 SECTION 8: Number of hopping frequency ...................................................................... 11 SECTION 9: Dwell time ....................................................................................................... 11 SECTION 10: Maximum peak output power ..................................................................... 11 SECTION 11: Radiated emission ......................................................................................... 12 SECTION 12: Spurious emissions (Antenna port conducted) .......................................... 14 Contents of APPENDIXES ...................................................................................................... 15 APPENDIX 1: Data of radio tests ........................................................................................ 16 APPENDIX 2: Test instruments .......................................................................................... 32 APPENDIX 3: Photographs of test setup ............................................................................ 33 Test report No. : 10569798S Page : 4 of 35 Issued date : February 3, 2015 FCC ID : 2AADJFFS-TH UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Engineering Corporation Address : 3-3-1 Tsujido-Shinmachi Fujisawa-shi, Kanagawa, 251-0042 Japan Telephone Number : +81-466-38-3428 Facsimile Number : +81-466-38-3771 Contact Person : Masayuki Okada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RF Transmitter Model No. : FFS-TH Serial No. : Refer to 4.2 of this report. Rating : DC5V Receipt Date of Sample : January 20, 2015 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: FFS-TH (referred to as the EUT in this report) is a RF Transmitter. Clock frequency(ies) in the system : MCU: 30MHz(X3), 25MHz(X1), 32.768kHz Radio specification: Equipment type : Transmitter Frequency of operation : 902.2-926.7MHz Type of modulation : GFSK Antenna type : Whip Antenna connector type : Reverse polarity SMA Connector Antenna gain : 2 dBi Operation temperature range : +5 to +35 deg.C. ITU code : F1D FCC 15.31 (e) The stable voltage of DC3.3V is provided constantly to RF transmitter regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 The EUT has a unique coupling/antenna connector. Therefore, the equipment complies with the antenna requirement. Test report No. : 10569798S Page : 5 of 35 Issued date : February 3, 2015 FCC ID : 2AADJFFS-TH UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on January 21, 2015 does not affect the test specification applied to the EUT. 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A 15.0dB Freq.: 0.54180MHz Detector: Quasi-Peak Phase: N Mode: Transmitting 902.2MHz Complied Carrier frequency separation FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1) ConductedN/A *See data. Complied 20dB bandwidth FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1) ConductedN/A - Number of hopping frequency FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1)(iii) ConductedN/A Complied Dwell time FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1)(iii) ConductedN/A Complied Maximum peak output power FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Mea…
