Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
4-545-184-01(1) FreFlow® Instruction Manual 4-545-184-01(1) ©2014 Sony Engineering Corporation Printed in Japan Before operating the product, please read this manual thoroughly and retain it for future reference. Design and specifications are subject to change without notice. Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that any changes or modifications not expressly approved in this manual could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Notes on Use Do not put small parts or batteries in your mouth. Doing so may lead to choking or serious injury. Keep out of reach of children as there is a risk of choking or serious injury due to accidental swallowing. If batteries are swallowed, seek medical treatment immediately. Material leaked from batteries getting in the eyes, on skin, or on clothing may lead to loss of sight or other injury. Flush any battery material with large volumes of water, and consult a physician. Do not look into the light from the product or shine it directly at eyes. Doing so may lead to vision disorders. Do not disassemble or modify the product. Doing so may lead to fire, injury, etc. The product is not waterproof. Do not allow it to get wet nor use it in water. Doing so may lead to electrical shock or damage to the product. Do not apply strong impact or swing the product around. Doing so may lead to injury or damage to the product. Do not use the product if malfunctioning or damaged. Doing so may lead to shock or injury. Immediately remove the batteries and discontinue use if... the product is dropped or subjected to an impact in which the interior is exposed. the product emits a strange smell, heat, or smoke. When dirty, this unit may be cleaned with a clean, dry cloth. Do not allow this unit to come in contact with alcohol or other chemicals. Signal reception may be impaired in some wireless operating environments. If you feel ill while using the product, turn off the power and discontinue use. How to Use Pull out insulation sheet. Insulation sheet Slide to power switch to the ON position, to turn on the light. It may take a few seconds to light up. Color change buttonPower switch The light color set will change each time the color change button is pressed. 4-545-184-01(1) Operation With a FreFlow® Wireless System Wait with the power switch set to ON. You do not need to make any special operations. Operation will start automatically when a wireless signal is received. Light color will change by wireless command only in a venue where a FreFlow® wireless system is set up. Light color cannot be changed by the color change button while a wireless signal is being received. When a wireless signal is no longer received, you can operate the product as you like. How to Replace Batteries Push the tab in the direction indicated by the arrow, and remove the battery box cover. TabCover Insert the batteries, making sure the + and – terminals are in the correct direction, and close the cover securely. <Improper use of batteries may lead to leaking, excessive heating, rupture, or damage. Please follow the cautions below.> Set the batteries with the + and – terminals in the correct direction. Remove the batteries when they are depleted or when not using for a long period of time. Do not use or leave in places with intense direct sunlight or in hot locations such as a car in the sun. Use new batteries when replacing the batteries. Do not mix with old batteries, different types of batteries, etc. Do not subject batteries to fire or high temperatures. Tape over battery contacts to avoid short-circuit when disposing of batteries, and follow local regulations for battery disposal. Specifications Model Name: FFS-R series Materials Grip, cover: ABS / Cylinder: PET Power Requirement Two size AAA (LR03) alkaline batteries: 3.0 V DC MADE IN VIETNAM [For inquires] Antinos Management America, Inc. [email protected] FreFlow® and its logo are trademarks or registered trademarks of Sony Engineering Corporation.

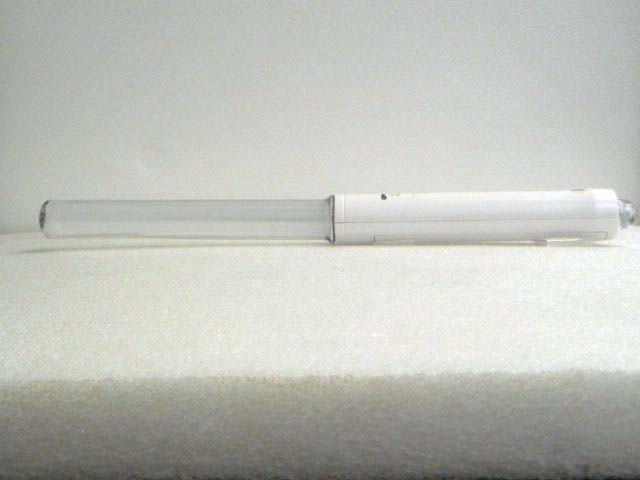

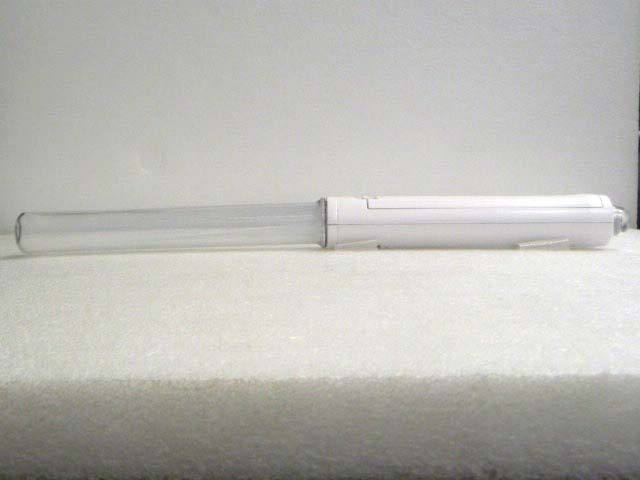

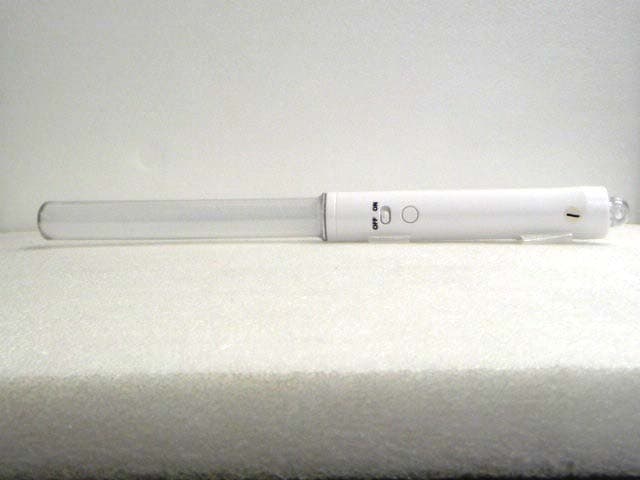

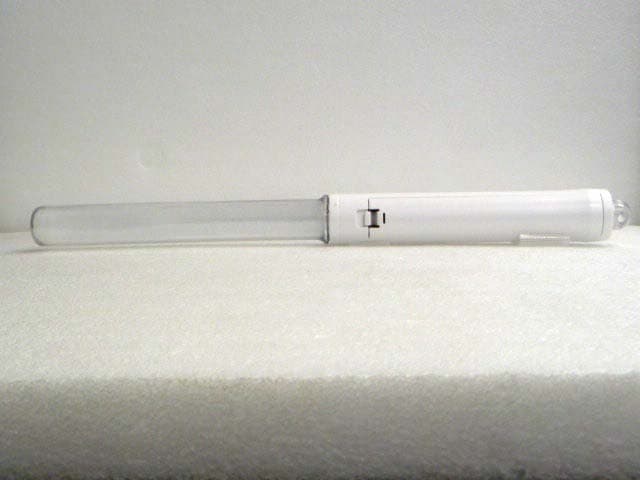

Photo FFS-R9 Photo FFS-R9 Photo FFS-R9 Photo FFS-R9
Photo FFS-R9 Photo FFS-R9
Test report No. : 10354314S Page : 2 of 20 Issued date : June 2, 2014 FCC ID : 2AADJFFS-U UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10354314S Revision Test report No. Date Page revised Contents - (Original) 10354314S June 2, 2014 - - Test report No. : 10354314S Page : 3 of 20 Issued date : June 2, 2014 FCC ID : 2AADJFFS-U UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1 : Customer information 4 SECTION 2 : Equipment under test (E.U.T.) 4 SECTION 3 : Test specification, procedures & results 5 SECTION 4 : Operation of E.U.T. during testing 7 SECTION 5 : Radiated emission 8 Contents of appendixes 10 APPENDIX 1: Data of EMI test 11 APPENDIX 2: Test instruments 17 APPENDIX 3: Photographs of test setup 18 APPENDIX 4: Configuration and peripherals 20 Test report No. : 10354314S Page : 4 of 20 Issued date : June 2, 2014 FCC ID : 2AADJFFS-U UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Engineering Corporation Address : 3-3-1 Tsujido-Shinmachi, Fujisawa-shi, Kanagawa, 251-0042 Japan Telephone Number : +81-466-38-3428 Facsimile Number : +81-466-38-3771 Contact Person : Masayuki Okada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RF Glow-Stick receiver Model Number : FFS-R9 Serial Number : No.1 (Receiving 922.4MHz) No.2 (Receiving 924.4MHz) No.3 (Receiving 926.4MHz) Rating : DC3V Country of Mass-production : Vietnam Condition of EUT : Production model Receipt Date of Sample : May 23, 2014 Modification of EUT : No modification by the test lab. 2.2 Product description Model: FFS-R9 (referred to as the EUT in this report) is an RF Glow-Stick receiver. Clock frequency(ies) in the system : 30MHz (RFIC), 16MHz (MCU) <Radio part> Equipment type : Receiver Frequency of operation : 922.4-926.4MHz Antenna type : Chip (internal) Test report No. : 10354314S Page : 5 of 20 Issued date : June 2, 2014 FCC ID : 2AADJFFS-U UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart B: 2014, final revised on May 1, 2014 and effective June 2, 2014 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators * The revision on May 1, 2014 does not affect the test specification applied to the EUT. 3.2 Procedures & Results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2009 7. AC powerline conducted emission measurements FCC 15.107 (a) N/A *1) N/A N/A Radiated emission ANSI C63.4: 2009 8. Radiated emission measurements FCC 15.109 (a) N/A 22.5dB Freq.: 4891.379MHz Polarization: Horizontal Detection: Average Mode: Receiving 926.4MHz Complied Antenna power conduction for receivers ANSI C63.4: 2009 12.2.5 Antenna- conducted power measurements FCC 15.111 (a) N/A *2) N/A N/A *1) The test is not applicable since the EUT does not have AC Mains ports. *2) The test is not applicable since the EUT does not have antenna ports. Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 3.3 Additions to standards No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Japan, Inc. hereby confirms the E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart B: 2014. Test report No. : 10354314S Page : 6 of 20 Issued date : June 2, 2014 FCC ID : 2AADJFFS-U UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.5 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency range No.1 SAC *1 /SR *2 (±) No.2 SAC/SR (±) No.3 SAC/SR (±) Radiated emission (Measurement distance: 3m) 30MHz-300MHz 4.8 dB 5.0 dB 4.8 dB 300MHz-1GHz 5.0 dB 5.0 dB 4.8 dB 1GHz-18GHz 4.9 dB 4.9 dB 4.9 dB *1: SAC=Semi-Anechoic Chamber *2: SR= Shielded Room is applied besides radiated emission Radiated emission The data listed in this test report has enough margin, more than site margin. 3.6 Test location UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 JAB Accreditation No. : RTL02610 IC Registration No. Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Maximum measurement distance No.1 semi-anechoic chamber 2973D-1 20.6 x 11.3 x 7.65 20.6 x 11.3 10m No.2 semi-anechoic chamber 2973D-2 20.6 x 11.3 x 7.65 20.6 x 11.3 10m No.3 semi-anechoic chamber 2973D-3 12.7 x 7.7 x 5.35 12.7 x 7.7 5m No.4 semi-anechoic chamber - 8.1 x 5.1 x 3.55 8.1 x 5.1 - No.1 shielded room - 6.8 x 4.1 x 2.7 6.8 x 4.1 - No.2 shielded room - 6.8 x 4.1 x 2.7 6.8 x 4.1 - No.3 shielded room - 6.3 x 4.7 x 2.7 6.3 x 4.7 - No.4 shielded room - 4.4 x 4.7 x 2.7 4.4 x 4.7 - No.5 shielded room - 7.8 x 6.4 x 2.7 7.8 x 6.4 - No.6 shielded room - 7.8 x 6.4 x 2.7 7.8 x 6.4 - 3.7 Test Setup, Data of EMI & Test instruments Refer to Appendix 1 to 3. Test report No. : 10354314S Page : 7 of 20 Issued date : June 2, 2014 FCC ID : 2AADJFFS-U UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 4: Operation of E.U.T. during testing 4.1 Operating mode The EUT exercise program used during testing was designed to exercise the various system components in a manner similar to typical use. Test sequence is used : 1) Re…
Text truncated - open the document above for the full version.
UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test Report No 10354314S 18 of 20 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Auxiliary equipment Test Report No 10354314S 19 of 20 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 4: Configuration and peripherals 4.2 Configuration and peripherals For all modes, cabling and setup were taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model Number Serial Number Manufacturer Remarks A RF Glow-Stick receiver FFS-R9 No.1 (Receiving 922.4MHz) No.2 (Receiving 924.4MHz) No.3 (Receiving 926.4MHz) Sony Engineering EUT B RF transmitter FFS-T1 No.0021 Sony Engineering - C Antenna - - - - D AC adapter SU10-102 08459031 1329 Sinpro Electronics - List of cables used No. Cable Length (m) Shield-Cable Shield-Connector Remarks 1 Coaxial 3.0 Shielded Shielded - 2 DC 0.8 Unshielded Unshielded - END OF REPORT 2 AC 100V / 50Hz B A: EUT : Ferrite core (Standard attachment) D C 1 Test Report No 10354314S 20 of 20
1-22-3 Megumigaoka, Hiratsuka-shi · Kanagawa-ken · Japan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | 922.4 MHz - 926.4 MHz | - |

RF Transmitter
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
RF glow-wristband receiver
Equipment Class
CYY - Communications Receiver used w/Pt 15 Transmitter
RF glow-wristband receiver
Equipment Class
CYY - Communications Receiver used w/Pt 15 Transmitter
RF glow-wristband receiver
Equipment Class
CYY - Communications Receiver used w/Pt 15 Transmitter
