1 Infrared Forehead Thermometer Instructions Model：TE-79 2 CATALOG 1、Safety Precautions ......................................................................................................... 3 2、Features ............................................................................................................................. 7 3、Body temperature and measurement principle ......................................................... 7 4、Product scope/structure composition ....................................................................... 7 5、Instructions ..................................................................................................................... 8 6．Replacement battery ....................................................................................................... 9 7、Cleaning and maintenance ............................................................................................. 9 8、Abnormal message ........................................................................................................... 10 9、Product specification ................................................................................................. 10 10、Fault analysis and troubleshooting ..................................................................... 11 11、Calibration mode conversion method ..................................................................... 12 12、Warranty commitment ................................................................................................... 12 13、Electromagnetic compatibility statement ........................................................... 14 3 1、Safety Precautions a) The warning signs and illustrations in the manual are intended to enable you to use this product safely and correctly, and to prevent harm to you and others. b) In order to be able to use this product correctly, please read the instruction manual in detail; the instruction manual and technical manual of this product are combined, and follow the maintenance recommendations in this manual. c) The warning signs, illustrations and their meanings are as follows. Warning sign WARNING There is a possibility of death or serious injury in case of misuse. NOTICE There is a possibility of personal injury and property damage when used incorrectly. Example of figure notation Symbol means prohibition；The specific prohibited content is expressed in words or pictures in or nearby . The picture on the left shows "General prohibition". The symbol means mandatory；The specific mandatory content is expressed in words or pictures in or nearby .The picture on the left shows "General Mandatory". Symbol Description BF type application part equipment Up This symbol indicates a reference to the attached document Afraid of rain Stacking layers Separate disposal mark for waste electrical and electronic equipment （Please comply with local laws and regulations） fragile CE certification mark Metrology mark Warning Self-judgment and treatment of measurement results are dangerous. Please follow the doctor's instructions. • Self-judgment may worsen the condition. High fever or long-term fever requires medical attention, especially for young children. Please consult a doctor. •Otherwise, the condition may worsen. Keep the battery out of the reach of children. • Otherwise, it may be swallowed by children. If you accidentally swallow the battery, please contact your doctor immediately. Mandatory 4 Contraindications • No contraindications. When not in use for a long time (more than 3 months), remove the battery. • Otherwise, it may cause battery leakage, heat generation, rupture, etc., and damage the main body. Keep the main body out of the reach of children. At the same time, please avoid letting children use the main body alone. •Otherwise, it may cause injury to children Please dispose of the used battery in accordance with the requirements of the place of residence. •If it is disposed of as combustible material, it may cause a fire due to the explosion of the battery, which may cause burns and injuries. Prohibition 5 Warning Do not disassemble, repair or modify the main body. • It may cause errors in the measurement results or cause machine failure. The body is not waterproof. Please be careful when using it to prevent liquid (alcohol, water or hot water) from entering the body. When the main body gets wet due to exposure to steam, wait until it dries or wipe it gently with a soft dry cloth. •It may cause errors in the measurement results or cause machine failure. If there is a temperature difference between the storage location of the main body and the place where you want to measure, please leave the main body in the room where you want to measure for more than 30 minutes to allow it to reach room temperature before measuring. • Otherwise, the measurement results may be inaccurate. When the detection lens becomes dirty, wipe it gently with a soft dry cloth or cotton swab. Do not wipe the detection lens with paper towels or towels. • It may cause the machine to malfunction. Do not violently bump, drop, step on or vibrate the main body. • Damage to the main body may cause injury. Do not use the main body in places with strong static electricity or electromagnetic waves. • It may cause errors in the measurement results or cause machine failure. Do not touch the detection lens with your fingers or exhale into the lens. • May cause inaccurate measurement results Do not use it in an environment with electromagnetic interference. • May cause inaccurate measurement results Do not try to measure when the body is wet. • May cause inaccurate measurement results Statement Mandatory Prohibition Disassembly prohibited 6 1. The clinical accuracy or clinical deviation of the infrared forehead thermometer has been clinically verified, and its safety and effectiveness are in compliance with relevant national regulations. The claimed performance verification method of the product can be obtained by…

Text truncated - open the document above for the full version.

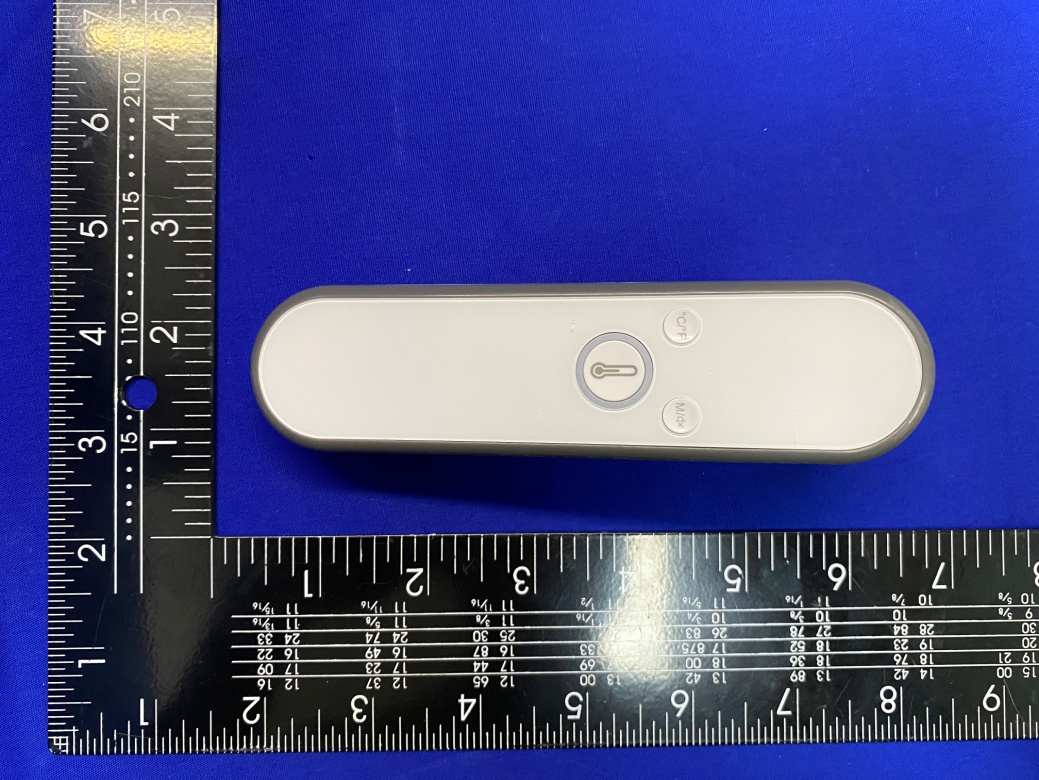

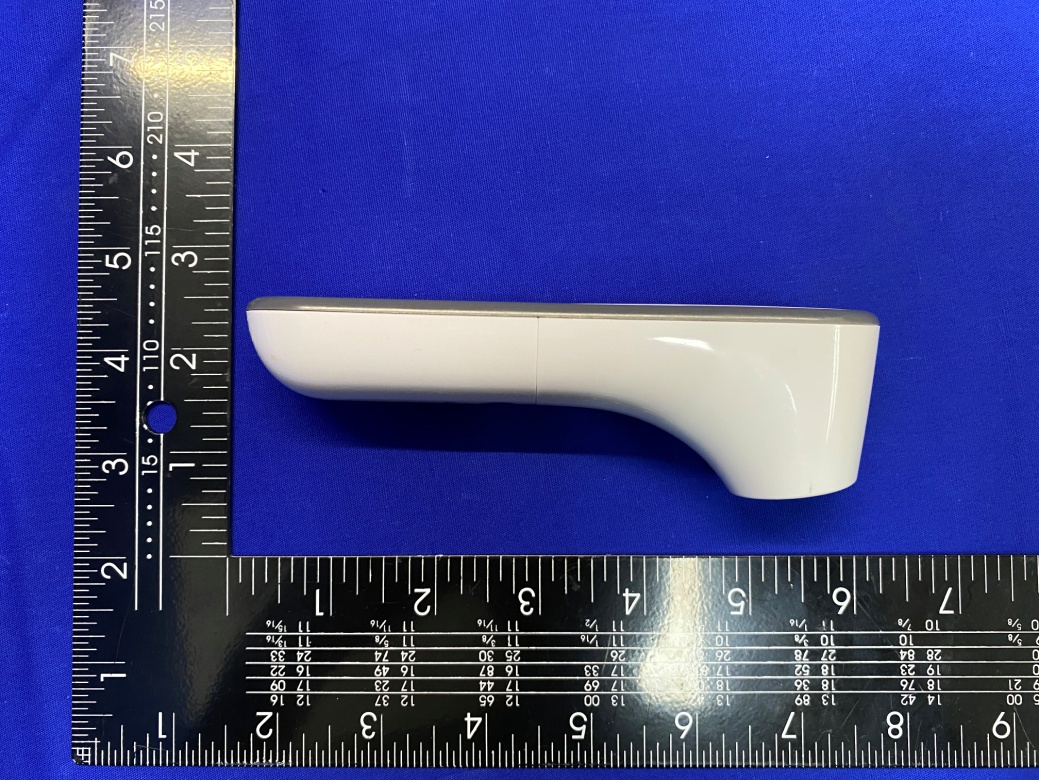

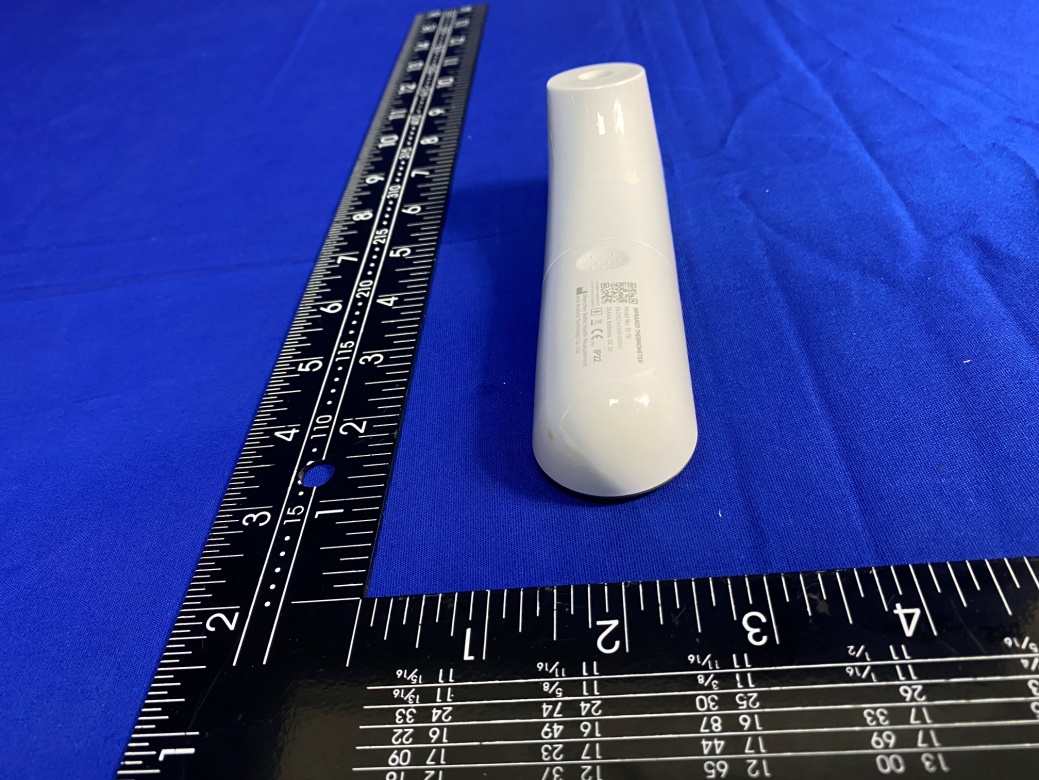

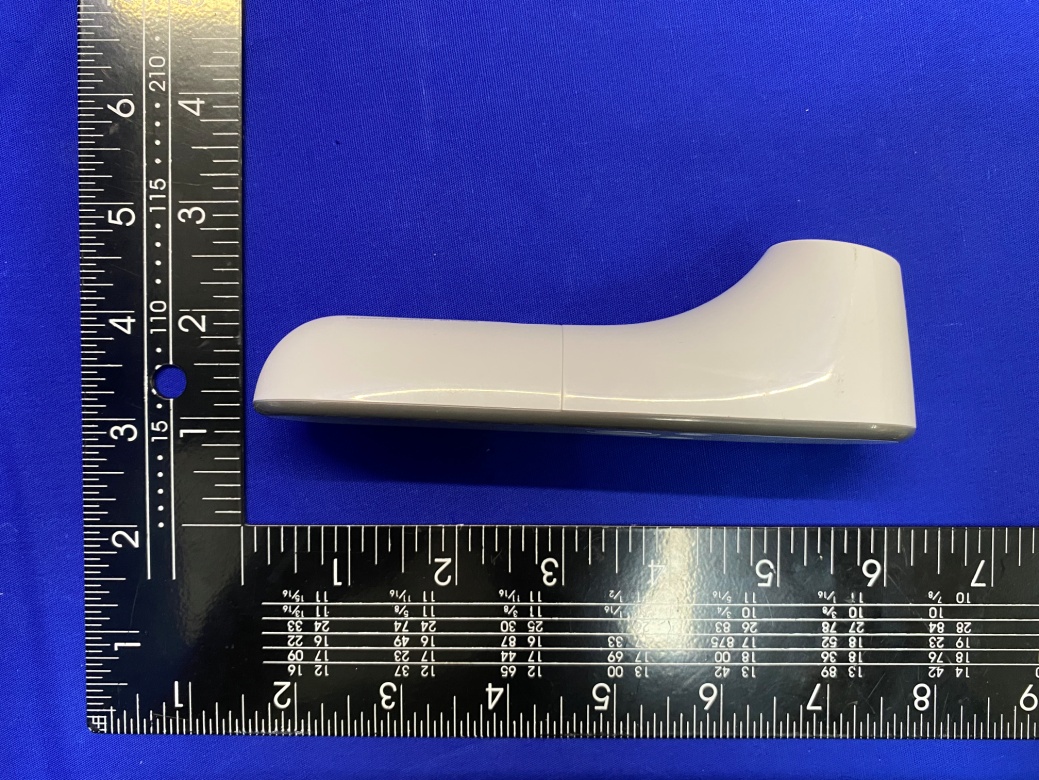

External Photos

序号 未标注公差 日期 revised text 1 / A1.0mm/ ANNOTATION DATE NO: 修改内容 附注 MODEL/NO: 型 號 TITLE: 名 称 PART/NO: 零件型 號 零件名称 PART NAME: MATERIAL: 材 料 HEAT TREATMENT: 表面处理 TOPDRESSING: 热 处 理 数量 QTY: 版本號 VER: SCALE: UNIT: 单位 TOLERANCE公差 LINEAR線性 ANGULAR角度 X.XX - ±0.05 X.X - ±0.1 X. - ±0.2 Ā Ā UNLESS OTHERWISE SPECIFIED 制图者 D RAWING BY: CHECKED BY: 审核者 核准者 APPROVED BY : DATE: 日期 设计者 DESIGNED BY : DATE: 日期 TE-79L-TE-79 额温计电池盖镭雕 A B C D A B C D 2345 5 4321 丝印 钱建甫 钱建甫 2021.03.17 2020.03.17 DATE: 日期 DATE : 日期 Dongguan simple Industrial Co.，Ltd 东莞市森普实业有限公司 SN: D1021435WH00001 01 06947468500137 11 2115 10 21020101 INFRARED THERMOMETER Model No.: TE-79 2XAAA Batteries, DC 3V Shenzhen Belter Health Measurementand Analysis Technolgy Co., Ltd FCC ID : 2AAEETE79

Internal Photos BLE ANT

FCC ID: 2AAEETE79 Portable device According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Mode Transmit Frequency (GHz) Max Conducted Power (dBm) tune up maximum power(dBm) Result calculation 1-g SAR GFSK 2.440 -2.19 -1 0.2 3 Conclusion: For the max result : 0.2 ≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2021.5.10 NAME AND TITLE (Please print or type): Lisa Wang/Manager COMPANY (Please print or type): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China

Report No.ES210329086W Page 1 of 42 Ver.1.0 TEST REPORT Product Name ： Infrared Thermometer Model Number ： TE-79 FCC ID ： 2AAEETE79 Prepared for : Shenzhen Belter Health Measurement and Analysis Technology Co.,Ltd. Address : 702, 704, Block C, Tsinghua Unis Science Park, Hi-Tech Industrial Park North, Nanshan, Shenzhen, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210329086W Date(s) of Tests : April 1, 2021 to April 21, 2021 Date of issue : April 23, 2021 Report No.ES210329086W Page 2 of 42 Ver.1.0 Table of Contents TEST REPORT ....................................................................................................................................................... 1 1 TEST RESULT CERTIFICATION .............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................. 4 3 SUMMARY OF TEST RESULT ................................................................................................................... 5 4 TEST METHODOLOGY ............................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .................................................................................................. 6 4.3 DESCRIPTION OF TEST MODES ........................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES .............................................................................................................................................. 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ......................................................................... 8 6 TEST SYSTEM UNCERTAINTY ................................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 10 7.1 RADIO FREQUENCY TEST SETUP 1 .................................................................................................. 10 7.2 RADIO FREQUENCY TEST SETUP 2 .................................................................................................. 10 7.3 CONDUCTED EMISSION TEST SETUP .............................................................................................. 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .............................................................. 13 7.5 SUPPORT EQUIPMENT ........................................................................................................................ 13 8 TEST REQUIREMENTS ............................................................................................................................. 14 8.1 DTS 6DB BANDWIDTH ........................................................................................................................ 14 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ......................................................................... 17 8.3 MAXIMUM POWER SPECTRAL DENSITY ........................................................................................ 20 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ...................................... 23 8.5 RADIATED SPURIOUS EMISSION ...................................................................................................... 28 8.6 CONDUCTED EMISSIONS TEST ......................................................................................................... 40 8.7 ANTENNA APPLICATION ................................................................................................................... 41 Report No.ES210329086W Page 3 of 42 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shenzhen Belter Health Measurement and Analysis Technology Co.,Ltd. Address : 702, 704, Block C, Tsinghua Unis Science Park, Hi-Tech Industrial Park North, Nanshan, Shenzhen, China Manufacturer : Shenzhen Belter Health Measurement and Analysis Technology Co.,Ltd. Address : 702, 704, Block C, Tsinghua Unis Science Park, Hi-Tech Industrial Park North, Nanshan, Shenzhen, China EUT : Infrared Thermometer Model Name : TE-79 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : April 1, 2021 to April 21, 2021 Prepared by : Lance Li/Editor Reviewer : Sewen Guo /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES210329086W Page 4 of 42 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product Infrared Thermometer Model Number TE-79 Sample number: 1# Device Type Bluetooth V4.0 Data Rate : 1Mbps for GFSK modulation Modulation: GFSK Operating Frequency Range: 2402-2480MHz Number of Channels: 40 Channels Transmit Power Max: -2.19 dBm Antenna Type: PCB Antenna Antenna Gain: -5.0 dBi Power supply AAA 1.5V*2 Date of Received: March 30, 2021 Temperature Range: +5°C ~ +40°C Note: for more details, please refer to …
