2AAEMCE-1177BRHYTHMATIC WIRELESS EARBUDS

3.15inch 3.15inch 2.756inch2.756inch 70gWoodfree printing paper, single color printing. 1-Charging your headset The headsets will constant red while charging and LED will turn off when fully charged.(Voice indicator for low battery power with red LED flashing) Use method: 2-Turning your headset on and off Press On/Off button 1 second turn headset onpress button 5-6 seconds turn headset off. Headset ON Blue LED flash two times per second. 3-Pairing the headset with your phone a, Press ON/Off button 3 seconds the device enters pairing search mode, while pairing blue LED and red LED flash alternately b, After Pairing successes blue LED will flash every 5 seconds. c, If headsets is disconnected with phone via Bluetooth in 1-2 minutes, headset will connect with last time pairing devices automatically. 4-Using your headset a, ON/Off button: 1) .Gently press this button less than 1 seconds for Play/Pause 2). While calling status, press this button less than 1 seconds for answer/end call. Long press for rejecting an ongoing call. While calling long press the button for transfer to cell phones answer, press this button twice for dial Last Call. b, Next/Volume +: Press this button once for Volume Up, Long press the button for Next c, Previous/Volume-: Press this button once for Volume Down, Long press the button for Previous 5-Your Blackweb supports MULTIUSE, which enables you to connect two active mobile phones(or other Bluetooth devices) Volume up/Next Power ON/OFF Pair/Play/ Stop/Answer call/End call Volume down/Previous Headphone jack for Charging jack LED MIC RHYTHMATIC WIRELESS EARBUDS PRODUCT GUIDE Model: CE-1177B TM FCC NOTE： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

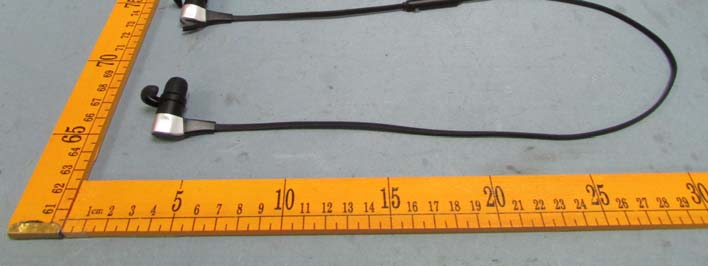

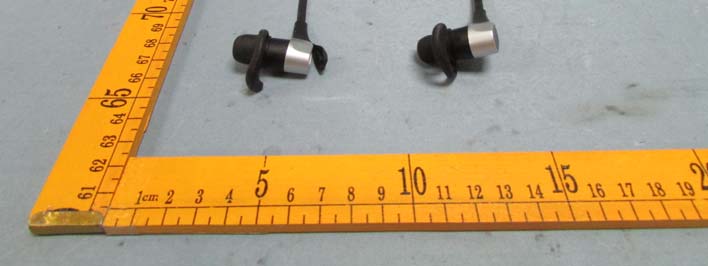

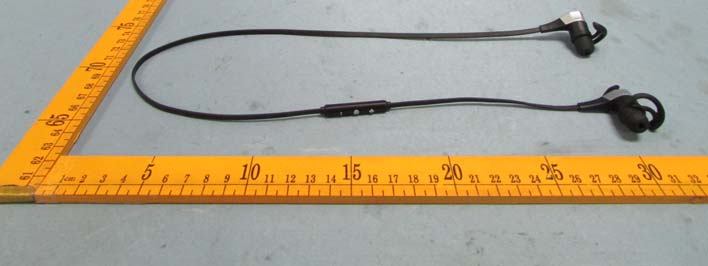

Reference No.: WTD15S0121944E Page 56 of 60 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 17 Photographs - Constructional Details 17.1 Model CE-1177B External View Reference No.: WTD15S0121944E Page 57 of 60 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: CE-1177B The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: 2AAEMCE-1177B

FCC Label Sample for model: CE-1177B, BWA15AA004, BWA15AA005 FCC ID: 2AAEMCE-1177B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 60 TEST REPORT Reference No. .................... : WTD15S0121944E FCC ID ................................ : 2AAEMCE-1177B Applicant ............................ : Cosonic Acoustic technology Co., Ltd. Address .............................. : No.6,South Industry Road, Songshan Lake National High-tech Industrial Development Zone, Dongguan , Guangdong China Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : RHYTHMATIC WIRELESS EARBUDS Model No. ........................... : CE-1177B, BWA15AA004, BWA15AA005 Brand............................. : blackweb, cosonic Standards........................... : FCC CFR47 Part 15 Section 15.247:2012 Date of Receipt sample .... : Jan.09, 2015 Date of Test ....................... : Jan.09, 2015 ~ Jan.15, 2015 Date of Issue ...................... : Jan.21, 2015 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTD15S0121944E Page 2 of 60 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS Band edge 15.247(d) 15.205(a) PASS Conduct Emission 15.207 PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTD15S0121944E Page 3 of 60 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................... 5 4.2 DETAILS OF E.U.T. .................................................................................................................................... 5 4.3 CHANNEL LIST ............................................................................................................................................ 5 4.4 TEST MODE ................................................................................................................................................ 6 4.5 TEST FACILITY ............................................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ............................................................................................................. 7 5.1 EQUIPMENTS LIST ...................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY .................................................................................................................. 8 5.3 TEST EQUIPMENT CALIBRATION ................................................................................................................ 8 6 CONDUCTED EMISSION ............................................................................................................................... 9 6.1 E.U.T. OPERATION .................................................................................................................................... 9 6.2 EUT SETUP ................................................................................................................................................ 9 6.3 MEASUREMENT DESCRIPTION ................................................................................................................... 9 6.4 CONDUCTED EMISSION TEST RESULT .................................................................................................... 10 7 RADIATED SPURIOUS EMISSIONS .......................................................................................................... 12 7.1 EUT OPERATION ...................................................................................................................................... 12 7.2 TEST SETUP ............................................................................................................................................. 13 7.3 SPECTRUM ANALYZER SETUP ................................................................................................................. 14 7.4 TEST PROCEDURE ................................................................................................................................... 15 7.5 SUMMARY OF TEST RESULTS .................................................................................................................. 16 8 BAND EDGE MEASUREMENT ..............................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs – Model CE-1177B Test Setup Photograph – Conducted Emission Test Setup P hotograph – Radiation Spurious Emission Test Setup Below 30MHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 30MHz-1GHz Above 1G Hz
