OFF/ON Quick Setup Guide | NS-CAHBTEB01 Bluetooth Headset PACKAGE CONTENTS • Bluetooth Headset • USB charging cable • Earbuds (small and large) • Quick Setup Guide FEATURES • High-quality stereo sound from Bluetooth 4.0 enabled devices • Battery lasts 12 hours (talk), 10 hours (music) • Inline controls easily adjust audio • Curved design fits comfortably around the neck Before using your new product, please read these instructions to prevent any damage. CHARGING YOUR HEADSET A tone sounds (every 60 seconds) and the LED flashes red when your headset battery is low. • Connect the USB charging cable from your headset’s charging port to a USB port. PAIRING YOUR HEADSET Pairing your first Bluetooth device 1 Slide the power switch to ON. The LED blinks red and blue and the headset enters pairing mode. 2 Make sure that your Bluetooth device is within 33 ft. (10 m) of your headset. 3 Turn on your Bluetooth device, turn on Bluetooth, then set your device to pairing mode. For more information, see the documentation that came with your Bluetooth device. 4 On your Bluetooth device, select NS-CAHBTEB01. The LED lights blue and a tone sounds when your headset pairs to your Bluetooth device. Manually pairing your Bluetooth device 1 Press and hold  (call) to enter pairing mode. The LED blinks red and blue. 2 Make sure that your Bluetooth device is within 33 ft. (10 m) of your headset. 3 Turn on your Bluetooth device, turn on Bluetooth, then set your device to pairing mode. For more information, see the documentation that came with your Bluetooth device. 4 On your Bluetooth device, select NS-CAHBTEB01. The LED lights blue and a tone sounds when your headset pairs to your Bluetooth device. Pairing two devices 1 Pair your headset to your secondary Bluetooth device first. See "Pairing your first Bluetooth device" for instructions. 2 Press and hold (call) on your Bluetooth headset to enter pairing mode. 3 Connect your primary Bluetooth device to your Bluetooth headset. See "Manually pairing your Bluetooth device" for instructions. 4 Re-pair your secondary Bluetooth device to your Bluetooth headset. See "Manually pairing your Bluetooth device" for instructions. Note: When connected to two phones, the headset calling functions will work with the primary phone. Disconnecting and reconnecting your paired device Your headset remembers up to six Bluetooth devices and will turn off after three minutes if it is not paired to a Bluetooth device. Earbud (L) Earbud (R) Call button/LED indicator Volume down Volume up Charging port OFF/ON Power switch Neck strap Play/Pause Rewind/Skip back Fast forward/Skip forward To disconnect... Turn off your headset To reconnect... Turn on your headset .Your headset searches for the last connected Bluetooth device and reconnects. OFF/ON O Microphone Final flat size: 304.8 x 177.8 mm Final fold size: 76.2 x 177.8 mm NS-CAHBTEB01_15-0047_QSG_V1_EN_FINAL.ai 1 3/12/2015 3:27:50 PMNS-CAHBTEB01_15-0047_QSG_V1_EN_FINAL.ai 1 3/12/2015 3:27:50 PM V1 ENGLISH 15-0047 Note: If a device does not automatically reconnect, you may need to reselect “NS-CAHBTEB01” on your Bluetooth device. WEARING YOUR HEADSET USING YOUR HEADSET Making phone calls Note: When your headset is connected to two Bluetooth devices, calling functions work with the primary Bluetooth device (the one that is connected second or made the last outgoing call). • To make a call, use your phone’s controls, then select the headset as the audio source. • To redial the last number on your primary phone, press  (call) twice. • To answer an incoming call, press  (call). Issue No sound or low volume Cannot connect with Bluetooth Bluetooth device keeps unpairing “NS-CAHBTEB01” does not appear on my Bluetooth device No Power Solution • Make sure that your Bluetooth device is turned on, Bluetooth is turned on, and “NS-CAHBTEB01” is selected. • Turn up the volume on your headset and Bluetooth device. • Make sure that your Bluetooth device is not muted. • Make sure that your headset and Bluetooth device are not paired to other devices. • Shorten the distance between your headset and Bluetooth device. • Turn your devices off, then on. Re-pair your headset and Bluetooth device. • Make sure that your headset and Bluetooth device are not paired to other devices. • Make sure that your Bluetooth device supports the HSP, SFP, A2DP, or AVRCP Bluetooth protocol. • Make sure that you have selected “NS-CAHBTEB01” on your Bluetooth device. • Shorten the distance between your headset and your Bluetooth device. • Recharge your headset and Bluetooth device's batteries. • Shorten the distance between your headset and Bluetooth device. • Put your headset into pairing mode, then refresh your list of Bluetooth devices. For more information, see the documentation that came with your Bluetooth device. • Make sure your Bluetooth headset is charged. • Make sure your Bluetooth headset is turned ON. TROUBLESHOOTING To disconnect... Move the Bluetooth device out of range Turn off your Bluetooth device Turn off Bluetooth on your Bluetooth device Connect your Bluetooth device to another Bluetooth device To reconnect... Make sure your Bluetooth device is within 33 feet of your headset. Turn on your Bluetooth device, then make sure Bluetooth is on. Turn on Bluetooth on your Bluetooth device. Disconnect your Bluetooth device from the other Bluetooth device, then set your device to pairing mode. Select “NS-CAHBTEB01” on your Bluetooth device. Note: Your headset vibrates when there is an incoming call. • To switch audio between your headset and phone, use your phone’s controls. • To reject an incoming call, press and hold  (call) for two seconds. • To end a call, press  (call) twice. Call waiting • To switch to an incoming call, press  (call) twice while speaking on an active call. • To switch between two active calls, press and hold  (call) for one second. • To end both calls, press  (call). Begin playback on your Bluetooth device. • To play audio, press . • To sk…

Text truncated - open the document above for the full version.

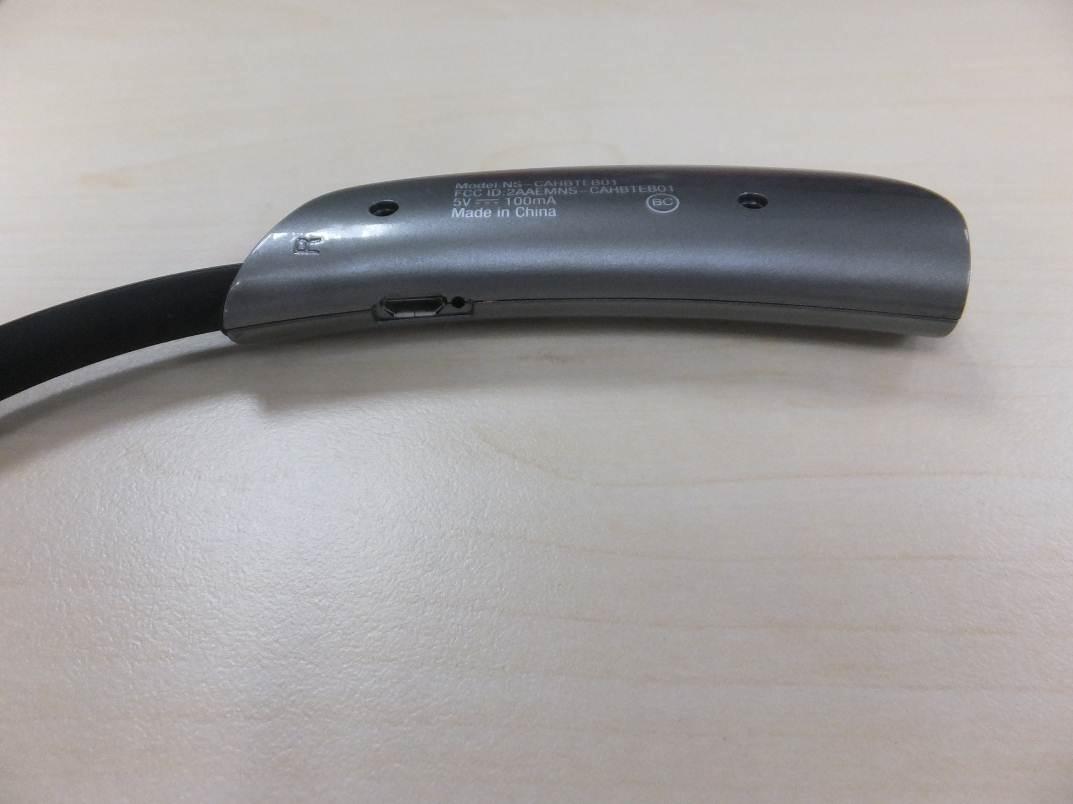

Page 1 of 1 Type Designation: NS-CAHBTEB01 Report Number: 17047980 001 Fig. 1: External view Fig. 2: External view

28.4mm 9.5mm NS-CAHBTEB01 film CH-5101B film Text:HelveticaNeue LT 7pt Size:21.5x9.5mm Color:Pantone 877C Model:NS-CAHBTEB01 FCC ID:2AAEMNS-CAHBTEB01 5V 100mA Made in China LR Front LR S/N:YYMDDFXXXX Serial number sticker location Back Model:NS-CAHBTEB01 FCC ID:2AAEMNS-CAHBTEB01 5V 100mA Made in China 25mm 3mm

Page 1 of 4 Type Designation: NS-CAHBTEB01 Report Number: 17047980 001 Fig. 1: Internal view Fig. 2: Internal view Page 2 of 4 Type Designation: NS-CAHBTEB01 Report Number: 17047980 001 Fig. 3: Internal view Fig. 4: Internal view Page 3 of 4 Type Designation: NS-CAHBTEB01 Report Number: 17047980 001 Fig. 5: Internal view Fig. 6: Internal view Page 4 of 4 Type Designation: NS-CAHBTEB01 Report Number: 17047980 001 Fig. 7: Internal view

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: Bluetooth earbuds FCC ID: 2AAEMNS-CAHBTEB01 Radio Frequency Exposure Compliance RESULT: Passed Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02 The minimum distance for the EUT is 1cm, since maximum peak output power of the transmitter is 0.32mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure.Guidance v05.

Produkte P roducts TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 17047980 001 Auftrags-Nr.: Order No.: 164031818 Seite 1 von 30 Page 1 of 30 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 30.03.2015 Auftraggeber: Client: Cosonic Acoustic Technology Co., Ltd. 5th Floor, 1st Building, No.6, South Industry Road Songshan Lake Hi-tech Industrial Development Zone, Dongguan, Guangdong Province, China. Prüfgegenstand: Test item: Bluetooth in-ear Headset Bezeichnung / Typ-Nr.: Identification / Type No.: NS-CAHBTEB01 Auftrags-Inhalt: Order content: FCC Certification and Verification Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 15: Subpart C Section 15.107 CFR47 FCC Part 15: Subpart C Section 15.109 Wareneingangsdatum: Date of receipt: 30.03.2015 Prüfmuster-Nr.: Test sample No.: A000178656-001 to 003 Prüfzeitraum: Testing period: 31.03.2015 - 03.04.2015 Ort der Prüfung: Place of testing: Shenzhen Accurate T echnology Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Bitte wählen / Please select... geprüft von / tested by: 17.04.2015 Owen Tian / Senior Project Manager kontrolliert von / reviewed by: 20.04.2015 Winnie Hou / Technical Certifier Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht a uszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 17047980 001 Seite 2 von 30 P age 2 of 30 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5. 1.2 PEAK OUTPUT POWER RESULT: Passed 5. 1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Passed 5.1.4 -6DB BANDWIDTH RESULT: Passed 5. 1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5. 1.6 SPURIOUS EMISSION RESULT: Passed 5. 1.7 20DB BANDWIDTH RESULT: Passed 5.1.8 FREQUENCY SEPARATION RESULT: Passed 5.1.9 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.10 TIME OF OCCUPANCY RESULT: Passed 5. 1.11 CONDUCTED EMISSIONS RESULT: Passed 5.1.12 RADIATED EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17047980 001 Seite 3 von 30 P age 3 of 30 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1. 1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2. 1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2. 7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3. 1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 9 3. 4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. TEST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 10 4. 3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM ...................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17047980 001 Seite 26 von 30 Page 26 of 30 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17047980 001 Seite 27 von 30 Page 27 of 30 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17047980 001 Seite 28 von 30 Page 28 of 30 Photograph 5: Set-up for Conducted Emissions Photograph 6: Set-up for Radiated Emissions, below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17047980 001 Seite 29 von 30 Page 29 of 30 Photograph 7: Set-up for Radiated Emissions, above 1GHz
