2AAFT-KUL01TX-01KUL01TX-01

Instruction Manual Of KUL01TX-01 1. Installation: 1）Open the battery cover of KUL01TX-01,and put 2x AAA batteries into; 2) There are 8 channels on the dial part of KUL01TX-01, which are “1” “2” “5” “15” “30” “NO CDS” “TEST1” “TEST2”. “TEST1” and “TEST2”are used by factory workers on testing, do not select; If need work at night, select one of "1, 2, 5, 15, 30“according to your need of Time-delay. The time delay is a period of time from the person walk into and out the detective range of KUL01TX-01; "NO CDS" is working in whole day and turned off by Time-delay 5 minutes; 3) According to the detective range, install the plastic mounting of KUL01TX-01 to the right position on the wall; Adjust the angle of sensor window, which face to the needed area you want. 2. Function: 1) KUL01TX-01 will not work during the day when select “1，2，5，15，30”. At night, when person go across the detective range of KUL01TX-01, it will send an “ON” signal to KUQ01RF-01 and off power when “Delay Time” was gone. 2) Select “NO CDS” which will work in whole day. When person goes across the detective range of KUL01TX-01, it will send an “ON” signal to KUQ01RF-01 and turn off after 5 minutes when it enters into “Time Delay” mode automatically. 3) Under selection of “1，2，5，15，30”, the LED inside of KUL01TX-01 will be turned ON for 10 seconds when it’s from the day enters into the night. 4) The LED inside of KUL01TX-01 will be flicker once time when change the channel to the next one. 3. Specification: Voltages: 2* AAA batteries Remote Distance: 8M Frequency: 315MHZ Battery Life: 1 year REMINDING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

NINGBO KML ELECTRICAL CO.,LTD Web Site: www.kml-chin.com AUTHORIZATION LETTER FCC ID: 2AAFT-KUL01TX-01 Data: 2013-06-24 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Colin Fu Vice General Manager No.707 Xiufeng Rd,Gaoqiao Industry Park,Yinzhou District,Ningbo,Zhejiang Province, China, 315173

NINGBO KML ELECTRICAL CO.,LTD Web Site: www.kml-chin.com CONFIDENTIALITY REQUEST FCC ID: 2AAFT- KUL01TX-01 Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description 4) BOM The above material contains trade secrets or technical data which NINGBO KML ELECTRICAL CO.,LTD deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Thank you Sincerely, Colin Fu Vice General Manager No.707 Xiufeng Rd,Gaoqiao Industry Park,Yinzhou District,Ningbo,Zhejiang Province, China, 315173

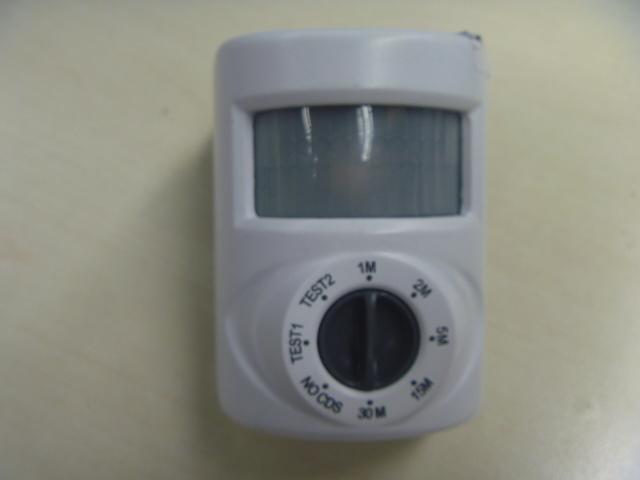

FCC ID: 2AAFT-KUL01TX-01 Page 1 of 2 External Picture FCC ID: 2AAFT-KUL01TX-01 Page 2 of 2

78.00mm 5 9 .5 0 Motion SensorFCC ID: 2AAFT-KUL01TX-01Model ： KUL01TX-01 Use Alkaline Battery AAA 2x1.5VFOR INDOOR USE ONLYMade in China

FCC ID: 2AAFT-KUL01TX-01 Page 1 of 14 Test Data FCC ID: 2AAFT-KUL01TX-01 Page 2 of 14 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x MES NE0603_H3_red MES NE0603_H3_pre LIM FCC 15 F 3 QP FCC ID: 2AAFT-KUL01TX-01 Page 3 of 14 1000-3500MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G Frequency [Hz] x x x x x x x x MES NE0603_HH1_red MES NE0603_HH1_pre LIM FCC 15.231 Field Strength QP FCC ID: 2AAFT-KUL01TX-01 Page 4 of 14 Vertical 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x MES NE0603_V3_red MES NE0603_V3_pre LIM FCC 15 F 3 QP FCC ID: 2AAFT-KUL01TX-01 Page 5 of 14 1000-3500MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G Frequency [Hz] x x x x x x x x x MES NE0603_HV1_red MES NE0603_HV1_pre LIM FCC 15.231 Field Strength QP FCC ID: 2AAFT-KUL01TX-01 Page 6 of 14 2. Deactivating time Pulse of “ON” FCC ID: 2AAFT-KUL01TX-01 Page 7 of 14 Pulse of “OFF” FCC ID: 2AAFT-KUL01TX-01 Page 8 of 14 3. Emission bandwidth Emission bandwidth = 24.60 kHz + 25.80 kHz = 50.40 kHz FCC ID: 2AAFT-KUL01TX-01 Page 9 of 14 1. Duty Cycle Pulse Train of “ON” FCC ID: 2AAFT-KUL01TX-01 Page 10 of 14 Long Pulse FCC ID: 2AAFT-KUL01TX-01 Page 11 of 14 Short Pulse The coding have 8 long pulse and 24 short pulse. Duty cycle= (8*0.720+24*0.260)/39.20=0.3061 As a result, the duty cycle of 0.3061 is taken into calculation. Duty cycle correction factor =20 log (Ton/T)= 20 log 0.3061= -10.28dB FCC ID: 2AAFT-KUL01TX-01 Page 12 of 14 Pulse Train of “OFF” FCC ID: 2AAFT-KUL01TX-01 Page 13 of 14 Long Pulse FCC ID: 2AAFT-KUL01TX-01 Page 14 of 14 Short Pulse The coding have 8 long pulse and 24 short pulse. Duty cycle= (8*0.720+24*0.260)/39.27=0.3056 As a result, the duty cycle of 0.3056 is taken into calculation. Duty cycle correction factor =20 log (Ton/T)= 20 log 0.3056= -10.30dB

2AAFT-KUL01TX-01 Page 1 of 20 EMC TEST REPORT No. 130501648SHA-001 Applicant : NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Manufacturer : NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Equipment : Plug-in Wireless Motion Activated Control Type/Model : KUL01TX-01 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2012): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: July 08, 2013 Prepared by: Reviewed by: Nemo Li (Project Engineer) Jonny Jing (Reviewer) 2AAFT-KUL01TX-01 Page 2 of 20 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 2AAFT-KUL01TX-01 Page 3 of 20 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 14 4.1 Test limit ....................................................................................................................... 14 4.2 Test Configuration ........................................................................................................ 15 4.3 Test procedure and test setup ........................................................................................ 15 4.4 Test protocol ................................................................................................................. 15 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 16 5.1 Limit .............................................................................................................................. 16 5.2 Test configuration ......................................................................................................... 16 EMI receiver ................................................................................................................... 16 5.3 Test procedure and test set up ....................................................................................... 17 5.4 Test protocol ................................................................................................................. 18 6. EMISSION BANDWIDTH ............................................................................................................................. 19 6.1 Test limit ....................................................................................................................... 19 6.2 Test Configuration ........................................................................................................ 19 6.3 Test procedure and test setup ........................................................................................ 19 6.4 Test protocol ................................................................................................................. 20 2AAFT-KUL01TX-01 Page 4 of 20 1. General Information 1.1 Applicant Information Applicant: NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Manufacturer: NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Sample received date: May 22, 2013 Sample Identification No : 0130522-20-008 Date of test : May 22~ July 8, 2013 1.2 Identification of the EUT Equipment:…

Text truncated - open the document above for the full version.

FCC ID: 2AAFT-KUL01TX-01 Page 1 of 3 Test Setup FCC ID: 2AAFT-KUL01TX-01 Page 2 of 3 1. Radiated Emission 30MHz-1000MHz FCC ID: 2AAFT-KUL01TX-01 Page 3 of 3 Higher than 1GHz
