2AAFT-KUQ01RF-01KUL01TX-01

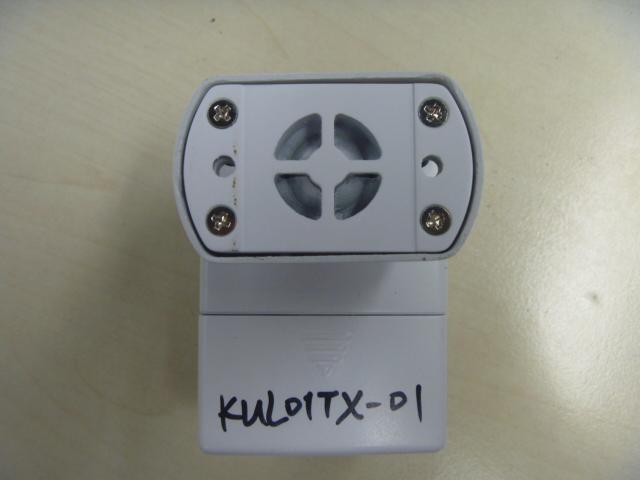

Instruction Manual Of KUQ01RF-01 1. Installation: Plug KUQ01RF-01 into the main power socket, and connect with the elec. appliances. 2. Function: KUQ01RF-01 will turn on immediately when it receives the “ON” signal from KUL01TX-01, then the appliances which connected with KUQ01RF-01 will work. LED light on KUQ01RF-01 will be flicker when KUQ01RF-01 receives the “Delay Time” signal from KUL01TX-01, and KUQ01RF-01 will be turned off after the countdown time is finished. 3. Specification: Voltages: AC120V/60HZ Current: 15A/1800W Frequency: 315MHZ REMINDING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

NINGBO KML ELECTRICAL CO.,LTD Web Site: www.kml-chin.com AUTHORIZATION LETTER FCC ID: 2AAFT- KUQ01RF-01 Data: 2013-06-24 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Colin Fu Vice General Manager No.707 Xiufeng Rd,Gaoqiao Industry Park,Yinzhou District,Ningbo,Zhejiang Province, China, 315173

NINGBO KML ELECTRICAL CO.,LTD Web Site: www.kml-chin.com CONFIDENTIALITY REQUEST FCC ID: 2AAFT-KUQ01RF-01 Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description 4) BOM The above material contains trade secrets or technical data which NINGBO KML ELECTRICAL CO.,LTD deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Thank you Sincerely, Colin Fu Vice General Manager No.707 Xiufeng Rd,Gaoqiao Industry Park,Yinzhou District,Ningbo,Zhejiang Province, China, 315173

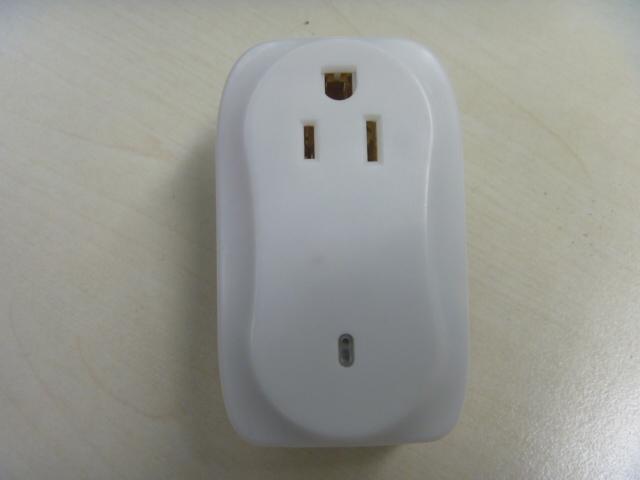

FCC ID: 2AAFT-KUQ01RF-01 Page 1 of 2 External Picture FCC ID: 2AAFT-KUQ01RF-01 Page 2 of 2

52.70mm 85.00 Wireless Plug-In ReceiverFCC ID: 2AAFT -KUQ01RF-01Model:KUQ01RF-01120V ~ 60Hz15A MAX.1800W resistive or GP200W TungstenFORINDOORUSEONLYMade in ChinaConfirm to UL STD.244A and 498AConfirm to CSA STD C22.2 No.14 and No.42 Date:20XX/YY

FCC ID: 2AAFT-KUQ01RF-01 Page 1 of 2 Internal Picture FCC ID: 2AAFT-KUQ01RF-01 Page 2 of 2

FCC ID: 2AAFT-KUQ01RF-01 Page 1 of 5 Test Data FCC ID: 2AAFT-KUQ01RF-01 Page 2 of 5 1. Conducted Emission L Line FCC ID: 2AAFT-KUQ01RF-01 Page 3 of 5 N Line FCC ID: 2AAFT-KUQ01RF-01 Page 4 of 5 2. Radiated Emission Horizontal, PK 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 30M50M70M100M200M300M500M700M1G Fr equency [ Hz] x x x x M ES NE0613_H1_r ed M ES NE0613_H1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 1G1. 5G2G2. 5G3G3. 5G Fr equency [ Hz] M ES NE0613_HH1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P FCC ID: 2AAFT-KUQ01RF-01 Page 5 of 5 Vertical, PK 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 30M50M70M100M200M300M500M700M1G Fr equency [ Hz] x x x x M ES NE0613_V1_r ed M ES NE0613_V1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 1G1. 5G2G2. 5G3G3. 5G Fr equency [ Hz] M ES NE0613_HV1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P

FCC ID: 2AAFT-KUQ01RF-01 Page 1 of 14 EMC Test Report for FCC No. 130501648SHA-002 Applicant : NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Manufacturer : NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Product Name : Plug-in Wireless Motion Activated Control Type/Model : KUQ01RF-01 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2012): Radio Frequency Device: Subpart B; Unintentional radiators class B ANSI C63.4 (2003): Interim Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz. Date of issue: July 08, 2013 Prepared by: Reviewed by: Nemo Li (Project Engineer) Jonny Jing (Reviewer) FCC ID: 2AAFT-KUQ01RF-01 Page 2 of 14 Content SUMMARY ........................................................................................................................................................... 1 CONTENT................................................................................................................................................................ 2 1. GENERAL INFORMATION .......................................................................................................................... 3 1.1 Description of equipment under Test (EUT) ................................................................................................ 3 1.2 Description of Client .................................................................................................................................... 3 1.3 Description of Test Facility .......................................................................................................................... 4 2. TEST SPECIFICATIONS ............................................................................................................................... 5 2.1 Standards ...................................................................................................................................................... 5 2.2 Mode of operation during the test / Test peripherals used ............................................................................ 5 2.2.1 Description of operation ........................................................................................................................ 5 2.3 Instrument list ............................................................................................................................................... 6 2.4. Test Summary .............................................................................................................................................. 7 3. CONDUCTED DISTURBANCE VOLTAGE AT MAINS TERMINALS .......................................................................... 8 3.1 Limits ........................................................................................................................................................... 8 3.1.1 Limits for conducted disturbance voltage at the mains ports of class A device .................................... 8 3.1.2 Limits for conducted disturbance voltage at the mains ports of class B device .................................... 8 3.2 Test setup ...................................................................................................................................................... 9 3.3 Test Setup and Test Procedure ................................................................................................................... 10 3.4 Test Protocol ............................................................................................................................................... 11 4. RADIATED EMISSION ........................................................................................................................................ 12 4.1 Radiated emission limits ............................................................................................................................. 12 4.2 Block diagram and test set up ..................................................................................................................... 13 4.3 Test Setup and Test Procedure ................................................................................................................... 14 4.4 Test Protocol ............................................................................................................................................... 14 FCC ID: 2AAFT-KUQ01RF-01 Page 3 of 14 1. GENERAL INFORMATION 1.1 Description of equipment under Test (EUT) Product Name : Plug-in Wireless Motion Activated Control Description of EUT : There is one model only. The EUT is a receiver to receive wireless signal so that its on/off condition can be controlled by the transmitter. Model number : KUQ01RF-01 FCC ID : 2AAFT-KUQ01RF-01 Category of EUT : Class B Rating : 120V, 60Hz, Max 1800W. EUT type : Table top Floor standing Sample received date : May 22, 2013 Sample Identification No : 0130522-20-007 Date of test : May 22~ June 5, 2013 1.2 Description of Client Applicant: NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Manufacturer: NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China FCC ID: 2AAFT-KUQ01RF-01 Page 4 of 14 1.3 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AAFT-KUQ01RF-01 Page 5 of 14 …

Text truncated - open the document above for the full version.

FCC ID: 2AAFT-KUQ01RF-01 Page 1 of 3 Test Setup FCC ID: 2AAFT-KUQ01RF-01 Page 2 of 3 1. Conducted Emission 2. Radiated Emission 30MHz-1000MHz FCC ID: 2AAFT-KUQ01RF-01 Page 3 of 3 Higher than 1GHz
