2AAFX-JDCGNUS3110Robotic Mower Connectivity Module

Deere & Company
Robotic Mower Connectivity Module - FCC ID 2AAFX-JDCGNUS3110 - Deere & Company
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Mar 30, 2020
Application Purpose
Original Equipment
Date of Application
Mar 30, 2020
Equipment Note
Robotic Mower Connectivity Module
Frequency Range
1715.00000000 - 1750.00000000
Company
Deere & Company
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

John Deere Connectivity Gateway Operator’s Manual Additions Content to be added to vehicle User Manual (included with every mower and available online) 1. Component Overview 2. FCC, IC and CE Compliance Statements REGULATORY AND COMPLIANCE INFORMATION Federal Communication Commission Notifications to User This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicable FCC rules This module has been tested for compliance to FCC Part 15, 22, 24 and 27. 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) or being used in a portable condition will need a separate reassessment through a class II permissive change application or new certification. 2.6 RF exposure considerations This equipment complies with FCC mobile radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. If the module is installed in a portable host, a separate SAR evaluation is required to confirm compliance with relevant FCC portable RF exposure rules. 2.7 Antennas The following antennas have been certified for use with this module; antennas of the same type with equal or lower gain may also be used with this module. The antenna must be installed such that 20 cm can be maintained between the antenna and users. WWAN WLAN GPS Antenna Type IFA Metal Stamping Antenna IFA PCB Ceramic patch Antenna connector NA (soldered on board) MMCX MMCX *The max. allowed antenna gain for Metal stamp antenna is 1.16dBi for 850MHz band, 3.75dBi for 1900MHz band, 3.15dBi for 1700MHz band and 0.66dBi for 700MHz band. The max. allowed antenna gain for PCB antenna type is 3.68dBi. 2.8 Label and compliance information The final product must be labeled in a visible area with the following: “Contains FCC ID: 2AAFX- JDCGNUS3110”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. 2.9 Information on test modes and additional testing requirements This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) or portable use will require a separate class II permissive change re-evaluation or new certification. 2.10 Additional testing, Part 15 Subpart B disclaimer This transmitter module is tested as a subsystem and its certification does not cover the FCC Part 15 Subpart B (unintentional radiator) rule requirement applicable to the final host. The final host will still need to be reassessed for compliance to this portion of rule requirements if applicable. As long as all conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. OEM/Host manufacturer responsibilities OEM/Host manufacturers are ultimately responsible for the compliance of the Host and Module. The final product must be reassessed against all the essentia…

Text truncated - open the document above for the full version.

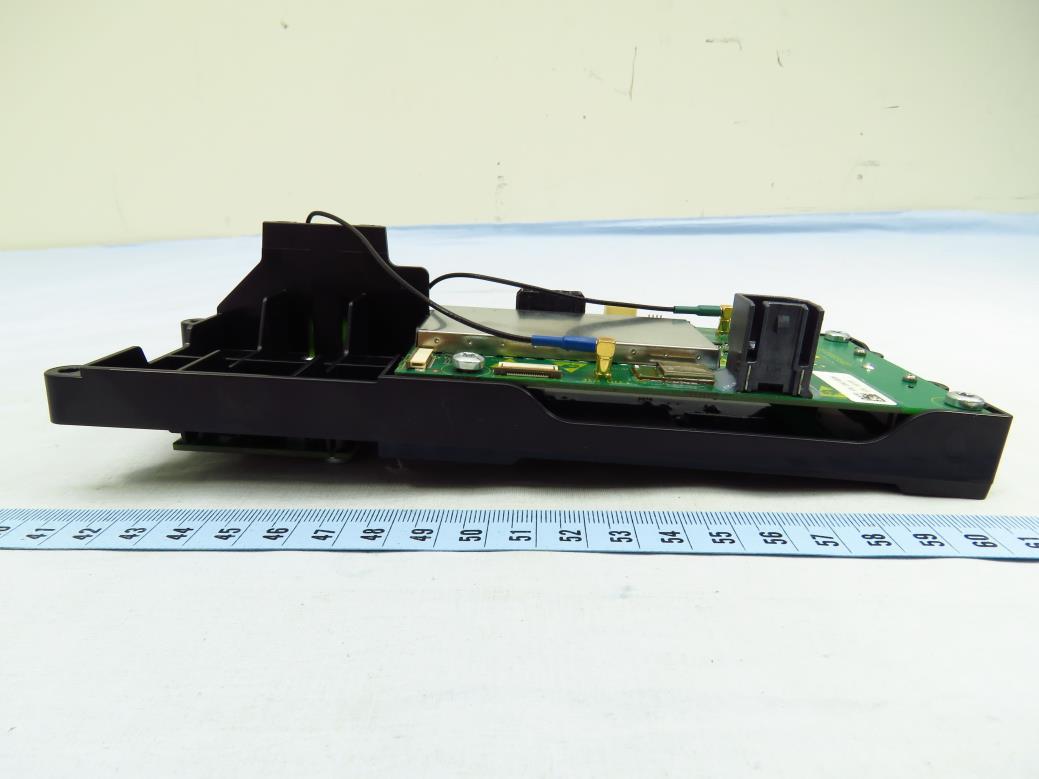

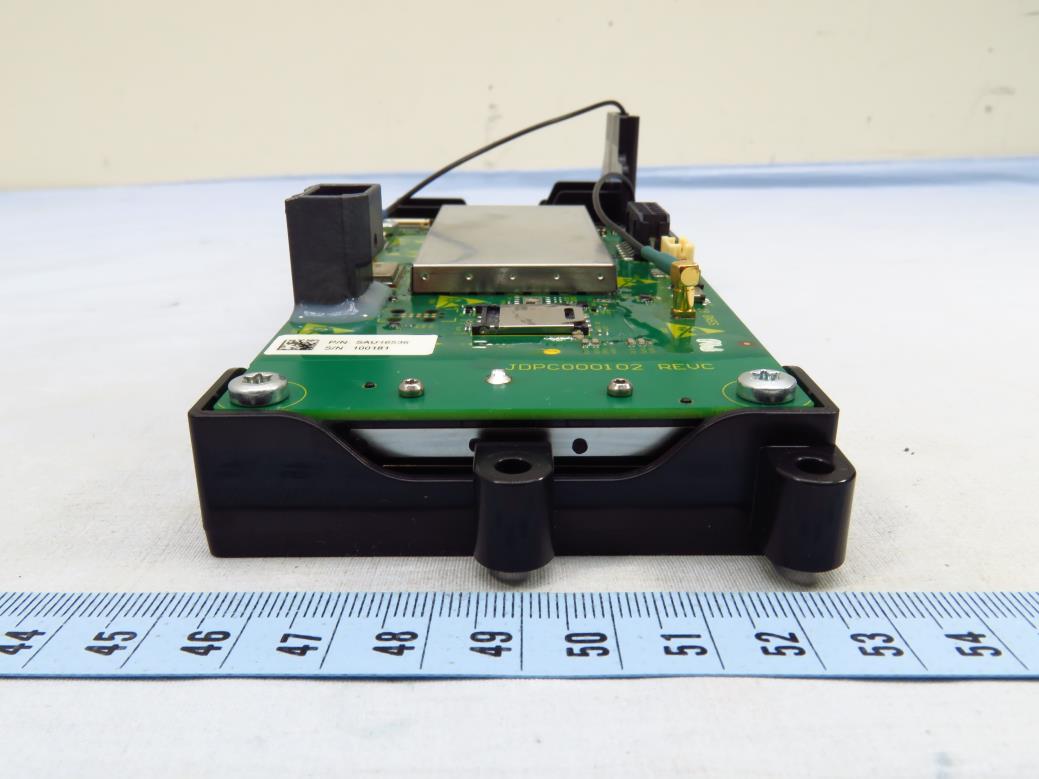

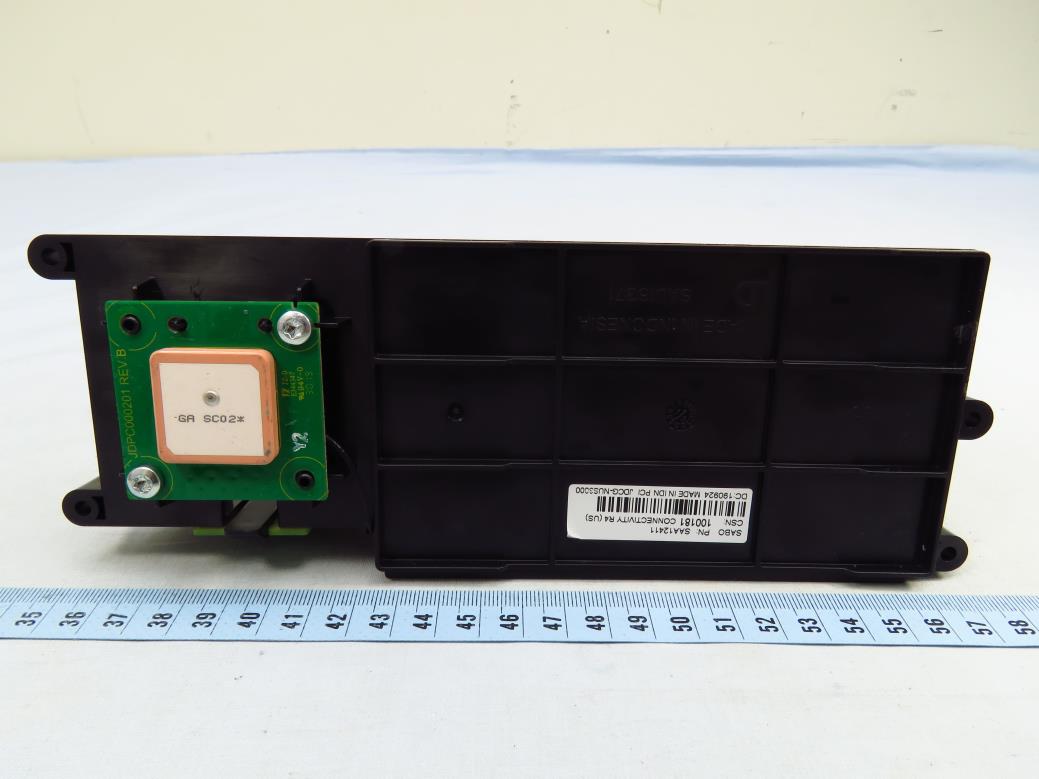

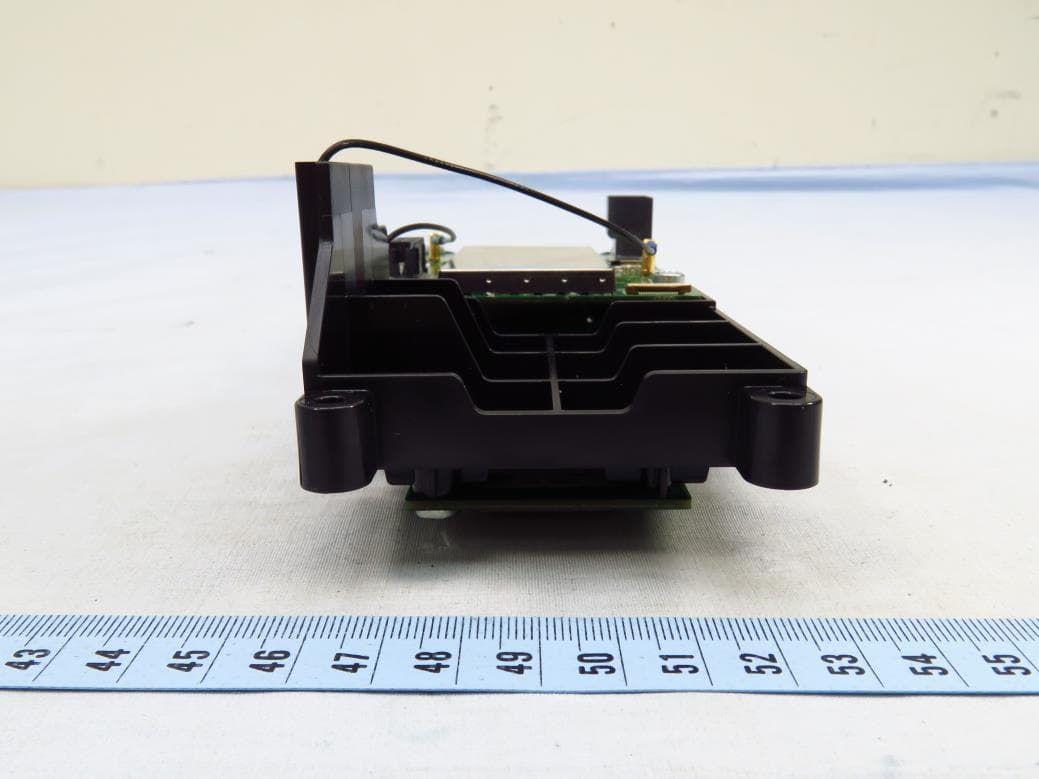

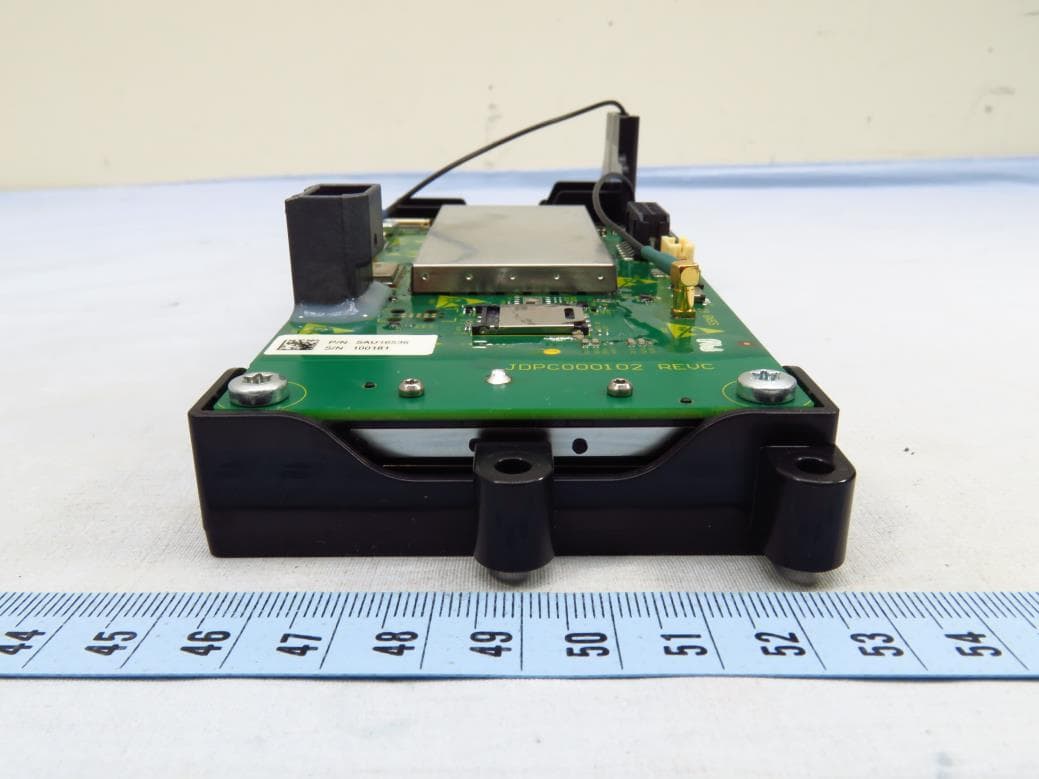

External Photos

Reference No.: 191008C34 Page 1 of 3 CONSTRUCTION PHOTOS OF EUT Model: ROBOTIC MOWER CONNECTIVITY MODULE / Brand: John Deere Reference No.: 191008C34 Page 2 of 3 Reference No.: 191008C34 Page 3 of 3

ID Label/Location Info

45.5 - 0 0.5 14.5 - 00.5 4-R1.2 Blank Label : JDLB000200 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC : 11137A-JDCGNUS3110 FCC ID : 2AAFX-JDCGNUS3110 CAN ICES-3 (B)/NMB-3(B) JOHN DEERE DEERE & COMPANY This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) DEERE & COMPANY IC : 11137A-JDCGNUS3110 FCC ID : 2AAFX-JDCGNUS3110 JOHN DEEREROBOTIC MOWER CONNECTIVITY MODULE ROBOTIC MOWER CONNECTIVITY MODULE Actual Size REVISIONS ARE INDICATED BY TRIANGLED LETTERS REVDESCRIPTIONDATE DRAWN BYDATE APPROVED BY (ORIGINATOR'S DEPT. HEAD) RELEASED BY (ORIGINATOR) TITLE CUSTOMER SPEC OR DWG NUMBER GENERAL TOLERANCE ONE DECIMAL PL TWO DECIMAL PL ANGULAR ALL DIMENSIONS IN MILLIMETRES MATERIAL OR SOURCE FINISH SCALE 3RD ANGLE FORMAT FOR SPECIFICATION AND DRAWING SHT SHT NP-F-0039 13-MAY-2019 TELLY K. 21 Jan 2020 TETEN M. Printing for FCC CONNECTIVITY R4 (US) Label 1 2 : 1 See Note See Note AInitial Issue 21 Jan 2020 1 0.5 A4 This document/data record is the property of PCI Private Limited, and is confidential material. NOTES : Text and Logo to be located approximately as shown1. Font definition : Arial Narrow2. All printed text shall be permanent, resistant to smearing3. Refer to separate drawing for blank label material spec (JDLB000200)4. This part must comply with RoHS5. TELLY K. John Deere

ID Label/Location Info

Label#1

Internal Photos

Reference No.: 191008C34 Page 1 of 7 CONSTRUCTION PHOTOS OF EUT Model: ROBOTIC MOWER CONNECTIVITY MODULE / Brand: John Deere Reference No.: 191008C34 Page 2 of 7 Reference No.: 191008C34 Page 3 of 7 Reference No.: 191008C34 Page 4 of 7 Reference No.: 191008C34 Page 5 of 7 Reference No.: 191008C34 Page 6 of 7 Cellular Module Reference No.: 191008C34 Page 7 of 7 WiFi/Bluetooth Module

RF Exposure Info

Report No.: SA191008C34 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA191008C34 FCC ID: 2AAFX-JDCGNUS3110 Test Model: ROBOTIC MOWER CONNECTIVITY MODULE Received Date: Oct. 08, 2019 Date of Evaluation: Nov. 29, 2019 Issued Date: Feb. 24, 2020 Applicant: Deere & Company Address: One John Deere Place, Moline, IL 61265 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA191008C34 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SA191008C34 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA191008C34 Original Release Feb. 24, 2020 Report No.: SA191008C34 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Robotic Mower Connectivity Module Brand: John Deere Test Model: ROBOTIC MOWER CONNECTIVITY MODULE Sample Status: Production Unit Applicant: Deere & Company Date of Evaluation: Nov. 29, 2019 Standards: References Test Guidance: FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.3 -2002 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Feb. 24, 2020 Lena Wang / Specialist Approved by : , Date: Feb. 24, 2020 Dylan Chiou / Project Engineer Report No.: SA191008C34 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA191008C34 Page No. 6 / 6 Report Format Version: 6.1.1 2.4 Calculation Result of Maximum Conducted Power Band Frequency Band (MHz) Output Power ERP / EIRP (dBm) Output Power ERP / EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) GSM850 824-849 27.30 537.032 20 0.107 0.55 PCS1900 1850-1910 32.60 1819.701 20 0.362 1.00 WCDMA II 1850-1910 30.00 1000.000 20 0.199 1.00 WCDMA IV 1710-1755 28.00 630.957 20 0.126 1.00 WCDMA V 824-849 21.5 141.254 20 0.028 0.55 LTE 2 1850-1910 25.60 363.078 20 0.072 1.00 LTE 4 1710-1755 26.20 416.869 20 0.083 1.00 LTE 12 699-716 21.10 128.825 20 0.026 0.47 WLAN 2412-2462 26.52 448.745 20 0.089 1.00 BT 2402-2480 9.64 9.204 20 0.002 1.00 Note: 1. Determining compliance ba…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF191008C34-2 Page No. 1 / 46 Report Format Version: 6.1.1 FCC Test Report (PART 22) Report No.: RF191008C34-2 FCC ID: 2AAFX-JDCGNUS3110 Test Model: ROBOTIC MOWER CONNECTIVITY MODULE Received Date: Oct. 08, 2019 Test Date: Nov. 21, 2019 ~ Jan. 25, 2020 Issued Date: Feb. 24, 2020 Applicant: Deere & Company Address: One John Deere Place, Moline, IL 61265 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies Report No.: RF191008C34-2 Page No. 2 / 46 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Test Site and Instruments ..................................................................................................................... 7 3 General Information ................................................................................................................................... 8 3.1 General Description of EUT .................................................................................................................. 8 3.2 Configuration of System under Test ...................................................................................................... 9 3.2.1 Description of Support Units ....................................................................................................... 9 3.3 Test Mode Applicability and Tested Channel Detail ............................................................................ 10 3.4 EUT Operating Conditions ................................................................................................................... 11 3.5 General Description of Applied Standards and references.................................................................. 11 4 Test Types and Results ............................................................................................................................ 12 4.1 Output Power Measurement ............................................................................................................... 12 4.1.1 Limits of Output Power Measurement ...................................................................................... 12 4.1.2 Test Procedures ........................................................................................................................ 12 4.1.3 Test Setup ................................................................................................................................. 13 4.1.4 Test Results .............................................................................................................................. 14 4.2 Modulation Characteristics Measurement .......................................................................................... 18 4.2.1 Limits of Modulation Characteristics ......................................................................................... 18 4.2.2 Test Setup ................................................................................................................................. 18 4.2.3 Test Procedure ......................................................................................................................... 18 4.2.4 Test Results .............................................................................................................................. 19 4.3 Frequency Stability Measurement ...................................................................................................... 20 4.3.1 Limits of Frequency Stability Measurement ............................................................................. 20 4.3.2 Test Procedure ......................................................................................................................... 20 4.3.3 Test Setup ..................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF191008C34-3 Page No. 1 / 87 Report Format Version: 6.1.1 FCC Test Report (PART 24) Report No.: RF191008C34-3 FCC ID: 2AAFX-JDCGNUS3110 Test Model: ROBOTIC MOWER CONNECTIVITY MODULE Received Date: Oct. 08, 2019 Test Date: Nov. 21, 2019 ~ Feb. 13, 2020 Issued Date: Feb. 24, 2020 Applicant: Deere & Company Address: One John Deere Place, Moline, IL 61265 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF191008C34-3 Page No. 2 / 87 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Test Site and Instruments ..................................................................................................................... 7 3 General Information ................................................................................................................................... 9 3.1 General Description of EUT .................................................................................................................. 9 3.2 Configuration of System under Test .................................................................................................... 10 3.2.1 Description of Support Units ..................................................................................................... 10 3.3 Test Mode Applicability and Tested Channel Detail ............................................................................. 11 3.4 EUT Operating Conditions .................................................................................................................. 13 3.5 General Description of Applied Standards and references................................................................. 13 4 Test Types and Results ............................................................................................................................ 14 4.1 Output Power Measurement ............................................................................................................... 14 4.1.1 Limits of Output Power Measurement ...................................................................................... 14 4.1.2 Test Procedures ........................................................................................................................ 14 4.1.3 Test Setup ................................................................................................................................. 15 4.1.4 Test Results .............................................................................................................................. 16 4.2 Modulation Characteristics Measurement .......................................................................................... 28 4.2.1 Limits of Modulation Characteristics ......................................................................................... 28 4.2.2 Test Setup ................................................................................................................................. 28 4.2.3 Test Procedure ......................................................................................................................... 28 4.2.4 Test Results .............................................................................................................................. 29 4.3 Frequency Stability Measurement ...................................................................................................... 30 4.3.1 Limits of Frequency Stability Measurement ............................................................................. 30 4.3.2 Test Procedure ......................................................................................................................... 30 4.3.3 Test Setup ....................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF191008C34-4 Page No. 1 / 114 Report Format Version: 6.1.1 FCC Test Report (PART 27) Report No.: RF191008C34-4 FCC ID: 2AAFX-JDCGNUS3110 Test Model: ROBOTIC MOWER CONNECTIVITY MODULE Received Date: Oct. 08, 2019 Test Date: Nov. 21, 2019 ~ Feb. 13, 2020 Issued Date: Feb. 24, 2020 Applicant: Deere & Company Address: One John Deere Place, Moline, IL 61265 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies Report No.: RF191008C34-4 Page No. 2 / 114 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 7 2.2 Test Site and Instruments ..................................................................................................................... 8 3 General Information ................................................................................................................................. 10 3.1 General Description of EUT ................................................................................................................ 10 3.2 Configuration of System under Test .................................................................................................... 12 3.2.1 Description of Support Units ..................................................................................................... 12 3.3 Test Mode Applicability and Tested Channel Detail .........................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Kana Udomon(Product Compliance Engineer)
[email protected]+15152536814Fax: +15152536814

Test Firm

Bureau Veritas CPS(H.K.) Ltd., Taoyuan BranchLiu Ken
[email protected]+886-3-2600609Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
28271.72 GHz - 1.75 GHz417.00 mW8M96G7D0.002 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single module approval. RF output power is ERP/EIRP. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multitransmitter procedures. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20cm and any additional testing and authorization process as required. The module grantee is responsible for providing the documentation to the system integrator on restrictions of use, for continuing compliance of the module. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369.
