2AAGF-HELLASHellas

Machine washable headband and ear cushions LED indicator – Discrete and unlit during normal operation. Built-in touch interface (right side) Micro USB connector for charging the battery Reflective cord Microphone for answering phone calls INTERFACES 1 1 4 4 3 3 2 5 2 6 5 6 HELLAS USER MANUAL ENG USING THE HEADPHONES Locate the Touch Interface on the right ear cup. All user interfac- es are done through commands on the touch interface. An audio signal indicates when a command is activated. TURN THE HEADPHONES ON/OFF Power On: Press and hold the touch interface for 4 seconds Power Off: Press and hold the touch interface for 4 seconds. Note! The headphones will auto shut-off if inactive and disconnected for 10 minutes. CONTROLS HELLAS USER MANUAL ENG CHARGING Plug the headphones into a USB power source using the micro USB cable. The USB cable can only be used for charging. 2 hours charge gives approximately 14 hours of playback at medium volume. Charge the battery before using the headphones for the first time. CONNECTING TO A BLUETOOTH® ENABLED SOUND SOURCE Follow the steps below when pairing your headphones with your sound source (smartphone, tablet or computer) for the first time. 1. If the device is turned off: Keep holding the touch interface for 4 seconds. 2. Select and connect to HELLAS on your sound source, according to its user manual. After the initial pairing, the two devices will auto-connect when they are switched on and within the range of 10 meters. PLAY/PAUSE/ ANSWER CALL Single tap PREVIOUS SONG Swipe backward NEXT SONG Swipe forward HANG UP/ REJECT CALL Double tap DECREASE VOLUME Swipe downward INCREASE VOLUME Swipe upward CLEANING THE HEADPHONES Detach the washable headband and ear cushions and machine-wash in 30° C (Cold/Cool). Clean the headphones with a soft, dry cloth. Note! Do not use liquids or sprays. Happy sweating! LED INDICATOR Status Indicates Red (continuous) Battery charging White (continuous) Fully charged and connected to a USB power source Blue (fast blinking) Pairing mode, waiting to pair White (Slow blinking) Waiting to connect White (10 sek interval) Connected and switched on Off Headphones are switched off or in normal operation TROUBLE SHOOTING Problem Action Not powering on Charge the headphone using the USB cable. Make sure the headphone is off before turning it on. Not charging Make sure the USB power source is switched on. The LED indicator is red while charging and white when fully charged. Not pairing Move the devices closer to each other and away from any interference or obstruction. Make sure the headphone is not connected to a different sound source when entering the pairing mode. Disable and enable Bluetooth® communication on your sound source. No sound Make sure the headphone is on and connected. Make sure the sound source is playing. Poor sound quality Move the devices closer to each other and away from any interference or obstruction. IMPORTANT SAFETY INSTRUCTIONS •Set your sound source to low volume before using the headphones. •Do not use these headphones when operating a motor vehicle, a bicycle, or machinery or where your inability to hear outside sounds may present a danger to you or others. •Using these headphones limits your ability to hear noises around you, regardless of listening volume. Please use caution when using these headphones. HELLAS USER MANUAL ENG HELLAS USER MANUAL ENG • Do not drop, sit on, or allow the headphone to be immersed in water. •Keep away from fire, water, and high voltage equipment. Not suitable for children under age three. Contains small parts, which may be a choking hazard. Long-term exposure to loud music or sounds may cause hearing loss. To prevent possible hearing damage, do not listen at high volume levels for long periods. This is not household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. This product was produced after Jan 1 2006. FCC WARNING Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IC WARNING This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exemp…

Text truncated - open the document above for the full version.

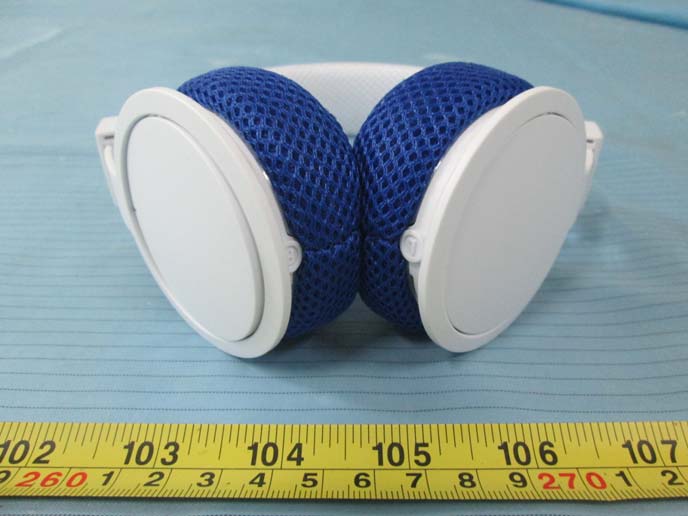

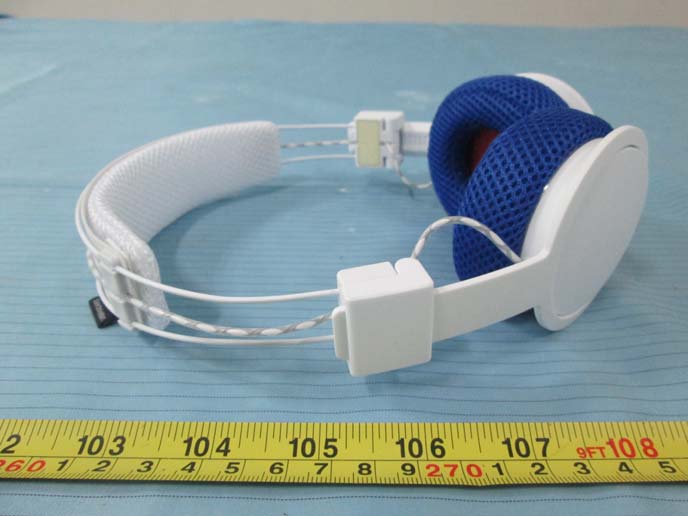

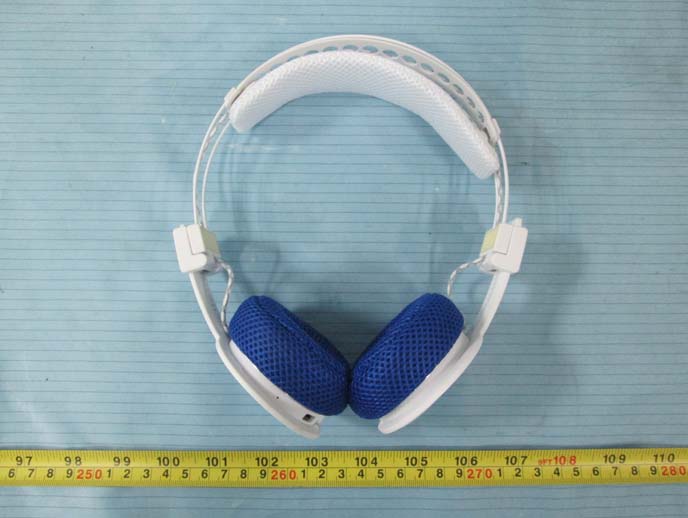

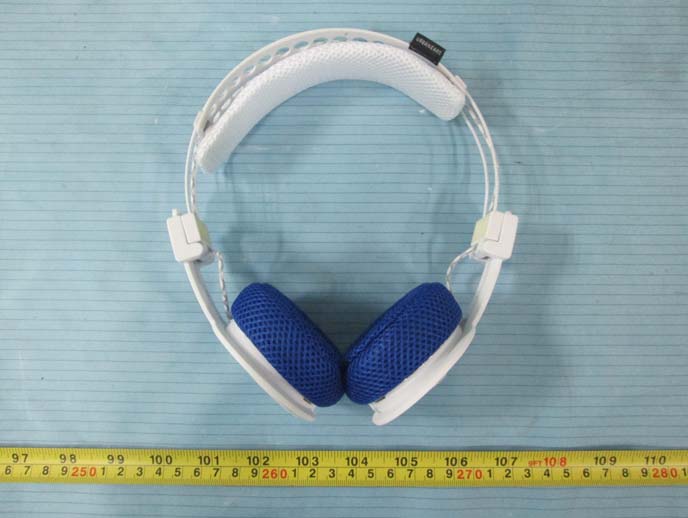

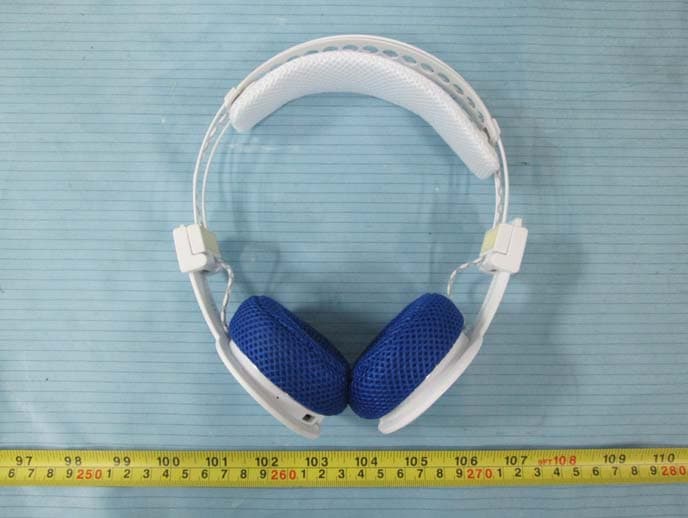

EUT – Front View EUT – Rear View EUT – Left View EUT – Right View EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – Main Board 1 Top View EUT – Main Board 1 Bottom View EUT – Main Board 2 Top View BT Antenna EUT – Main Board 2 Bottom View EUT –Speaker View EUT – Battery View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.247 TEST REPORT For Zound Industries TORSGATAN 2, 111 23 STOCKHOLM, SWEDEN FCC ID: 2AAGF-HELLAS Report Type: Original Report Product Type: Hellas Test En gineer: David Lee Re port Number: RSZ150714002-00CA1 Re port Date: 2015-09-25 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150714002-00CA1 FCC Part 15.247 Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 EXTERNAL I/O CABLE .................................................................................................................................................. 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ........................................................................................ 7 APPLICABLE STANDARD .............................................................................................................................................. 7 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ....................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 CORRECTED FACTOR & MARGIN CALCULATION ......................................................................................................... 9 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 MEASUREMENT UNCERTAINTY .................................................................................................................................. 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 14 TEST PROCEDURE ..................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
