2AAIC00001Anki Drive car KOURAI (yellow)

Product Information Guide CAUTION — ELECTRIC TOY: Not recommended for children under 8 years of age. As with all electric products, precautions should be observed during handling and use to prevent electric shock. It is recommended that parents examine this toy transformer model 000-00004 periodically for conditions that may result in risk of fire, electric shock, or injury to persons (such as damage to the output cord, blades, housing, or other parts) and in the event of such conditions, the transformer should not be used until properly repaired. INPUT: 120V 60Hz 500mA OUTPUT: 5V 2000mA Anki, Inc. MODEL NO: 000-00004 The included power adapter is rated for 120 volts and is intended for use in the US and Canada only. WARNING: To avoid damage or injury, charge only with an Anki-provided power adapter and cable. WARNING: Do not step on the race mat. The surface is slippery and it may shift underfoot, which could cause you to slip and fall. WARNING: Anki DRIVE™ and its accessories may contain small parts, which can present a choking hazard to small children. Keep such parts away from small children. WARRANTY: Your purchase of Anki DRIVE comes with a one-year limited warranty. For full details, safety updates, or support, see anki.com/support. SUPPORT: (800) 900-0027 FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Responsible party for FCC matters: Anki, Inc. Attn: FCC Liaison 55 2nd Street San Francisco, CA 94105 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. BATTERY INFORMATION Each Anki DRIVE Intelligent Car has a lithium polymer battery, which should only be recharged using the included 3-port power cord and a charging station. This 3-port power cord can be used with up to three charging stations simultaneously. Attempting to remove the rechargeable battery will void the warranty and may result in injury. Protect the environment by not disposing of this product with household waste. Do not dispose of this product in a fire. The rechargeable lithium battery inside may explode or leak. Check your local authority for recycling advice and facilities. Disposal, recycling, and other environmental information related to Anki DRIVE can be found online at: www.anki.com/earth. Keep these instructions for future reference as they contain important information. For warranty details and updates to regulatory information, visit anki.com/support. Anki™ Copyright 2013 Anki, Inc. All rights reserved. Anki, Anki DRIVE, and the Anki and Anki DRIVE logos are trademarks of Anki, Inc. Anki, Inc., 55 2nd Street San Francisco, CA 94105 Designed in San Francisco. Made in China. 293-00003 Rev 01 AVERTISSEMENT — JOUET ÉLECTRIQUE Ce produit n’est pas recommandé pour les enfants de moins de huit ans. Comme avec tous les produits électriques, vous devriez prendre des précautions lors de l’utilisation de ce produit afin d’éviter les décharges électriques. Nous recommandons aux parents d’examiner régulièrement le transformateur de ce jouet (modèle 000-00004) afin de repérer la présence de conditions qui risqueraient de causer des risques de feu, des décharges électriques ou des blessures corporelles (comme des dommages aux cordons électriques, aux lames, au boîtier et aux autres pièces connexes) et, le cas échéant, de le faire réparer avant de l’utiliser. Entrée : 120 V 60 Hz 500 mA Sortie : 5 V 2000 mA Anki, Inc. Numéro de modèle : 000-00004 L’adaptateur compris est conçu pour les prises de 120 volts utilisées au Canada et aux États-Unis. AVERTISSEMENT: Pour éviter les dommages et les blessures, rechargez votre voiture Anki uniquement avec l’adaptateur d’alimentation et le câble fournis. AVERTISSEMENT: Ne marchez pas sur la piste de course. Sa surface est glissante et peut vous faire vaciller et tomber si vous marchez dessus. AVERTISSEMENT: Le système Anki DRIVE MC et ses accessoires comportent des petites pièces qui posent un risque de suffocation pour les jeunes enfants. Gardez-les hors de la portée des jeunes enfants. GARANTIE: Votre achat Anki DRIVE comprend une garantie limitée d’un an. Pour obtenir tous les détails, des mises à jour de sécurité ou de l’assistance, visitez le site anki.com/support. ASSISTANCE : +1 800 900-0027 DÉCLARATIO…

Text truncated - open the document above for the full version.

FCC ID：2AAIC00001

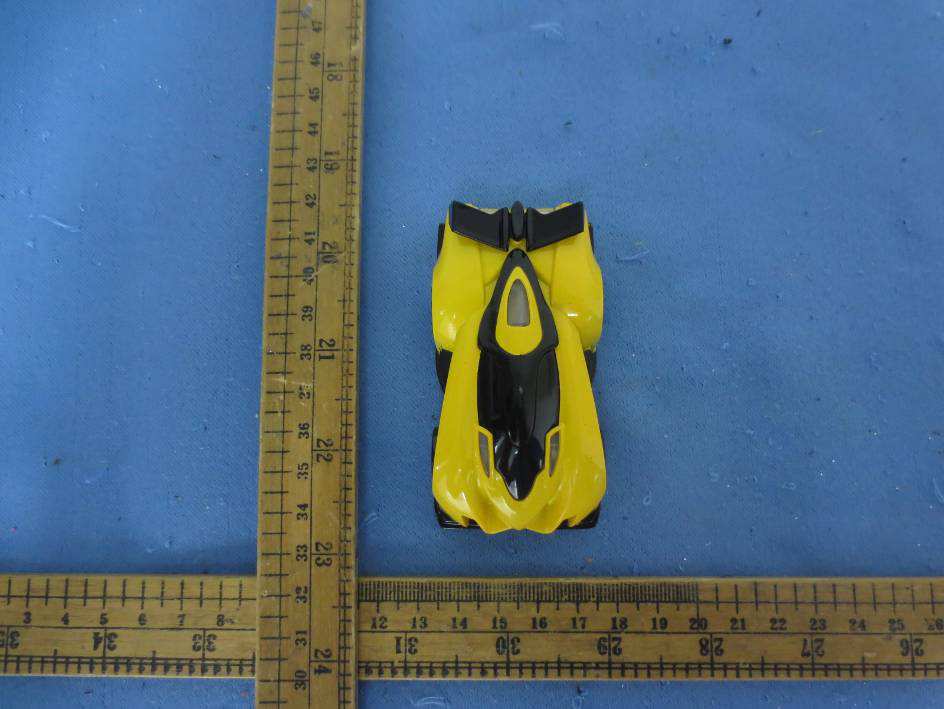

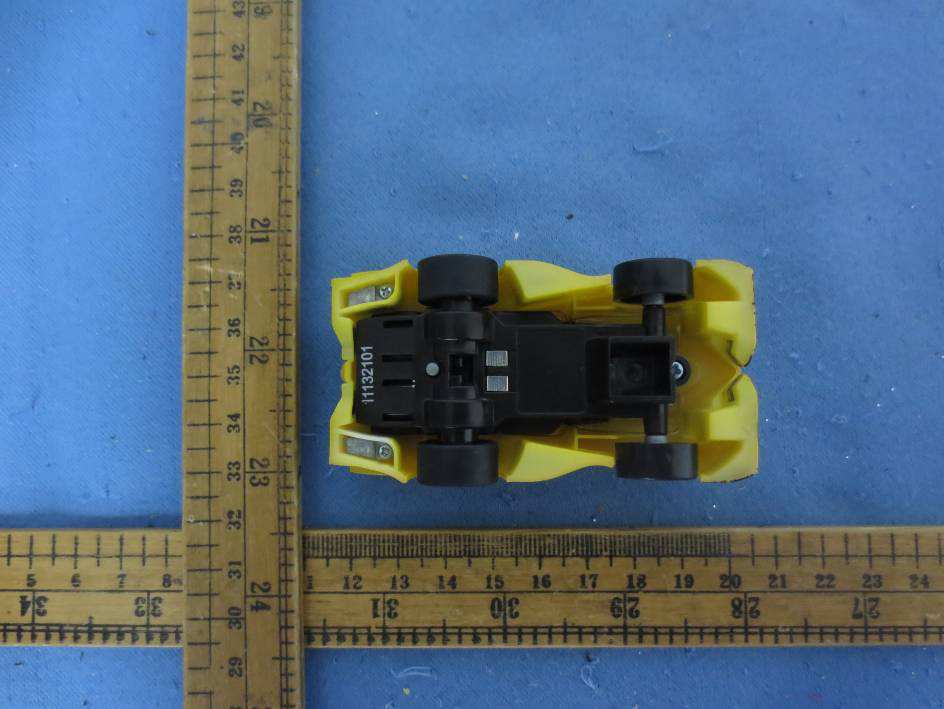

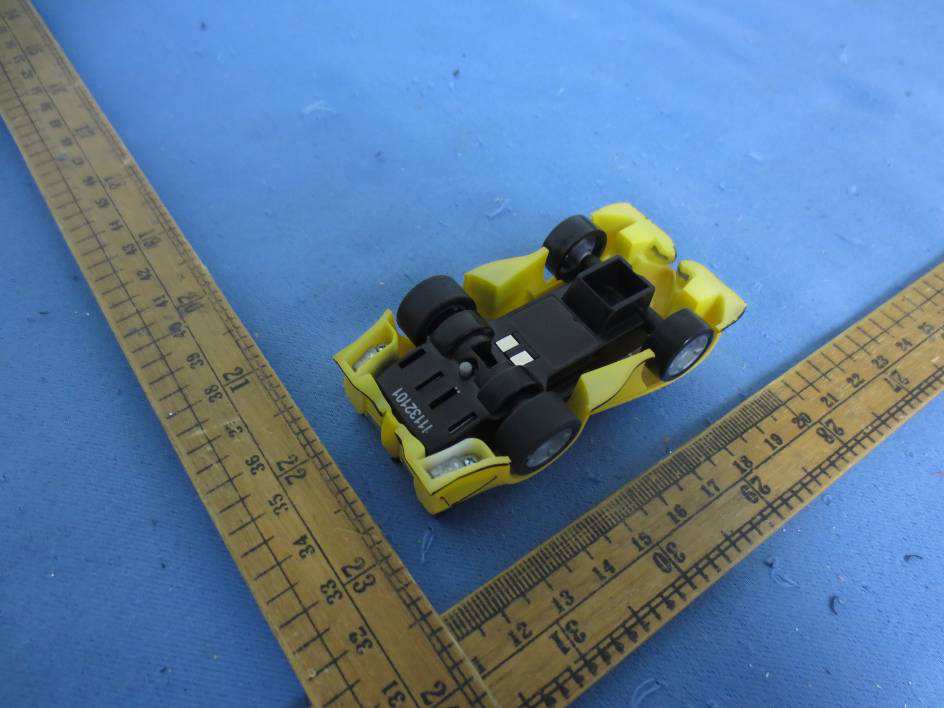

External Photos

Label Artwork and Location Unit : mm

Internal Photos Antenna

INTERTEK TESTING SERVICES FCC ID: 2AAIC00001 1 Analysis Report The equipment under test (EUT) is an Anki Drive car KOURAI (yellow) with Bluetooth (4.0 single mode) function. The EUT was powered by 1 x 3.7V Rechargeable Battery which can be charged by charger with Model: 000-00004, but it can’t use Bluetooth function while charging. For more detail information pls. refer to the user manual. Modulation Type: GFSK Bluetooth Version: 4.0 (Single Mode) Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 3.0dBm (tolerance: +/- 4 dB) The nominal conducted output power specified: 3.0dBm (tolerance: +/- 4dB) According to the KDB 447498: The Maximum peak radiated emission for the EUT is 100.1dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 4.9dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 98.7dB μV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 3.5dBm which is within the production variation. The maximun conducted output power specified is 7.0 dBm = 5.0mW The source- based time-averaging conducted output power = 5.0 * Duty cycle mW= 5.0 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The test signal of the EUT is Continuous emission, so the Duty Cycle is 100%.
