ACOUSTMAX INTERNATIONAL CO., LTD Unit D16/F Cheuk Nang Plaza 250 Hennessy Road Wanchai Hong Kong China FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ACOUSTMAX INTERNATIONAL CO., LTD Address Unit D16/F Cheuk Nang Plaza 250 Hennessy Road Wanchai Hong Kong China City Hong Kong Country China request for this certification filing under: Grantee Code Product Number FCC ID: 2AAIN -BTW218 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere.

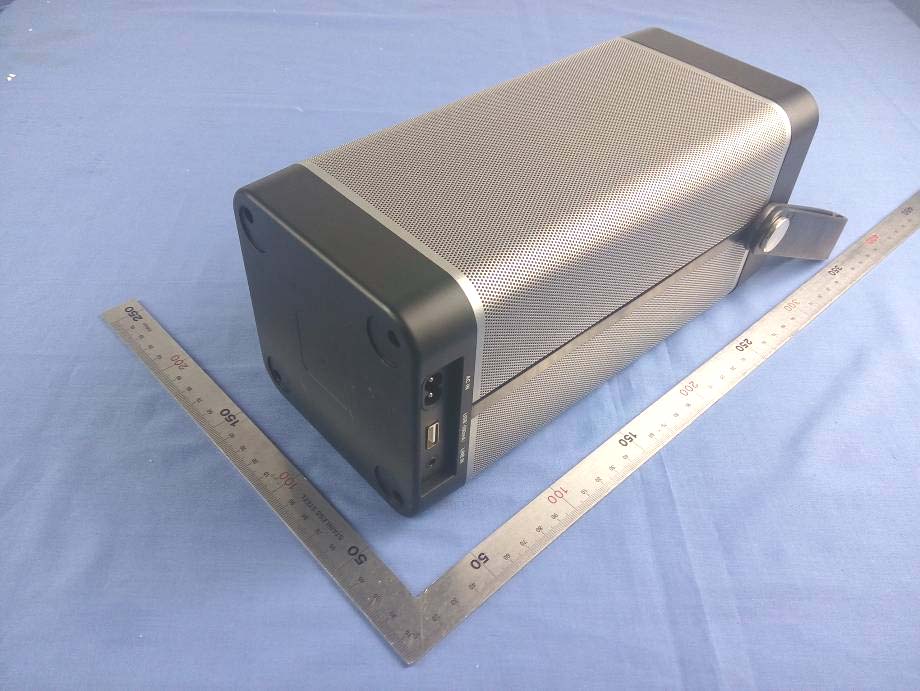

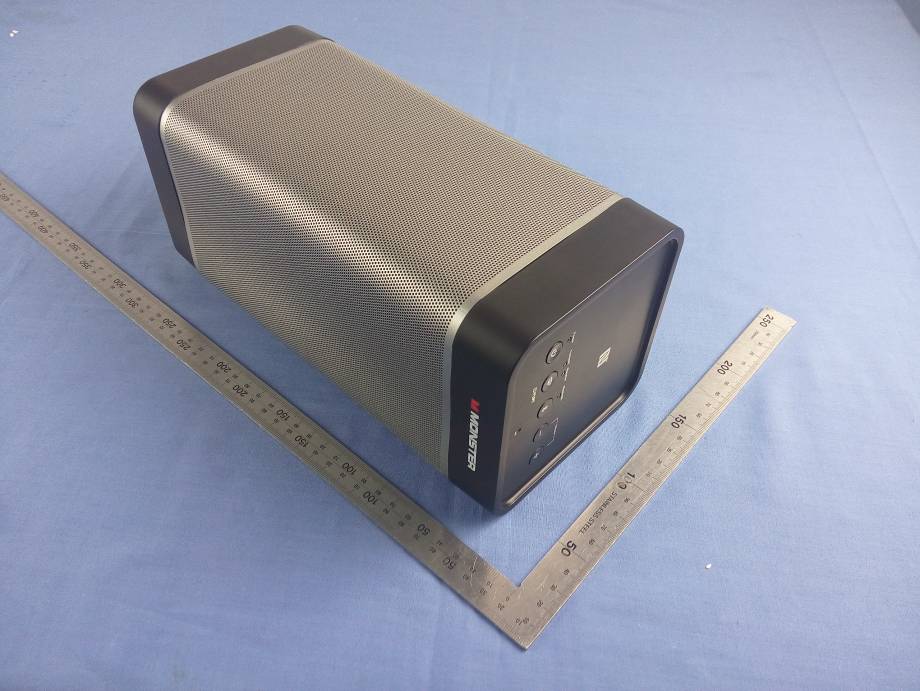

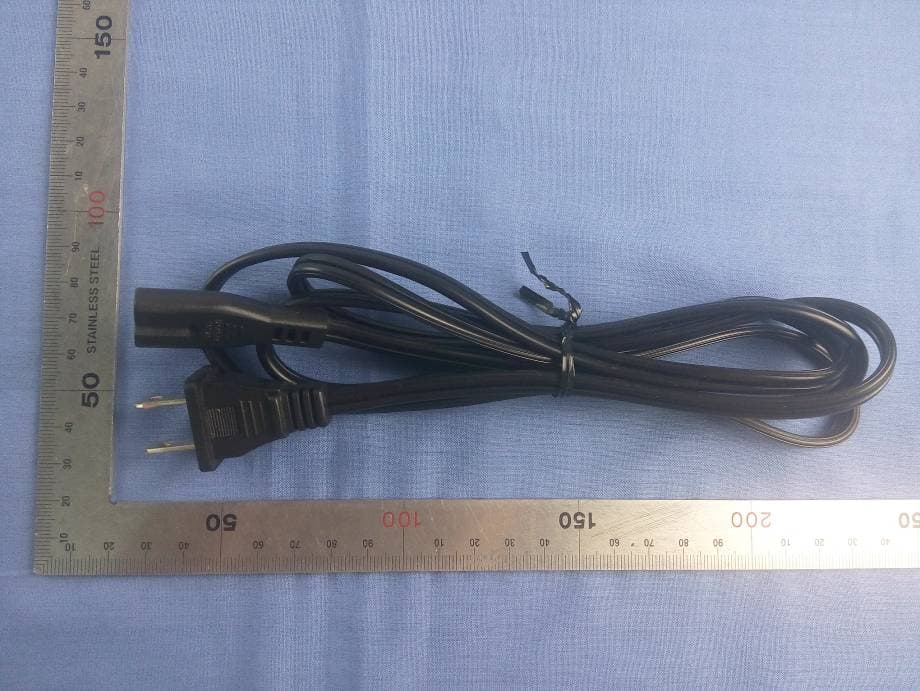

Report No: C140821Z04 Page 1 / 3 External Photos of EUT Report No: C140821Z04 Page 2 / 3 Report No: C140821Z04 Page 3 / 3

Label and location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Report No.: C140821Z04 Page 1/9 Internal Photos of EUT Report No.: C140821Z04 Page 2/9 Report No.: C140821Z04 Page 3/9 2.4G Module 2.4G Antenna Report No.: C140821Z04 Page 4/9 Report No.: C140821Z04 Page 5/9 5.8G Module 5.8G Antenna 1 5.8G Antenna 2 Report No.: C140821Z04 Page 6/9 Report No.: C140821Z04 Page 7/9 Report No.: C140821Z04 Page 8/9 Report No.: C140821Z04 Page 9/9

MPE Calculation FCC ID: 2AAIN-BTW218 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range:2402-2480MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =-2.92dBm =0.51mW Antenna Gain: G = 0dBi =1on the linear scale Calculation: P radiated = P conducted + G linear =-2.92dBm +0dBi =-2.92dBm =0.51mW Power density S = (P radiated ) / (4π x d 2 ) =0.51/5026 =0.0001mW/cm 2 <1=> below limit Frequency range:5736-5814MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =11.08dBm =12.82mW Antenna Gain: G = 3.2dBi =2.09on the linear scale Calculation: P radiated = P conducted + G linear =11.08dBm +3.2dBi =14.28dBm =26.79mW Power density S = (P radiated ) / (4π x d 2 ) =26.79/5026 =0.0053mW/cm 2 <1=> below limit

Report No.: C140821Z04-RP1-1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: 2AAIN-BTW218 Page 1 / 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For MONSTER Tower Model: BTW218 Brand: Test Report Number: C140821Z04-RP1-1 Prepared for ACOUSTMAX INTERNATIONAL CO., LTD Unit D16/F Cheuk Nang Plaza 250 Hennessy Road Wanchai Hong Kong China Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: October 11, 2014 检 测 CNAS L4818 Report No.: C140821Z04-RP1-1 FCC ID: 2AAIN-BTW218 Page 2 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 11, 2014 Initial Issue ALL Sabrina Wang Report No.: C140821Z04-RP1-1 FCC ID: 2AAIN-BTW218 Page 3 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES.................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY.................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT ..............................................................................8 5.2 SUPPORT EQUIPMENT ..............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20DB BANDWIDTH .......................................................................................................9 6.2 PEAK POWER .............................................................................................................13 6.3 PEAK POWER SPECTRAL DENSITY.........................................................................15 6.4 BAND EDGES MEASUREMENT.................................................................................16 6.5 FREQUENCY SEPARATION ......................................................................................26 6.6 NUMBER OF HOPPING FREQUENCY.......................................................................29 6.7 TIME OF OCCUPANCY (DWELL TIME)......................................................................32 6.8 SPURIOUS EMISSIONS .............................................................................................39 6.9 POWERLINE CONDUCTED EMISSIONS...................................................................58 Report No.: C140821Z04-RP1-1 FCC ID: 2AAIN-BTW218 Page 4 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product MONSTER Tower Model BTW218 Brand Tested August 21~October 11, 2014 Applicant ACOUSTMAX INTERNATIONAL CO., LTD Unit D16/F Cheuk Nang Plaza 250 Hennessy Road Wanchai Hong Kong China Manufacturer Musilab Electronic (DongGuan) Co., Ltd A2, LinDong 3 Road, LinCun, TangXia Town, DongGuan City, Guangdong Province, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140821Z04-RP1-1 FCC ID: 2AAIN-BTW218 Page 5 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product MONSTER Tower Model Number BTW218 Brand Model Discrepancy N/A Identify Number C140821Z04-RP1-1 EUT Power Rating DC5V supplied by PC or DC11.1V, 2200mAh supplied by the battery or AC100~240V~, 50/60Hz, 0.6A supplied by the AC power Received Date August 21, 2014 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : -2.92dBm 8DPSK : -3.96dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) Number of Channels 79 Channels Antenna Specification PCB Antenna…

Text truncated - open the document above for the full version.

Report No.: C140821Z04-RP1 FCC ID: 2AAIN-BTW218 Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz Report No.: C140821Z04-RP1 FCC ID: 2AAIN-BTW218 Page 2/2 CONDUCTED EMISSION TEST
