2AAJWSRD521TI BLE Module

Belwith Products, LLC

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Jul 18, 2013
Application Purpose: Original Equipment
Date of Application: Jul 18, 2013

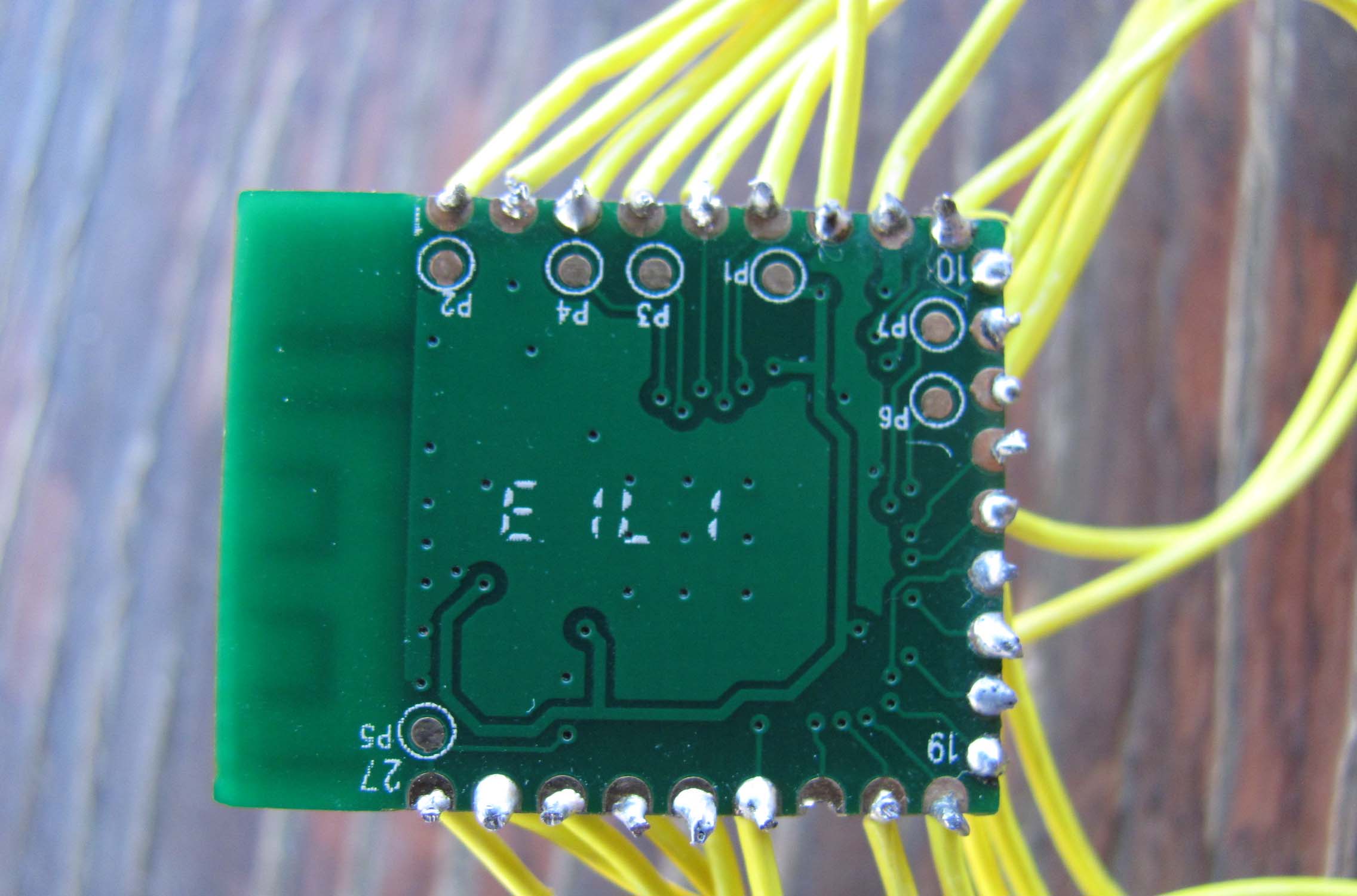

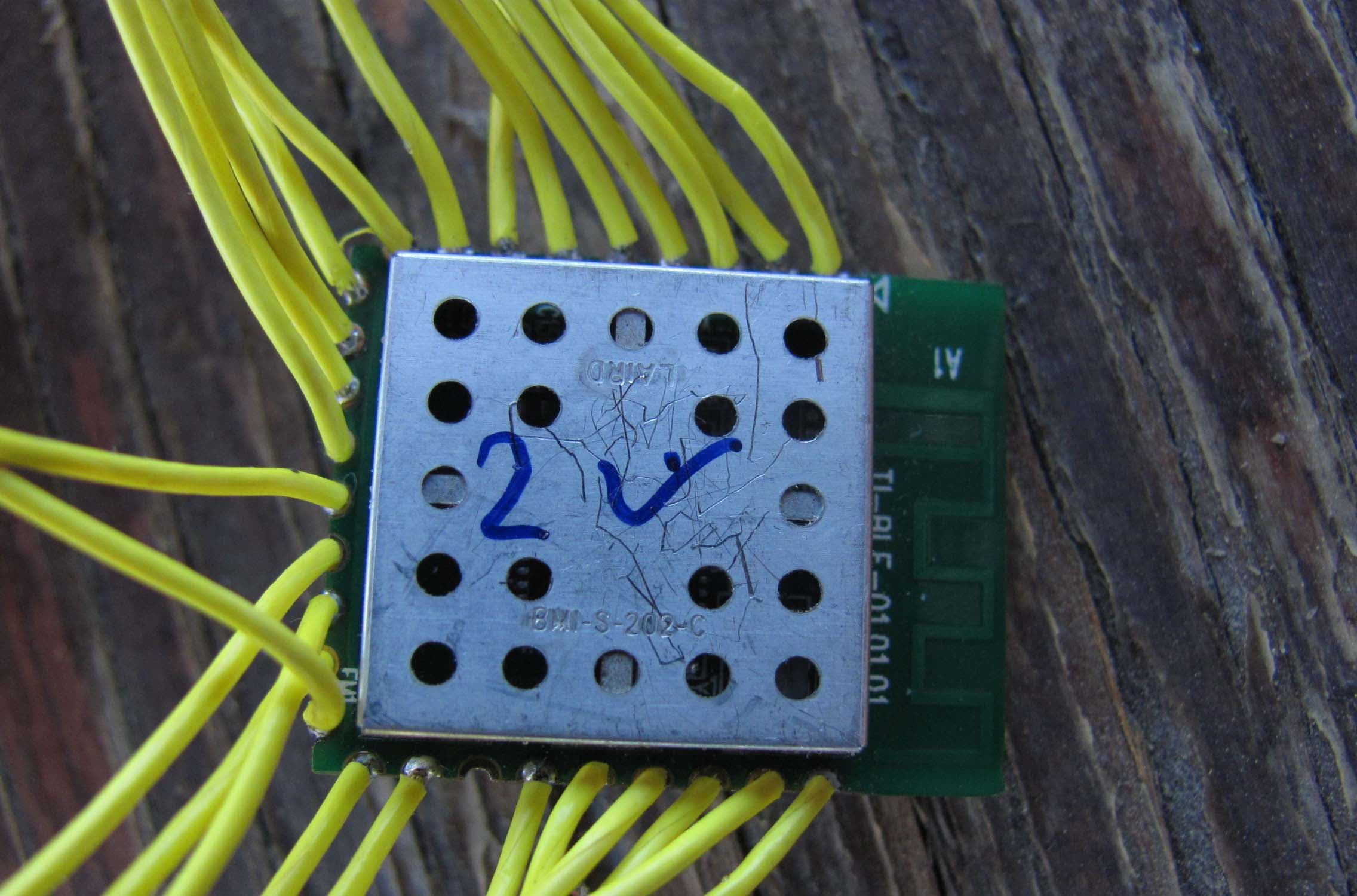

Equipment Note: TI BLE Module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Belwith Products, LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Document Name : TI-BLE-Users Guide Rev.: 01.10 Product Name: TI-BLE-73720-20-XX Page : Page 1 of 19 Mfg: Belwith Products, LLC. Date : 07/12/2013 Model #: SRD521 FCC ID: 2AAJWSRD521 BELWITH PRODUCTS, LLC www.belwith.com TABLE OF CONTENTS Contents Page # 1 Scope of this document 2 2 Basic Operation of the module 2 - 4 3 Antenna 5 4 Ground Planes 5 5 Frequency hopping characteristics 5 6 Pin Out Detail 6 7 Electric specification 7 - 8 8 Mechanical Dimension 9 9 PCB Footprint of the module 10 10 Physical detail with FCC label 11 11 Soldering Temperature profile 12 12 Ordering Information 13 13 FCC, 2-part statement, compliance and exposure statement 14 14 OEM Labeling Information 15 - 16 15 RoHS Declaration 17 16 Datasheet status 18 17 Revision History 19 Document Name : TI-BLE-Users Guide Rev.: 01.10 Product Name: TI-BLE-73720-20-XX Page : Page 2 of 19 Mfg: Belwith Products, LLC. Date : 07/12/2013 Model #: SRD521 FCC ID: 2AAJWSRD521 BELWITH PRODUCTS, LLC www.belwith.com 1) Scope of this document : This product specification describes Belwith’s Bluetooth Low Energy module, series number TI- BLE-73720-20-XX. In includes integration information and guidelines to allow a basic understanding of the modules functions, application and includes required documentation that is required to allow the integrator to properly label the OEM device. Caution! Any changes or modifications to this module not approved by Belwith Products LLC could void the authority to operate this module. It contains documentation for proper labeling as required by FCC part 15. This includes documents / labeling that must be applied to the end use host device by the OEM as outlined. Use of this certified transmitter module ( section 15.212 ) can allow the end use host device manufacturer to reduce the testing associated with their product. Additional testing may be required to comply to all other applicable regulations. 2) Basic operation of module TI-BLE module contains following: 1. Processor: The processor is a power-optimized true system-on-chip (SoC) solution for both Bluetooth low energy and proprietary 2.4-GHz applications. This combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. Please refer Section 6 for detail pin outs. 2. Crystal 32MHz: 32MHz crystal is source of Main Clock freq. of system. It is Ultra Miniature size low profile SMD crystal. This crystal is shielded by metal shield so that it will not export any high frequency from the module. During RF transceiver this clock is enabled. Document Name : TI-BLE-Users Guide Rev.: 01.10 Product Name: TI-BLE-73720-20-XX Page : Page 3 of 19 Mfg: Belwith Products, LLC. Date : 07/12/2013 Model #: SRD521 FCC ID: 2AAJWSRD521 BELWITH PRODUCTS, LLC www.belwith.com Specification: Part 32MHz Crystal Frequency Stability +/-20ppm Frequency Tolerance +/-10ppm Load Capacitance 10pF Motional Resistance(ESR) 50Ohm 3. Crystal 32KHz: 32KHz crystal is the source of Secondary clock freq. of system. It is ultra miniature size low profile SMD crystal. This crystal is shielded by metal shield (#6) so that it will not export any high frequency from module. This clock is used for timer, sleep mode, and power saving mode. Specification : Part 32 KHz Crystal Frequency Tolerance ±20ppm Load Capacitance 9pF Motional Resistance(ESR) 70 kOhm 4. 2.4GHz Band pass Filter: Murata makes the balance matching band pass filter it is used for impedance matching between the Antenna and the RF Output port. Document Name : TI-BLE-Users Guide Rev.: 01.10 Product Name: TI-BLE-73720-20-XX Page : Page 4 of 19 Mfg: Belwith Products, LLC. Date : 07/12/2013 Model #: SRD521 FCC ID: 2AAJWSRD521 BELWITH PRODUCTS, LLC www.belwith.com Specification: Part Band Pass Filter Unbalance Port Impedance (Nominal) 50 Ohm Balance Port Impedance (Nominal) Conjugate match to CC2541 Frequency Range (BW) 2450 +/- 50MHz Insertion Loss in BW a. dB max at 25°C 1.95 dB max at -40 ~ 85 °C Attenuation 20.0 dB at 25 °C 19.0 dB at -40 ~ 85°C @4800 ~ 5000 MHz 20.0 dB at 25 °C 19.0 dB at -40 ~ 85°C @7200 ~ 7500 MHz Unbalance port V.S.W.R. in BW 1.90 Max Balance port V.S.W.R. in BW 2.30 Max Power Capacity 500 mW max 5. LC Filter : Ferrite bead and Ceramic capacitors are used in the LC filter. This filter is connected between the power supply pin of the processor and the power supply feed point of module. This filter will block high freq. noise in power supply and provide stability against EMI noise. 6. Metal Shield: CRS Tin shield is used for shielding. Shield is directly connected to GND plane which will restrict emission of any high freq. that may be generated from the module. Its specification is below: Specification: Surface Area 259.21 mm² Maximum Overall Dimension 16.50 x 16.50 mm Maximum Overall Height 3.60 mm Material Thickness 0.20 mm Weight 0.5 gms Material 0.20 mm CRS Tin Document Name : TI-BLE-Users Guide Rev.: 01.10 Product Name: TI-BLE-73720-20-XX Page : Page 5 of 19 Mfg: Belwith Products, LLC. Date : 07/12/2013 Model #: SRD521 FCC ID: 2AAJWSRD521 BELWITH PRODUCTS, LLC www.belwith.com 3) Antenna PCB Antenna (Inverted F type) It is a 2.4 GHz PCB antenna. The Inverted F Antenna (IFA) was designed to match an on board impedance. Thus no additional matching components are necessary. Antenna design is configured so as not to attenuate the gain characteristics of the processor. Do not attempt any modifications. 4) Ground Planes Radio requires an RF ground plane on any device/host board made to work with this module. The ground plane should cover the majority of the remaining (as much as permitted by other components) of the Printed Circuit Board (PCB) area. This can be located on any layer of the PCB. Extend the RF ground plane parallel to module pins 31 and 32 the entire length of the board. Connect all ground pins and do not notch the ground plane around the module. Bottom of…

Text truncated - open the document above for the full version.

Attestation Statements

Belwith' PRODUCTS 6/28/2013 CETCB 114 Olinda Drive Brea,CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Belwith Products IXC, 3100 Broadway Ave SW, Grandville, MI, 49418, USA, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Belwith Products LLC products product: Key Fob Transceiver. Modules under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Belwith Products LLC products nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non- voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Belwith Products LLC products will notify the Federal Communications Commission if, at any time, the situation changes causing Belwith Products LLC products to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 616- 247-4000 Sincerely, General Manager and CFO Belwith Products LLC products m. Belwith HICKORY HARDWARE' FIRST WATCH' SECU R1TY KEELER' 3100 Broadway Avenue SW, Grandville, MI 49418 • Tel: (616) 247-4000 • Fax (616) 247-4060 • www.belwith.com

Cover Letter(s)

Belwith" PRODUCTS 06/28/2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Belwith Products LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission's Rules, and Section 552 (bj (4) of the Freedom of Information Act, These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be Released to the public by that person. If you have any^fuestions, please do not hesitate to contact us at 616 247 4000. Sincerely Thomas Guido General Manager and CFO Belwith Products LLC m HICKORY HARDWARE* F-1RST WATCI-r SECU RiTY KEELER" 3100 Broadway Avenue SW, Grandville, MI 49418 • Tel: (616) 247-4000 • Fax (616) 247-4060 • www.belwith.com

RF Exposure Info

MPE Calculations For RF Exposure Requirements TI BLE Module Model: SRD521 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation: S = EIRP / (4R 2 π) S = (0.61802) / (4 * 1 2 * π) S = 0.04918 mW/cm 2 (at 1 cm) Limit = 1 mW/cm 2 where S = Maximum power density (mW/cm 2 ) EIRP = Effective Isotropic Radiated Power (mW) – -2.09 dBm R = distance to the center of the radiation of the antenna (1 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 1 cm does not exceed the 1.0 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. The EIRP was based on a worst case PEAK value of 93.14 dBuV/m at 3 meters for the EUT. 93.14 dBuV/m @ 3 meters = -2.09 dBm EIRP.

Test Report

Report Number: B30627A2 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report TI BLE Module Model: SRD521 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for TI BLE MODULE Model: SRD521 Prepared for BELWITH PRODUCTS, LLC 3100 BROADWAY AV SW GRANDVILLE, MICHIGAN 49418 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 14, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 17 36 76 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30627A2 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report TI BLE Module Model: SRD521 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 Variation of the Input Power 15 7.1.4 RF Emissions Test Results 16 8. CONCLUSIONS 17 Report Number: B30627A2 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report TI BLE Module Model: SRD521 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of the Radiated Test Site Report Number: B30627A2 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report TI BLE Module Model: SRD521 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: TI BLE Module Model: SRD521 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Belwith Products, LLC 3100 Broadway AV SW Grandville, Michigan 49418 Test Date(s): June 24, 25, and 27, 2013 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.207, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, section 15.207. 2 Radiated RF Emissions 10 kHz to 25000 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B30627A2 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report TI BLE Module Model: SRD521 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the emissions tests performed on the TI BLE Module, Model: SRD521 (EUT). The Emissions measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Clas…

Text truncated - open the document above for the full version.

Test Report

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 0 dB A IN1 Unit dB  V TRG SWT 50 ms Center 2.48 GHz5 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.16 dB 1.803607 ms 1 [T1] 34.57 dB  V 28.557114 ms 1 [T1] -0.16 dB 1.803607 ms D1 74 dB  V D2 54 dB  V Date: 25.JUN.2013 12:34:28 Time of One Pulse – Data Mode (Worst Case) – T1 BLE Module Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 0 dB A IN1 Unit dB  V TRG SWT 100 ms Center 2.48 GHz10 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.72 dB 1.803607 ms 1 [T1] 34.59 dB  V 89.979960 ms 1 [T1] -0.72 dB 1.803607 ms D1 74 dB  V D2 54 dB  V Date: 25.JUN.2013 12:33:53 Worst Case 100 mS – Data Mode (Worst Case) – T1 BLE Module Duty Cycle = 1.803607 ms * 2 = 3.607214 ms / 100 ms = 3.607214% The maximum 20 dB peak to average ratio can be utilized.

Test Setup Photos

Contact Information

Applicant

Thomas Guido(General Manager and CFO)

[email protected](616) 247-4000Fax: (616) 247-4060

Technical Contact

Compatible Electronics, Inc.Kyle Fujimoto

[email protected]714-579-0500

114 Olinda Drive · Brea · United States

Test Firm

Compatible Electronics, Inc.Michael Christensen

[email protected]714-579-0500Fax: 714-579-1850

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	-

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular Approval. The antenna(s) used with this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
