2AAK6WM1030WUWLAN USB Module

WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 1 WM1030WU WLAN USB Module Version Date Change Description 1.0 3 Jun 2013 Initial release WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 2 Description WM1030WU is a WLAN 11n USB module, which fully supports the features and functional compliance of IEEE 802.11n,e and i standards. It supports up to 150Mbps high-speed wireless network connections. It is designed to provide excellent performance with low power consumption and enhance the advantages of robust system and cost-effective. It is targeted at competitive superior performance, better power management applications. Features „ Operates in 2.4 GHz frequency bands „ 1x1 MIMO technology improves effective throughput and range over existing 802.11 b/g products „ Data rates: up to 150Mbps „ 802.11e-compatible bursting and I standards „ BPSK, QPSK, 16 QAM, 64 QAM modulation schemes „ WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes „ Small footprint: 25×12×2mm, 9-half-holes PCB module „ OS support: Android, Windows „ RoHS compliance Application „ Mobile Internet Device „ Tablet PC „ Portable Media Player (PMP) „ Portable Navigation Device (PND) „ IP cam WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 3 Pin Assignment (Top view) 1 2 3 4 5 6 Pin Definition Pin Signal Input /Output Description 1 LED Output Low enable LED 2 GND Power Ground 3 D+ I/O USB D+ 4 D- I/O USB D- 5 VDD Power 3.3V (or optional 5V) Power supply 6 GPIO2 Input WPS input 7 GND Power Ground 8 RF I/O WLAN RF port 9 GND Power Ground 9 8 7 WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 4 Application Circuit WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 5 Functional Specification Product Description WLAN Standard IEEE802.11b/g/n, Wi-Fi compliant Host Interface USB 2.0 Dimension 25mm x 12mm x 2mm Package Half-hole PCB module Electrical Specifications Frequency Range 2.412 to 2.484 GHz Data Rate 802.11b: 11, 5.5, 2, 1 Mbps DSSS 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps OFDM 802.11n: HT20 MCS0~7, HT40 MCS0~7 Modulation Technique 802.11b: CCK, DQPSK, DBPSK 802.11g: 64 QAM, 16 QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16-QAM, 64-QAM Operational Channel 2.4GHz: 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Security WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE 802.11x, IEEE 802.11i Operating Voltage 3.3V (or 5V, optional) Temperature Limit Ratings Parameter Min. Max. Units Storage Temperature -40 +125 o C Ambient Operating Temperature 0 +70 o C Absolute Maximum Ratings Symbol Parameter Rating Unit VDD USB interface VDD -0.3 to 3.6 V Recommended Operating Range Symbol Parameter MinTyp Max Units VDD USB interface VDD 3.153.3 3.45 V Optional 5V Symbol Parameter MinTyp Max Units VDD USB interface VDD 4.755.0 5.25 V WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 6 General RF Guidelines Follow these steps for optimal performance. „ The RF trace impedance should be 50 ohm. „ The length of RF trace should be minimized. „ Route traces on the top layer as much as possible and use a continuous reference ground plane underneath them. „ Do not route any digital or analog signal traces between the RF traces and reference ground. „ don’t put any metal shielding in the surrounding area of module and try to leave the module placed in the corner of chassis board as close as possible. „ The antenna area in the module should protrude outside the Ground at least 6mm. WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 7 Module Dimensions All dimensions are in millimeters. WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 8 Layout Design Guide The recommended layout pads for WM1030WU module are shown below. (module top view) All dimensions are in millimeters. Tolerance: +- 0.05mm WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 9 Package Information Wieson offer one box for 600 pcs module. Each box has 11 trays inside. The top of empty tray is using for fixed the first package tray. The other 10 trays packaged module inside. Each tray dimensions is shown below. All dimensions are in millimeters. WIESON TECHNOLOGIES CO., LTD. WM1030WU User Manual TYPE OF PRODUCT WLAN MODULE CONFIDENTIAL No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. 10 Refere…

Text truncated - open the document above for the full version.

Specification Customer LTCC Chip Antenna Part name A02 Mode No. CHIEF SALES R&D DESIGN Martin James GWP Hui Date: 2008.12.19 Date: 2008.12.19 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT WIESON INTERNATIONAL CO., LTD. SPECIFICATION LIST A02 LTCC Chip Antenna ITEM INDEX PAGE . Introduction......................................................................... 3 . Dimensions................................................................... 3 . 路Evaluation Board............................................................ 3 . Electrical Characteristics.................................................. 4 . 流度Reflow Soldering Standard Condition............................... 4 六. Environmental Test......................................................... 5 . Test Report...................................................................6～17 Approvals Rev Date Description Edited by Prepared Hui 01 2008.12.19 NEW RELEASE Hui Checked GWP Approved Martin Issued No 1.0 Sheet 2 OF 17 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 3/17 . Introduction ""狀GPL列路藍 GPS "WIESON" microwave multi-layer chip ceramic antenna GPL series are designed to be used in WLAN, Bluetooth, multiple-band mobile phone antenna, GPS, etc and compact size SMD chip design. . Dimensions 路Evaluation Board WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 4/17 . Electrical Characteristics Item Specification 率 Center Frequency 2450 25 MHz Bandwidth >100MHz Gain 1 dBi Typical VSWR 2.0 MAX. Polarization Linear Azimuth Beam width Omni-directional Impedance 50 Ohm 路率率 . 流度Reflow Soldering Standard Condition WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 5/17 六. Environmental Test Item Requirement Vibration Resist 率 2 落 Drop Shock 度落 Solder Heat Proof 度 力 Tensile Strength of Terminal 拉力 Bending Resist Test 力 離 金 落 Moisture Proof 度度 復 High Temperature Endurance 度 復 Low Temperature Endurance 度 復 冷 Temperature Cycle Test 復 Item Requirement 度 Temperature range 255 度Relative Humidity range 55~75%RH 度 Operating Temperature range -40~+85 度 Storage Temperature range -40~+85 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 6/17 . Test Report 1. S-PARAMETER Summary This report to account for the measurement setup and result of LTCC Chip antenna. (1) The measurement setup includes reflection coefficient, pattern, and gain measurement. (2) The measured data for LTCC Chip antenna are presented and analysis. I. Measurement Coefficient Measurement A. Reflection Coefficient Measurement (a) InstrumentNetwork Analyzer. (b) Setup (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig. 1 A02 LTCC chip antenna measured in Network Analyzer. WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 7/17 II. Test Value A. VSWR Frequency Sample 2.40GHz 2.45GHz 2.50GHz 1 1.5674 1.0470 1.5456 2 1.6036 1.1096 1.5586 SAMLE-1 SAMPLE-2 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 8/17 B. RETURN LOSS Frequency Sample 2.40GHz 2.45GHz 2.50GHz 1 -13.080 -33.852 -13.111 2 -12.683 -25.761 -13.219 SAMPLE-1 SAMPLE-2 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 9/17 C. SMITH CHART SAMPLE-1 SAMPLE-2 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 10/17 2. 2D PATTERN I. Measurement (a) Instrumentsanechoic chamber, network analyzer, standard gain antenna. (b) chamber description (1) The anechoic chamber is a far-field measurement system with size of 3.25M*2.84M*6.4M. The quiet zone region is 44cm*44cm*44cm at frequency range of 2.4GHz in the center of the rotator. Fig. 2 The interior components of the anechoic. (2) Fig. 2. shows the interior components of the anechoic chamber. The antenna standard antenna as probe and antenna under test is 3M. The antenna under test is fixed on a step rotator. We can control the rotating angle for accurate or rough measurement. (3) While we measure the radiation patterns by rotating AUT with 360 degrees and repeat again by replacing the AUT with the standard gain antenna under test, we compare both data and using a formula to obtain the G AUT = G stand + P AUT - P stand G AUT Gain of AUT G stand Gain of Standard Gain Antenna P AUT Measured Power of AUT P stand Measured Power of Standard Gain Antenna WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 11/17 (3) Gain of AUT. The standard gain antenna is a gain horn( SG-430 1.7GHz ~ 2.6GHz ). (4) The planes defined in the Fig. 4 which we want to measure are H(X-Y) , E1(X-Z) and E2(Y-Z) planes. The vertical or horizontal polarization’s power is measured by rotating the antenna probe to 0 degree or to 90 degree shown in Fig. 3, respectively. While we combine both vertical and horizontal power, we obtain total power. (5) From the total power in three basic planes( H, and E ), we can analyze the performance of the antenna is good or not. (a) Antenna Probe at 0 degree (b) Antenna Probe at 90 degree as a vertical polarization. as a horizontal polarization. Fig. 3. The definition of vertical and horizontal polarization. (c) Plane definition Fig. 4. The plane definitionH-Plane , E1-Plane and E2-Plane. WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : 12/17 I I. Te s t Va l u e A. Sample-1 1H-Plane Frequency GaindBi 2.40GHz 2.45GHz 2.50GHz Peak -0.21363 0.70693 0.9275 Avg. -1.661 -0.732 -0.483 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB Far-field amplitude of A02 LTCC Chip Antenna H-Plane.nsi 2.400000 GHz2.450000 GHz2.500000 GHz WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT A02 LTCC Chip Antenna PAGE : …

Text truncated - open the document above for the full version.

Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group All View of EUT Front View of EUT (Model No.: WM1030WU-10) Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Front View of EUT (Model No.: WM1030WU-XX(X=0~9 or A~Z)) Back View of EUT (Model No.: WM1030WU-10) Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documen…

Text truncated - open the document above for the full version.

WIESON WM1030WU-XX FCC ID: 2AAK6WM1030WU 17 mm 11 mm

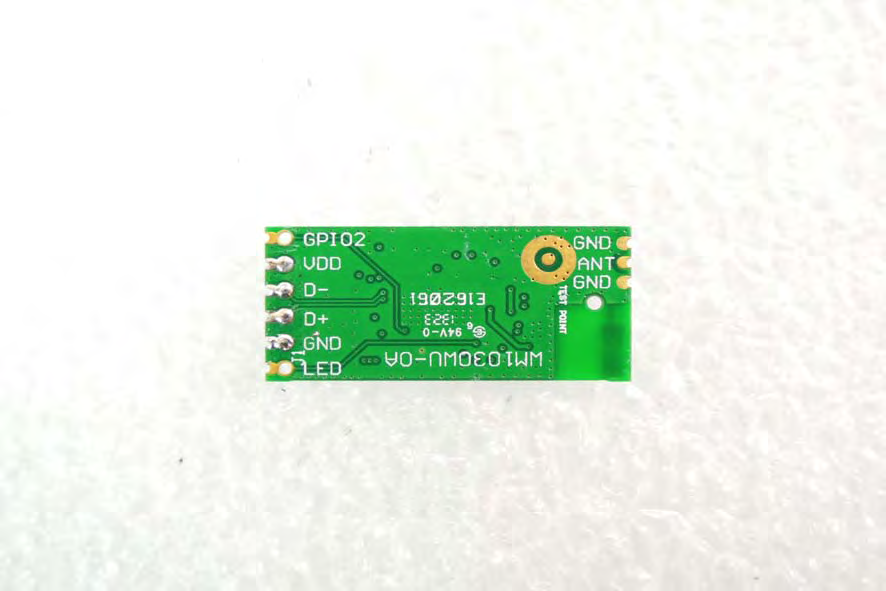

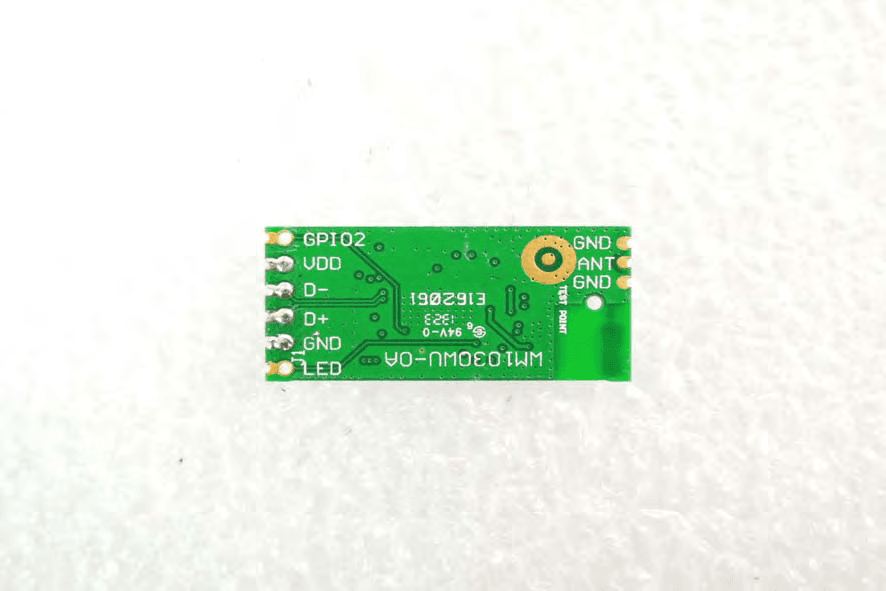

Label location WIESON WM1030WU-XX FCC ID: 2AAK6WM1030WU 17 mm 11 mm EUT Back EUT iron

Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Open View of EUT (Model No.: WM1030WU-10) Open View of EUT (Model No.: WM1030WU-XX(X=0~9 or A~Z)) Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Internal View of EUT – 1(Model No.: WM1030WU-10) Internal View of EUT – 1 (Model No.: WM1030WU-XX(X=0~9 or A~Z)) Report No.: ER/2013/60003 FCC ID: 2AAK6WM1030WU Issue Date: Jul. 05, 2013 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their…

Text truncated - open the document above for the full version.

FCC ID: 2AAK6WM1030WU Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 13 MAXIMUM PERMISSIBLE EXPOSURE (MPE) 13.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Com- mission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: 2AAK6WM1030WU Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路 134 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 13.2 Maximum Permissible Exposure (MPE) Evaluation 802.11b Cable loss = 0 Peak Power Output CH Frequency (MHz) Data Rate Required Limit 1 2 5.5 11 1 2412 19.10 19.08 19.05 19.03 1 Watt = 30 dBm 6 2437 18.38 18.35 18.32 18.29 1 Watt = 30 dBm 11 2462 18.32 18.29 18.27 18.24 1 Watt = 30 dBm *Note: Measured by power meter, cable loss as 11.4dB that offsets on the power meter. MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna FCC ID: 2AAK6WM1030WU Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the f…
