2AAK9FORMEE201GSM Mobile Phone

1 User Manual E201 V1.0 Because the product version to upgrade or other reasons, the document content will not regular updates. Our company reserves in do not make any prior notice in this manual revision content of rights 2 1. Insert the SIM card and battery. Pay attention to the SIM card chip contacts must be correct, SIM card slot to be identical with the outline. 2. Battery Charging
The phones and charger connection.
Will the power plug into the charger power socket.
Cellular phone to start charging, the screen will show power icon scrolling effect.
Power ICONS no longer scroll that charge is full already, please disconnect with the connection of the cell phone charger. 3. Keypad Description 1. Up / Down Navigation Keys: scroll through the names, telephone numbers, SMS, MMS and the sub-menu options; editing to move the cursor up and down; in the menu mode, scroll up and down options to choose. 2. Left / Right Navigation Keys: move the cursor around editing; in the menu mode, scroll around selection options. 3. SIM2 dial key: Call the phone number and answer a call; standby mode, SIM card out of a list of call _records. 4. Right Soft key: implementation guide at the bottom right corner of the screen display. 5. Dial-up key: Call the phone number and answer a call; standby mode, SIM card out of a list of call _records. 6. Red Key: press the red key to reject a call, end active call; also, it’s the power key. 7. Numeric Keys: 0-9 number keys to enter numbers and characters; Long press the number key 1, you can into the voice mail of SIM1, SIM2. When the function of speed dial is open, long press the number keys 2-9 to set aside pre-set speed dial numbers. 8. * Key: Different status or menus with different functions. 9. # Key: Different status or menus with different functions. 10. Middle Key: implementation guide at the bottom center of the screen display. Note: In this manual, "press the key" refers to press the button then release; "long press the key " refers to pressing the key and keeping 2 seconds or more than two seconds; 1,2 collectively referred to as navigation keys. 3 4. Keypad lock In order to prevent the misoperation, you can lock the keypad. If the keypad be locked, you can press the dial key to answer a call, or dial the SOS number. If you want to deblocking the key, Press the right soft key first, then press “#” key. 5. Call function Making a call
In idle mode, press the number key to input number. If you want to dial international number, long press key 0 to input “+”, then input the nation or area code, zone description, phone number. If you want to call a extension number, long press the key 0,then short press the key 0 once or twice to input “p” or “w”
Press the Dial-up key, outdoing call.
Press the Red Key to end call or cancel a call. Receiving a call
When a call coming, press the dial-up key answer. Press the red button, hang up the call. 6. Information
In idle screen, choose Menu/Message/Write message.
Input information, choose send.
Edit the recipients.
Press “sends” to send the message. 7. Input method Editing screen, press the * key to input punctuation, the # key switch input method mode.
En In the ‘En’ input mode, according to the need of the English words. Press the corresponding key once, mobile phone will be combined from the corresponding words. At the same time, also with the other letter combinations, choose the words you need.
Abc In the ‘Abc’ input mode, press the number keys to input single English letters. Click once, can input the first letter on this key; Click twice, can input the second letter on this key, which in turn on. If the input of letters and a letter before in the same key, please wait for the cursor appear again, before the confirmation letter already input, then enter a letter after.
123 In the ‘123’ input method, press the number keys to directly enter Numbers. In the ‘Abc’ input mode, Press the corresponding digital key continuously, until all required number appearing on the screen can. In the ‘En’ input method, press the corresponding key, when the number appearing in the 4 candidate area, chooses the words you need.
Input punctuation In any input method, press the * key to into the character list interface, chooses the character you need. 8. Recorder
In idle screen, choose Menu/Multimedia/Recorder.
Press the ok key to activate recorder.
Press the stop key to stop recording, the record be saved in Menu/File management /Phone/Audio. 9. FM radio Please plug in headphone, press “*”, “#” key to adjust the volume, the left or right navigation key to search the channel manually. You can do other operation via option menu. Note: This function is subject to the configuration of the mobile phone. 11. Bluetooth
In idle screen, choose Menu/Extras/ Bluetooth. You can set up the Bluetooth in this menu. Note: This function is subject to the configuration of the mobile phone. 12. Camera
In idle screen, choose Menu/Multimedia/Camera to go to preview screen.
Press the ok key to capture; you can do other operation via option menu. 13. Video recorder
In idle screen, choose Menu/Multimedia/Video recorder to go to preview screen.
Press the ok key to record; you can do other operation via option menu. 14. Services This phone has wireless Internet function, make you and the whole world at all times maintain a more closely linked, for you to visit the Internet offers a more convenient. 15. File management 5 This phone can be all kinds of media resources for rapid access and use. Standby mode, select Menu/File management/ Phone into the file management interface, its support the following main function.
Establish the default folder structure tree, these folder is related to the default storage location other applications (such as Audio, Photos, video, etc.);
Support build new file folder;
Support essential file operation, ex copy, delete, rename;
Support operation to T-flash , format, edit etc. Aft…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013-8-1 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ FORME COMMUNICATIONS TECHNOLOGY LIMITED ____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: GSM Mobile Phone model name: E201, E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D FCC ID: 2AAK9FORMEE201 We affirm that between SIEMIC and ____ FORME COMMUNICATIONS TECHNOLOGY LIMITED __ _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Printed name/title: XUEPING WU / Manager Tel: +86-0769-89396666 Fax: +86-0769-89608326 Address: FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013-8-1 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAK9FORMEE201 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic - Tune up procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Printed name/title: XUEPING WU / Manager Tel: +86-0769-89396666 Fax: +86-0769-89608326 Address: FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK

To：SIEMIC , 775 Montague Expressway, Milpitas, CA 95035,USA Declaration Letter For our business issue and marketing requirement, we would like to list 11 model numbers on the FCC reports, as following: Model No.: E201, E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D We declare that there is no electrical change has been made to the equipment that alters the compliance characteristics. The difference of these 11 models is for different logo and color. Please kindly handle on the project. Thank you! Printed name/title: XUEPING WU / Manager Tel: +86-0769-89396666 Fax: +86-0769-89608326 Address: FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK

Label Label Location

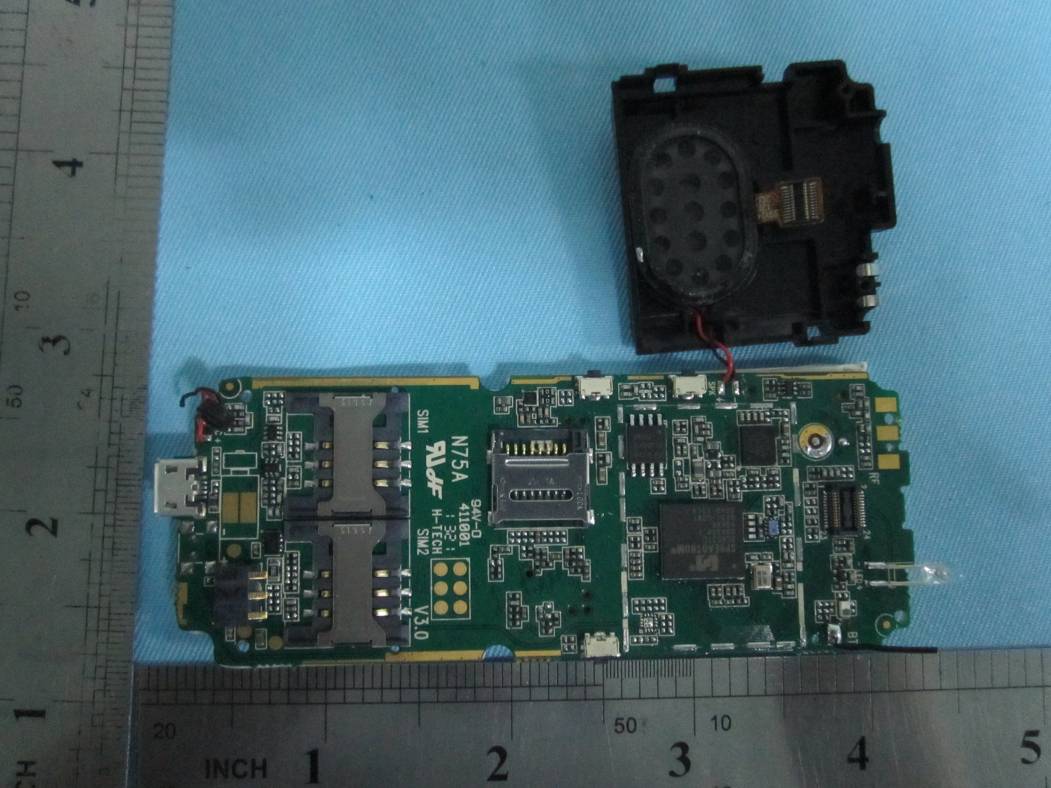

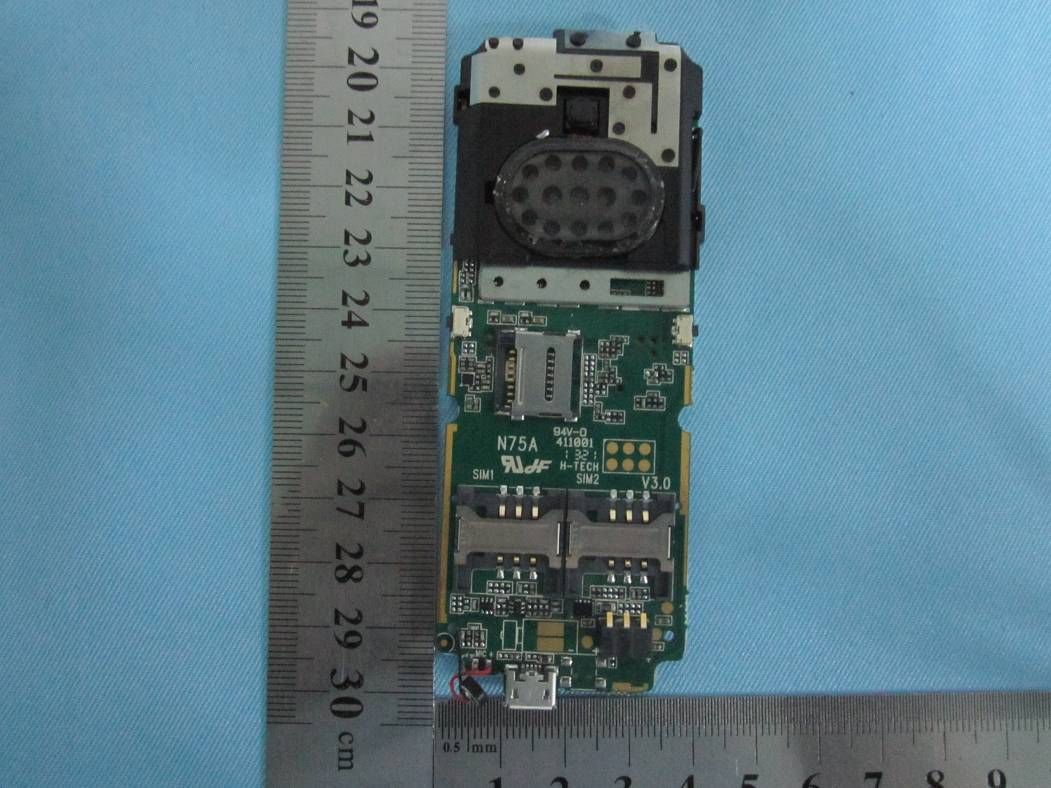

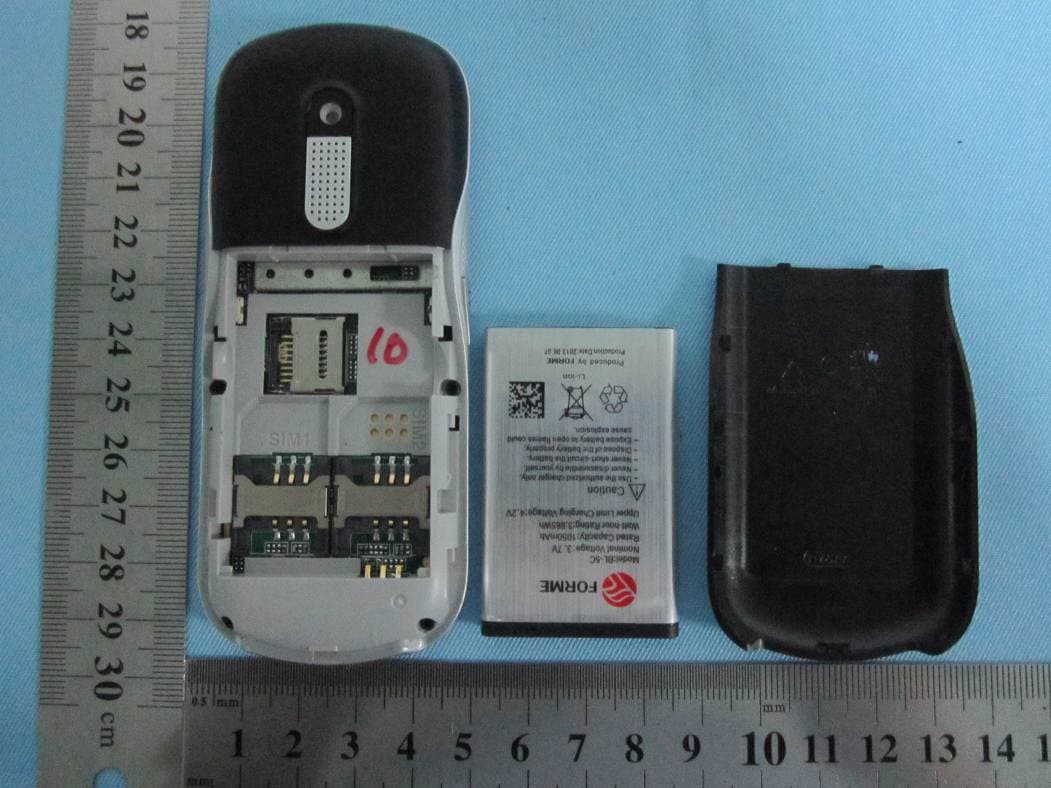

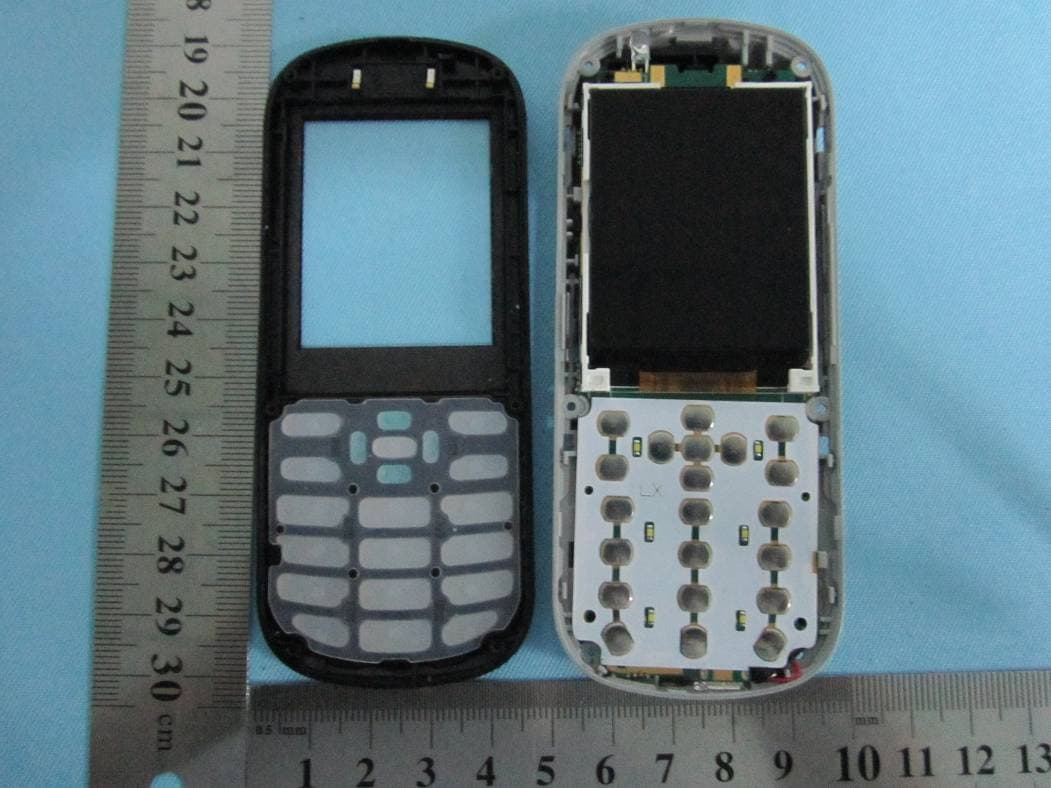

Title: EMC Test Report for GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070242-FCC-E Issue Date: July 31, 2013 Page: 23 of 36 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View Cover Off - Front Housing View Title: EMC Test Report for GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070242-FCC-E Issue Date: July 31, 2013 Page: 24 of 36 www.siemic.com.cn Cover Off - Rear Housing View Adapter View Title: EMC Test Report for GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070242-FCC-E Issue Date: July 31, 2013 Page: 25 of 36 www.siemic.com.cn Battery - Top View Battery - Bottom View Title: EMC Test Report for GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070242-FCC-E Issue Date: July 31, 2013 Page: 26 of 36 www.siemic.com.cn Mainborad - Top View Mainborad Uncover - Top View Title: EMC Test Report for GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070242-FCC-E Issue Date: July 31, 2013 Page: 27 of 36 www.siemic.com.cn Mainborad - Bottom View Mainborad Without Shielding - Bottom View Title: EMC Test Report for GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070242-FCC-E Issue Date: July 31, 2013 Page: 28 of 36 www.siemic.com.cn Bluetooth Antenna View GSM / PCS/ Antenna View

FORME COMMUNICATIONS TECHNOLOGY LIMITED GSM Mobile Phone Main Model: E201 Serial Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D July 31, 2013 Report No.: 13070242-FCC-R2 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Herith Shi Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 2 of 58 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 3 of 58 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 4 of 58 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 35 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 41 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 53 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 57 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 58 Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 5 of 58 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the FORME COMMUNICATIONS TECHNOLOGY LIMITED , GSM Mobile Phone and model: E201 against the current Stipulated Standards. The GSM Mobile Phone has demonstrated compliance with the FCC 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : GSM Mobile Phone Main Model : E201 Serial Model : E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D Antenna Gain : GSM850: -1 dBi PCS1900: -1.5 dBi Bluetooth: 1 dBi Input Power : Battery: Model: BL-5C Spec: 3.7V 1050mAh 3.885Wh Limited charger voltage: 4.2V Adapter: Model: WUS550mA5V00-02 Input: AC 100-240V 50/60Hz 0.15A Output: DC 5V 550mAh Classification Per Stipulated Test Standard : FCC 15.247: 2012, ANSI C63.4: 2009 Note: The main model which we choose for test is E201, the serial models are E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D. The deference between them are logo and color, which is explained in declaration letter. Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 6 of 58 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of GSM Mobile Phone with stipulated standard Applicant / Client FORME COMMUNICATIONS TECHNOLOGY LIMITED FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK Manufacturer FORME COMMUNICATIONS TECH…

Text truncated - open the document above for the full version.

Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 51 of 58 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: RF Test Report for GSM Mobile Phone Main Model: E201 Main Model: E201D, E101, E202, E202D, E102, MXG, MX210, T172, T172C, T131D To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 13070242-FCC-R2 Issue Date: July 31, 2013 Page: 52 of 58 www.siemic.com.cn Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
