2AAK9FORMEQ500WGSM Mobile Phone

1 Q500W User Manual Because of product version upgrades or other reasons, the document content may not be up to date. Our company reserves the right to not offer any prior notice about this manuals content. 2 Preface Thank you for choosing the Q500w GSM Mobile Phone! The Q500W is designed for use on the GSM/GPRS Network. GSM/GPRS network is an international standards global cellular communications system. Note: Due to the cellular network settings and the services provided, some functions may be unavailable, please contact local service providers for more information. For your safety Read these simple guidelines. Ignoring these guidelines may be dangerous or illegal. Further detailed information is given in this manual. ROAD SAFETY Always keep your hands free to operate the device while driving. Park the vehicle before using your Mobile Phone. USE IN AIRCRAFTS You must abide by local authority rules of phone mobile phone use on aircrafts. Laws and/or regulations may differ by country. If your mobile phone offers an Airplane Mode or similar feature, consult airline staff about using in flight. SWITCH OFF IN HOSPITALS Follow any restrictions or rules. Please switch off your phone where you see signs forbidding phone use. Such signs can be found in medical centers or establishments with medical equipment. SWITCH OFF WHEN REFUELING Switch the mobile phone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, gas station, chemical plant, or in any potentially dangerous atmosphere. SWITCH OFF NEAR BLASTING POINT Don’t use the Mobile Phone where blasting is in progress. Observe restrictions, and follow any local regulations or rules. INTERFERENCE All wireless Mobile Phones may be susceptible to interference, which could affect the performance. ACCESSORIES AND BATTERIES Use only the approved accessories and batteries. Do not connect generic products; they could be incompatible with this device. EMERGENCY CALLS Ensure the Mobile Phone is switched on and in service. Enter the emergency number, and then press the key. It will give your location. Do not end the call until permission is given . Keep this product away from excessive moisture and extreme temperatures. 3 INDEX 1 GETTING STARTED .................................................................................................................... 6 2 CALL FUNCTION......................................................................................................................... 6 3 MESSAGING ................................................................................................................................. 7 4 CONTACTS .................................................................................................................................... 8 5 FM RADIO ..................................................................................................................................... 8 6 MUSIC - AUDIO PLAYER ........................................................................................................... 8 7 CAMERA ........................................................................................................................................ 9 8 VIDEO PLAYER............................................................................................................................ 9 9 VOICE MEMO - VOICE RECORDER ...................................................................................... 9 10 PRIVACY PROTECTION ......................................................................................................... 10 11 INTERNET CONNECTION ...................................................................................................... 10 12 BLUETOOTH .............................................................................................................................. 10 13 OTHER FUNCTIONS ................................................................................................................. 11 BATTERY INFORMATION ............................................................................................................... 15 SAFETY INFORMATION .................................................................................................................. 15 4 GENERAL SPECS Model Q500W Dimension 115.4*59.5*13 mm Battery Li‐Ion 800mAh Travel Charger UL ISC01 BYD (110~240V) Headset Stereo Headset IO Micro USD 5 Pins Q500W Keys Left Soft Key Execute Bottom Left Command / Menu Backspace Key Delete the character you have inputted Right Soft Key Execute Bottom Right Command / Names Alt Key Input the number or character on the top of the key. Navigation – Up Moving Up / Audio Player/Volume up Enter Key Switch to the next line Navigation – Down Moving Down / Alarm/Volume down Caps Key Switch between large and small capital input mode. Navigation – Left Moving Left / Message Space Key Input the space. Navigation ‐ Right Moving Right / Profile Sym Key Input symbol. Navigation ‐ OK Confirm / Menu Right Shift Key Switch between the different input methods. Green Dial Key Making Call / Access Call Logs/ Answering calls “#” Long Press–Silent Mode/Volume up Red End Key Hang Up a Call Power On/Off Return to Main Screen “*” Volume Down “1” ~ “0”,”*”,”#” Input Keys 5 Status Icons Network Signal Auto Keypad Lock Alarm Clock is activated New Message or Message Memory Full WIFI Profile Setting 6 1 Getting Started 1.1 Insert the SIM card and Battery 1.1.1 Insert your SIM card into SIM Slot accordingly. Please refer to the picture below for the correct Installation of your Original Battery into the phone with both Battery and Phone connection in the same contact position. 1.2 Battery Charging 1.2.1 Ensure your battery is properly installed in your phone before charging your battery. (If the battery and/or charger are damaged, they should not be used) 1.2.2 Connect your charger to Power outlet (Do not use within a loose outle…

Text truncated - open the document above for the full version.

To：SIEMIC , 775 Montague Expressway, Milpitas, CA 95035,USA Declaration Letter For our business issue and marketing requirement, we would like to list 2 model numbers on the FCC reports, as following: Model No.: Q500W, T231c We declare that there is no electrical change has been made to the equipment that alters the compliance characteristics. The difference of these 2 models is for different logo and color. Please kindly handle on the project. Thank you! Printed name/title: XUEPING WU / Manager Tel: +86-0769-89396666 Fax: +86-0769-89608326 Address: FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 FORME COMMUNICATIONS TECHNOLOGY LIMITED 2013-11-11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, FORME COMMUNICATIONS TECHNOLOGY LIMITED hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description：GSM Mobile Phone model name：Q500W Serial Model Name :T231c FCC ID: 2AAK9FORMEQ500W We affirm that between SIEMIC and FORME COMMUNICATIONS TECHNOLOGY LIMITED , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : XUEPING WU /Manager Contact information / address : FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 FORME COMMUNICATIONS TECHNOLOGY LIMITED 2013-11-12 To: FORME COMMUNICATIONS TECHNOLOGY LIMITED Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAK9FORMEQ500W We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - BOM - Turn up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title :XUEPING WU / Manager Contact information / address: FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK

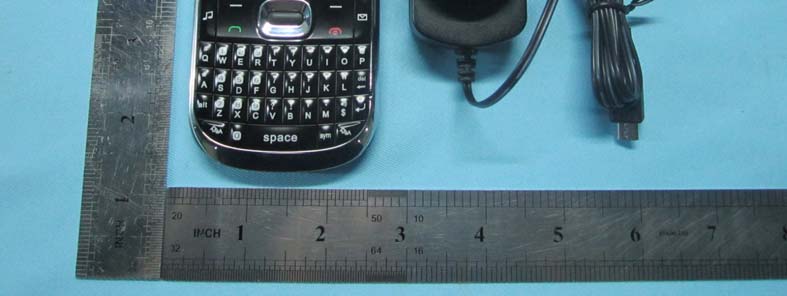

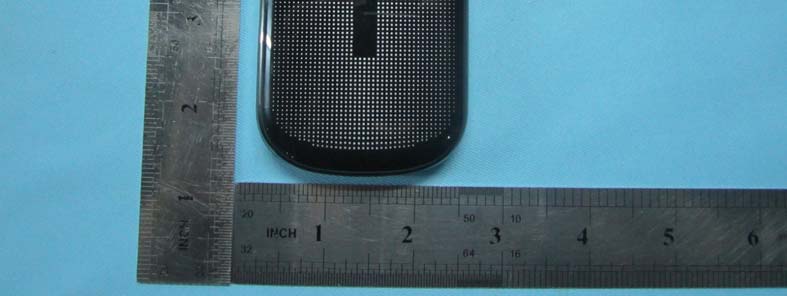

Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 19 of 36 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 20 of 36 www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 21 of 36 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 22 of 36 www.siemic.com.cn EUT - Left View EUT - Right View

Label Location

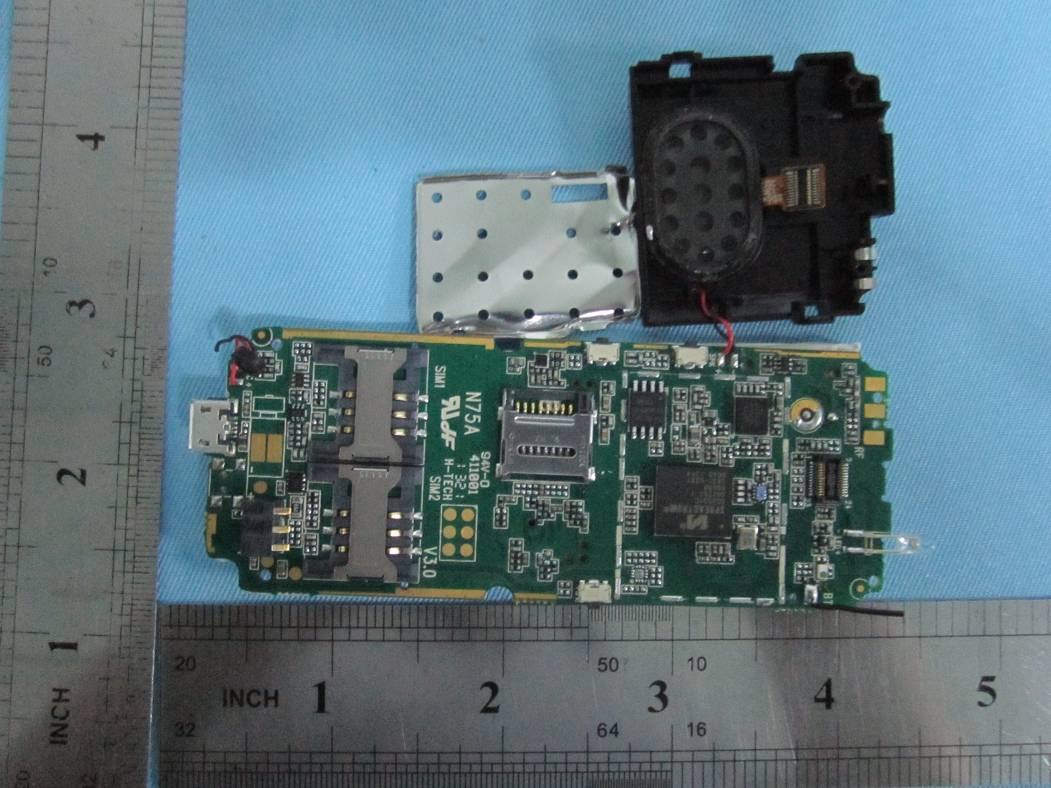

Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 23 of 36 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View Cover Off - Rear Housing View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 24 of 36 www.siemic.com.cn Adapter View Battery – Top View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 25 of 36 www.siemic.com.cn Battery –Bottom View Mainborad - Top View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 26 of 36 www.siemic.com.cn Mainborad Uncover- Top View Mainborad Without Shielding - Top View Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 27 of 36 www.siemic.com.cn Mainborad - Bottom View Mainborad Without Shielding – Bottom View Bluetooth Antenna GSM Antenna Title: EMC Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070472-FCC-E1 Issue Date: November 9, 2013 Page: 28 of 36 www.siemic.com.cn Rear HousingView WIFI Antenna

Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 52 of 88 www.siemic.com Annex A CALIBRATION REPORTS SARTIMO Calibration Certificate-Extended Dipole Calibrations According to KDB 865664-D01, Dipoles must be recalibrated at least once every three years; however, immediate re-calibration is required for following conditions. The test laboratory must ensure that the required supporting information and documentation have been included in the SAR report to qualify for extended 3-year calibration interval, otherwise, the IEEE Std 1528-2003 recommended annual calibration applies Immediate re-calibration is required for the following conditions. a) After a dipole is damaged and properly repaired to meet required specifications. b) When the measured SAR deviates from the calibrated SAR value by more than 10% due to changes in physical, mechanical, electrical or other relevant dipole conditions; i.e., the error is not introduced by incorrect measurement procedures or other issues relating to the SAR measurement system. c) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification d) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 ∩from the previous measurement Dipole Verification plot: SID 835 SN 31/10 DIPC150 835MHz for Head: 835MHz for Body: Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 53 of 88 www.siemic.com Dipole Verification plot: SID 1900 SN 31/10 DIPG153 1900MHz for Head: 1900MHz for Body: Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 54 of 88 www.siemic.com SID 835 SN 18/11 DIPC150 For Head Return- Loss (dB) Deviate (dB) Real Impedance ( Ω) Imaginary Impedance (Ω) Deviate ( Ω) Calibrate Date -35.8 ----- ----- 50 ----- 06/01/2011 -35.207 0.593 50.949 50 0.949 06/06/2013 SID 835 SN 18/11 DIPC150 For Body -35.938 -0.138 51.490 50 1.49 06/06/2013 SID 1900 SN 18/11 DIPCG153 For Head Return- Loss (dB) Deviate (dB) Real Impedance (Ω) Imaginary Impedance (Ω) Deviate ( Ω) Calibrate Date -25.9 ----- ----- 50 ----- 06/01/2011 -25.506 0.394 48.713 50 -1.287 06/05/2013 SID 1900 SN 18/11 DIPG153 For Body -26.188 -0.288 50.107 50 0.107 06/05/2013 According to up table, the return loss is <-20dB, deviates by less than 20% from the previous measurement; the real Impedance are all within 5 Ω compared to the required Impedance (50 Ω). Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 55 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 56 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 57 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 58 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 59 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 60 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 61 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 62 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 63 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 64 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 65 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 66 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 67 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 68 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 69 of 88 www.siemic.com Title: SAR Test Report of GSM Mobile Phone Model : Q500W To C95.1, IEEE 1528, IEC62209-2…

Text truncated - open the document above for the full version.

FORME COMMUNICATIONS TECHNOLOGY LIMITED GSM Mobile Phone Model: Q500 Serial Model: T231c Nov 7th, 2013 Report No.: 13070472-FCC-H (This report supersedes NONE) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: SAR Test Report of GSM Mobile Phone Model : Q500 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 2 of 88 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: SAR Test Report of GSM Mobile Phone Model : Q500 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 3 of 88 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of GSM Mobile Phone Model : Q500 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 4 of 88 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 29 8 TEST INSTRUMENT .................................................................................................................................................... 32 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 33 10 SAR TEST RESULTS .................................................................................................................................................. 36 11 SAR MEASUREMENT REFERENCES .......................................................................................................................... 39 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 52 ANNEX B SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 83 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................... 84 ANNEX D EUT PHOTOGRAPHS ........................................................................................................................................ 87 Title: SAR Test Report of GSM Mobile Phone Model : Q500 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 5 of 88 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of GSM Mobile Phone Model : Q500 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070472-FCC-H Issue Date Nov 7th, 2013 Page 6 of 88 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the FORME COMMUNICATIONS TECHNOLOGY LIMITED. Model: Q500 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the C95.1, IEEE 1528, IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description GSM Mobile phone Model No Q500 Input Power Li-ion Battery Charging Voltage:3.7V , 800mAh Charge Cut-off Voltage: 4.2 V Maximum Conducted Output Power to Antenna Cellular 850(Class 4) : 32.15dBm PCS1900 (Class 1) :28.64dBm Highest Reported SAR Level(s) 0.21 W/Kg 1g Head Tissue 0.26 W/Kg 1g Body Tissue Classification Per Stipulated Test Standard Mobile Device , Class B, No DTM/Hotspot Mode Multi-SIM Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Co-located TX GSM can transmit simultaneously with Blueto…

Text truncated - open the document above for the full version.

FORME COMMUNICATIONS TECHNOLOGY LIMITED GSM Mobile Phone Main Model: Q500W Serial Model: T231c November 9, 2013 Report No.: 13070472-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Back Huang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070472-FCC-R1 Issue Date: November 9, 2013 Page: 2 of 47 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070472-FCC-R1 Issue Date: November 9, 2013 Page: 3 of 47 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070472-FCC-R1 Issue Date: November 9, 2013 Page: 4 of 47 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MODIFICATION ..................................................................................................................................................... 7 4. TEST SUMMARY .................................................................................................................................................... 8 5. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 29 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 32 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 43 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 46 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 47 Title: RF Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070472-FCC-R1 Issue Date: November 9, 2013 Page: 5 of 47 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the FORME COMMUNICATIONS TECHNOLOGY LIMITED, GSM Mobile Phone and model: Q500W against the current Stipulated Standards.The GSM Mobile Phone has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2013. EUT Information EUT Description : GSM Mobile Phone Main Model : Q500W Serial Model : T231c(the difference between the Main Model and Serial Model are logo and color，details refer to the Declaration Letter.) Antenna Gain : GSM850: 0 dBi PCS1900: 0 dBi Bluetooth: 1 dBi WIFI: 1.5 dBi Input Power : Battery: Voltage: 3.7V Capacity: 800mAh Charging Voltage: 4.2V Adapter: Model No.: WUS550mA5V00-02 PRI: 100-240V~ 50/60Hz 150mA SEC: 5.0V 550mA Maximum Conducted Peak Power to Antenna : GSM850: 32.15 dBm PCS1900: 28.64 dBm Maximum Radiated ERP/EIRP : GSM850: 28.75 dBm / ERP PCS1900: 24.49 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2013 Title: RF Test Report for GSM Mobile Phone Main Model: Q500W Serial Model: T231c To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070472-FCC-R1 Issue Date: November 9, 2013 Page: 6 of 47 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of GSM Mobile Phone with stipulated standard Applicant / Client FORME COMMUNICATIONS TECHNOLOGY LIMITED FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK Manufacturer FORME COMMUNICATIONS TECHNOLOGY LIMITED FLAT/RM 603 6/F ，WANCHAI CENTRAL BLDG ,89 LOCKHART RD,WANCHAI,HK Laboratory performing the tests SIEMIC (Shenzhen-China) Labor…

Text truncated - open the document above for the full version.
