TSD B08001 1 RSE – OverviewThe Rear Seat Entertainment system (RSE) allows passengers inthe rear compartment to access multimedia content and basicInfotainment functions using the Touch Screen Remote (TSR) ora suitable device running the Bentley Flying Spur RSE app.Dependent upon specification, the RSE system may consist of the following items:• Display screens > • Multimedia interface > • Media loaders > • Left and right headphone sockets > • Wireless headphones > Fig. 1 RSE features (5 seat vehicle shown) 1 Display screen > 2 Media loader > 3 Touch screen remote (TSR) > 4 Headphone connections > Multimedia interfaceMedia loadersTouch screen remote (TSR)Using the RSESettingsHeadphones 1 2 1 3 2 4 B0918 2 TSD B08001 Multimedia interfaceFig. 2 Multimedia interface 1 RSE SIM card reader2 Multimedia interfaceThe multimedia interface (located in the glovebox), contains thefollowing:• Jukebox - 64GB memory capacity for storing media files. • Multimedia interface - Enables connection of a compatiblemedia device to the Infotainment system. • RSE SIM card reader - Enables access to the internet when a suitable SIM card is present. The SIM card should be inserted into the card slot with the ‘chip’ facing upwards and the ‘cut-off ’ corner pointing towards theright. Note • Very high or very low temperatures (a common occurrence in a car's interior) can cause damage to a portable player and/or impair itsperformance. Please do not leave your portable player in the car incase of extreme temperatures. • Handle the adapter cable with care. Make sure the cable does not become pinched or trapped. Media loadersTouch screen remote (TSR)Using the RSESettingsHeadphones B0922.LH 1 2 TSD B08001 3 Media loadersRaise the front of the cover to access the features of the medialoader.Fig. 3 Seatback features 1Display screen > 2 CD/DVD disc slot > 3 CD/DVD Eject button > 4 SD memory card slot > 5HDMI input > 6 USB connector > Multimedia interfaceTouch screen remote (TSR)Using the RSESettings Headphones B0920 1 USB HDMI SD 2 3 4 5 6 4 TSD B08001 Touch screen remote (TSR)When controlling the RSE system, the TSR works like a track pad,where the movement of a finger on the central area of the TSRtouch screen is used to highlight an option on the display screen.The highlighted option can then be selected by tapping the screen. It is possible to scroll through lists by ‘swiping’ a finger on thetouch screen in the direction desired. To quickly scroll through alist, hold a finger on the edge of the touch screen at the end ofthe swipe gesture. The scrolling action will stop when the end ofthe list is reached or when the finger is removed from the screen.For general information on usin g the TSR, refer to the ‘Touch screen remote’ heading in the Infotainment chapter of the Owner’sHandbook.Fig. 4 TSR in gesture mode (left-hand RSE system selected) 1 On/off function button > 2 Touch screen3 Select right-hand RSE system function button > 4 RSE main menu function button > Multimedia interfaceMedia loadersUsing the RSESettingsHeadphones B0935.EN 1 2 3 4 Menu TSD B08001 5 TSR function buttonsDependent upon the currently selected menu, the followingfunction buttons may appear on the TSR or the RSE display screen: - Press to turn the currently selected RSE system on or off.- Press to return to the previous menu screen.- Press to return to the RSE system main menu. - Displays the currently playing media. Switching the RSE system on and offSwitching between RSE screensAdjusting the volume Switching the RSE system on and offTo switch on the RSE system using the TSR, select the RSE app from the app selector screen.The TSR will prompt the user to select from the following options: - Left-hand RSE system and display monitor on.- Right-hand RSE system and display monitor on.- Both RSE systems and display monitors on. When both sides of the RSE system are switched on together, theTSR control will default to the left-hand RSE system.TSR function buttonsSwitching between RSE screensAdjusting the volume Menu 6 TSD B08001 Switching between RSE screensTo switch off the RSE system, proceed as follows:1. Use the or function button to select the desired side of the RSE system. 2. Press the function button. A pop-up window displaying the following options will open (the left-hand RSE system has beenselected for this example): Switch off left display or Switch on left display - Switches on or off the left-hand display only. When the display is switched off, the audio for the currently playing media willcontinue to be output through the currently selected source.Switch off left system - Switches off the left-hand RSE system.Cancel - Closes the pop-up window and returns to the previous TSR screen. 3. Select the desired option.To switch on the RSE system after it has been switched off via theTSR, or if only one side had been switched on at initial start-up,press the function button. TSR function buttonsSwitching the RSE system on and offAdjusting the volume Adjusting the volumeFig. 5 Volume controls 1 Left-hand RSE volume controls2 Infotainment system volume controls3 Right-hand RSE volume controls4 Volume control buttonPressing the volume control button (4) opens the volume controlpop-up window. It is possible to control the volume settings for the Infotainmentsystem or any wired or wireless headphones that may beconnected to the RSE system. Press the or function buttons for the desired device to increase or decrease the volumeof the desired output.Press the function button to mute the desired output. B0934 1 2 3 4 TSD B08001 7 If wired and wireless headphones are connected to the same sideof the RSE system, it is possible to toggle between adjustment foreach pair of headphones by pressing the or function button at the top of the pop-up window. Note The volume control pop-up window will close after approximately5 seconds of inactivity.TSR function buttonsSwitching the RSE system on and offSwitching between RSE screens Using the RSEFig. 6 Main menu There …

Text truncated - open the document above for the full version.

xx Important information Important informationRunning-in proceduresDetailed information regarding the running-in procedures for thecar can be found under the heading ‘Running-in procedures’ onpage 65.FuelThis handbook refers to cars fitted with catalytic converters in theexhaust system. This car can be run on either unleaded fuel or bioethanol E85, orany mixture ratio of these two fuels.For further information, refer to the heading ‘Fuel specification’on page 133. Occupant restraintsThis car is equipped with driver and passenger air bagsupplementary restraint systems, thorax protection on the outerp o r t i o n o f ea c h se a t b a ck res t a n d s i d e h e a d p ro t e c t i o n w i t h i n e a c hside of the upper trim panels. For maximum safety in all types of accidents, or if the car is stoppedsuddenly, the driver and all passe ngers should, at all times, be restrained by the safety belts provided. Air bag protection doesnot reduce the necessity to wear a safety belt. For the sake of the environment Undeployed air bag modules and pre-tensioners are classified asPerchlorate Material – Special handling may apply. Seewww.dtsc.ca.gov/hazardouswaste/perchlorate. When the vehicle or parts of the restraint system including air bag modules safety belts withpre-tensioners are scrapped, all applicable laws and regulations mustbe observed. Your authorised Bentley dealer is familiar with theserequirements and we recommend that you have your Dealer perform this service for you. ServiceThe importance of regular servicing on a time expired or mileagebasis cannot be over-emphasised. The driver information panel displays a reminder when the car isdue for service. However, it is the responsibility of the owner toensure that the car is maintained in accordance with the specifiedservice schedules. It is strongly recommended that all maintenanceand repair work is carried out by an authorised Bentley dealer. Work carried out under the terms of the Warranty given witheach new car must be performed by an authorised Bentley dealer. The Bentley insignia is displayed by authorised Bentley dealers whowill have factory trained personnel, up-to-date technicalinformation, specialist tools, and approved parts. Similarly, shouldcoachwork or paintwork repairs be required, the use of anauthorised Bentley dealer is recommended. Work arranged andundertaken at these establishments will be carried out usingapproved procedures and materials. WarrantyDetailed information on warranties applicable to cars conformingto certain market specifications can be found in the ServiceHandbook. Unt i t l ed1. f m Page xx Tuesday, N ovem ber 12, 2013 4: 08 PM Important information xxi Symbols used within this bookTo ensure the optimum safety of the occupants and the operationalsafety and reliability of the car, you are advised to pay particularattention to the information accompanying the warning symbols. The following symbols are used throughout this handbook: Caution Identifies information which prevents the car being damaged. Important Identifies information which will either, quickly improve theunderstanding of a feature, or informs the user to follow an instruction. For the sake of the environment Identifies information relating to the protection of the environment. Note Identifies additional information of a more general nature.Warning boxes WARNING Throughout these documents, any information regardingwarnings will be contained inside a box. These warnings containimportant information on safety and how to reduce the risk ofpersonal injury and death. The warning boxes will contain a symbol. An arrow in thebottom right-hand corner denotes there is more information inthe warning, either in the next column or on the next page.A square in the bottom right-hand corner denotes the end ofthe warning. Unt i t l ed1. f m Page xxi Tuesday, N ovem ber 12, 2013 4: 08 PM xxii Statements of compliance Trunk entrapment Interior release handle(emergency use only) California Proposition 65 warningStatements of complianceSecurity systemSiemens AG states that this device complies with part 15 of theFCC Rules. Operation is subject to the following two conditions.1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This digital apparatus does not exceed the Class A limits for radionoise emission from digital apparatus set out in the RadioInterference Regulations of Industry Canada. WARNING Never leave the car unattended especially with the trunk lid leftopen. A child could crawl into the trunk and pull the trunk lidclosed, becoming trapped and unable to get out. To reduce therisk of personal injury, always keep the trunk lid as well as thecar doors closed when not in use. In the event of accidental trunk entrapment, a release handle isfitted to the underside of the trunk lid. Ensure the handle remainsunobstructed at all times.The handle is visible from inside the trunk for up to thirty minutesafter the trunk lid is closed, to assist with exiting the car in theevent of accidental entrapment. Should accidental entrapment occur, press the handle downtowards the bumper, then push upward to open the trunk lid. WA RNI NG Engine Exhaust, some of its constituents, and certain carcomponents contain or emit chemicals known to the State ofCalifornia to cause cancer and birth defects and reproductiveharm. In addition, certain fluids contained in cars and certain productsof component wear contain or emit chemicals known to the Stateof California to cause cancer and birth defects or otherreproductive harm.Battery posts, terminals and related accessories contain lead andlead components, chemicals known to the State of California tocause cancer and reproductive harm. Wash hands after handling. WA RNI NG Any changes or modifications to any of the listed devices notexpressly approved by the party responsible for compliance couldvoid the user’s authority to…

Text truncated - open the document above for the full version.

Bentley Rear Seat Entertainment System Installation Manual 621 BY62PDS-182 Name: Ian Briggs E-mail address: [email protected] Telephone number: +447507889462 Created on (date): 28/04/2014 Current issue level 1.2 Issue date: 28/04/2011 Bentley Motors Ltd Pyms Lane Crewe Cheshire CW1 3PL England Tel: +44 (0)1270 255155 Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 1 LIST OF CONTENTS List Of Contents 1 Revision History 2 Abbreviations and Definitions used in this Document 3 Confidentiality and Security 4 1.1 Feature Description 4 1.1.1 General Overview 4 1.1.2 Component Description(s) 5 2 Installation Requirements 6 2.1 RSE Control Unit 6 2.1.1 General Information 8 2.1.2 Installation 9 2.1.3 Removal 10 2.2 DVD Loader unit 11 2.2.1 Installation Guide 13 Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 2 REVISION HISTORY Version Issue date Reason for change V1 Initial Version Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 3 ABBREVIATIONS AND DEFINITIONS USED IN THIS DOCUMENT The following table lists the terms used in this document. Term Definition The following table lists the abbreviations used in this document. Abbreviation Meaning RSE Rear Seat Entertainment DVD Digital Video Disc Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 4 CONFIDENTIALITY AND SECURITY The information contained within this Specification is of a confidential nature and a Confidentiality Agreement must exist between our companies before you may examine any part of this document. If you are not aware of any such agreement you must seek an Agreement without delay by contacting the undersigned. Pending such agreement you will treat all information contained within this Specification as being strictly private and confidential and all reasonable steps will be taken by you to preserve such confidentiality, including not taking copies or converting it into an alternative format without the prior written consent of Bentley Motors Ltd, and will not be used for any purpose other than in order to evaluate it. A list of authorised personnel should be available for inspection. Visitors should only be allowed access with the prior permission of Bentley Motors Ltd. All information stored electronically must only be accessible by authorised personnel. Adequate protection should be taken to ensure data could not be read by any other source. All hard copy information must similarly be restricted to authorised personnel only. This document remains the property of Bentley Motors Ltd, the supplier shall at any time at the request of Bentley Motors Ltd. return all materials and copies of documentation relating to the specification or project whether supplied by Bentley Motors Ltd. or otherwise. To the extent it so desires, Bentley Motors Ltd shall receive free of charge exclusive, irrevocable, perpetual, geographically unlimited, transferable and sub-licensable rights of use and exploitation with respect to all work results and products representing a special development for us or VW group companies or developed exclusively for us or VW group companies. VW group companies shall enjoy the same rights. You shall inform us of any and all innovations arising within your organization in connection with the performance of the contractual work, including without limitation inventions, suggestions for technical improvements, know-how, and any other individually identifiable intellectual property, and you shall furnish all documentation necessary to assess such innovations. 1.1 FEATURE DESCRIPTION 1.1.1 GENERAL OVERVIEW The components described in this document shall be the components to make up a brand new rear seat entertainment system for the Bentley 621 project. The systems will provide the user the following high level features: RSE High Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 5 1. Access to the internet via a 3G UMTS module (Package protection to be included for LTE module as part of design). User accessible SIM slot. 2. Use of the system as an in-car Wi-Fi hotspot for up to 5 devices. 3. The ability to listen to music in the vehicle using the vehicle speakers and/or headphones. 4. The ability to connect 3 rd party devices to use the internet 5. The ability to listen to internet radio 6. The ability to bring their media to the car and be able to watch & listen to it (SD Cards and USB devices including apple devices). 7. The ability to have any customer accessible USB connections. 8. Controlling the system via the supplied Touch screen remote control, or a 3 rd Party application on a compatible device (device application development not part of this specification) via a Bluetooth or Wi-Fi (third party) link 9. Provide Diagnostics on CAN for the Dealers to diagnose faults. 10. The ability to watch videos using the provided screens in the car. 11. The ability to display location based map data to the customer via Bing maps. 12. The ability to watch DVD’s 13. The system shall allow the user to watch TV. There is a group TV tuner fitted to the vehicle with a component output. 14. The system shall enable the user to use wireless headphones. 1.1.2 COMPONENT DESCRIPTION(S) 1.1.2.1 General The system shall be made up of four fundamental units. The system shall have one primary diagnostics address on CAN to report diagnostic information to the vehicle and also to integrate with the vehicle power management system. 1.1.2.2 RSE Control Unit 4W0.907.157.X This 1 DIN unit shall go in the glove box. This unit should deal with connectivity and vehicle integration. 1.1.2.3 DVD Loader unit 4W0.035.123.X (2 off) DVD Loader, USB, SD and a HDMI in interface. Located in the Front seatbacks 1.1.2.4 LCD Monitor 4W0.919.607 (2 off) 10” Screens Mounted on the Seatbacks Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 6 2 INSTALLATION REQUIREMENTS 2.1 RSE CONTROL …

Text truncated - open the document above for the full version.

Audiovox Incaar Systems GmbH Branch Office: 14 Boundary Business Centre, Boundary Way, Woking, Surrey, GU21 5DH United Kingdom Tel: +44 (0)1483 722 531 Fax: +44 (0)1483 740 204 Vat Number: GB915196124  Company Registration Number: FC027852  Branch Number: BR009601 Head Office: Lise-Meitner-Strasse 9, 50259 Pulheim, Germany Tel: +49 (0) 2234 807 0 Fax: +49 (0) 2234 807 399 UST (VAT) - ID: DE255639566  HRB 611693 (Trade Register) applied for Köln (Cologne) Bankverbindung (Bankaccount)  Commerzbank Köln  Konto (Account) 133 00 26  BLZ (BIC) 370 400 44  Geschäftsführer (Directors): Ciaran Mitchell, Mark Finger, John Verbinnen  Date: 29.10.2013 Telecommunication Certification Body UL VS Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Relationship between Audiovox Incaar Systems GmbH & Bentley Motors Ltd FCC ID: 2AAKLD189070 and 2AAKLD189050 To whom it may concern We, Audiovox Incaar Systems GmbH, hereby attest that we contracted by Bentley Motors Ltd for the development, manufacturing and supply of FCC ID: 2AAKLD189070 and FCC ID: 2AAKLD189050. As a result of the nature of the contract, exhibits for the certification of the Audiovox Incaar Systems GmbH devices FCC ID: 2AAKLD189070 and FCC ID: 2AAKLD189050 comprise of documentation supplied by both Audiovox Incaar Systems GmbH and Bentley Motors Ltd. Please contact the undersigned if there are any further questions or additional information needed in this matter Yours faithfully Damian Trybuszewski Development Manager

Audiovox Incaar Systems GmbH Branch Office: 14 Boundary Business Centre, Boundary Way, Woking, Surrey, GU21 5DH United Kingdom Tel: +44 (0)1483 722 531 Fax: +44 (0)1483 740 204 Vat Number: GB915196124  Company Registration Number: FC027852  Branch Number: BR009601 Head Office: Lise-Meitner-Strasse 9, 50259 Pulheim, Germany Tel: +49 (0) 2234 807 0 Fax: +49 (0) 2234 807 399 UST (VAT) - ID: DE255639566  HRB 611693 (Trade Register) applied for Köln (Cologne) Bankverbindung (Bankaccount)  Commerzbank Köln  Konto (Account) 133 00 26  BLZ (BIC) 370 400 44  Geschäftsführer (Directors): Ciaran Mitchell, Mark Finger, John Verbinnen  09.30.2013 Telecommunication Certification Body UL VS Ltd Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG United Kingdom Subject: Agency Letter To whom it may concern This is to certify that Audiovox Incaar Systems GmbH authorises UL VS Ltd to act on our behalf for the application of the DVD Loader, FCC ID: 2AAKLD189050 to UL VS Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Damian Trybuszewski Development Manager

Audiovox Incaar Systems GmbH Branch Office: 14 Boundary Business Centre, Boundary Way, Woking, Surrey, GU21 5DH United Kingdom Tel: +44 (0)1483 722 531 Fax: +44 (0)1483 740 204 Vat Number: GB915196124  Company Registration Number: FC027852  Branch Number: BR009601 Head Office: Lise-Meitner-Strasse 9, 50259 Pulheim, Germany Tel: +49 (0) 2234 807 0 Fax: +49 (0) 2234 807 399 UST (VAT) - ID: DE255639566  HRB 611693 (Trade Register) applied for Köln (Cologne) Bankverbindung (Bankaccount)  Commerzbank Köln  Konto (Account) 133 00 26  BLZ (BIC) 370 400 44  Geschäftsführer (Directors): Ciaran Mitchell, Mark Finger, John Verbinnen  Date: 09.30.2013 Telecommunication Certification Body UL VS Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Permanent Confidentiality Request; Certification Application FCC ID: 2AAKLD189050 Pursuant to Sections 0.457 and 0.459 of CFR 47, Company Audiovox Incaar Systems GmbH request that the following information, provided to support the FCC application for the Equipment DVD, FCC ID: 2AAKLD189050, be held permanently confidential:  Schematics  Block Diagrams  Parts List  Operational Description The above material contains trade secrets not customarily released to public that are judged to have the potential to cause detriment to the applicant and provide unjustified benefits to its competitors. This information should not be available for public disclosure for an indefinite period of time. Yours sincerely Damian Trybuszewski Development Manager

Audiovox Incaar Systems GmbH Branch Office: 14 Boundary Business Centre, Boundary Way, Woking, Surrey, GU21 5DH United Kingdom Tel: +44 (0)1483 722 531 Fax: +44 (0)1483 740 204 Vat Number: GB915196124  Company Registration Number: FC027852  Branch Number: BR009601 Head Office: Lise-Meitner-Strasse 9, 50259 Pulheim, Germany Tel: +49 (0) 2234 807 0 Fax: +49 (0) 2234 807 399 UST (VAT) - ID: DE255639566  HRB 611693 (Trade Register) applied for Köln (Cologne) Bankverbindung (Bankaccount)  Commerzbank Köln  Konto (Account) 133 00 26  BLZ (BIC) 370 400 44  Geschäftsführer (Directors): Ciaran Mitchell, Mark Finger, John Verbinnen  27.03.2013 UL VS Ltd. Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG United Kingdom Subject: DVD schematic clarification of red crosses used in the schematic document for the device DVD Loader Unit D189050 FCC IC Number: 2AAKLD189050 To whom it may concern Red crosses on the schematic exhibit indicate removed components and are not assembled on the product. Also the antenna symbol on P7 is removed because it is not a discrete component and is a part of the PCB copper screen. Yours faithfully, Damian Trybuszewski Development Manager

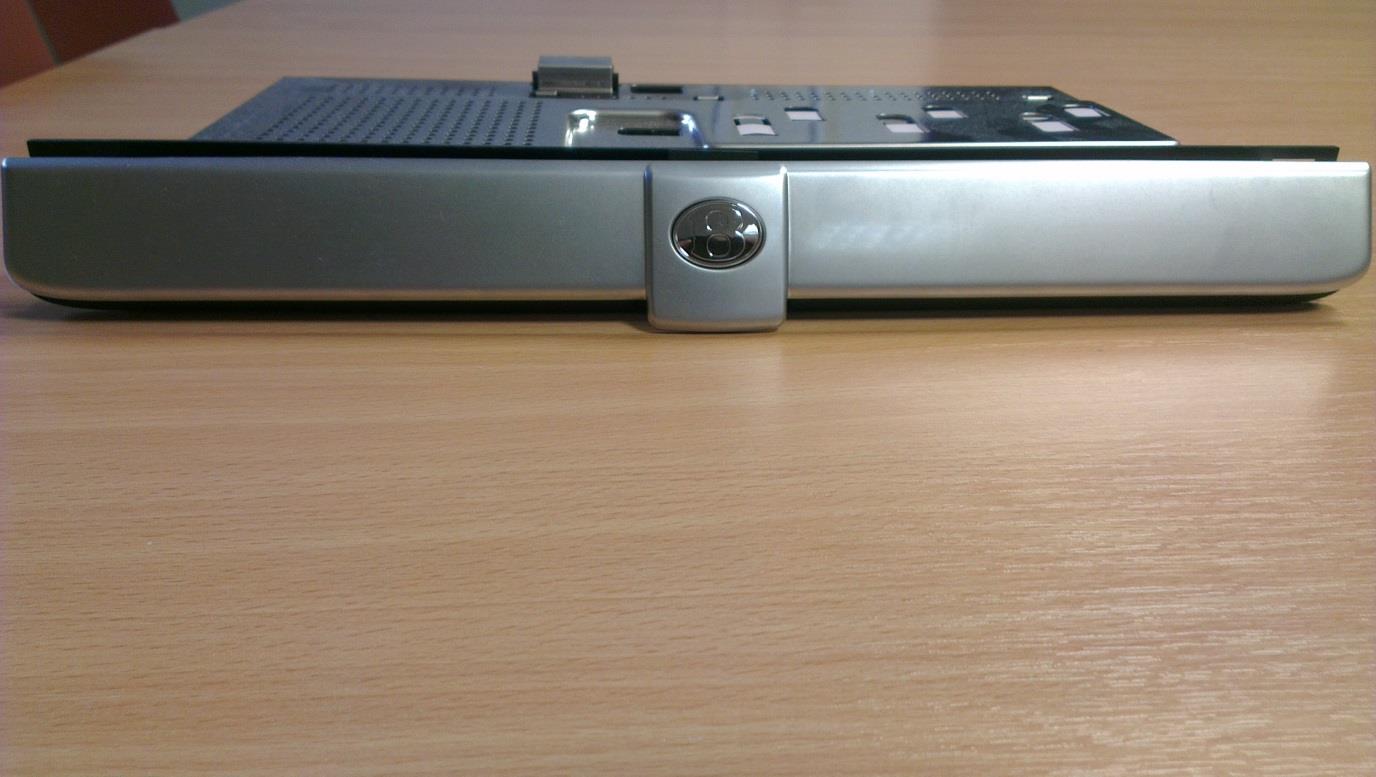

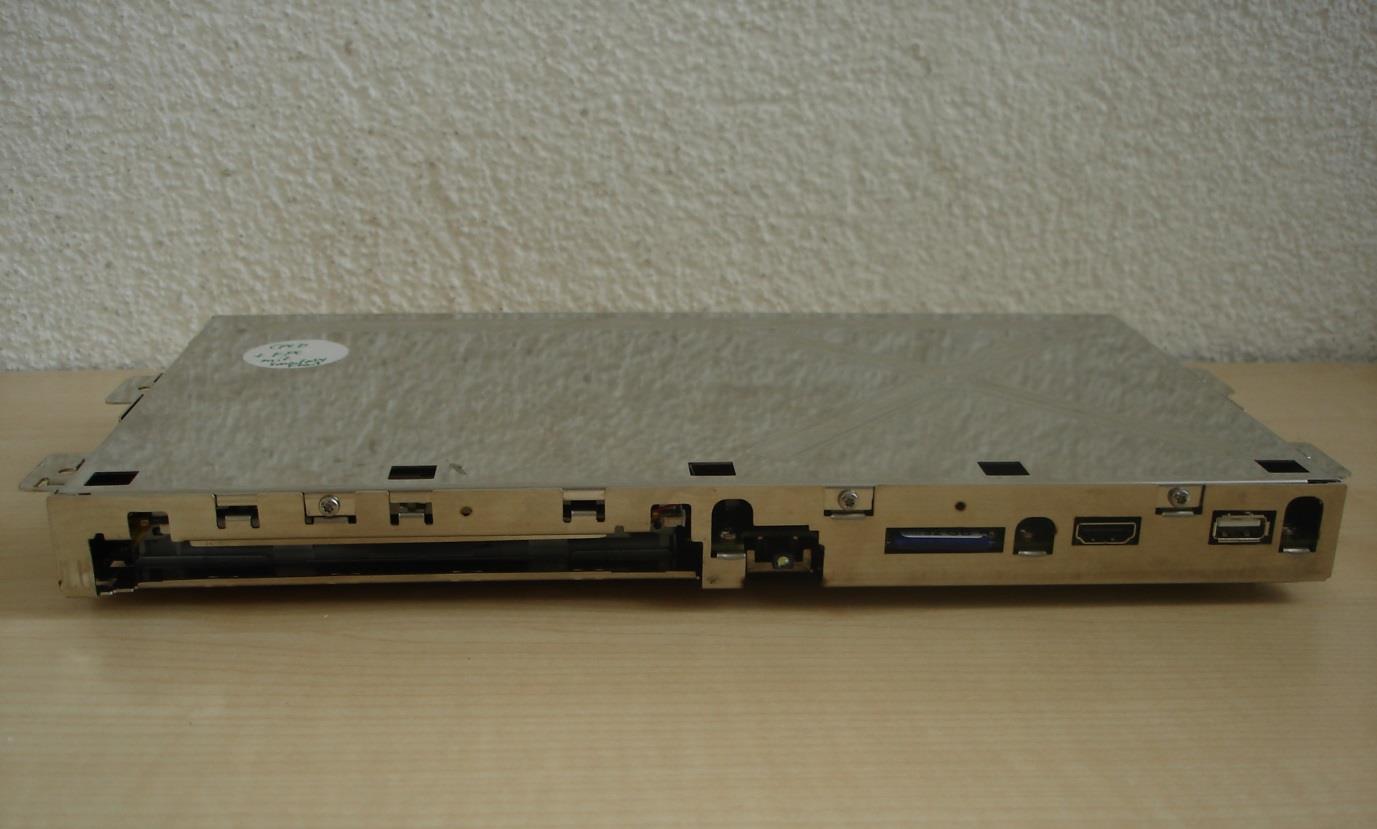

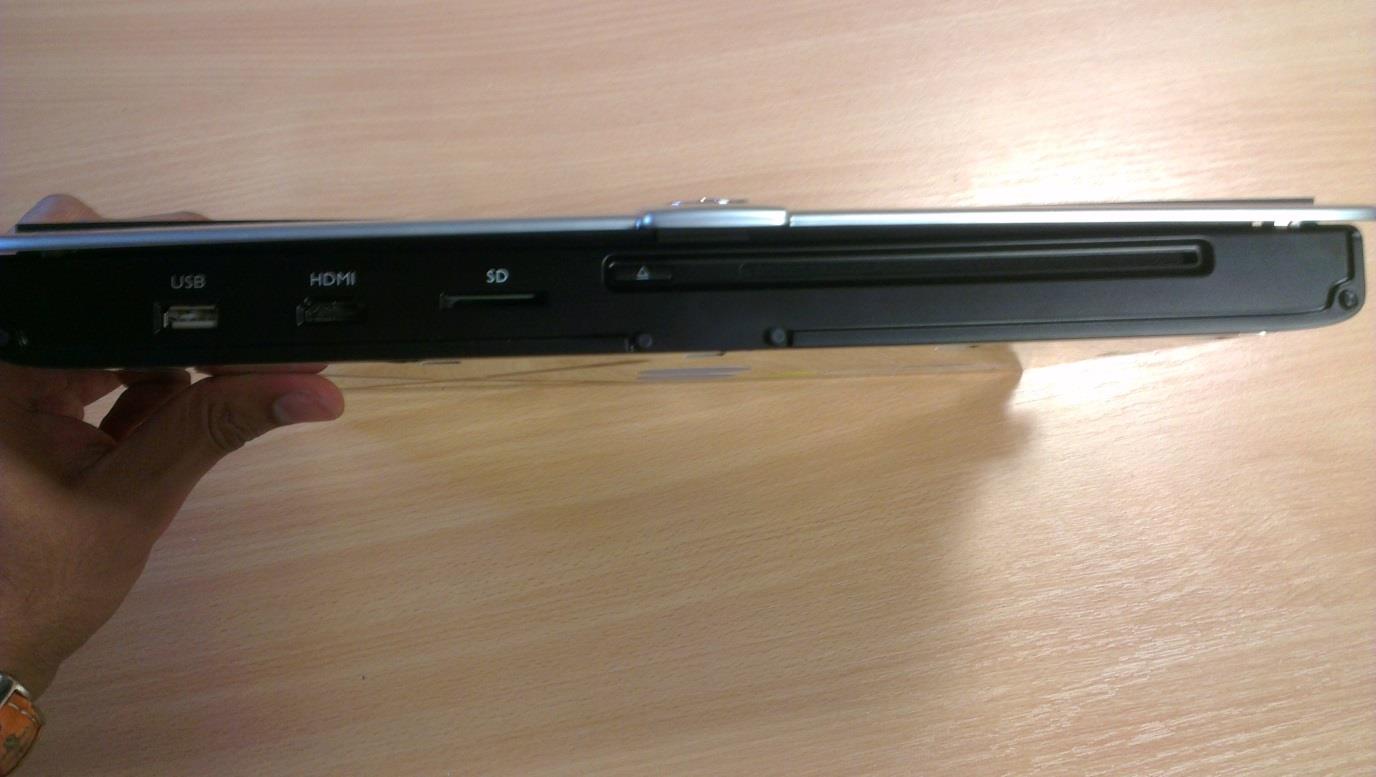

External Product Images of DVD Loaders External Images Front Loader Flap Front Plastic Facier External Product Images of DVD Loaders Top View Front view without front flap External Product Images of DVD Loaders Back view Side view LH External Product Images of DVD Loaders Side view RH Loader Bottom view

70x50mm - height 5mm FCC ID:2AAKLD189050 IC: 11196A-D189050 Model: D189050 CMIIT ID:XXXXXXX - outer size 8x6.3mm R DDDLLDDDDDDDD R DDDLLDDDDDDDD - Japan - min 5mm - R - group TBC, D digit L - letter ZZZZZ : Certification Body code assigned by OFCA YY : Year of issue XXXXX : Serial number of certificate issued during that calendar year KCC-CRM-ABC-XXXXXXXXXXXXXX FCC ID:2AAKLD189050 IC: 1196A-D189050 Model: D189050 CMIIT ID:XXXXXXX R DDDLLDDDDDDDD KCC-CRM-ABC-XXXXXXXXXXXXXX Bentley Homologation label DVD 4W0 035 123 X Damian Trybuszewski 30.10.2013 For Author Title Date V4 V1 V2 V3 V4 First release - draft 14.04.2013 FCC ID and IC ID added 02.10.2013 IC ID chnaged to IC 30.10.2013 FCC logo removed, IC ID corrected ( 1 was missing on the begining) 04.10.2013 Note: Self adhesive labels according to TL 520 38 Label location on the product Labels to be placed on the bottom of the unit (location tolerance ± 2mm). 5mm 20mm5mm 621D4890501211AC00001 001 4W0 035 123 Made in Germany 12 03 2012 0001 D489050 001 DVD loader Unit AC Audiovox Incaar Systems GmbH SW HW CLASS 1 LASER PRODUCT 5mm This device complies with part 15 of the FCC Rules: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label size 40x32mm FCC ID:2AAKLD189050 IC: 11196A-D189050 This device complies with part 15 of the FCC Rules: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:2AAKLD189050 IC : 1196A-D189050 Option 1 Option 2

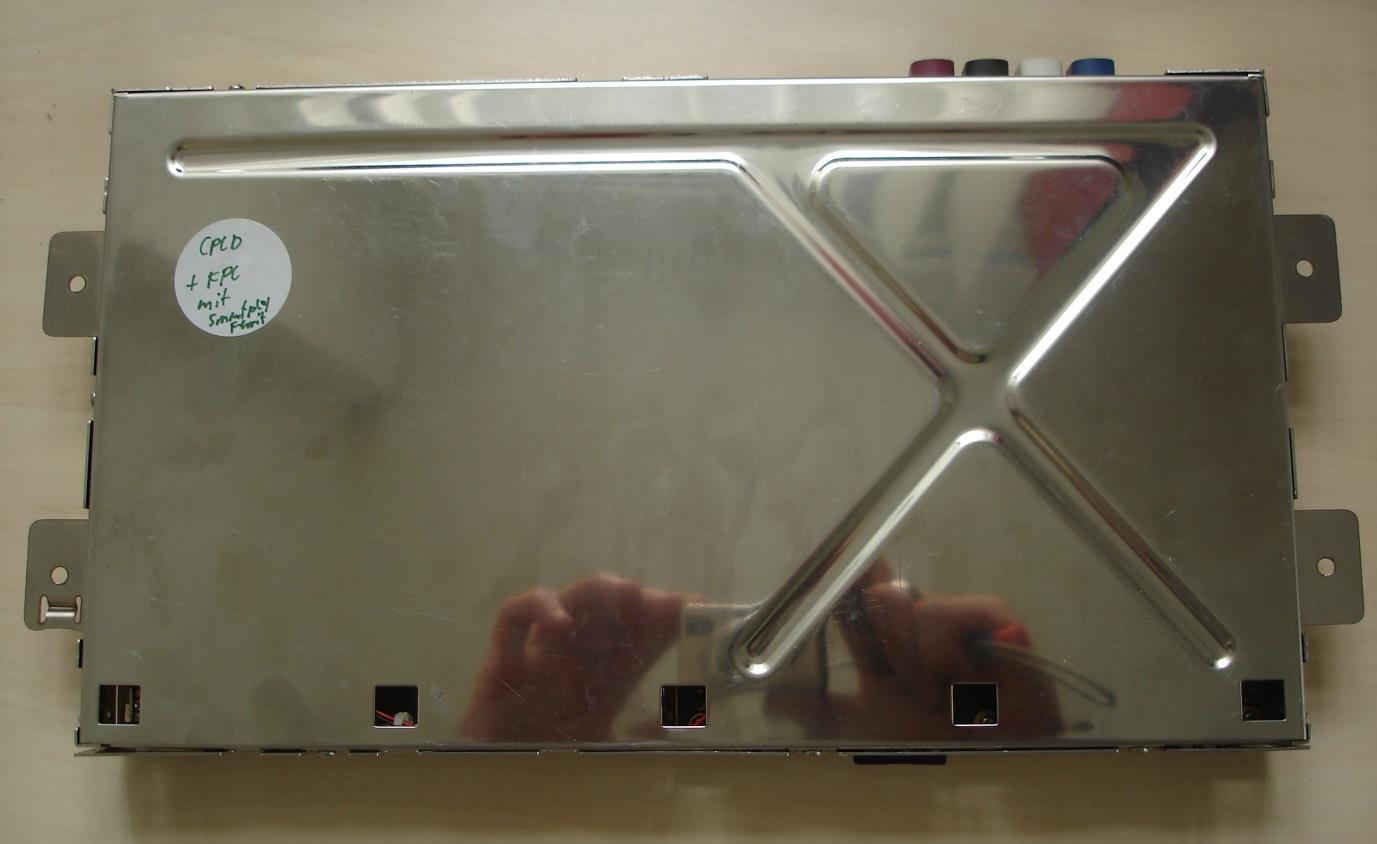

Internal Product Images of DVD Loaders 1 CONFIDENTIAL Internal Images Loader PCB & DVD drive DVD drive Internal Product Images of DVD Loaders 2 CONFIDENTIAL Loader PCB Top View Internal Product Images of DVD Loaders 3 CONFIDENTIAL Loader PCB Bottom View Ribbon cable between Heim board and loader PCB Internal Product Images of DVD Loaders 4 CONFIDENTIAL Ribbon cable PCB without Heim Board 1 Internal Product Images of DVD Loaders 5 CONFIDENTIAL PCB PCB without Heim Board 2 Internal Product Images of DVD Loaders 6 CONFIDENTIAL Heim Board Top view Heim Board Bottom View Internal Product Images of DVD Loaders 7 CONFIDENTIAL Fakra Connectors Internal Product Images of DVD Loaders 8 CONFIDENTIAL Loader PCB Top View – Antenna Location: Antenna 2.4 GHz RF circuit

Audiovox Incaar Systems GmbH Branch Office: 14 Boundary Business Centre, Boundary Way, Woking, Surrey, GU21 5DH United Kingdom Tel: +44 (0)1483 722 531 Fax: +44 (0)1483 740 204 Vat Number: GB915196124  Company Registration Number: FC027852  Branch Number: BR009601 Head Office: Lise-Meitner-Strasse 9, 50259 Pulheim, Germany Tel: +49 (0) 2234 807 0 Fax: +49 (0) 2234 807 399 UST (VAT) - ID: DE255639566  HRB 611693 (Trade Register) applied for Köln (Cologne) Bankverbindung (Bankaccount)  Commerzbank Köln  Konto (Account) 133 00 26  BLZ (BIC) 370 400 44  Geschäftsführer (Directors): Ciaran Mitchell, Mark Finger, John Verbinnen  RF Exposure Analysis Product: DVD Loader FCC ID: 2AAKLD189050 Analysis for FCC portable use Standalone SAR test exclusion considerations are defined in KDB 447498D01 (v05r01) Chapter 4.3.1 where the 1-g head or body and 10-g extremity SAR exclusion threshold is defined by the following formula: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison The above formula is applied to the DVD Loader with the following considerations:  The maximum peak conducted output power including tune-up tolerance, taken from the Operational Description document, is specified as 14 dBm (25.1 mW).  Appendix’s A and B (below) show the DVD Loader mounting position, within the vehicle seat, in relation to the typical front and rear seat passengers and their separation distances.  These distances are variable, therefore a worst case scenario is used in the calculation where the smallest internal separation distance between the PCB trace antenna and the outer surface of the device enclosure is used.  Appendix C shows a cross sectional view of the device with the PCB antenna to case separation dimensions marked. These are 16.55 mm and 13.85 mm to the outer surfaces closest to the rear and front seat passengers respectively. Applying the above to the given formula, using the smallest separation distance of 13.85 mm, the following result is achieved: (25 mW / 14 mm) x √2.474 GHz ≤ 3.0 1.7857 x 1.5729 = 2.81 Therefore the resultant value of 2.81 is <3.0 limit for 1-g head / body SAR and ≤ 7.5 for 10-g extremity SAR, meaning RF exposure exemption (head, body and extremity) is applicable to both the front and rear seat occupants. Audiovox Incaar Systems GmbH Branch Office: 14 Boundary Business Centre, Boundary Way, Woking, Surrey, GU21 5DH United Kingdom Tel: +44 (0)1483 722 531 Fax: +44 (0)1483 740 204 Vat Number: GB915196124  Company Registration Number: FC027852  Branch Number: BR009601 Head Office: Lise-Meitner-Strasse 9, 50259 Pulheim, Germany Tel: +49 (0) 2234 807 0 Fax: +49 (0) 2234 807 399 UST (VAT) - ID: DE255639566  HRB 611693 (Trade Register) applied for Köln (Cologne) Bankverbindung (Bankaccount)  Commerzbank Köln  Konto (Account) 133 00 26  BLZ (BIC) 370 400 44  Geschäftsführer (Directors): Ciaran Mitchell, Mark Finger, John Verbinnen  Rearranging the formula to calculate the distance at which a value of 3 for 1-g Head/ Body SAR is reached: Min. test separation distance, mm = {(max. power of channel, including tune-up tolerance, mW) * [√f(GHz)]} / 3 Min. test separation distance = (25 * √2.474) / 3 = 13.1 mm . Signature: __…
