2AALA1315-1314-1326Radio Control Toy Transmitter (2.4GHz)

www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 9 of 14 1.6 User Manual www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 10 of 14 www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 11 of 14 www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 12 of 14 www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 13 of 14 www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 14 of 14

Page 1 / 1 Shantou City Hengdi Industry Co., Ltd West of NingchuanBei Road and South of Huancui Roda, Guangyi St, Chenghai District, Shantou, Guangdong To Whom It May Concern: Please be advised that Applicant Name: Shantou City Hengdi Industry Co., Ltd Address: West of NingchuanBei Road and South of Huancui Roda, Guangyi St, Chenghai District City: Shantou Country: Guangdong authorizes, Joey Leung, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title: General Manager

Page 1 / 1 Shantou City Hengdi Industry Co., Ltd West of NingchuanBei Road and South of Huancui Roda, Guangyi St, Chenghai District, Shantou, Guangdong Applicant Name: Shantou City Hengdi Industry Co., Ltd Address: West of NingchuanBei Road and South of Huancui Roda, Guangyi St, Chenghai District City: Shantou Country: Guangdong Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: 2AALA1315-1314-1326 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: General Manager Date: 2015.3.25

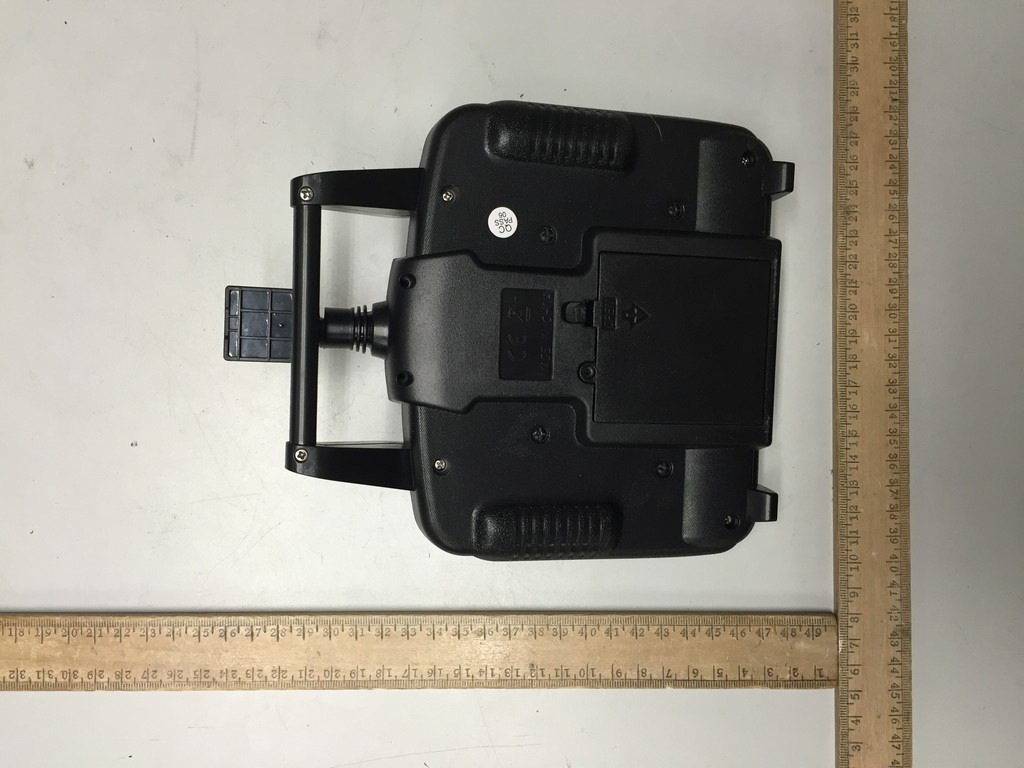

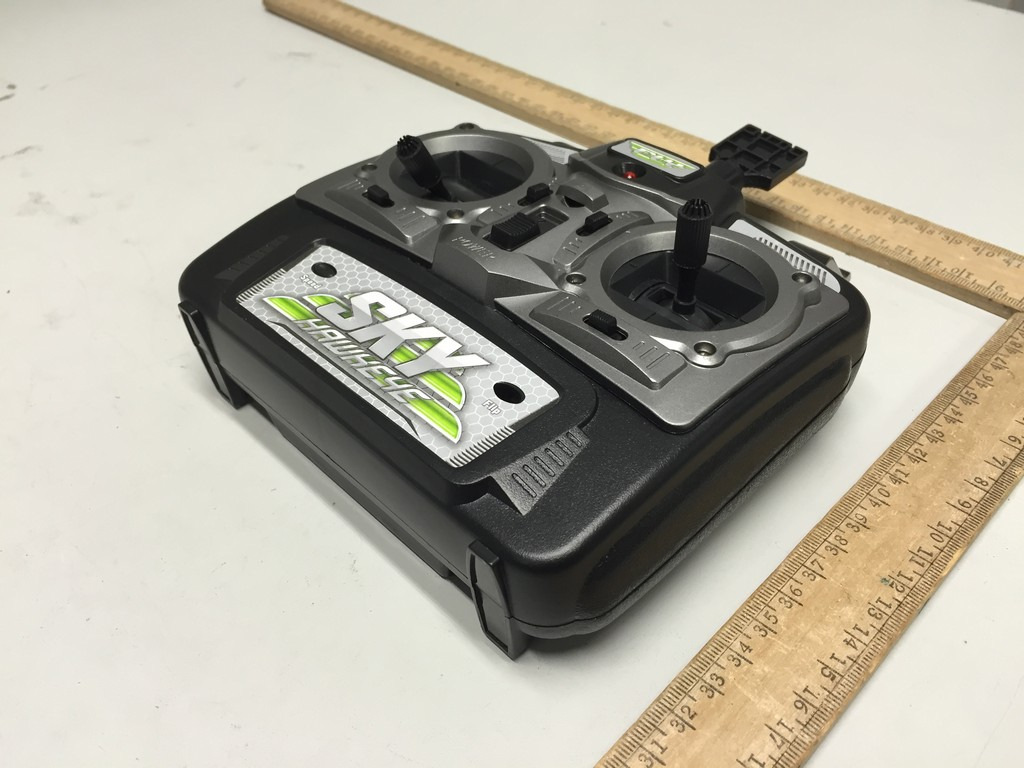

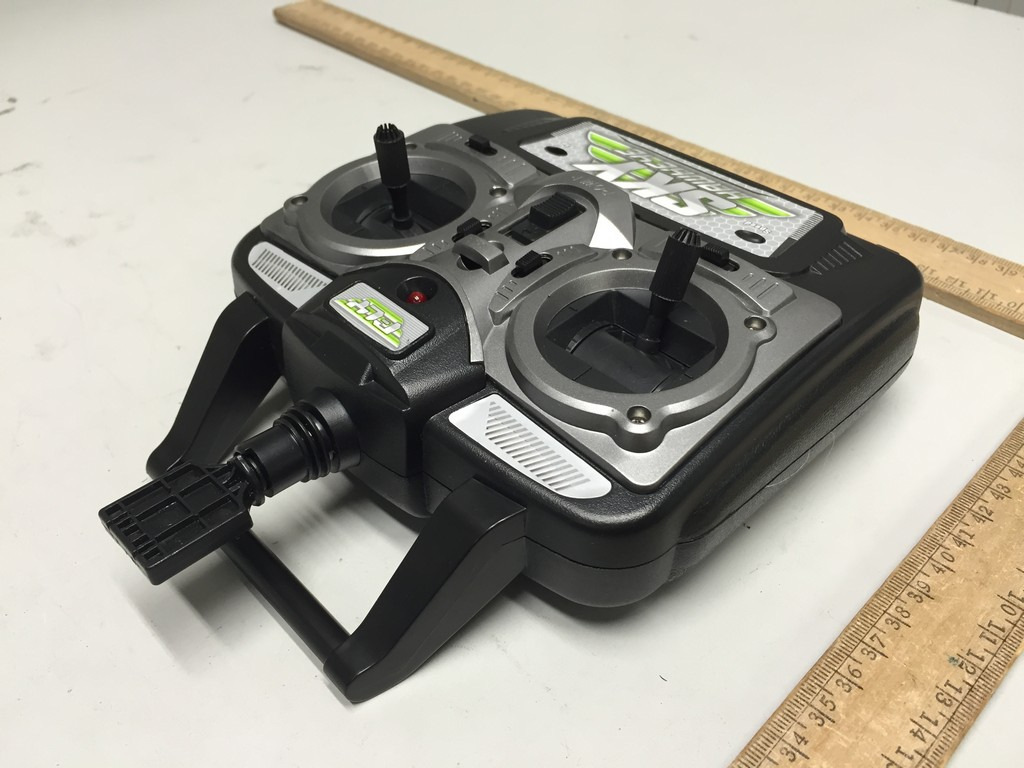

www.tuv.com Test Report No.: 14038897 001 Appendix 3 page 2 of 7 External View External View www.tuv.com Test Report No.: 14038897 001 Appendix 3 page 3 of 7 External View External View

www.tuv.com Test Report No.: 14038897 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14038897 001 Appendix 3 page 4 of 7 External View Internal View www.tuv.com Test Report No.: 14038897 001 Appendix 3 page 5 of 7 Internal View Internal View www.tuv.com Test Report No.: 14038897 001 Appendix 3 page 6 of 7 Internal View Internal View www.tuv.com Test Report No.: 14038897 001 Appendix 3 page 7 of 7 Internal View Internal View

www.tuv.com Test Report No.: 14038897 001 Date: 27.04.2015 page 2 of 10 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ......................................................... N/A ........... 6 Subclause 15.205 – Restricted bands – Spurious Emissions – Band edge .................... Pass ........... 6 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................. Pass ........... 7 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ........................... Pass ........... 7 Subclause 15.249 (d) – Emissions radiated outside of the specified frequency bands . Pass ........... 9 Appendix 1 – Test Results 7 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 7 pages Appendix 4 – Product documentation 14 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14038897 001 Date: 27.04.2015 page 3 of 10 Product information Manufacturers declarations Transmitter Operating frequency range 2410 - 2474 MHz Type of modulation GFSK Number of channels 4 Type of antenna Wire Antenna Power level fix Connection to public utility power line No Nominal voltage 6.0 V Product function and intended use The equipment under test (EUT) is a radio control toy transmitter operating at 2.4GHz. It is powered by batteries only. FCCID: 2AALA1315-1314-1326 Models Product description 1315, 1315S, 1315W, 1315C, 1315A, G08095, G08095M2, 1320, 1306, 1307, 1308, 1310, 1318, 1212, 1212L, 1212D, 1212S, 1314, 1319, 1319C, 1317, 1321, 1322, 1323, 1324, 1325, 1327, 1328, 1329, 1330, 1316, 1311, 1311B, 1313, 1326A, 1326B, 1309, 1305, 1304, 1304B,1303, 2022, 1301, 1209, 1204, 1215, HM0710, HM0707, HM0920, HM0955 Radio Controlled Toy Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment Client provide a test mode enabled LCD display for assessment of radiated emission of the transmitter. www.tuv.com Test Report No.: 14038897 001 Date: 27.04.2015 page 4 of 10 Independent Operation Modes The basic operation modes are: - Transmitting control signal for the RC toy quadcopter. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14038897 001 Date: 27.04.2015 page 5 of 10 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. interval Last cal. 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 1 year 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- 1 year N/A ESU EMI Test Receiver R&S ESU26 --- 1 year 27 Jun 2014 Loop Antenna Zhinan ZN30900A --- 1 year 27 Jun 2014 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 1 year 08 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 1 year 08 Mar 2015 RF Amplifier HP 8347A --- 1 year 27 Jun 2014 RF Amplifier HP 8349B --- 1 year 27 Jun 2014 EMI Test Software AUDIX E3 --- 1 year N/A Coaxial cable GTS N/A --- 1 year 27 Jun 2014 Coaxial Cable GTS N/A --- 1 year 27 Jun 2014 Thermo meter N/A N/A --- 1 year 27 Jun 2014 Spectrum Analyzer Rohde & Schwarz FSP30 100007 1 year 12 Jan 2015 www.tuv.com Test Report No.: 14038897 001 Date: 27.04.2015 page 6 of 10 Results FCC Part 15 – Subpart C Subclause 15.207 – Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.205 – Restricted bands – Spurious Emissions – Band edge Pass Test Specification : ANSI C63.4 – 2009 Mode of operation : Tx mode Port of testing : Enclosure Detector : Peak RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 6.0VDC, 4 x 1.5V AA size new battery Temperature : 23ºC Humidity : 50% Requirement: Radiated emissions which fall in the restricted bands, as defined in 15.205 (a), must also comply with the radiated emission limits specified in 15.209(a). Results: Both transmitter and LCD display are test mode enabled and transmit at the same channel simultaneously during testing. For test protocols refer to Appendix 1, page 4-7. Tx frequency 2410MHz Vertical Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m No peak found --- 74.0 / P No peak found --- 54.0 / A Tx frequency 2410MHz Horizontal Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m No peak found --- 74.0 / P No peak found --- 54.0 / A Tx frequency 2474M…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 1 of 7 Appendix 1 Test Results www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 2 of 7 20dB Bandwidth Tx frequency: 2410MHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 2.41001 GHz 1 PK 2.41001 GHz MAXH 2.41001 GHz A 2.41001 GHz * 2.41001 GHz RBW 100 kHz 2.41001 GHzVBW 300 kHz 2.41001 GHz SWT 2.5 ms 2.41001 GHz Ref 10 dBm 2.41001 GHz Att 40 dB 2.41001 GHz Center 2.41 GHz 2.41001 GHz Span 5 MHz 2.41001 GHz 500 kHz/ 2.41001 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.41001 GHz 1 Marker 1 [T1 ] -6.63 dB m 2.410010000 GHz 2 Delta 2 [T1 ] -20.64 dB -1.030000000 MHz 3 Delta 3 [T1 ] -20.15 dB 1.120000000 MHz MARKER 1 2.41001 GHz Comment: test print Date: 1.APR.2015 14:42:21 Tx frequency: 2442MHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 2.44202 GHz 1 PK 2.44202 GHz MAXH 2.44202 GHz A 2.44202 GHz Ref 10 dBm 2.44202 GHz Att 40 dB 2.44202 GHz Center 2.442 GHz 2.44202 GHz Span 5 MHz 2.44202 GHz 500 kHz/ 2.44202 GHz * 2.44202 GHz RBW 100 kHz 2.44202 GHzVBW 300 kHz 2.44202 GHz SWT 2.5 ms 2.44202 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.44202 GHz 1 Marker 1 [T1 ] -6.94 dBm 2.442020000 GHz 2 Delta 2 [T1 ] -20.09 dB -1.040000000 MHz 3 Delta 3 [T1 ] -20.47 dB 1.110000000 MHz MARKER 1 2.44202 GHz Comment: test print Date: 1.APR.2015 14:46:47 www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 3 of 7 Tx frequency: 2474MHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 2.47403 GHz 1 PK 2.47403 GHz MAXH 2.47403 GHz A 2.47403 GHz Ref 10 dBm 2.47403 GHz Att 40 dB 2.47403 GHz Center 2.474 GHz 2.47403 GHz Span 5 MHz 2.47403 GHz 500 kHz/ 2.47403 GHz * 2.47403 GHz RBW 100 kHz 2.47403 GHzVBW 300 kHz 2.47403 GHz SWT 2.5 ms 2.47403 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.47403 GHz 1 Marker 1 [T1 ] -7.79 dBm 2.474030000 GHz 2 Delta 2 [T1 ] -20.38 dB -1.060000000 MHz 3 Delta 3 [T1 ] -21.02 dB 1.130000000 MHz MARKER 1 2.47403 GHz Comment: test print Date: 1.APR.2015 15:09:29 www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 4 of 7 Band Edge Compliance Tx frequency: 2410MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 5 of 7 Horizontal polarization www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 6 of 7 Tx frequency: 2474MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14038897 001 Appendix 1 page 7 of 7 Horizontal polarization

www.tuv.com Test Report No.: 14038897 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14038897 001 Appendix 5 page 2 of 2 According to KDB 447498 D01 section 4.3.1, 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR, and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison Maximum power of transmitter: Frequency (GHz) Maximum peak output power (dBuV/m) Output power (mW) 2.410 84.07 0.0766 2.442 84.33 0.0813 2.474 82.95 0.0592 Result: (0.0766/5)*√2.410 = 0.024 <3.0 (0.0813/5)* √2.442 = 0.025 <3.0 (0.0592/5)*√2.474 = 0.019 <3.0 Maximum power of LCD display: Frequency (GHz) Maximum peak output power (dBuV/m) Output power (mW) 2.410 91.26 0.4010 2.445 89.51 0.2680 2.475 87.17 0.1564 Result: (0.4010/5)* √2.410 = 0.124 <3.0 (0.2680/5)*√2.445 = 0.084 <3.0 (0.1564/5)*√2.475 = 0.049 <3.0 Conclusion: According to KDB 447498 D01 section 4.3.2, the sum of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit, SAR test exclusion applies to that simultaneous transmission configuration. Hence, no SAR is required.

www.tuv.com Test Report No.: 14038897 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14038897 001 Appendix 2 page 3 of 3 Setup for radiated emission
