HK-968 User Manual HK-968 is a Bluetooth adapter which support short range communication, it adoption driver free with BT V2.0+EDR protocol, USB 2.0 standard, also compatible USB1.1/1.2. It can use for transmitting data between Bluetooth devices, let your PC wireless connection and data communication all surrounding the Bluetooth devices from it. Plug the Bluetooth dongle into the USB port of your computer, it can find out the Bluetooth device automatically. When the pairing complete, then you can enjoy the use. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 EUT View 3

ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AALL968 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AALL968 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

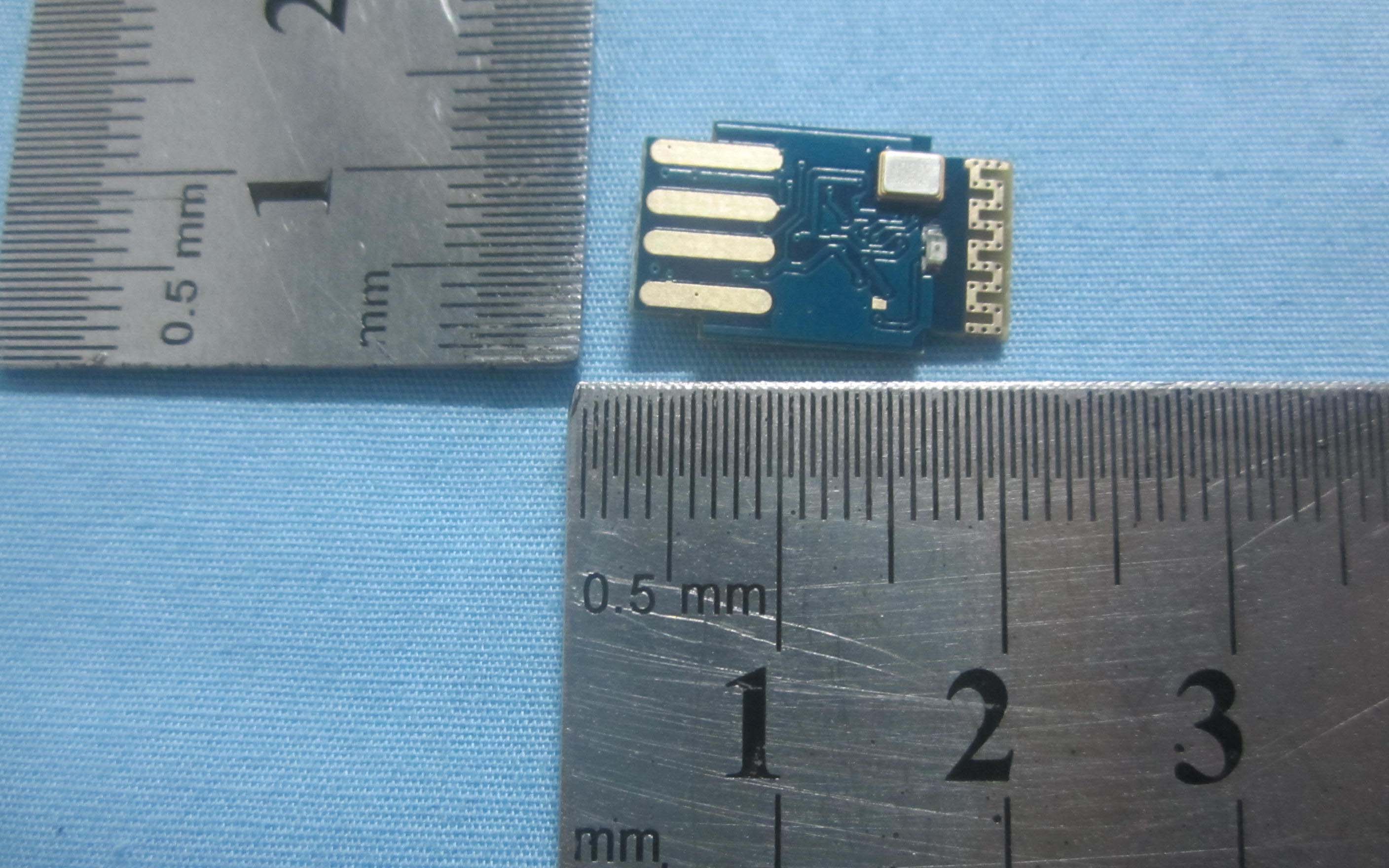

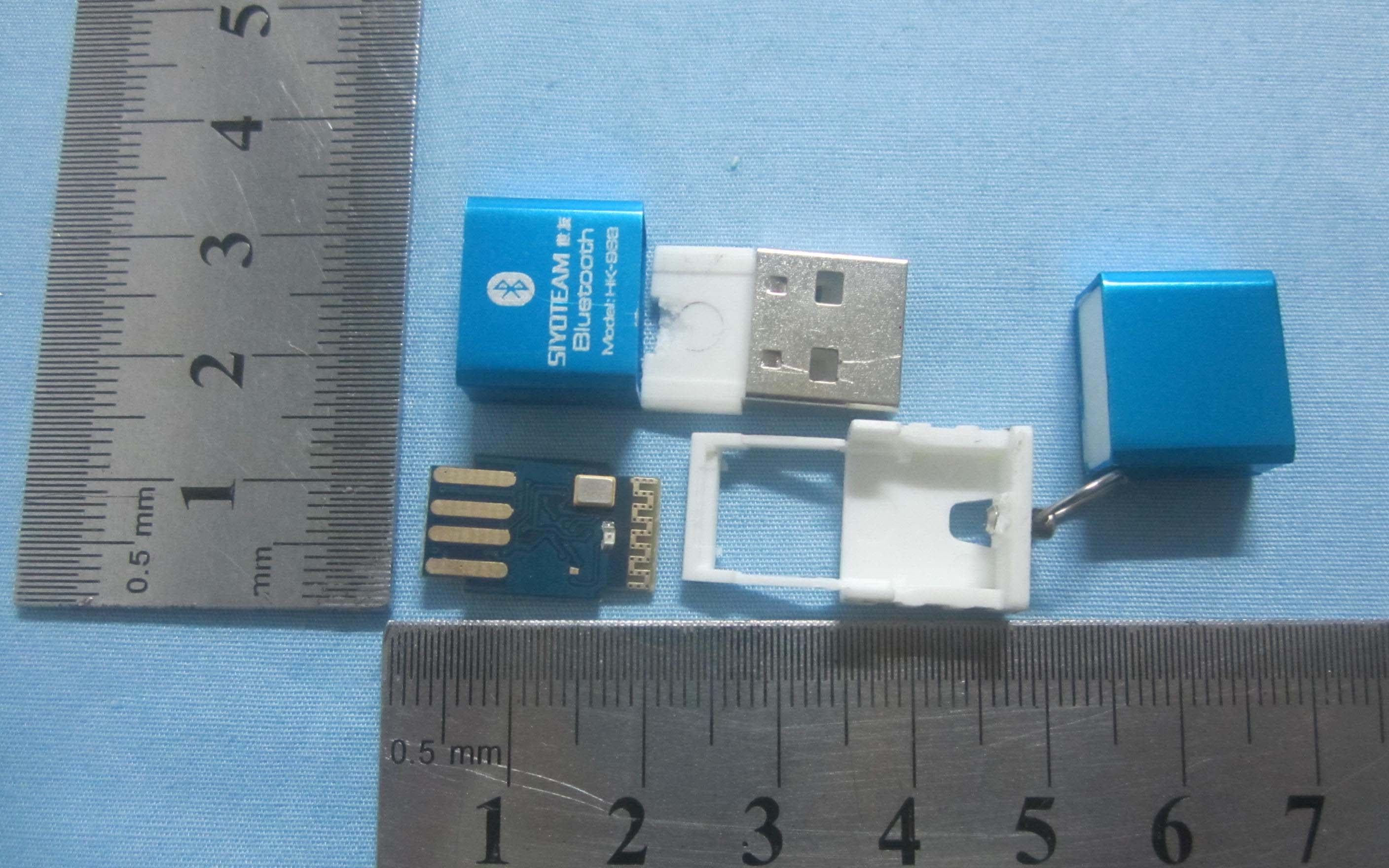

ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 Solder Board-Component View 2 BT Ant. 2402~2480MHz

RF Exposure Requirements Product Description: Bluetooth Dongle Model No.: HK-968 FCC ID: 2AALL968 According to the KDB-447498 D01 V05, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 4.633 dBm Maximum Antenna Gain: 0 dBi Maximum EIRP Output Power: 2.9060mW Limit: 10mW Source-based time-averaged EIRP output power is 2.9060 mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I PAGE 1 OF 51 FCC PART 15.247 FCC Part 15C Measurement and Test Report For ASK PROXIMA CO., LIMITED Room 3, 21/F., Far East Consortium Building, 121 Des Voeux Road, Central, Hong Kong FCC ID: 2AALL968 FCC Rule(s): FCC Part 15.247 Product Description: Bluetooth Dongle Tested Model: HK-968 Report No.: STR13108171I Tested Date: 2013-10-17 to 2013-10-22 Issued Date: 2013-10-23 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C (518101) Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I PAGE 2 OF 51 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION .................................................................................................................................. 9 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................... 10 5.1 STANDARD APPLICABLE ....................................................................................................................................... 10 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 10 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 11 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 12 6.1 STANDARD APPLICABLE ....................................................................................................................................... 12 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 6.3 TEST PROCEDURE ................................................................................................................................................. 12 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 7. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. 20DB BANDWIDTH ............................................................................................................................................... 28 8.1 STANDARD APPLICABLE ....................................................................................................................................... 28 8.2 TEST EQUIPMENT LIST AND DETAILS .............................…

Text truncated - open the document above for the full version.

ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) ASK PROXIMA CO., LIMITED Model: HK-968 REPORT NO.: STR13108171I FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
