2AAMP-IRCTXIRCTX

IRCTX INTRUSCTION MANUAL OPERATION: 1, Open the battery cover side of IRCTX, put 1pc 2032 battery into. 2, Press ON button of transmitter for switch ON 3, Press OFF button of transmitter for switch OFF SPECIFICATION: Power: 1* CR2032 battery Frequency: 315MHz Battery Life: 1 year REMINDING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Enhance (HK) Limited CONFIDENTIALITY REQUEST FCC ID: 2AAMP-IRCTX Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description 4) BOM The above material contains trade secrets or technical data which NINGBO KML ELECTRICAL CO.,LTD deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Thank you Sincerely, Jamly Jamly General Manager ROOM 301-2 Hangseng Wan Chai Building, 3 rd Floor, No. 200 Hennessy Road, Wan Chai,Hong Kong

Enhance (HK) Limited AUTHORIZATION LETTER FCC ID: 2AAMP-IRCTX Data: 2013-07-15 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Jamly Jamly General Manager ROOM 301-2 Hangseng Wan Chai Building, 3 rd Floor, No. 200 Hennessy Road, Wan Chai,Hong Kong

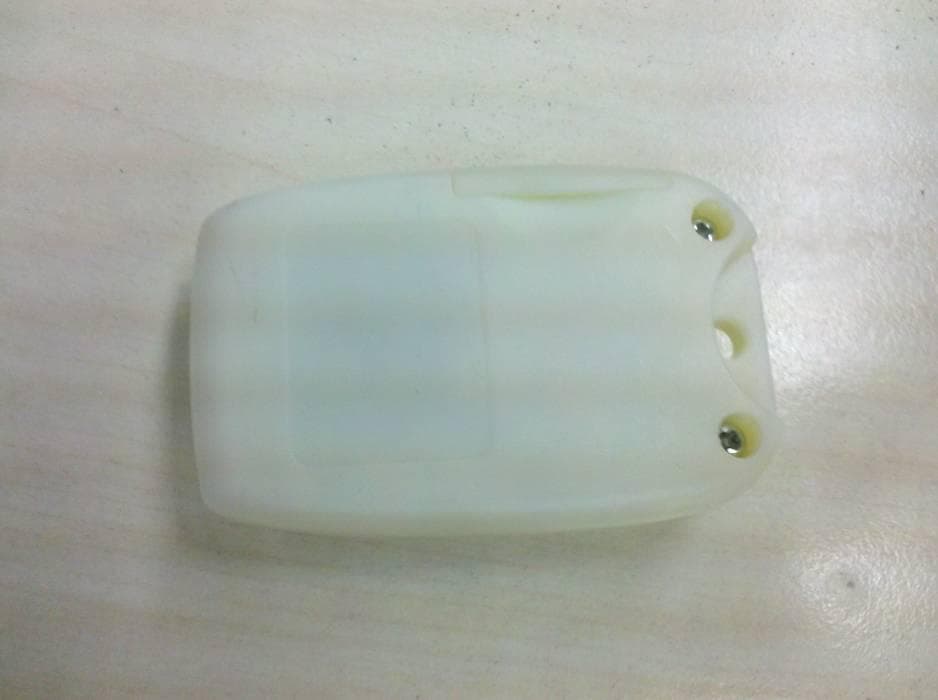

FCC ID: 2AAMP-IRCTX Page 1 of 2 External Picture FCC ID: 2AAMP-IRCTX Page 2 of 2

Enhance 63.00 39.97 Motion SensorFCC ID:2AAMP-IRCTXModel ： IRCTX UseAlkalineBatteryDC3VFOR INDOOR USE ONLYMade in China

FCC ID: 2AAMP-IRCTX Page 1 of 2 Internal Picture FCC ID: 2AAMP-IRCTX Page 2 of 2

FCC ID: 2AAMP-IRCTX Page 1 of 14 Test Data FCC ID: 2AAMP-IRCTX Page 2 of 14 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 90 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x MES NE0707_LH2_red MES NE0707_LH2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AAMP-IRCTX Page 3 of 14 1000-3500MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G Frequency [Hz] x x x x x x MES NE0707_HH2_red MES NE0707_HH2_pre LIM FCC 15.231 Field Strength QP FCC ID: 2AAMP-IRCTX Page 4 of 14 Vertical 30-1000MHz 0 20 40 60 80 100 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x MES NE0707_LV2_red MES NE0707_LV2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AAMP-IRCTX Page 5 of 14 1000-3500MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G Frequency [Hz] x x x x x x x MES NE0707_HV2_red MES NE0707_HV2_pre LIM FCC 15.231 Field Strength QP FCC ID: 2AAMP-IRCTX Page 6 of 14 2. Deactivating time Pulse of “ON” FCC ID: 2AAMP-IRCTX Page 7 of 14 Pulse of “OFF” FCC ID: 2AAMP-IRCTX Page 8 of 14 3. Emission bandwidth Emission bandwidth = 50.00 kHz FCC ID: 2AAMP-IRCTX Page 9 of 14 1. Duty Cycle Pulse Train of “ON” FCC ID: 2AAMP-IRCTX Page 10 of 14 Long Pulse FCC ID: 2AAMP-IRCTX Page 11 of 14 Short Pulse The coding have 10 long pulse and 15 short pulse. Duty cycle= (10*0.610+15*0.210)/26.5=0.3491 As a result, the duty cycle of 0.3491 is taken into calculation. Duty cycle correction factor =20 log (Ton/T)= 20 log 0.3491= -9.14dB FCC ID: 2AAMP-IRCTX Page 12 of 14 Pulse Train of “OFF” FCC ID: 2AAMP-IRCTX Page 13 of 14 Long Pulse FCC ID: 2AAMP-IRCTX Page 14 of 14 Short Pulse The coding have 13 long pulse and 12 short pulse. Duty cycle= (13*0.610+12*0.210)/26.41=0.3957 As a result, the duty cycle of 0.3957 is taken into calculation. Duty cycle correction factor =20 log (Ton/T)= 20 log 0.3957= -8.05dB

FCC ID: 2AAMP-IRCTX Page 1 of 20 EMC Test Report for FCC No. 130601891SHA-001 Applicant : Enhance (HK) Limited Room 301-2 Hangseng Wan Chai Building, 3rd Floor, No. 200, Hennessy Road, Wan Chai, Hongkong Manufacturer : Ningbo KML Electrical Co., Ltd. No. 707 Xiufeng Road, Gaoqiao Industrial Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, China Product Name : Outlet adapter with remote control Type/Model : IRCTX SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2012): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: July 18, 2013 Prepared by: Reviewed by: Nemo Li (Project Engineer) Jonny Jing (Reviewer) FCC ID: 2AAMP-IRCTX Page 2 of 20 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AAMP-IRCTX Page 3 of 20 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 14 4.1 Test limit ....................................................................................................................... 14 4.2 Test Configuration ........................................................................................................ 15 4.3 Test procedure and test setup ........................................................................................ 15 4.4 Test protocol ................................................................................................................. 15 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 16 5.1 Limit .............................................................................................................................. 16 5.2 Test configuration ......................................................................................................... 16 EMI receiver ................................................................................................................... 16 5.3 Test procedure and test set up ....................................................................................... 17 5.4 Test protocol ................................................................................................................. 18 6. EMISSION BANDWIDTH ............................................................................................................................. 19 6.1 Test limit ....................................................................................................................... 19 6.2 Test Configuration ........................................................................................................ 19 6.3 Test procedure and test setup ........................................................................................ 19 6.4 Test protocol ................................................................................................................. 20 FCC ID: 2AAMP-IRCTX Page 4 of 20 1. General Information 1.1 Applicant Information Applicant: Enhance (HK) Limited Room 301-2 Hangseng Wan Chai Building, 3rd Floor, No. 200, Hennessy Road, Wan Chai, Hongkong Manufacturer: NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China Sample received date: July 03 2013 Date of test : July 03 2013 ~ July 17 2013 1.2 Identification of the EUT Equipment: Outlet adapter with remote control Type/model: IRCTX FCC ID: 2AAMP-IRCTX FCC ID: 2…

Text truncated - open the document above for the full version.

FCC ID: 2AAMP-IRCTX Page 1 of 7 Test Setup FCC ID: 2AAMP-IRCTX Page 2 of 7 1. Radiated Emission 30MHz-1000MHz Horizontal FCC ID: 2AAMP-IRCTX Page 3 of 7 Vertical FCC ID: 2AAMP-IRCTX Page 4 of 7 FCC ID: 2AAMP-IRCTX Page 5 of 7 Higher than 1GHz Horizontal FCC ID: 2AAMP-IRCTX Page 6 of 7 Vertical FCC ID: 2AAMP-IRCTX Page 7 of 7
