2AAMP-RO01RFRO01RF

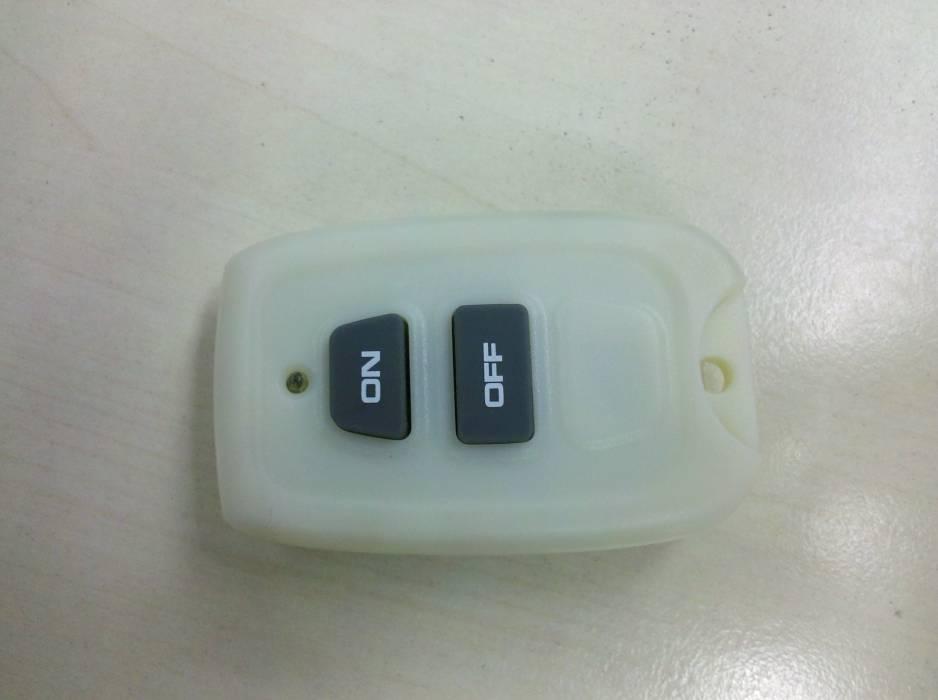

RO01RF User Manual 一．Installation Plug RO01RF into a power outlet and connect to an external electrical appliance. 二．Function When RO01RF receive IRCTX’s “ON” signal, turn on the power immediately, so the electrical appliance plug into IRCRF will start working. When RO01RF receive IRCTX’s “OFF” signal, LED light on RO01RF surface off and the power turn off. 三．Features Voltage：AC125V/60HZ Power：13A/1625W Frequency：315MHZ REMINDING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Enhance (HK) Limited CONFIDENTIALITY REQUEST FCC ID: 2AAMP-RO01RF Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description 4) BOM The above material contains trade secrets or technical data which NINGBO KML ELECTRICAL CO.,LTD deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Thank you Sincerely, Jamly Jamly General Manager ROOM 301-2 Hangseng Wan Chai Building, 3 rd Floor, No. 200 Hennessy Road, Wan Chai,Hong Kong

Enhance (HK) Limited AUTHORIZATION LETTER FCC ID: 2AAMP-RO01RF Data: 2013-07-15 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Jamly Jamly General Manager ROOM 301-2 Hangseng Wan Chai Building, 3 rd Floor, No. 200 Hennessy Road, Wan Chai,Hong Kong

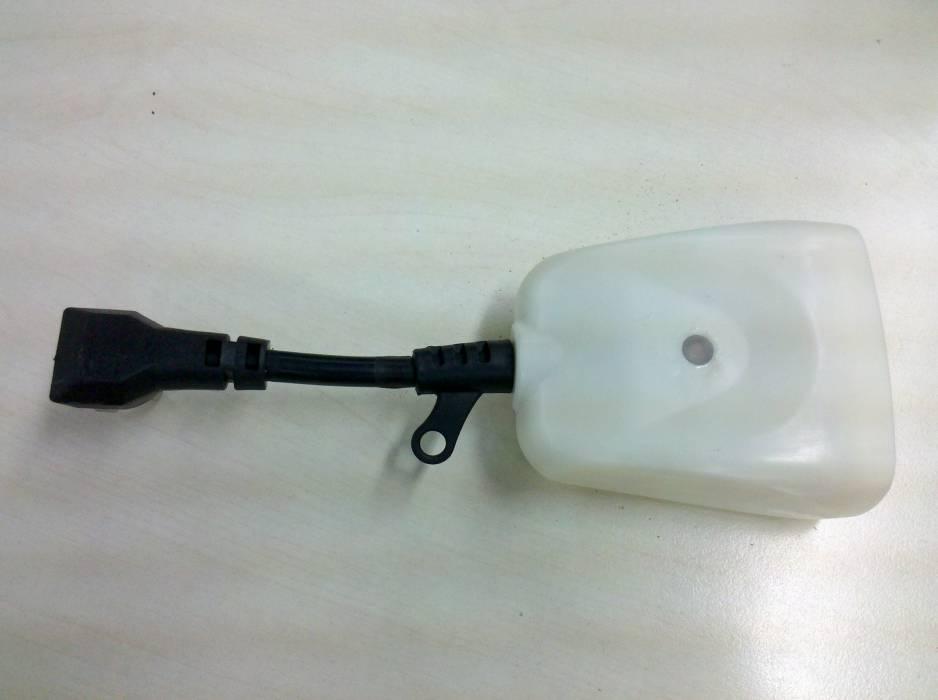

FCC ID: 2AAMP-RO01RF Page 1 of 2 External Picture FCC ID: 2AAMP-RO01RF Page 2 of 2

Enhance 4008190 Conforms to UL STD 244A Certified to CSA STD C22.2 No.14 Model ： RO01RF FCC ID ： 2AAMP-RO01RF Rating ： 125VAC 60Hz 13A Resistive 5A Tungsten MADE IN CHINA Raintight 45.00 50.00 95.77 80

FCC ID: 2AAMP-RO01RF Page 1 of 2 Internal Picture FCC ID: 2AAMP-RO01RF Page 2 of 2

FCC ID: 2AAMP-RO01RF Page 1 of 5 Test Data FCC ID: 2AAMP-RO01RF Page 2 of 5 1. Conducted Emission L Line FCC ID: 2AAMP-RO01RF Page 3 of 5 N Line FCC ID: 2AAMP-RO01RF Page 4 of 5 2. Radiated Emission Horizontal, PK 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 30M50M70M100M200M300M500M700M1G Fr equency [ Hz] x x x x M ES NE0613_H1_r ed M ES NE0613_H1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 1G1. 5G2G2. 5G3G3. 5G Fr equency [ Hz] M ES NE0613_HH1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P FCC ID: 2AAMP-RO01RF Page 5 of 5 Vertical, PK 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 30M50M70M100M200M300M500M700M1G Fr equency [ Hz] x x x x M ES NE0613_V1_r ed M ES NE0613_V1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P 0 10 20 30 40 50 60 70 80 Level [ dB礦/ m ] 1G1. 5G2G2. 5G3G3. 5G Fr equency [ Hz] M ES NE0613_HV1_pr e LI M FCC 15 F 3 Q P Field St r engt h Q P

FCC ID: 2AAMP-RO01RF Page 1 of 14 EMC Test Report for FCC No. 130601894SHA-001 Applicant : Enhance (HK) Limited Room 301-2 Hangseng Wan Chai Building, 3rd Floor, No. 200, Hennessy Road, Wan Chai, Hongkong Manufacturer : Ningbo KML Electrical Co., Ltd. No. 707 Xiufeng Road, Gaoqiao Industrial Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, China Product Name : Outlet adapter with remote control Type/Model : RO01RF SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2012): Radio Frequency Device: Subpart B; Unintentional radiators class B ANSI C63.4 (2003): Interim Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz. Date of issue: July 22, 2013 Prepared by: Reviewed by: Nemo Li (Project Engineer) Jonny Jing (Reviewer) FCC ID: 2AAMP-RO01RF Page 2 of 14 Content SUMMARY ........................................................................................................................................................... 1 CONTENT................................................................................................................................................................ 2 1. GENERAL INFORMATION .......................................................................................................................... 3 1.1 Description of equipment under Test (EUT) ................................................................................................ 3 1.2 Description of Client .................................................................................................................................... 3 1.3 Description of Test Facility .......................................................................................................................... 4 2. TEST SPECIFICATIONS ............................................................................................................................... 5 2.1 Standards ...................................................................................................................................................... 5 2.2 Mode of operation during the test / Test peripherals used ............................................................................ 5 2.2.1 Description of operation ........................................................................................................................ 5 2.3 Instrument list ............................................................................................................................................... 6 2.4. Test Summary .............................................................................................................................................. 7 3. CONDUCTED DISTURBANCE VOLTAGE AT MAINS TERMINALS .......................................................................... 8 3.1 Limits ........................................................................................................................................................... 8 3.1.1 Limits for conducted disturbance voltage at the mains ports of class A device .................................... 8 3.1.2 Limits for conducted disturbance voltage at the mains ports of class B device .................................... 8 3.2 Test setup ...................................................................................................................................................... 9 3.3 Test Setup and Test Procedure ................................................................................................................... 10 3.4 Test Protocol ............................................................................................................................................... 11 4. RADIATED EMISSION ........................................................................................................................................ 12 4.1 Radiated emission limits ............................................................................................................................. 12 4.2 Block diagram and test set up ..................................................................................................................... 13 4.3 Test Setup and Test Procedure ................................................................................................................... 14 4.4 Test Protocol ............................................................................................................................................... 14 FCC ID: 2AAMP-RO01RF Page 3 of 14 1. GENERAL INFORMATION 1.1 Description of equipment under Test (EUT) Product Name : Outlet adapter with remote control Description of EUT : There is one model only. The EUT is a receiver to receive wireless signal so that its on/off condition can be controlled by the transmitter. Model number : RO01RF FCC ID : 2AAMP-RO01RF Category of EUT : Class B Rating : 125V~ 60Hz 13A Max.1625W EUT type : Table top Floor standing Sample received date : May 22, 2013 Sample Identification No : 0130522-20-007 Date of test : May 22~ June 5, 2013 1.2 Description of Client Applicant: Enhance (HK) Limited Room 301-2 Hangseng Wan Chai Building, 3rd Floor, No. 200, Hennessy Road, Wan Chai, Hongkong Manufacturer: NINGBO KML ELECTRICAL CO., LTD. No.707 Xiufeng Road, Gaoqiao Industry Park, Gaoqiao Town, Yinzhou District, Ningbo, Zhejiang 315173, P.R.China FCC ID: 2AAMP-RO01RF Page 4 of 14 1.3 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road (North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AAMP-RO01RF Page 5 of 14 2. TEST SPECIFICATIONS 2.1 Standards 47CFR Part 15 (2012): Radio Frequency Device: Subpart B; Unintent…

Text truncated - open the document above for the full version.

FCC ID: 2AAMP-RO01RF Page 1 of 3 Test Setup FCC ID: 2AAMP-RO01RF Page 2 of 3 1. Conducted Emission 2. Radiated Emission 30MHz-1000MHz FCC ID: 2AAMP-RO01RF Page 3 of 3 Higher than 1GHz
