2AAMVHITBOXBluetooth Speaker

HITBOX(HK)LTD Product Name: Bluetooth speaker Model: BT‐700 1. ON/OFF ‐PEARING KEY 2. CHARGING PORT 3. LINE IN/AUX PORT Specification Model: BT‐700 Bluetooth specification: Bluetooth V2.1+EDR Transmission distance: ≥ 10M (It varies when the environmental factors and the connected Bluetooth devices are different) USB charging voltage: DC 5V Built‐in battery: Lithium battery(800mAh) How to use HITBOX Bluetooth speaker 1. Please press switch 3 sec and speaker will turn on 2. Please press again to switch start pearing. 3. During pearing speaker led will flashing fastly 4. You can search bluetooth speaker from your device 5. Device name is HITBOX and password no need. 6. After connect bluetooth speaker , speaker light always ON. you can enjoy wireless speaker 7. For turn off speaker please keep press switch 3 sec. . It will automaticly switch off. 8. If you stop connection to speaker , Bluetooth speaker run stand by mode. During stand by speaker led flashing slowly. that time you can connect your device anytime. 9. For start pearing to speaker, please press one time to switch . 10. For charging please connect mini usb cable to speaker. During charging speaker show red light. When charging full red led turn off. 11. You also can connect your device from Aux (line in) connection. Please conenct 3,5mm cable to your device and speaker. Now speaker ready for use . (For wired connection) 12. If bluetooth speaker freezing and not response , reset bluetooth speaker. please plug usb charging cable, then automaticlly reset and restart FCC warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

HITBOX(HK)LTD. Address: RM 913-914, HAOSHEN BUSINESS CENTER, BUILDING, DONGBIN ROAD, NANSHAN, DISTRICT, SHENZHEN, CHINA Tel: 0755-83148401 Fax: 0755-83148401 2013-07-27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AAMVHITBOX We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : ANNIE ZHANG/ Manager Contact information / address : RM 913-914, HAOSHEN BUSINESS CENTER, BUILDING, DONGBIN ROAD, NANSHAN, DISTRICT, SHENZHEN, CHINA Tel: 0755-83148401 Fax: 0755-83148401

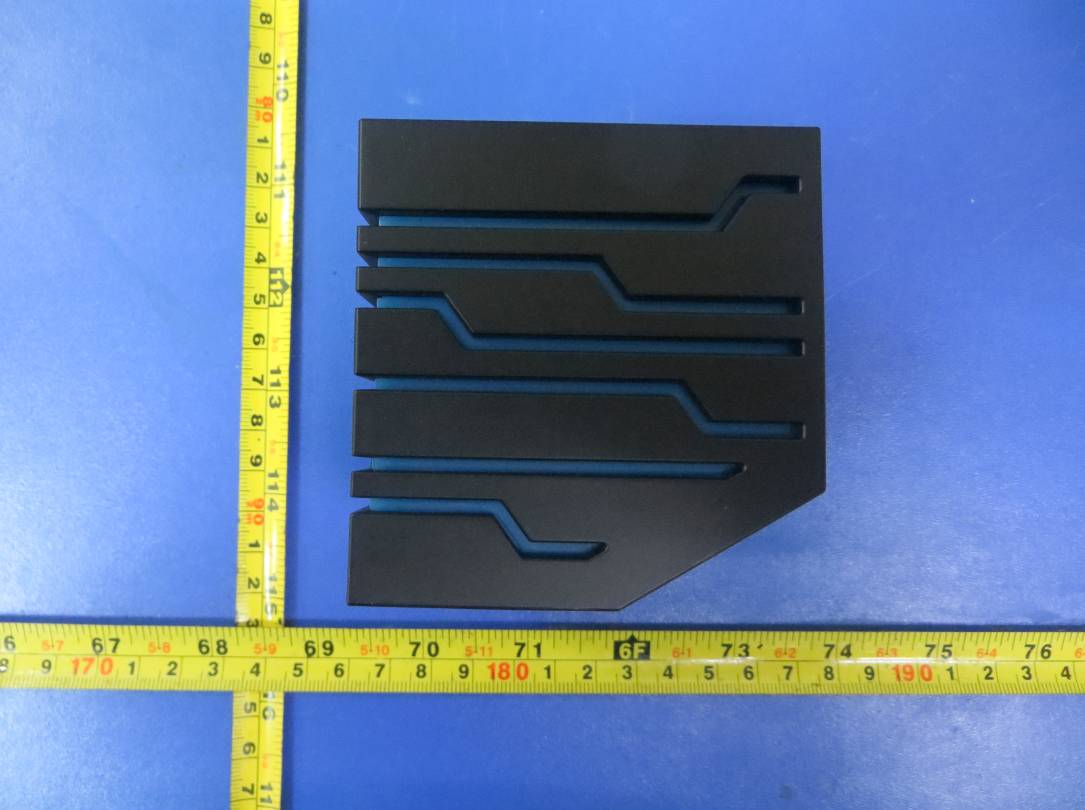

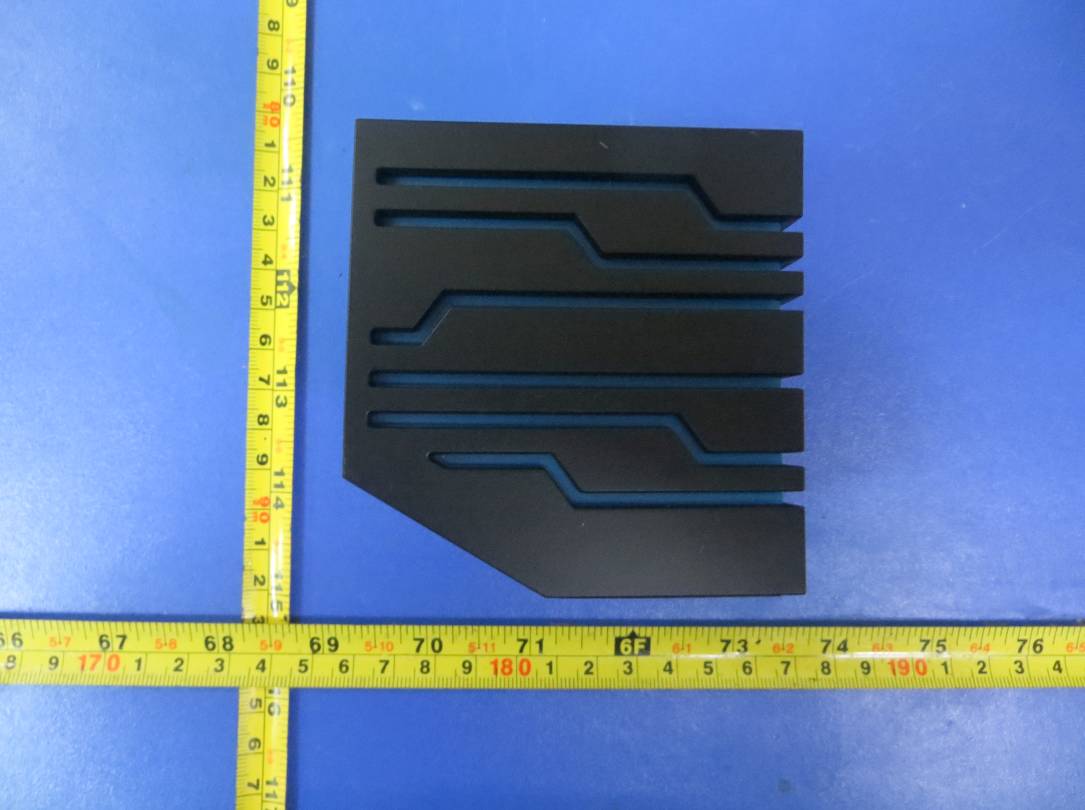

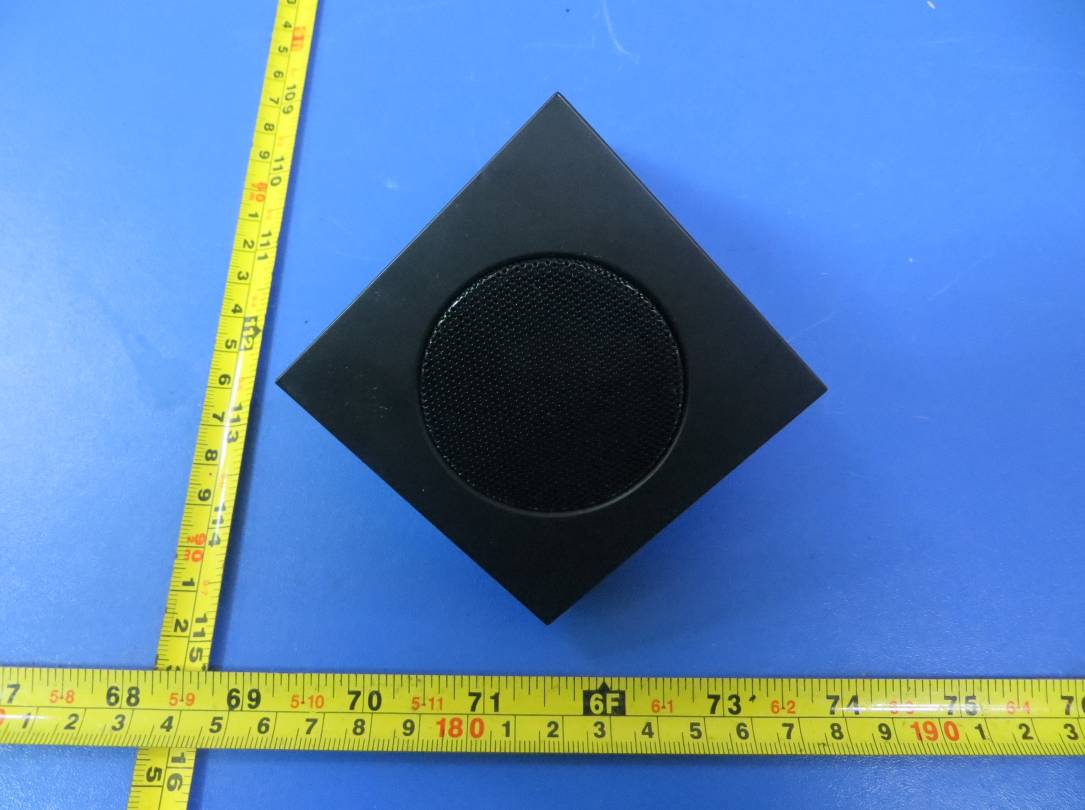

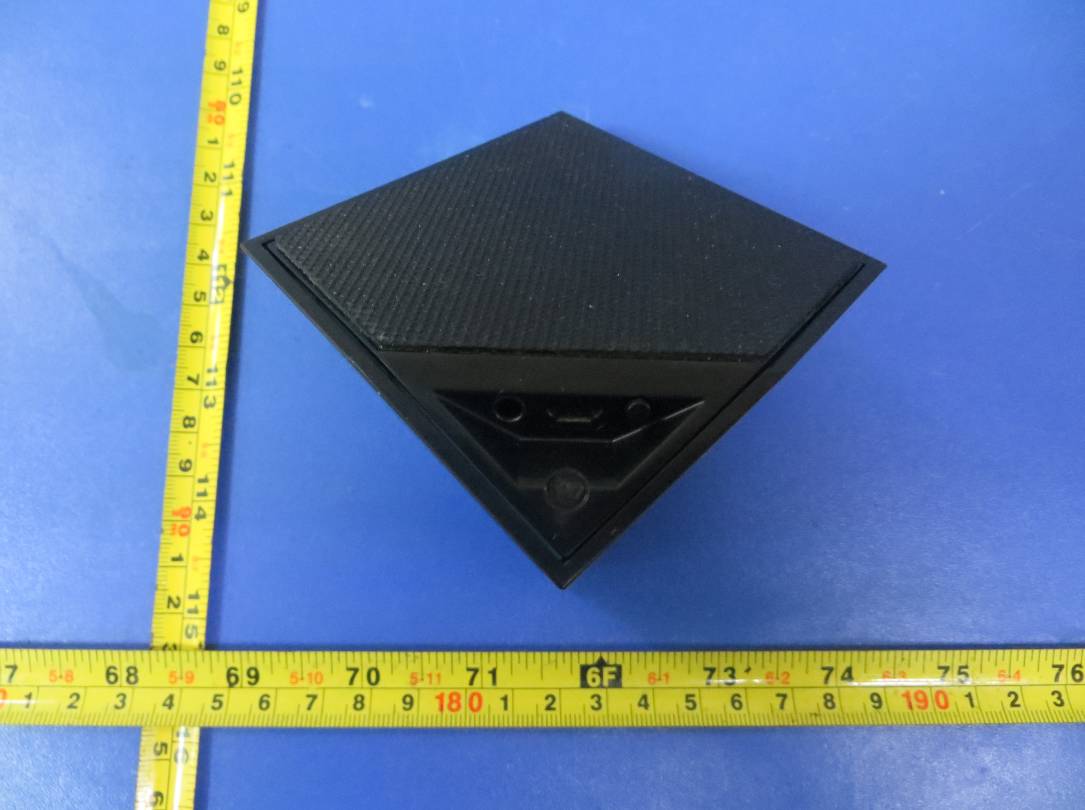

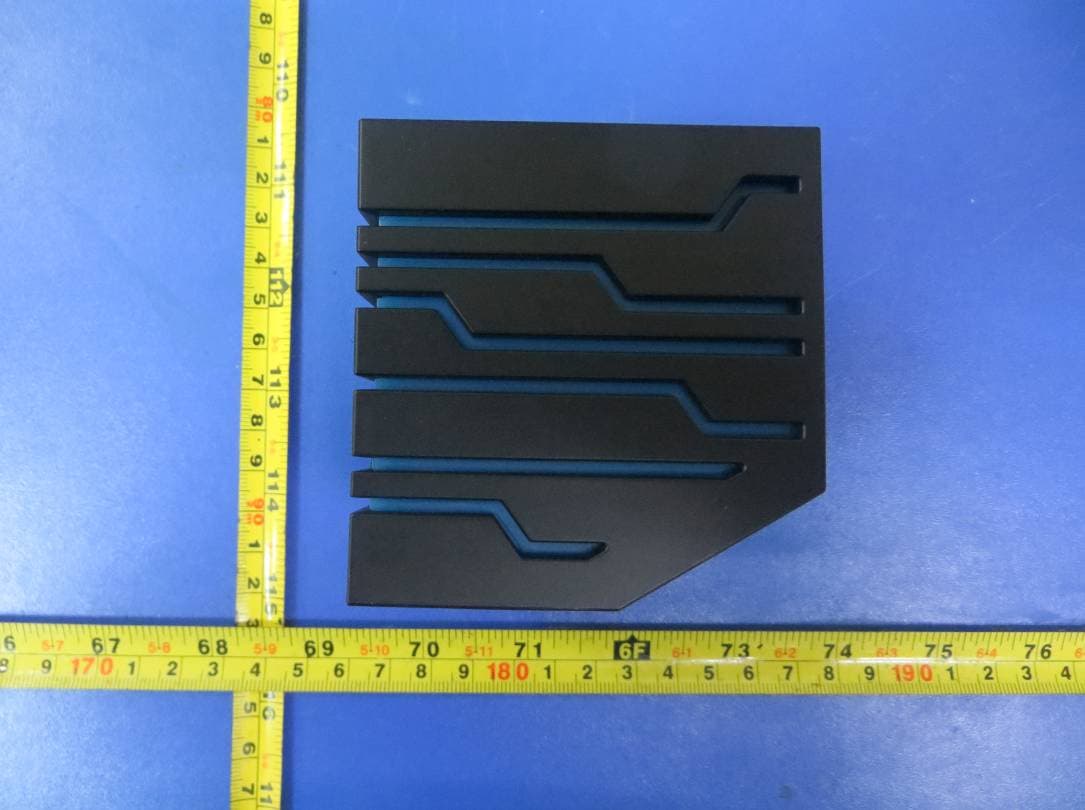

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AAMVHITBOX Report No.: LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.5cm*W1.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location HITBOX(HK)LTD. Bluetooth speaker Model No.: BT-700 FCC ID: 2AAMVHITBOX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.: LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 42 FCC TEST REPORT FOR HITBOX(HK)LTD. Bluetooth speaker Test Model: BT-700 Prepared for : HITBOX(HK)LTD. Address : RM 913-914, HAOSHEN BUSINESS CENTER, BUILDING, DONGBIN ROAD, NANSHAN, DISTRICT, SHENZHEN, CHINA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : July 09, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : July 09, 2013 - July 27, 2013 Date of Report : July 27, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.: LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 42 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2012 Report Reference No. ............... : LCS130709247TF Date of Issue ................................. : July 27, 2013 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : HITBOX(HK)LTD. Address ......................................... : RM 913-914, HAOSHEN BUSINESS CENTER, BUILDING, DONGBIN ROAD, NANSHAN, DISTRICT, SHENZHEN, CHINA Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247): 2012 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : Bluetooth speaker Trade Mark ................................... : N/A Model/ Type reference ................. : BT-700 Ratings .......................................... : DC 3.7V by battery(800mAh) Result ......................................... : Positive Compiled by: Supervised by: Approved by: Yoyo Wang/ File administrators Fox Zhang/ Technique principalGavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.: LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 42 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130709247TF July 27, 2013 Date of issue Type / Model........................... : BT-700 EUT......................................... : Bluetooth speaker Applicant............................... : HITBOX(HK)LTD. Address.................................. : RM 913-914, HAOSHEN BUSINESS CENTER, BUILDING, DONGBIN ROAD, NANSHAN, DISTRICT, SHENZHEN, CHINA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : HITBOX(HK)LTD. Address................................... : 3F, B70, BoHua Tech, Shangwei Industrial, Zhangkeng Jing, GuanLan Street, BaoAn District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : HITBOX(HK)LTD. Address................................... : 3F, B70, BoHua Tech, Shangwei Industrial, Zhangkeng Jing, GuanLan Street, BaoAn District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.: LCS130709247TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 42 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT)...........................................................................................................5 1.2 Support equipment List....................................................................................................................5 1.3 External I/O Cable ...........................................................................................................................5 1.4 Description of Test Facility .............................................................................................................5 1.5 Statement of The Measurement Uncertainty ...................................................................................6 1.6 Measurement Uncertainty................................................................................................................6 1.7 Description Of Test Modes..............................................................................................................6 2. TEST METHODOLOGY ..........…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMVHITBOX Report No.:LCS130709247TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement
