2AANA-SEM-CD6200CD Radio Boombox

Model : CD-6200-BTPFM3U2 USER MANUAL E-2 PLEASE NOTE: YOU WILL FIND THE RATING LABEL FOR THIS PRODUCT LOCATED ON THE BOTTOM OF THE UNIT. CAUTION SYMBOLS ARE PRINTED ON BOTTOM OF UNIT OR ACCESSORIES. PLEASE REFER TO INSTRUCTION MANUAL. CAUTION: GROUNDING OR POLARIZATION: THE PRECAUTIONS SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG (OF AC-ADAPTOR) MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET". (ONLY IF YOUR AC PLUG IS POLARIZED) The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage" inside the product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. CAUTION: The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product. CAUTION : DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. BATTERY REPLACEMENT MUST ONLY BE DONE BY A QUALIFIED PROFESSIONAL TECHNICIAN. BATTERY SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE. CAUTION: To reduce the risk of fire or electric shock or damage, do not expose this appliance/ apparatus (including all it’s accessories such as AC-adaptor, etc.) to dripping or splashing liquids, and no object filled with liquids should be placed on the appliance/ apparatus (including all it’s accessories). BT CD MP3 USB FM AUX The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : -Reorient or relocate the receiving antenna. -Increase the separation between the product and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. BRAND MAINS PLUG IS USED AS THE DISCONNECT DEVICE AND IT SHOULD REMAIN READILY OPERABLE DURING INTENDED USE. IN ORDER TO DISCONNECT THE APPARATUS FROM THE MAINS COMPLETELY, THE MAINS PLUG SHOULD BE DISCONNECTED FORM THE MAINS SOCKET OUTLET COMPLETELY. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. CLASS 1 LASER PRODUCT 1. READ INSTRUCTIONS - All the safety and operating instruction should be read before the product is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference. 3. HEED WARNINGS - All warning on the product and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed. 5. CLEANING - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. 6. ATTACHMENTS - Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. WATER AND MOISTURE - Do not use this product near water- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. 8. ACCESSORIES - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. 9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may causethe appliance and cart combination to overturn. 10. VENTILATION - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to. 11. POWER SOURCES - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction. 12. GROUNDING OR POLARIZATION - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. Th…

Text truncated - open the document above for the full version.

U5RDA5807 LCD1 SW1-SW13 MCU CD motor driver charging port U4 Bluetooth2402MHz -2480MHz X2 32.768kHz X132.768kHz U3 25 F 20 2 M bit flash IC2 24C022 k bit flash X326MHz F-6288 Bluetooth Module Block Diagram Flash 4Mbit U104 25F04 BT Transceiver Chipset BK8000L U105 Antenna Matching Circuit C9, C10 Crystal Oscillator 26MHz X3 2402MHz – 2480MHz Low Power Bluetooth Audio SoCv 0.2 ©2014 Beken CorporationProprietary and ConfidentialPage 4of 14 1. General Description The BK8000L chip is a highly integrated single-chip Bluetooth audio device. It integrates the high-performance transceiver, rich features baseband processor, and Bluetooth audio profile. The BK8000L cache based architecture enables it is fully programmable with any application, that it may be used for control and multimedia hybrid application. The internal dual stereo ADC converts the stereo line in input to digital audio that enables the line in use the digital equalizer. Hardware equalizer and accelerator offload the MCU, and make it suitable for low power headset application. 1.1. Features lOperation voltage from 2.8 V to 4.2 V lBluetooth 2.1+EDR compliant l-92 dBm sensitivity for 2 Mbps mode and 5 dBm transmit power lA2DP v1.2, AVRCP v1.0 and HFP v1.5 profile lIntegrated 96 dB SNR stereo ADC and stereo DAC lFive bands hardware equalizer lDigital equalizer for stereo line in lHardware accelerator for low power lFull duplex hands-free speakerphone lUp to 250 mA charge controller 1.2. Applications lBluetooth stereo speaker lBluetooth stereo headset lBluetooth control and multimedia hybrid 526& ;7$/ '3// 3RZHU 0DQDJH PHQW 6ZLWFK 5HJXODWRU $XGLR '$& $XGLR $'& /(' 325 0&8 ZLWK -7$* 5HVHW '0$ :DWFK 'RJ ,& )/$6+ &RQWUROOHU ,& 8$57 $'&  .% 'DWD 5$0  .% ,&DFKH 63, 308 %,67 %OXHWRRWK 7UDQVFHLYHU 3:0 $XGLR LQF '70) +:$

23 December, 2014

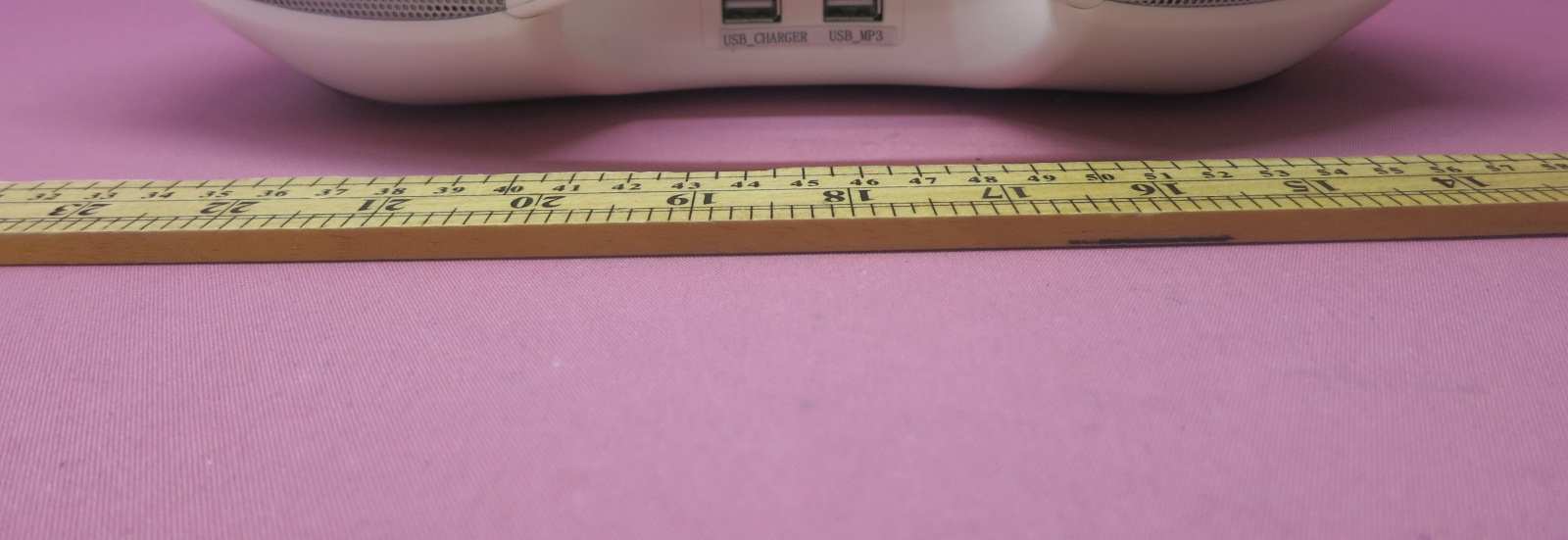

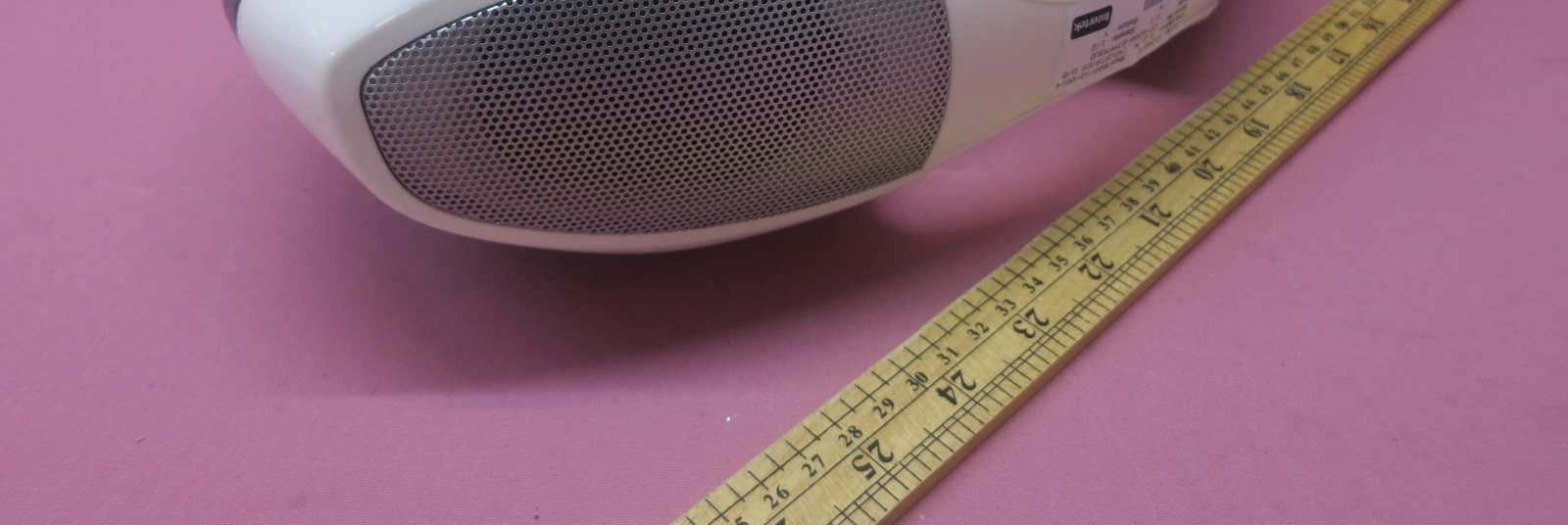

INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (External) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (External)

DATE: 04-DEC-2014_V1 26-NOV-2014_V0 MODEL: CD-6200 DESCRIPTION: LABELS FOR ETL (SCALE 100%) MANUFACTURED : F A C T O R Y I D : NOVEMBER, 2014 FTY - B NO. XXXXXXX 1. SPEC LABEL SIZE: 42*32MM COLOR: WHITE PRINTING ON BLACK LABEL (SCALE 100%) 2. SERIAL NO. LABEL SIZE: 25*5MM COLOR: BLACK PRINTING ON WHITE LABEL (SCALE 100%) 3. DATE CODE LABEL SIZE: 42*7 MM COLOR: BLACK PRINTING ON WHITE LABEL (SCALE 200%) (SCALE 20%) (SCALE 200%) NO. XXXXXXX BLUETOOTH® CD/ RADIO BOOMBOX ~ MODEL:CD-6200-BTPFM3U2 AC:120V60Hz,15W FCC ID: 2AANA-SEM-CD6200 S.E.M. INDUSTRIES No.1 WANG KWONG ROAD, 35/F, TOWER 1, BILLION CENTER, KOWLOON BAY, HONGKONG MADE IN C HIN A 4004525 The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DC:9V(6 x C-CELL/ UM-2/ LR14 BATTERIES) USB(CHARGER):5V1000mA USB(MP3):5V100mA FM: 87.5 - 108 MHz CONFORMS TO ANSI/UL STD. 60065 BLUETOOTH® CD/ RADIO BOOMBOX ~ MODEL:CD-6200-BTPFM3U2 AC:Hz,15W120V60 FCC ID: 2AANA-SEM-CD6200 S.E.M. INDUSTRIES No.1 WANG KWONG ROAD, 35/F, TOWER 1, BILLION CENTER, KOWLOON BAY, HONGKONG MADE IN C HIN A 4004525 The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DC:9V(6 x C-CELL/ UM-2/ LR14 BATTERIES) USB(CHARGER):5V1000mA USB(MP3):5V100mA FM: 87.5 - 108 MHz CONFORMS TO ANSI/UL STD. 60065 Letter size 1mm

INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal) INTERTEK TESTING SERVICE Report No.: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 Equipment Photographs Model: CD-6200-BTPFM3U2 (Internal)

Technical Description The Equipment Under Test (EUT) is a CD Radio Boombox that can accept audio sources including CD, FM Tuner, analog line-in, USB flash drive and Bluetooth devices. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT contains another USB port (for 5V DC changing purpose only). The EUT is powered by 120VAC and/or 9VDC (6 x size “C” batteries). 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 100.6dB μV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. Bluetooth module F-6288 (U1): 1) BK8000L (U105) acts as the 2.4GHz radio core of Bluetooth module F-6288 (U1) which is integrating with audio DSP and CODEC. 2) The 26MHz crystal (X3) provides system clock for BK8000L (U105). 3) 25F04 (U104) is 4Mbit serial flash memory for parameter storage of U105. 4) C9, C10 act as antenna matching network. 2. FM Radio portion: 1) U5 (RDA5807) acts as digital FM radio demodulator. 2) X2 (32.768kHz) provides clock for the U5. 3) IC2 (24C02) is 2kbit serial flash memory for parameter storage of (U5). 3. MCU module: 1) U2 (M5677) acts as MCU core of the product. 2) X1 (32.768kHz) acts as clock for the MCU core (U2). 3) LCD1 is the LCD display while SW1-SW13 are key switches. 4) U3 (25F20) is 2Mbit serial flash memory for parameter storage of U2. 5) U7 (CD5888) is motor drivers for CD mechanism. 4. Audio portion: 1) U4 (SC2134) is volume control, equalization and audio sources selector IC 2) IC1 (TA8227) is 3W x2 power amplifier driving stereo loudspeakers. 5. Power Supply portion: 1) U8 (LM1117/3V3) acts as 3.3VDC power supply. 2) U10 (F7805) acts as 5VDC power supply for CD mechanism. 3) U6 (AX3811) acts as 5VDC power supply for USB charging port. Channel Frequency Table of Bluetooth Module SHENZHENSHIXINZHONGXIN ADD ： block3,donghuanginduatrailpark,shajingtown,baoandistirct,shenzhenshi 电话： 0755-29179480/1FAX:0755-84736169 website：www.c-chip.com.cn --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXINTECHNOLOGYCO.,LTD. TEL：0755-29179480/1/2.FAX:0755-84736169 Address:Block3,DongHuanIndustrialPark,ShaJingTown,Bao’anDistrict,ShenzhenCity,Guangdong,Province,China Web:www.c-chip.com.cn TheBluetoothmoduleF-6288manual 一、Productoverview： IntelligentwirelessaudiodatatransmissionproductF-6288bluetoothmoduleforthe independentdevelopmentofourcompany,isthehighpriceofsterowirelesstransmission schemeoflowcost,moduleusesBEKEN’SBK8000Lchiptoprovidethehighqualityand compatibilityforthemodule,theoverrallbetterperformance.F-6288Bluetoothmodule withfreedrivingmode,customersonlyneedtoaccesstheapplicationmodule products,wirelesstransmissioncanquicklyrealizethemusic,enjoywirelessmusic. 二、Fieleapplication： Thismoduleismainlyusedformusictransimissioninshortdiatance,canbeconnected withmobilephoneandpersonalcomputer,conveniently,theconnectionbeteenPDAand otherdigitalprodducts,enjouybluetoothwirelesstranmissionofmusic. ※Bluetoothaudio ※Bluetoothsteroheadset ※hands-freephone ※Bluetoothwireslessaudiotransmission 三、Essentialqualities： BluetoothProfiles ※BluetoothV2.1+EDRspecificationsupport ※A2DPv1.2 ※AVRCPv1.0 ※HFPv1.5 ※GAVDP1.2 ※HSP1.2 ※IOP 四、Performanceparameters： Module F-6288v4.0 BluetoothqualityBluetoothV2.1+EDR Supplyvolotage： DC2.8-4.2V Suppportbluetoothprotocal HFPV1.5,A2DPV1.2,AVRCPV1.4，HSP1.2,GAVDP1.2，IOP Workingcurrent ≤45mA Standycurrent<500uA Temperaturerange-40ºCto+85ºC Wireslesstranmissionrange： <10m Transmissionpower：CLASS2，4dbm Sensitivity： -80dBm<0.1%BER Frequencyrange： 2.4GHz-2.480GHz EaternalPort： I2C,SPIandUARTinterface AudioPerformanceSBCdecode Theaudiosignaltonoise ratio： ≥75dB SHENZHENSHIXINZHONGXIN ADD ： block3,donghuanginduatrailpark,shajingtown,baoandistirct,shenzhenshi 电话： 0755-29179480/1FAX:0755-84736169 website：www.c-chip.com.cn --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXINTECHNOLOGYCO.,LTD. TEL：0755-29179480/1/2.FAX:0755-84736169 Address:Block3,DongHuanIndustrialPark,ShaJingTown,Bao’anDistrict,ShenzhenCity,Guangdong,Province,China Web:www.c-chip.com.cn Modulesize25X13.5X1.8MM 五、Thesizegraphofthemodule： SHENZHENSHIXINZHONGXIN ADD ： block3,donghuanginduatrailpark,shajingtown,baoandistirct,shenzhenshi 电话： 0755-29179480/1FAX:0755-84736169 website：www.c-chip.com.cn --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXINTECHNOLOGYCO.,LTD. TEL：0755-29179480/1/2.FAX:0755-84736169 Address:Block3,DongHuanIndustrialPark,ShaJingTown,Bao’anDistrict,ShenzhenCity,Guangdong,Province,China Web:www.c-chip.com.cn 六、Modulepindefinitiondiagram： SHENZHENSHIXINZHONGXIN ADD ： block3,donghuanginduatrailpark,shajingtown,baoandistirct,shenzhenshi 电话： 0755-29179480/1FAX:0755-84736169 website：www.c-chip.com.cn --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXINTECHNOLOGYCO.,LTD. TEL：0755-29179480/1/2.FAX:0755-84736169 Address:Block3,DongHuanIndustrialPark,ShaJingTown,Bao’anDistrict,ShenzhenCity,Guangdong,Province,China Web:www.c-chip.com.cn 七、 Pindescription PinSymbI/ODescription 1ADCPowerADCinput 2AUDIORNAudiooutputRightchannelaudiooutputnegative 3AUDIORPAudiooutputRightchannelaudiooutputpositive 4AUDIOLNAudiooutputLeftchannelaudiooutputnegative 5AUDIOLPAudiooutputLeftchannelaudiooutputpositive 6MICBIASMICBIASMICBIAS 7MICINNMIC-MICINN 8MICINPMIC+MICINP 9GPIO2DigitalI/OGPIO2(MUTE) 10MBISTENDigitalI/OMemorybitcheck 11TMS(GPIO19)DigitalI/OJTAGpi…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 14120076HKG-001 The Equipment Under Test (EUT) is a CD Radio Boombox that can accept audio sources including CD, FM Tuner, analog line-in, USB flash drive and Bluetooth devices. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT contains another USB port (for 5V DC changing purpose only). The EUT is powered by 120VAC and/or 9VDC (6 x size “C” batteries). Antenna Type: Internal integral (PCB trace) Antenna Gain: 0dBi Nominal rated field strength: 100.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 103.6dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 6.87mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 6.87mW. The conducted source-based time-averaged output power = (6.87 *5/6 ) mW = 5.73 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted source-based time-averaged output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Bluetooth2402 MHz - 2480MHz X 3 26MHz FM ANT U10 C132.2uF C15100nF L3NC L4 4.7uH C121uF 1 1 2 2 3 3 4 4 X 3 26MHz 1 CE 2 SO 3 WP 4 GND 8 VDD 7 HOLD 6 SCK 5 SI U 10 4 25 F04 C42.2uF C19100nF C910pF R7390R L2NC L7NC C162.2uF 1 ANT U1 ANT_2G4 C18100nF C64.7uF R26.8K R1 10K C2 15pF C1 15pF L6NC C10 2.7pF L1 4.7uH R9 50R C71uF 1 RSTN 2 TSTEN 3 RFP_BT 4 TDI(GPIO20) 5 GPIO11 6 VDD12 7 GPIO0 8 GPIO1 9 GPIO2 10 GPIO3 11 GPIO4 12 GPIO5 13 CSN_FLA 14 WP_FLA 15 SI_FLA 16 SO_FLA 17 SCK_FLA 18 HOLD_FLA 19 VCC3IO 20 SWD 21 VSYS3VD 22 VBUCKD 23 LINR 24 LINL 25 MICINN 26 MICINP 27 V2MICBIAS 28 VREF1AUD 29 VCC3AUD 30 AUDIOLN 31 AUDIOLP 32 AUDIORP 33 AUDIORN 34 VCC5USB 35 VCC4BAT 36 VCC3SYS 37 SWA 40 VADC 41 VBUCKBT 42 VCC3BT 43 VCC3XTAL 44 XO 45 XI 46 TMS(GPIO19) 47 TCK(GPIO18) 48 TDO(GPIO21) 38 VCC3BUCKA 39 VBUCKA U 10 5 BK8000L_QFN48_6X6 C171uF 32 ANT 31 GPIO5 30 GPIO4 12 TCK 13 TDO 14 TDI 15 RST 10 MBISTEN 11 TMS 20 NC1 26 SCL/RX/GPIO1 9 GPIO2(MUTE) 27 SDA/TX/GPIO0 28 GPIO18 29 GPIO19 16 GND 17 GND 21 NC2 22 GPIO3 23 GPIO11 7 MICINN 8 MICINP 6 MICBIAS 5 AUDIO_LP 4 AUDIO_LN 3 AUDIO_RP 2 AUDIO_RN 18 GPIO20 25 BAT_A 24 BAT_B 1 VADC 19 GPIO21 U 1 F-6288 V18BUCK VCC3IO VCC VBUCKD V18BUCK VCC VCC VCC CE XI LINL MICINP SO GPIO21 MICINN HOLD V2M ICBIAS SW_D GPIO4 WP RFP RXDMBISTENGPIO11 AUDIORN VCC3IO LINR AUDIOLN GPIO3 AUDIOLP XO AUDIORP VBUCKD SI GPIO20 ANT VUSB SCK GPIO5 GPIO18 VCC3XT AL SW GPIO19 VADC RSTN VBAT GPIO2 VREF 1AUD TXD V18BUCK VCC SO SCK1 SI CE XI SO1 HOLD SW_D WP RFP VCC3IO XO VBUCKD VBUCKD VBUCKD VBUCKD SI1 SCK VCC3XT AL SW VADC VBAT VREF1AUD V18BUCK V18BUCK V18BUCK V18BUCK V18BUCK VCC VCC VCC VCC VCC SO SCK1 SI ADC AUDIORN AUDIORP AUDIOLNAUDIOLPV2MICBIASMICINNMICINP GPIO2 MBISTENGPIO19GPIO18GPIO21GPIO20 RSTN GPIO20GPIO21 GPIO3 GPIO11 RXD TXD GPIO18GPIO19 GPIO5 GPIO4 VCC Bluetooth2402MHz -2480MHz Bluetooth module F-6288

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - This report shall not be reproduced, except in full. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14120076HKG-001 S.E.M. INDUSTRIES Application For Certification (Original Grant) (FCC ID: 2AANA-SEM-CD6200) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: December 23, 2014 INTERTEK TESTING SERVICES Report No.: 14120076HKG-001 i FCC ID: 2AANA-SEM-CD6200 GENERAL INFORMATION Grantee: S.E.M. INDUSTRIES Grantee Address: 35/F., Tower A, Billion Centre, No. 1 Wang Kwong Road, Kowloon Bay, Hong Kong. Contact Person: Manoj Sabnani Tel: (852) 3761 8000 Fax: (852) 3761 8039 e-mail: N/A Manufacturer: S.E.M. (China) Electronics Factory Manufacturer Address: No. 11, Langhui Road, 1st Industrial Zone, Tangxia Yong Industrial Village, Songgang Town, Bao An County, Shenzhen, Guangdong, China. Brand Name: S.E.M., S-LOGO, NIL, S-DIGITAL, S.E.M. AUDIO LABORATORIES / Coby Model: CD-6200-BTPFM3U2 CD-6200-PFM3U2, CD-6200, CD6200 / MPCD-100-SLV Type of EUT: Transceiver Description of EUT: CD Radio Boombox Serial Number: N/A FCC ID: 2AANA-SEM-CD6200 Date of Sample Submitted: December 02, 2014 Date of Test: December 02, 2014 to December 19, 2014 Report No.: 14120076HKG-001 Report Date: December 23, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14120076HKG-001 ii FCC ID: 2AANA-SEM-CD6200 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass Transmitter Power Line Conducted Emissions 15.207 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14120076HKG-001 iii FCC ID: 2AANA-SEM-CD6200 Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................3 2.3 Special Accessories .......................................................................................3 2.4 Measurement Uncertainty...............................................................................3 2.5 Support Equipment List and Description.........................................................3 3.0 Emission Results .............................................................................................4 3.1 Field Strength Calculation...............................................................................4 3.2 Radiated Emission Configuration Photograph ................................................5 3.3 Radiated Emission Data .................................................................................5 3.4 Conducted Emission Configuration Photograph .............................................5 3.5 Conducted Emission Data ..............................................................................5 4.0 Equipment Photographs ................................................................................10 5.0 Product Labelling ...........................................................................................10 6.0 Technical Specifications ...............................................................................10 7.0 Instruction Manual .........................................................................................10 8.0 Miscellaneous Information .....................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 1420076HKG-001 FCC ID: 2AANA-SEM-CD6200 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: CD-6200-BTPFM3U2 14120076HKG-001 CD-6200-BTPFM3U2 Side A INTERTEK TESTING SERVICE Report No: 1420076HKG-001 FCC ID: 2AANA-SEM-CD6200 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: CD-6200-BTPFM3U2 14120076HKG-001 CD-6200-BTPFM3U2 Side B

INTERTEK TESTING SERVICE Report No: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: CD-6200-BTPFM3U2 INTERTEK TESTING SERVICE Report No: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: CD-6200-BTPFM3U2 INTERTEK TESTING SERVICE Report No: 14120076HKG-001 FCC ID: 2AANA-SEM-CD6200 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: CD-6200-BTPFM3U2
